500E-Length
Length 4m
500E-Height
Height 2.68m
Bale rectangular
Rectangular Bale 1 (4'x3'/4'x4')
Round bale size
Round Bales 1x1.5m
500E-Weight
Weight 1,900kg

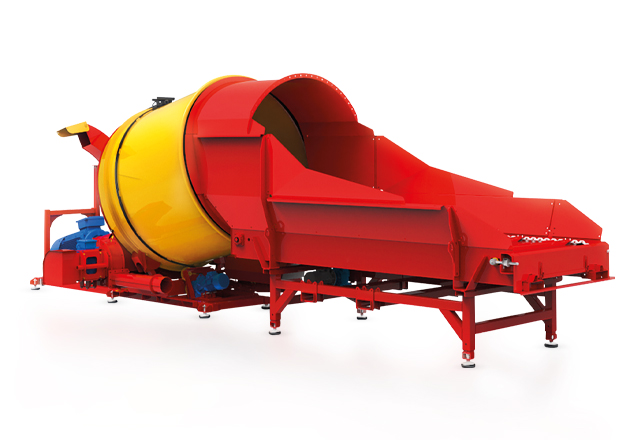

Why a 500E?

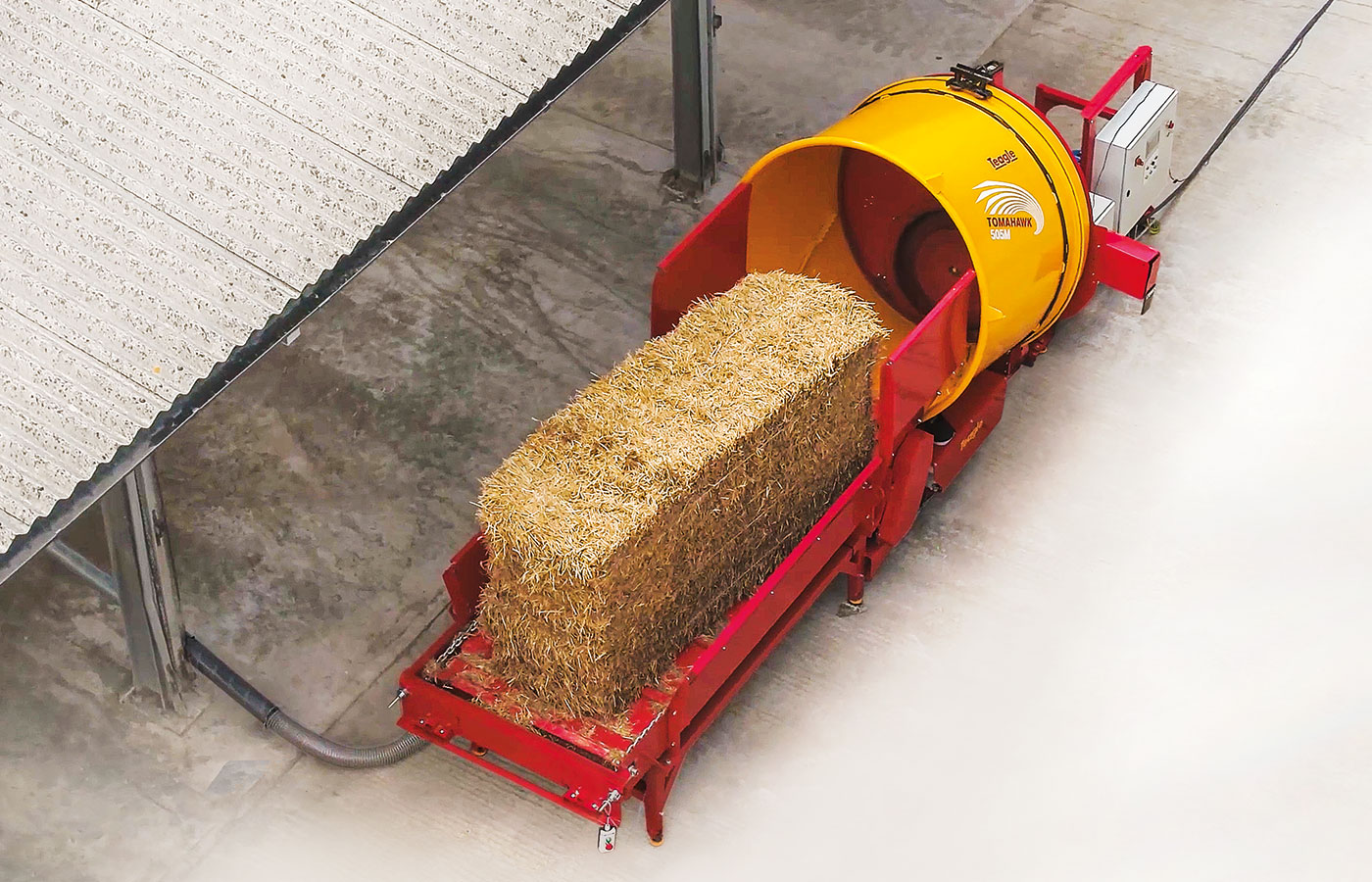

An automated Feed Conveyor and Straw Mill for round and rectangular bales.

The mill is equipped with a 45kW electric motor to process up to 3.5 tons/hr., subject to desired product length. Processed material can then be discharged at low or high level, or transferred up to 60m with an optional transfer fan.

Key Benefits:

  • No tractor required. Designed to integrate to automated processing systems, or to operate indpendently to fill a bunker.

  • Dry material (recommended <20% moisture content) can be precisely processed from 10mm to 120mm by changing the screen size in the mill.

Explore the 500E

Highlights
Features
Options
Overview
Tomahawk 500E highlights
Calibrated Output
Calibrated Output
Calibrated Output

Hardox Screens are interchangable, with hole diameters from 8mm - 120mm.

Precision Processing
Precision Processing
Precision Processing

Bales of dry material (<20% moisture) are milled to a precise length by 40 blades (20 hammer option also available), with chop length controlled by a hardox screen.

45kW Motor - standard
45kW Motor - standard

Copy here

Low Loading Height
Low Loading Height

Copy here

Process Optimisation
Process Optimisation

Power loading - copy here

Quiet Operation
Quiet Operation

Copy here

Remote Access
Remote Access
Remote Access

Copy here

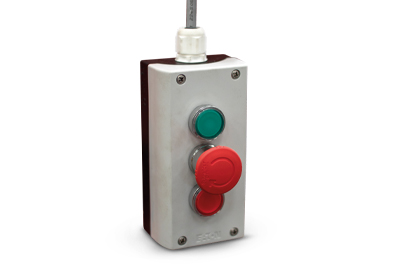

Remote Conveyor Startup
Remote Conveyor Startup
Remote Conveyor Startup

Initiate processing from the end of the loading conveyor

Straight forward Maintenance
Straight forward Maintenance

Copy here

OPTION : 55kW Motor
OPTION : 55kW Motor

Copy here

OPTION : Additional conveyor sections
OPTION : Additional conveyor sections

Copy here

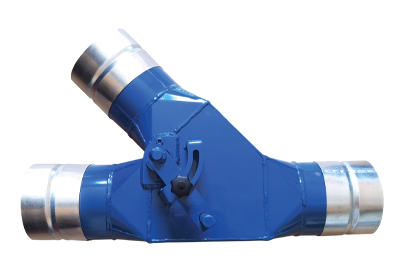

OPTION : Asymmetrical Diverter Value
OPTION : Asymmetrical Diverter Value
OPTION : Asymmetrical Diverter Value

High specification mechanical diverter valves to enable assembly of bespoke fixed manifold systems.

OPTION : Booster Fan
OPTION : Booster Fan
OPTION : Booster Fan

An 11kW booster fan can transfer processed material up to 60m

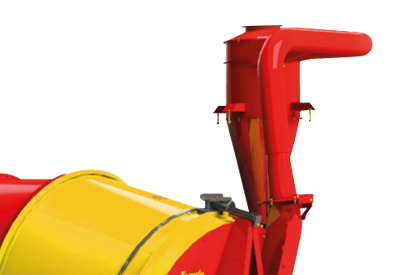

OPTION : Dust Removal Cyclone
OPTION : Dust Removal Cyclone
OPTION : Dust Removal Cyclone

A dust collection cyclone can be fitted when the machine is combined with some automated bedding systems.

OPTION : Dust Suppression Kit
OPTION : Dust Suppression Kit
OPTION : Dust Suppression Kit

The liquid spray kit can be fitted to any model in the 400 - 500 Tomahawk range to reduce dust from milled straw, or to enable the application of anti-bacterial products to bedding.

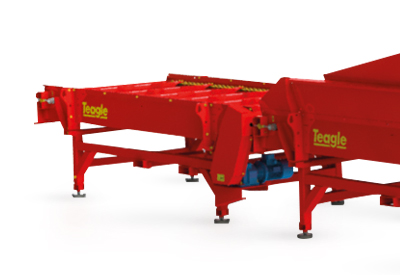

OPTION : Feed Conveyors
OPTION : Feed Conveyors
OPTION : Feed Conveyors

Up to four conveyors can be configured with the machine in order to increase the autonomy of the milling plant and minimise loading operations.

OPTION : Relocation of Control Panel
OPTION : Relocation of Control Panel

Copy here

OPTION : Remote Conveyor Startup
OPTION : Remote Conveyor Startup
OPTION : Remote Conveyor Startup

Initiate processing from the end of the loading conveyor

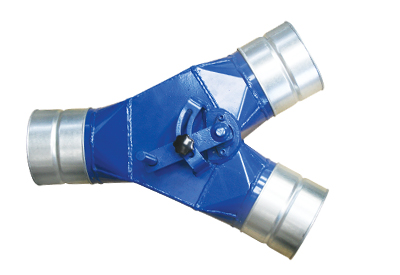

OPTION : Symmetrical Diverter Valve
OPTION : Symmetrical Diverter Valve
OPTION : Symmetrical Diverter Valve

High specification mechanical diverter valves to enable assembly of bespoke fixed manifold systems.

OPTION : Various Delivery Systems
OPTION : Various Delivery Systems
OPTION : Various Delivery Systems

High speed fan can be connected to various delivery systems.

OPTION : Various Delivery Systems
OPTION : Various Delivery Systems
OPTION : Various Delivery Systems

High speed fan can be connected to various delivery systems.

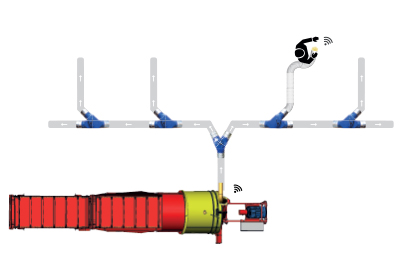

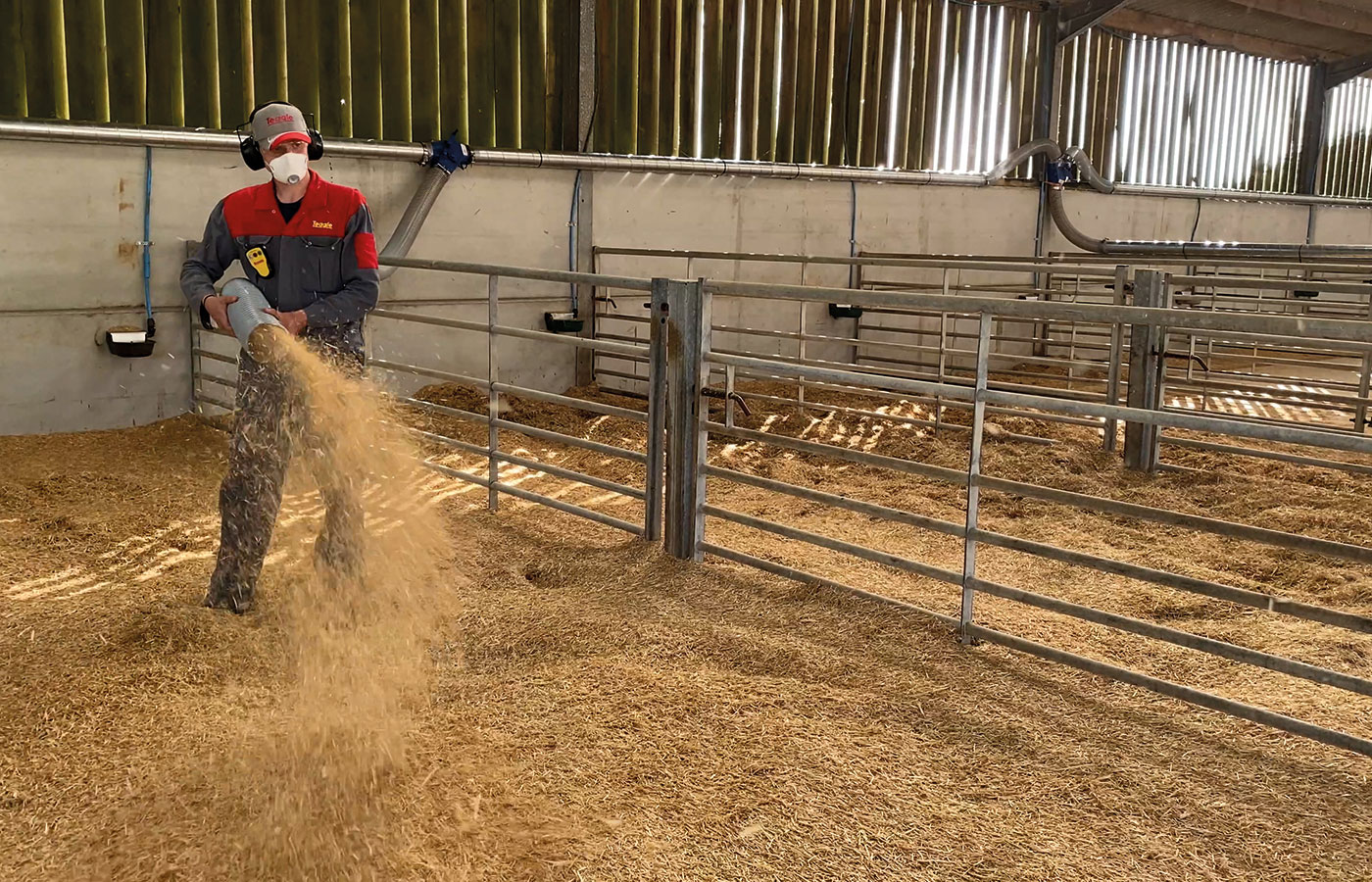

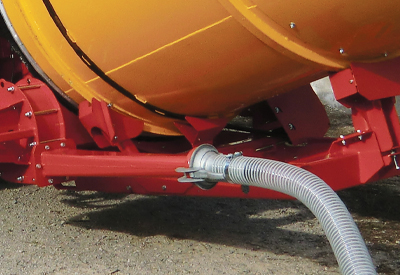

Remote Distribution
Remote Distribution
Remote Distribution

The high speed turbo fan makes it possible to send finely chopped straw in a pipe of 127mm diameter up to 80 meters. Hose and valve options available to build your system.

British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

Save Straw / Save Time
Save Straw / Save Time
Save Straw / Save Time

Users regularly report up to 30% savings by spreading the correct amount of straw evenly across the bedding area.

Highlights
Features
Options
Overview
Tomahawk 500E features
45kW Motor - standard
45kW Motor - standard

Copy here

Low Loading Height
Low Loading Height

Copy here

Process Optimisation
Process Optimisation

Power loading - copy here

Quiet Operation
Quiet Operation

Copy here

Remote Access
Remote Access
Remote Access

Copy here

Remote Conveyor Startup
Remote Conveyor Startup
Remote Conveyor Startup

Initiate processing from the end of the loading conveyor

Straight forward Maintenance
Straight forward Maintenance

Copy here

Highlights
Features
Options
Overview
Tomahawk 500E options
OPTION : 55kW Motor
OPTION : 55kW Motor

Copy here

OPTION : Additional conveyor sections
OPTION : Additional conveyor sections

Copy here

OPTION : Asymmetrical Diverter Value
OPTION : Asymmetrical Diverter Value
OPTION : Asymmetrical Diverter Value

High specification mechanical diverter valves to enable assembly of bespoke fixed manifold systems.

OPTION : Booster Fan
OPTION : Booster Fan
OPTION : Booster Fan

An 11kW booster fan can transfer processed material up to 60m

OPTION : Dust Removal Cyclone
OPTION : Dust Removal Cyclone
OPTION : Dust Removal Cyclone

A dust collection cyclone can be fitted when the machine is combined with some automated bedding systems.

OPTION : Dust Suppression Kit
OPTION : Dust Suppression Kit
OPTION : Dust Suppression Kit

The liquid spray kit can be fitted to any model in the 400 - 500 Tomahawk range to reduce dust from milled straw, or to enable the application of anti-bacterial products to bedding.

OPTION : Feed Conveyors
OPTION : Feed Conveyors
OPTION : Feed Conveyors

Up to four conveyors can be configured with the machine in order to increase the autonomy of the milling plant and minimise loading operations.

OPTION : Relocation of Control Panel
OPTION : Relocation of Control Panel

Copy here

OPTION : Remote Conveyor Startup
OPTION : Remote Conveyor Startup
OPTION : Remote Conveyor Startup

Initiate processing from the end of the loading conveyor

OPTION : Symmetrical Diverter Valve
OPTION : Symmetrical Diverter Valve
OPTION : Symmetrical Diverter Valve

High specification mechanical diverter valves to enable assembly of bespoke fixed manifold systems.

OPTION : Various Delivery Systems
OPTION : Various Delivery Systems
OPTION : Various Delivery Systems

High speed fan can be connected to various delivery systems.

OPTION : Various Delivery Systems
OPTION : Various Delivery Systems
OPTION : Various Delivery Systems

High speed fan can be connected to various delivery systems.

Remote Distribution
Remote Distribution
Remote Distribution

The high speed turbo fan makes it possible to send finely chopped straw in a pipe of 127mm diameter up to 80 meters. Hose and valve options available to build your system.

Highlights
Features
Options
Overview
Tomahawk 500E overview
British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

Save Straw / Save Time
Save Straw / Save Time
Save Straw / Save Time

Users regularly report up to 30% savings by spreading the correct amount of straw evenly across the bedding area.

Watch the Tomahawk 500E in action

Tomahawk 500E

The Electric Advantage

Lower Running Costs

  • A smaller drive unit
  • A significantly smaller electric drive (45kW) is needed than when using a tractor (typically 90kW) for the same output.
  • Reduce peak loading: Electrical current is carefully monitored and the feed rate controlled.
  • Non-stop feed: The automated feed continuously provides material for the mill to process, reducing idle time.
  • Reduced Waste
  • The system will automatically shut down when the feed conveyor is empty.
  • No tractor required
  • Don’t tie up a valuable tractor. Reduce fuel and maintenance costs.
  • Save time
  • Simply load the bales and press run.
  • Prepare bales for loading whilst the T500E processes.

Specifications

Description
500E
Rotor
Mill
Max. round bale diam.
1.50m
Max. Rectangular bales
1.20m x 1.20m x 2.40m
Overall height*
2.68m
Overall length
4.0m
Overall length with one conveyor
7.55m
Overall width
2.00m
Bale chamber diameter
1.80m
Power (min.)45kW
Rotor Speed
1,000 rpm
Weight
1,900kg
Conveyor Weight1,250kg
*Working heights will increase by up to 1m depending on tractor
