8250M-blow
Blow Distance 20m
Tractor
Power (min.) 150HP / 113kW
8250M-height
Overall Height 2.43m
Bale rectangular
Straw Bales 1 x 4’x4'x8'
bale size
Straw Bales 2 x 5'

Why choose the 8250 Series?

With 'Generation 3' Dual Chop and SYNCHRO Control

The mounted 8250M replaces the 7150 model and the 8250T replaces the 8150 model, both with a massive increase in processing capacity.

  • Gen 3 Dual Chop: 40% Increase in chopping speed for a faster, finer and more consistent chop.

  • SYNCHRO Processing System: Stop / Start spreading at the touch of a button, control feed rate with one simple control.
How SYNCHRO works

Explore the 8250M

Highlights
Features
Options
Overview

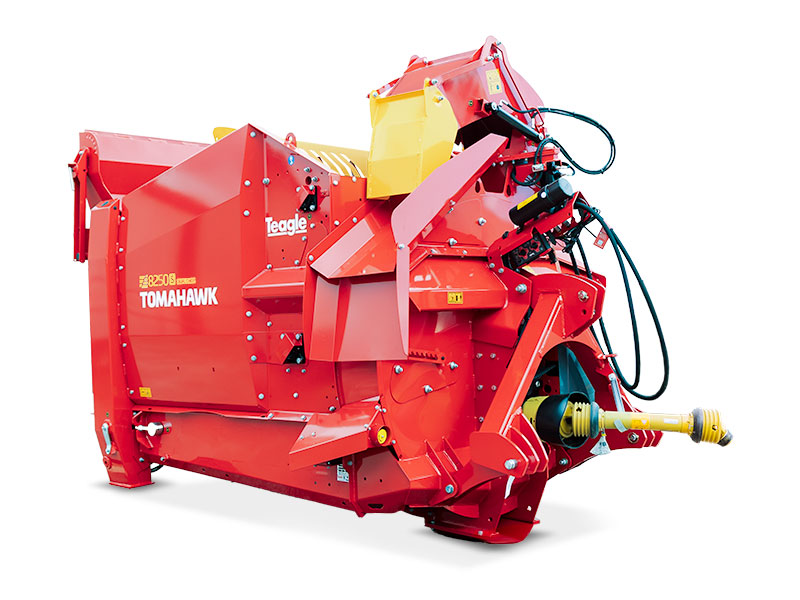

Tomahawk 8250M highlights
Adjustable bale restraint
Adjustable bale restraint
Adjustable bale restraint

Variable position bale restraint (adjusted via WIFI control) ensures optimum output with straw. (or silage for 8200).

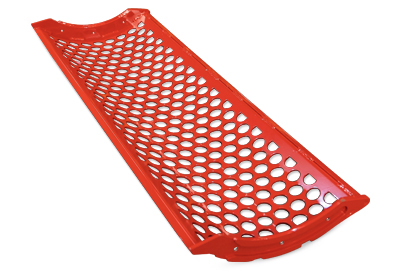

Calibrated Output
Calibrated Output
Calibrated Output

A screen ensures that straw only leaves the Dual Chop System when it is full processed. 50mm, 40mm (std.) and 30mm screens available.

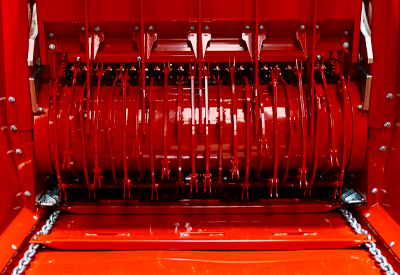

Dual Chop Crossbeater
Dual Chop Crossbeater
Dual Chop Crossbeater

Our 3rd Generation 'Dual Chop' system features a 40% increase in the cutting speed (now over 64,000 scissor chops per minute) to deliver a fine and consistent chop length.

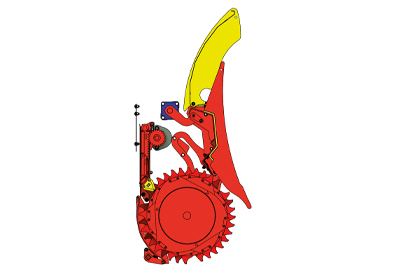

Dual Chop System
Dual Chop System
Dual Chop System

A large diameter crossbeater fitted with 132 hardox rippers removes straw from the bale and passed it direct to the fan unchopped, or at the touch of a button a blade bank lowers to chop straw short.

OPTION : Trailed Version
OPTION : Trailed Version
OPTION : Trailed Version

For smaller tractors or improved maneuverability in tight yards the 8250M is also available trailed, as the 8250T.

Wireless Control with SYNCHRO
Wireless Control with SYNCHRO
Wireless Control with SYNCHRO

The tethered WiFi control desk has been updated to include the new 'SYNCHRO' functions to get the most from the Dual Chop system. Maximum output, minimum effort.

8 Paddle Fan
8 Paddle Fan
8 Paddle Fan

Our 2 speed fan has an updated paddle design to ensure a consistent delivery and maximum blow distance. The 8 paddles are easily replaced for straightforward servicing.

Bale Beam
Bale Beam
Bale Beam

The bale retention beam on the tailgate can be adjusted between one loading and six operating positions.

Bed Slats
Bed Slats
Bed Slats

Seven heavy-duty 60mm x 40mm bed slats are attached with U-Bolts for straightforward servicing to large 10mm diameter galvanised bed chains.

Central Lubrication
Central Lubrication
Central Lubrication

Auto chain oiler (crossbeater drive) is recommended for high-use operations. Standard for Dual Chop 8250 models.

Chain Drive to Crossbeater
Chain Drive to Crossbeater
Chain Drive to Crossbeater

For reliable transmission of power the 8250 crossbeater has a heavy duty chain drive that is automatically lubricated when the bed chain is running.

Clean Operation
Clean Operation
Clean Operation

The 8200 series is designed with high sides to contain material, with horizontal surfaces also eliminated to keep the machine clean.

Driveline Protection
Driveline Protection
Driveline Protection

The PTO is fitted with overrun and Slip Clutch driveline protection.

Hardox Chute
Hardox Chute
Hardox Chute

Manufactured using Hardox, the wearing surfaces in the chute offer a service life up to 3 times longer than standard steel.

Pre-selector gearbox
Pre-selector gearbox
Pre-selector gearbox

All Box Tomahawk models feature a high specification gearbox, with high/low fan speed gear pre-selection.

Road Lights & Mudguards
Road Lights & Mudguards
Road Lights & Mudguards

Essential for highway use, the front and rear markers ensure that you operate safely when travelling on the road. (standard on trailed models).

Stone Trap
Stone Trap
Stone Trap

Stones and debris can quickly be removed from the drop down hatch at the rear of the machine.

Swivel Chute
Swivel Chute
Swivel Chute

For flexibility of delivery, the chute rotates 280 degrees allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.

Tailgate Switch
Tailgate Switch
Tailgate Switch

Load bales without having to return to the tractor cab, ideal when removing netting or wrap.

OPTION : Hydroshield - Dust Suppression
OPTION : Hydroshield - Dust Suppression
OPTION : Hydroshield - Dust Suppression

Reduce respirable dust by up to 40% with our Hydroshield water spray system. An onboard tank and 5 high pressure spray nozzles.

OPTION : Oil Filter
OPTION : Oil Filter
OPTION : Oil Filter

In-line high pressure filter prevents contamination from damaging the valve equipment.

OPTION : Ski Jump Chute
OPTION : Ski Jump Chute
OPTION : Ski Jump Chute

The optional ‘Ski Jump Chute’ is perfect for bedding pig arcs and mulching fruit trees. As standard it is fitted with hydraulic control of the angle (requires second spool).

OPTION : Various screen sizes
OPTION : Various screen sizes
OPTION : Various screen sizes

To ensure the straw product matches your needs, various screen sizes are available with 50mm, 40mm (std.) and 30mm holes.

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

Maximise Profitability
Maximise Profitability
Maximise Profitability

Reduces time and effort compared to bedding by hand. Evenly spread a bales in bedding areas to reduce straw usage and provide a comfortable and absorbent bed for cleaner healthier livestock.

Safety
Safety
Safety

All of our trailed implements are manufactured in accordance with In Homologation certification according Article 35 of Regulation (EU) No. 167/2013.

Highlights
Features
Options
Overview
Tomahawk 8250M features
8 Paddle Fan
8 Paddle Fan
8 Paddle Fan

Our 2 speed fan has an updated paddle design to ensure a consistent delivery and maximum blow distance. The 8 paddles are easily replaced for straightforward servicing.

Bale Beam
Bale Beam
Bale Beam

The bale retention beam on the tailgate can be adjusted between one loading and six operating positions.

Bed Slats
Bed Slats
Bed Slats

Seven heavy-duty 60mm x 40mm bed slats are attached with U-Bolts for straightforward servicing to large 10mm diameter galvanised bed chains.

Central Lubrication
Central Lubrication
Central Lubrication

Auto chain oiler (crossbeater drive) is recommended for high-use operations. Standard for Dual Chop 8250 models.

Chain Drive to Crossbeater
Chain Drive to Crossbeater
Chain Drive to Crossbeater

For reliable transmission of power the 8250 crossbeater has a heavy duty chain drive that is automatically lubricated when the bed chain is running.

Clean Operation
Clean Operation
Clean Operation

The 8200 series is designed with high sides to contain material, with horizontal surfaces also eliminated to keep the machine clean.

Driveline Protection
Driveline Protection
Driveline Protection

The PTO is fitted with overrun and Slip Clutch driveline protection.

Hardox Chute
Hardox Chute
Hardox Chute

Manufactured using Hardox, the wearing surfaces in the chute offer a service life up to 3 times longer than standard steel.

Pre-selector gearbox
Pre-selector gearbox
Pre-selector gearbox

All Box Tomahawk models feature a high specification gearbox, with high/low fan speed gear pre-selection.

Road Lights & Mudguards
Road Lights & Mudguards
Road Lights & Mudguards

Essential for highway use, the front and rear markers ensure that you operate safely when travelling on the road. (standard on trailed models).

Stone Trap
Stone Trap
Stone Trap

Stones and debris can quickly be removed from the drop down hatch at the rear of the machine.

Swivel Chute
Swivel Chute
Swivel Chute

For flexibility of delivery, the chute rotates 280 degrees allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.

Tailgate Switch
Tailgate Switch
Tailgate Switch

Load bales without having to return to the tractor cab, ideal when removing netting or wrap.

Highlights
Features
Options
Overview
Tomahawk 8250M options
OPTION : Hydroshield - Dust Suppression
OPTION : Hydroshield - Dust Suppression
OPTION : Hydroshield - Dust Suppression

Reduce respirable dust by up to 40% with our Hydroshield water spray system. An onboard tank and 5 high pressure spray nozzles.

OPTION : Oil Filter
OPTION : Oil Filter
OPTION : Oil Filter

In-line high pressure filter prevents contamination from damaging the valve equipment.

OPTION : Ski Jump Chute
OPTION : Ski Jump Chute
OPTION : Ski Jump Chute

The optional ‘Ski Jump Chute’ is perfect for bedding pig arcs and mulching fruit trees. As standard it is fitted with hydraulic control of the angle (requires second spool).

OPTION : Various screen sizes
OPTION : Various screen sizes
OPTION : Various screen sizes

To ensure the straw product matches your needs, various screen sizes are available with 50mm, 40mm (std.) and 30mm holes.

Highlights
Features
Options
Overview
Tomahawk 8250M overview
A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

Maximise Profitability
Maximise Profitability
Maximise Profitability

Reduces time and effort compared to bedding by hand. Evenly spread a bales in bedding areas to reduce straw usage and provide a comfortable and absorbent bed for cleaner healthier livestock.

Safety
Safety
Safety

All of our trailed implements are manufactured in accordance with In Homologation certification according Article 35 of Regulation (EU) No. 167/2013.

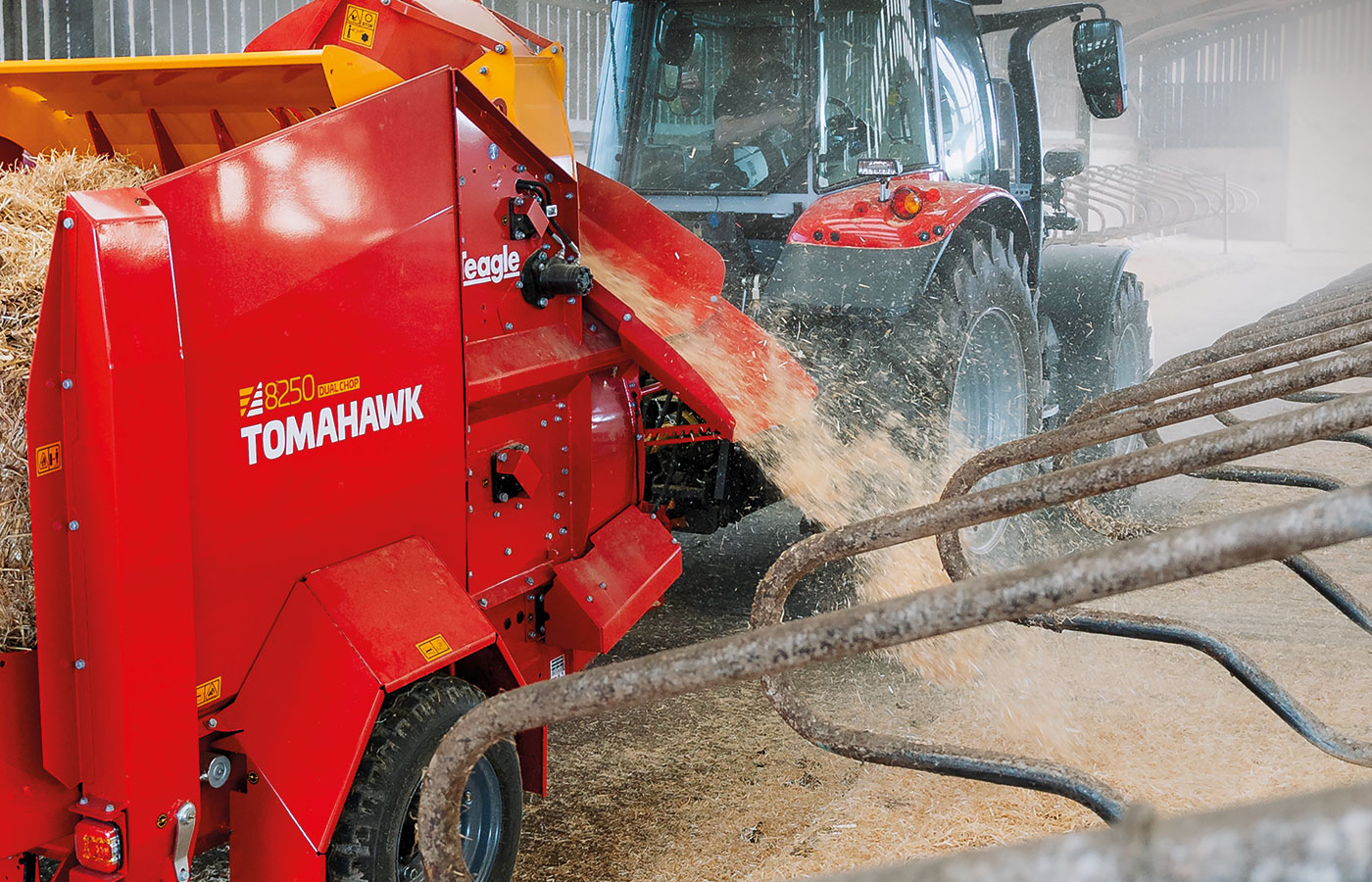

Watch the Tomahawk 8250 in action

Tomahawk 8200 series

Customer Review

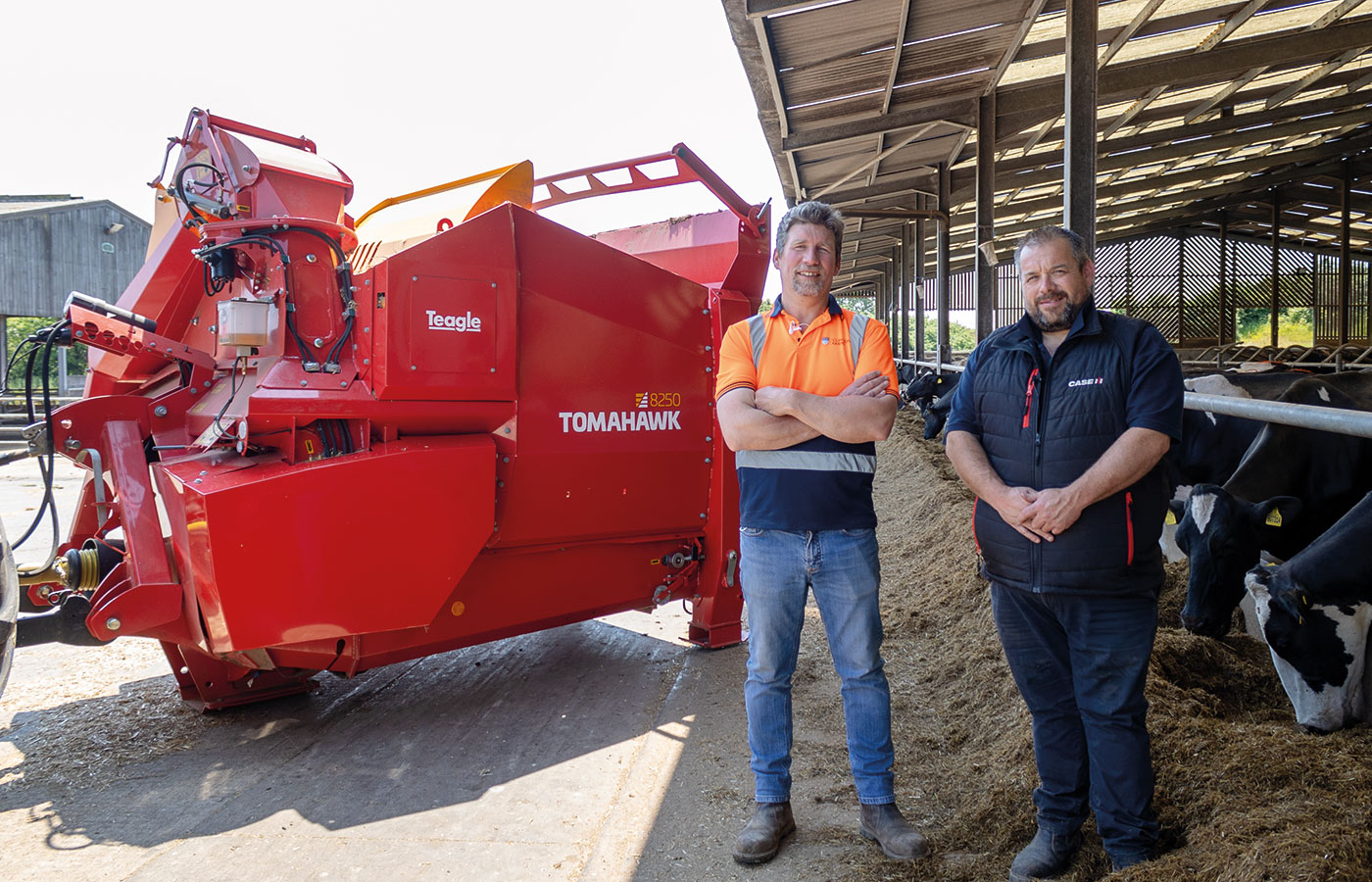

Adam Lovatt (left) & Greg Gray at Clinton Devon Farm Partnership, Devon

"In the last 4 months we’ve put over 400 bales through the machine with no faults at all, there’s a handy little device on the control box, a button to press, if you feel the machine struggling a bit you press this button and it takes all the pressure off, gives it a chance to clear itself, then you press the button again and it’ll continue flowing through.
We previously had the 7100, but this 8250 is so much better, the 7100 was a great machine but this is just a real good step up.

You’ve got two (new) settings on the control box, a setting for chopping straw short for feed at a certain speed and a setting for bedding up. You can just press a  button and it’ll stop everything in an instant which is a fantastic feature."

Specifications

Description
8250M
Chute
Swivel
Dual Chop
Yes
Silage
No
Straw
Chop/Spread
Crossbeaters
1
Capacity (m3)
3.2
No. of 5’ round bales
2
No. of 8’ rect' bales (4’x 2’6”/ 4’x4’)
1/1
Bale chamber (tailgate down) W x H x L1.43 x 1.35 x 3.00m
Blow distance (max.)20m
Tractor power (min.)
150HP / 113kW
PTO speed1,000 rpm
Overall width (chute closed)1.87m
Overall length (tailgate up)3.02m
Overall length (tailgate/bale clamp down)4.88m
Overall height (chute closed)2.43m
Unladen weight2,166kg
Tyre sizeN/A
Oil flow rate (min/max) (l/min)35 - 60
