Working Width
Working Width 2.0m - 3.0m
Tractor
Power 50 - 130HP
PTO
PTO 1000/540 rpm
Hammer Flails
Hammer Flails 'A' Type
Weight
Weight 765kg - 1,080kg

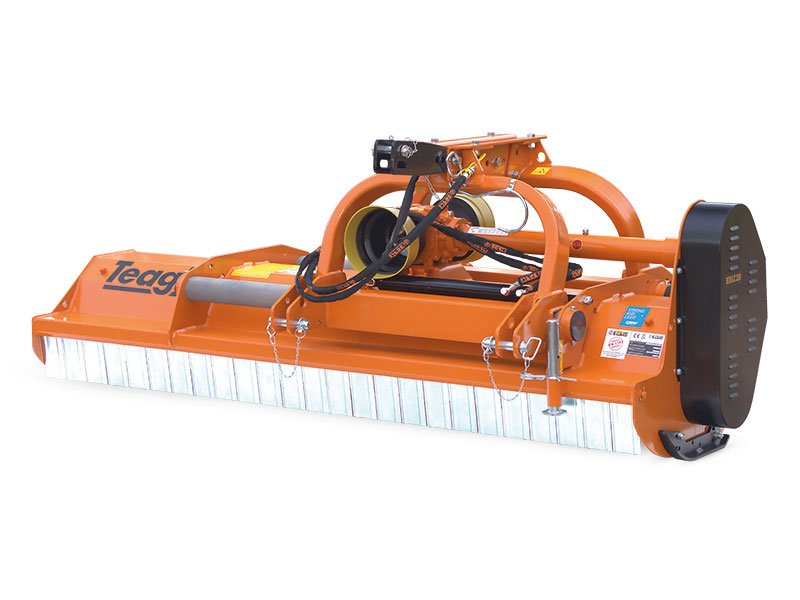

Why choose the BIMAX

Suited to mulch grass, bushes, scrub and pruning up to Ø6cm, ideal for general clearing of open field.

Key Benefits:

  • Double 3-point linkage, Cat. II
  • Hydraulic side shift
  • Single fixed counter-blades (extra bolted line optional)
  • Self-cleaning and adjustable Ø159 / Ø194** rear roller
  • Double free wheel in the gearbox.
  • PTO 540/1000 rpm (reversing the pulleys)

Explore the BIMAX

Features
Options

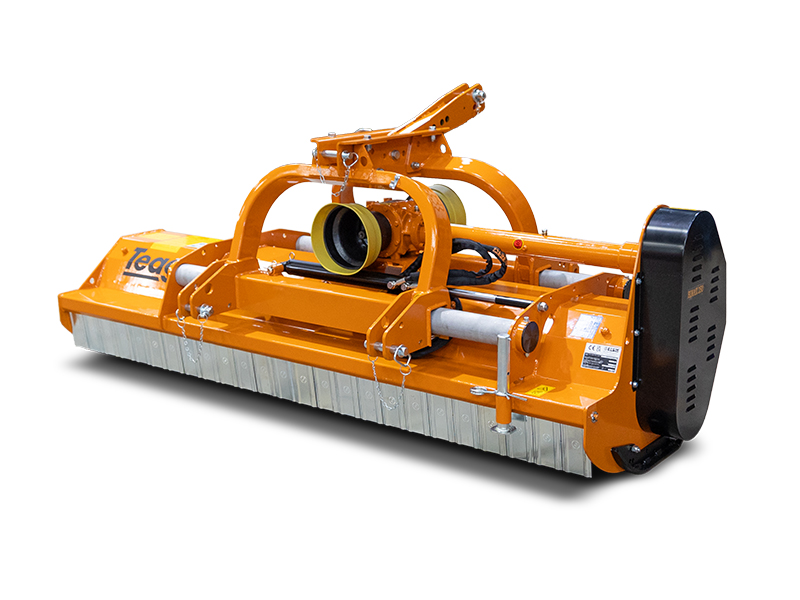

BIMAX features
Belt Tensioning
Belt Tensioning
Belt Tensioning

The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

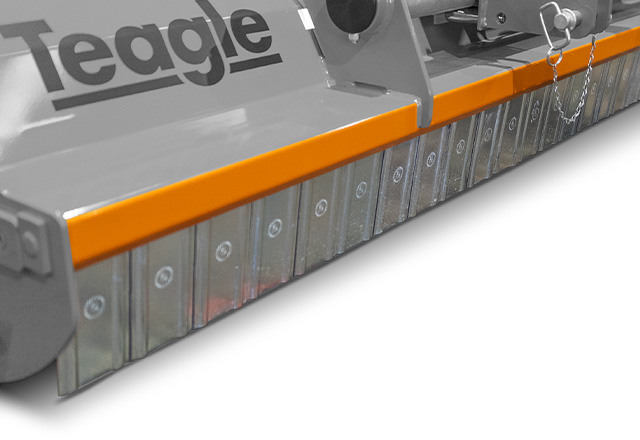

Debris Protection
Debris Protection
Debris Protection

Pivoting chains are fitted to the front of the machine to prevent debris being thrown up at the tractor.

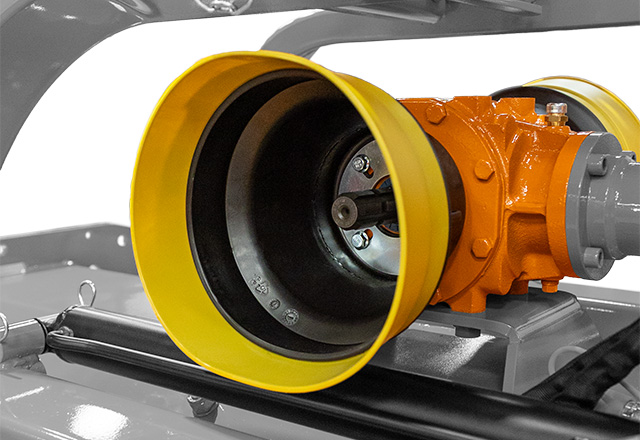

Front/Rear Through Shaft
Front/Rear Through Shaft
Front/Rear Through Shaft

Comer gearbox offers 1" 3/8 through input shaft for front & rear operation utilising a double free wheel overrun.

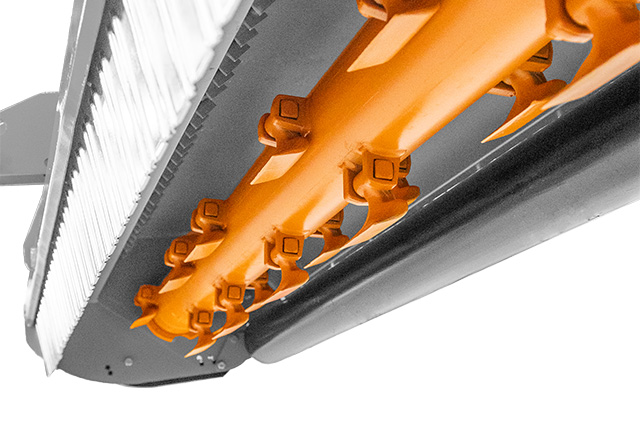

High Performance Rotors
High Performance Rotors
High Performance Rotors

The large diameter seamless tube is dynamically balanced and delivers a market leading tip speed, as well as strength in operation. Stout lugs hold the flails firmly in place.

Large Diameter Roller
Large Diameter Roller
Large Diameter Roller

The large diameter roller runs on greasable bearings that are protected from debris within a deep labyrinth arrangement.

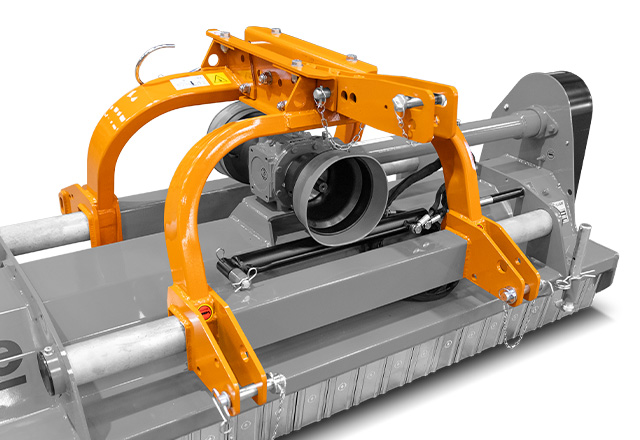

Reversible Linkage
Reversible Linkage
Reversible Linkage

Displaceable and reversible 3-point linkage, cat. II (mechanical).

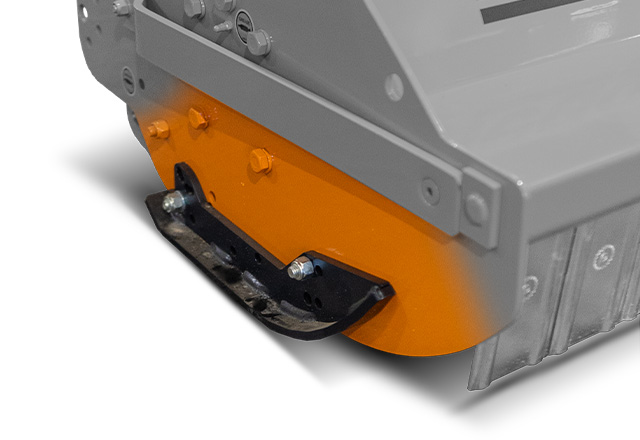

Skid steers
Skid steers
Skid steers

All front and rear models come with Hardox side skids fitted.

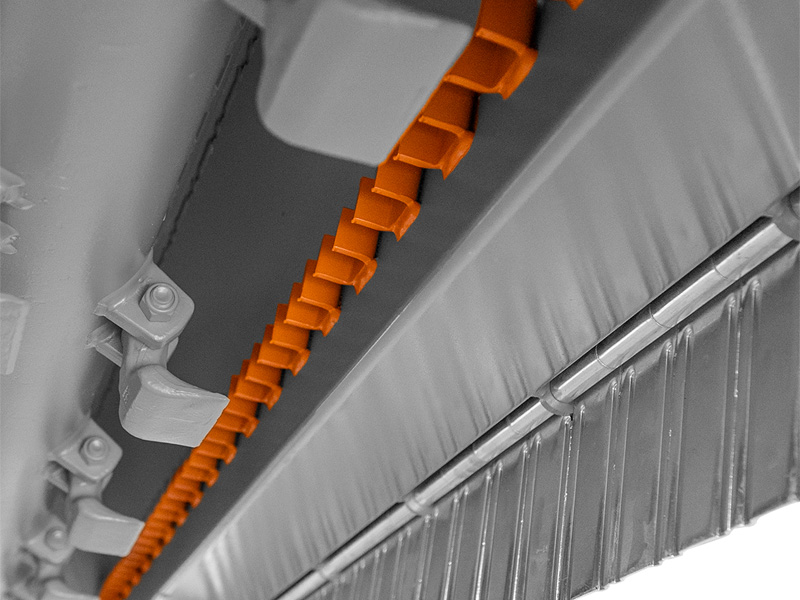

OPTION : Counter blades
OPTION : Counter blades
OPTION : Counter blades

For improved mulching performance the BIMAX model feature a set of counter blades, with an additional set of blades as optional.

Features
Options

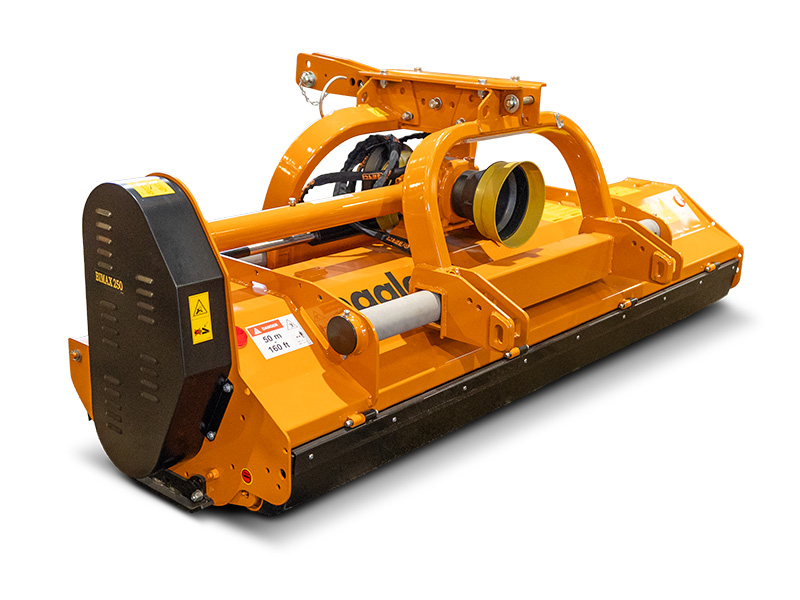

BIMAX options
OPTION : Counter blades
OPTION : Counter blades
OPTION : Counter blades

For improved mulching performance the BIMAX model feature a set of counter blades, with an additional set of blades as optional.

Watch all our flail mulchers in action

Dual Flail Mower

1. Automatic Belt Tensioning
The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

2. High Quality Driveline
From the Waltersheid PTO shaft to the high quality gearbox, components have been carefully selected to offer trouble free operation.

3. Robust Body
The Double skin body incorporates Strenx high performance steel in the inner hood and Hardox in the skids for greater durability. The body is shot blasted and protected with a high quality paint finish.

4. Side skids
All front and rear models come with side skids fitted.

Specifications

More
Description
BIMAX 200BIMAX 220BIMAX 250BIMAX 280BIMAX 300
Working width
2.0m2.2m2.5m2.8m3.0m
Power - min/max
50 - 100HP
60 - 100HP
60 - 130HP
70 - 130HP
70 - 130HP
Lateral displacement (mm) LH1210/7901320/8801320/1180
1610/1190
1610/1390
Lateral displacement (mm) RH690/1310800/1400800/17001040/17601040/1960
No. of 'A' hammers
1820222628
No. of 'YA' blades*5460667884
No. of belts
44444
Overall height1.0m
1.0m
1.03m
1.06m
1.06m
Overall length2.20m2.40m2.70m3.0m3.20m
Overall width1.25m1.25m1.25m1.25m1.25m
PTO (rpm)
1000 (540)1000 (540)
1000 (540)1000 (540)
1000 (540)
Weight - min/max
765/905kg800/940kg850/990kg905/1,045kg940/1,080kg
* By special order only  **ERK/S 180 & 250 fitted with ø159 roller / EKR/S 280 & 300 fitted with ø194 roller
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
