Working Width
Working Width 2.0m - 3.0m
Tractor
Power 70 - 160HP
PTO
PTO 1000/540 rpm
Hammer Flails
Hammer Flails 'A' Type
Weight
Weight 875kg - 1,210kg

Why choose the DUAL

Suited to mulch grass, bushes, maize stalks, corn stalks, sunflowers, scrub and pruning up to Ø8cm.

Key Benefits:

  • Double 3-point linkage, Cat. II
  • Hydraulic side shift
  • Self cleaning and adjustable Ø159 roller
  • Double free wheel in the gearbox
  • 1000rpm (540rpm special order)

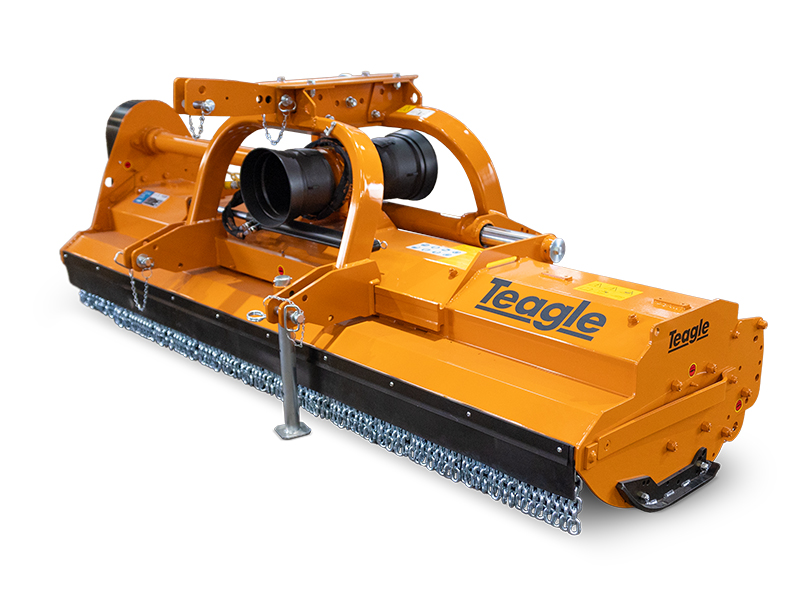

Explore the DUAL

Features
DUAL features
Adjustable Hood
Adjustable Hood
Adjustable Hood

For improved mulching performance the adjustable hood contain or release cut material as required.

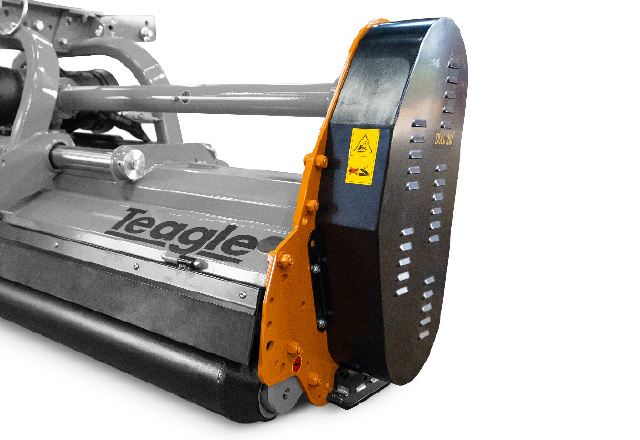

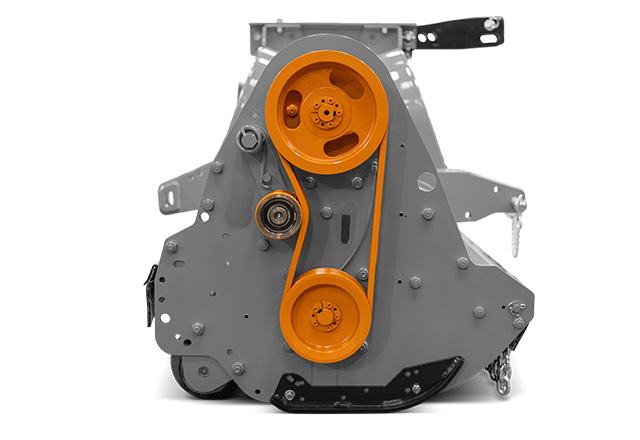

Belt Tensioning
Belt Tensioning
Belt Tensioning

The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

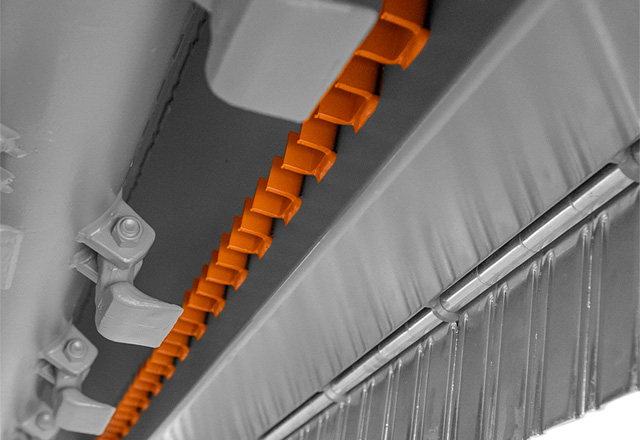

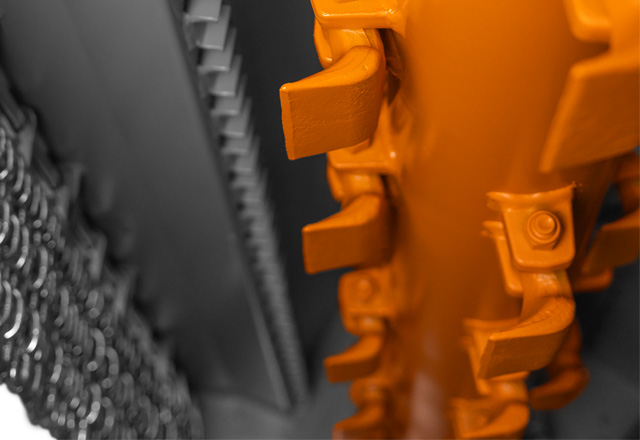

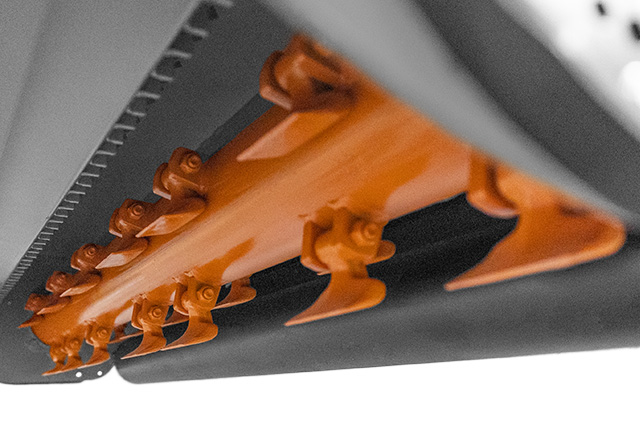

Counter Blades
Counter Blades
Counter Blades

For improved mulching performancethe Dual is fitted with an additional set of counter blades.

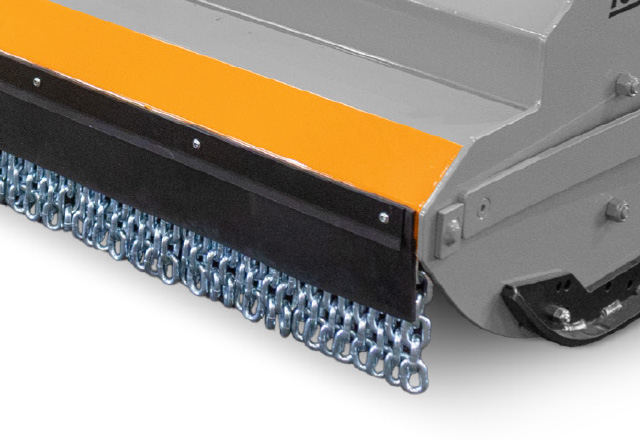

Debris Protection
Debris Protection
Debris Protection

Pivoting chains are fitted to the front of the machine to prevent debris being thrown up at the tractor.

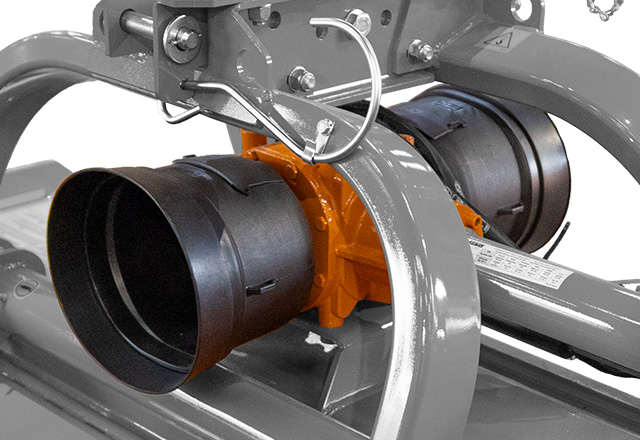

Front/Rear Through Shaft
Front/Rear Through Shaft
Front/Rear Through Shaft

Comer gearbox offers 1" 3/4 through input shaft for front & rear operation utilising a double free wheel overrun.

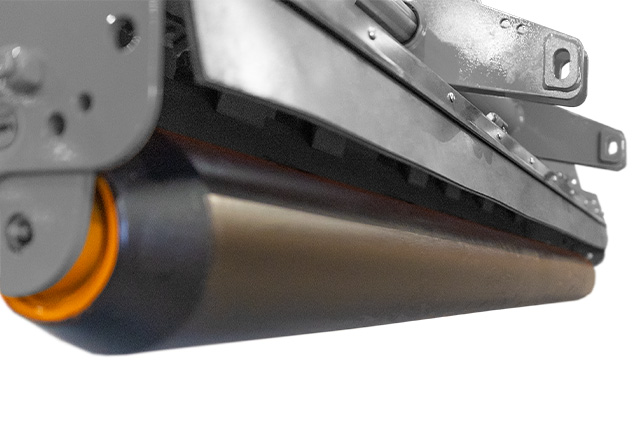

Large Diameter Roller
Large Diameter Roller
Large Diameter Roller

The large diameter roller runs on greasable bearings that are protected from debris within a deep labyrinth arrangement.

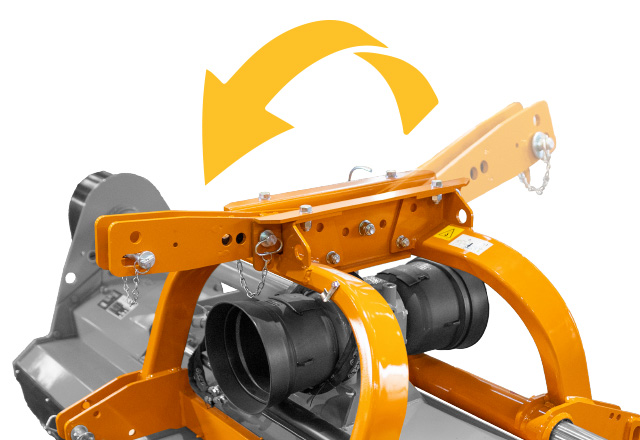

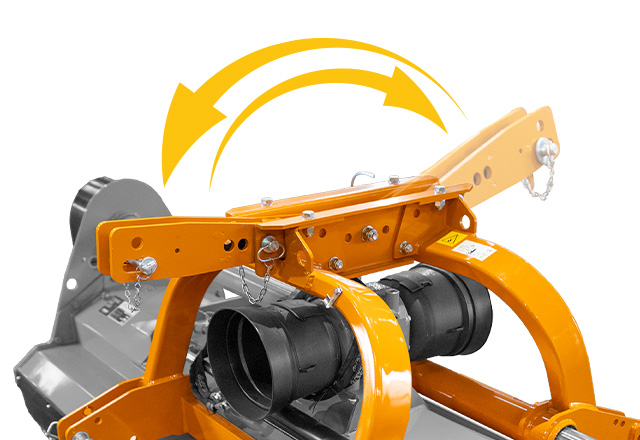

Reversible Linkage
Reversible Linkage
Reversible Linkage

The reversible top linkage arm for front or rear mounting.

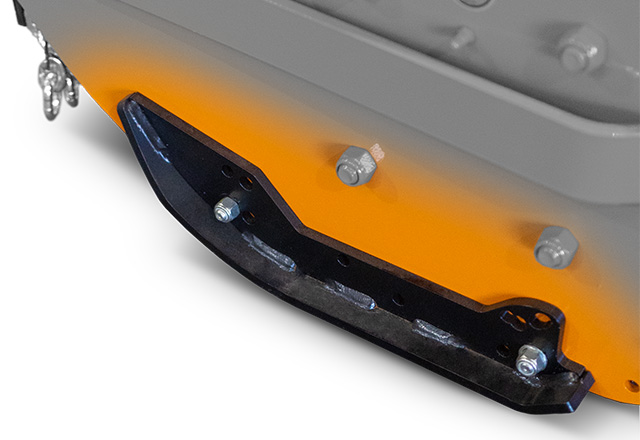

Side Skids
Side Skids
Side Skids

Hardox in the skids for greater durability.

Watch the DUAL mower in action

Dual Flail Mower

Customer Review

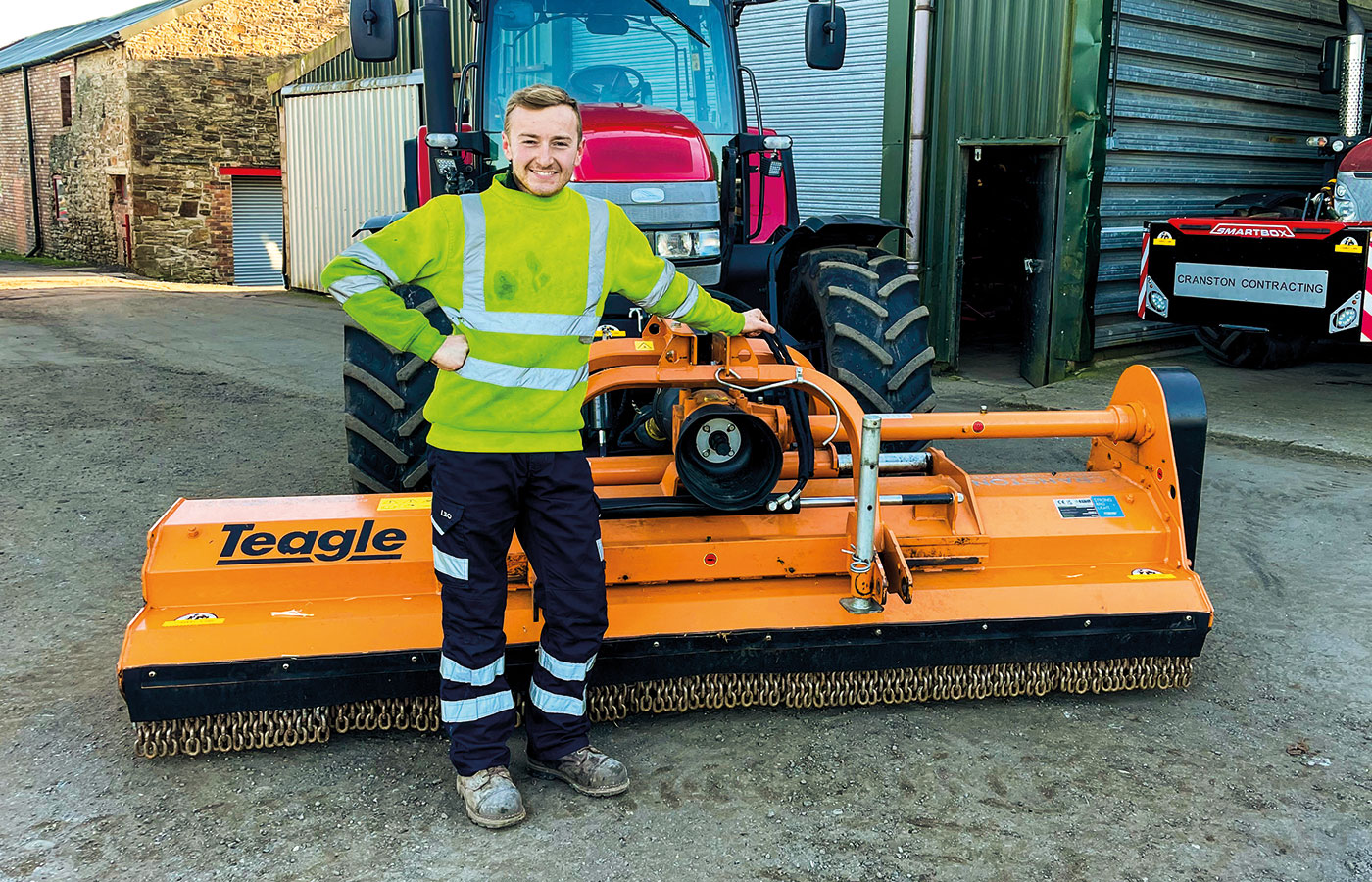

TOM CRANSTON

Contractor based in Wigan. Working with local councils and forestry organisations to help maintain the land and amenity areas. This involves mowing first cut amenity land, topping paddocks for sheep farmers and clearing large forestry areas.

Tom needed a flail to add to his machinery collection and he opted for the DUAL 280.

"The flail is a bit of an animal, it never misses a beat - we cleared an area of willow 20ft tall - it took those like it was nothing."

"We have had the machine for 2 years now and the build quality is excellent, the machine is so strong and robust and handles anything that is thrown at it."

Tom describes his experience of the after sales support and parts service "The machine has been very reliable. If we do need any parts, they arrive the next day. Maintenance is easy, the grease points are all easily accessible and doesn't take long to complete."

He concludes "We were so happy with the quality and reliability of this flail that when we looked to purchase a mulcher, I didn't look at any other brand. We rang our local dealer and just ordered it. If it is going to be as good as the flail we already have there is no contest, it has to be another Teagle."

Specifications

More
Description
DUAL 200**DUAL 230**DUAL 250**DUAL 280***DUAL 300***
Working width
2.0m2.3m2.5m2.8m3.0m
Power - min/max
70 - 160HP70 - 160HP
70 - 160HP
90 - 160HP
90 - 160HP
Lateral displacement (mm) LH1480/5201500/8001700/800
1710/10901910/1090
Lateral displacement (mm) RH960/1040980/13201180/1320
1190/16101390/1610
No. of 'A' hammers
1820222628
No. of 'YA' blades*
5460667884
No. of belts
44444
Overall height1.05m1.05m
1.05m
1.05m
1.05m
Overall length2.20m2.50m
2.70m
3.0m3.20m
Overall width1.20m1.20m
1.20m
1.20m
1.20m
PTO (rpm)
1000 (540)1000 (540)
1000 (540)
1000 (540)
1000 (540)
Weight - min/max
875/975kg940/1,040kg
990/1,090kg
1,070/1,170kg
1,110/1,210kg
*By special order only.  ** DUAL 200 - 250 fitted with ø159 roller   *** DUAL 280 & 300 fitted with ø194 roller
