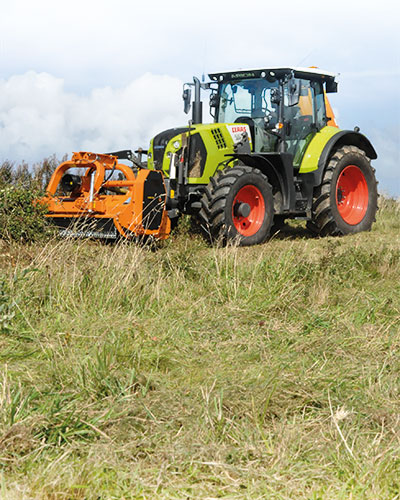

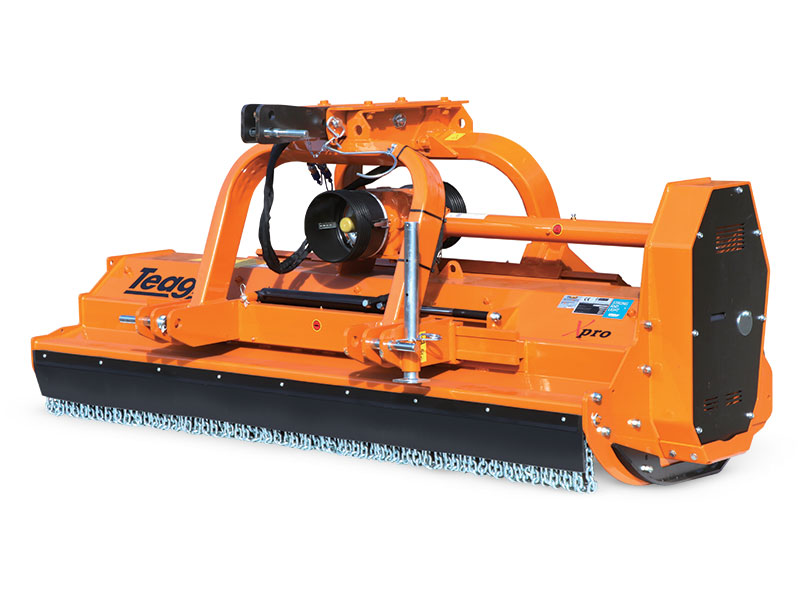

What is the X-PRO suited for?

Ideal for clearing uncultivated fields, open-field crops, parks, gardens, under-wood and set aside applications up to Ø10cm.

Key Benefits:

  • Double 3-point linkage, Cat II-III
  • Hydraulic side shift with hoses and quick coupling
  • Adjustable rear discharge
  • Full automatic belts adjuster
  • Self-cleaning and adjustable Ø220 rear roller
  • Double free wheel in the gearbox 1000rpm (540rpm special order)

Explore the X-PR

Features

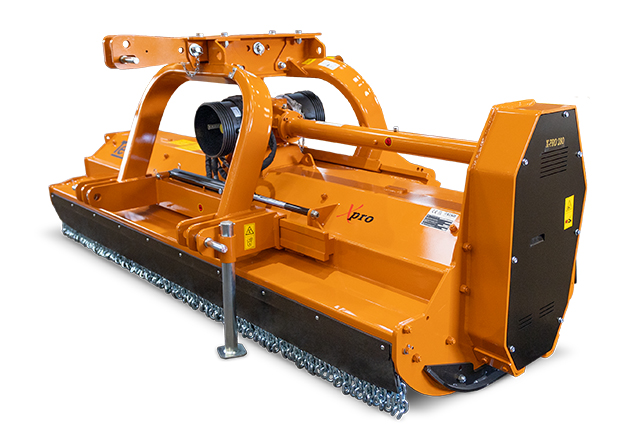

X-PRO features

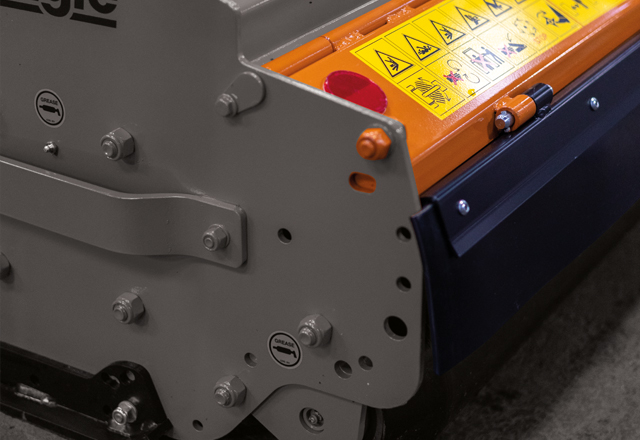

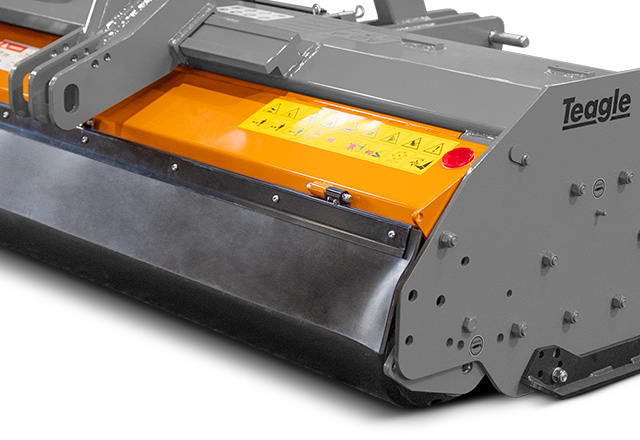

Adjustable Hood
Adjustable Hood
Adjustable Hood

For improved mulching performance the adjustable hood contain or release cut material as required.

Belt Tensioning
Belt Tensioning
Belt Tensioning

The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

Counter Blades
Counter Blades
Counter Blades

For improved mulching performancethe Dual is fitted with an additional set of counter blades.

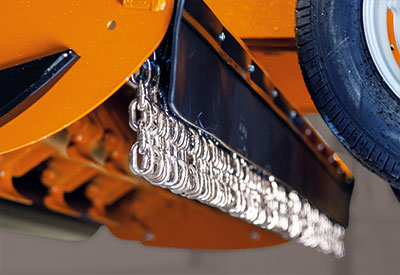

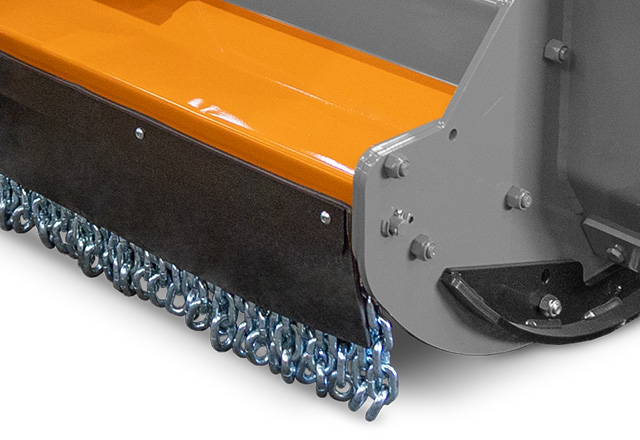

Debris Protection
Debris Protection
Debris Protection

Pivoting chains are fitted to the front of the machine to prevent debris being thrown up at the tractor.

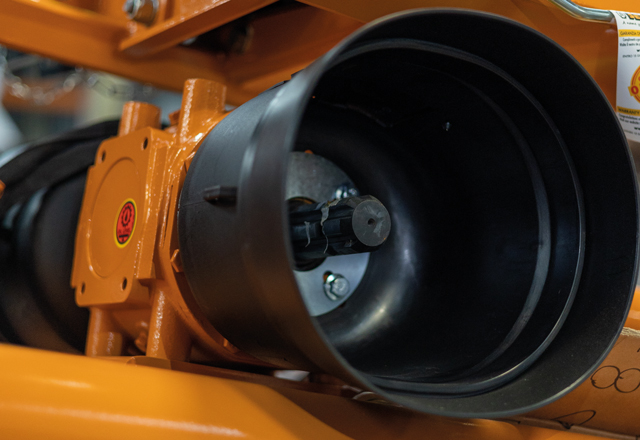

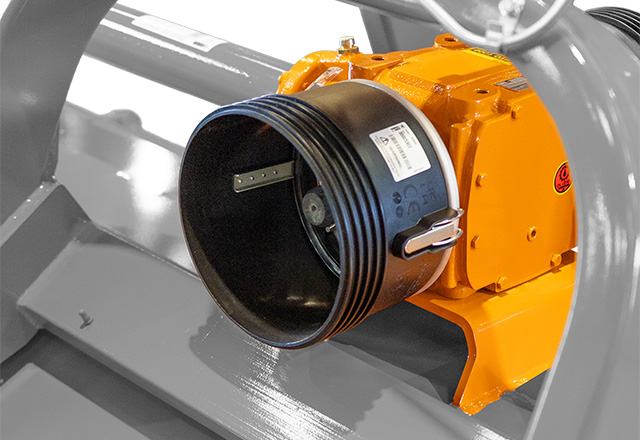

Front/Rear Through Shaft
Front/Rear Through Shaft
Front/Rear Through Shaft

Comer gearbox offers 1" 3/4 through input shaft for front & rear operation utilising a double free wheel overrun.

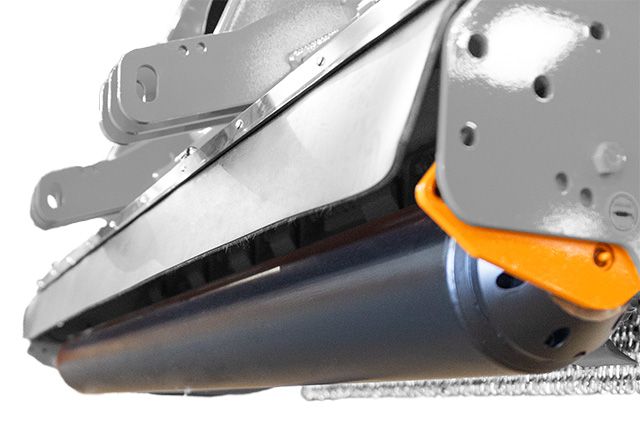

Large Diameter Roller
Large Diameter Roller
Large Diameter Roller

The large diameter roller runs on greasable bearings that are protected from debris within a deep labyrinth arrangement.

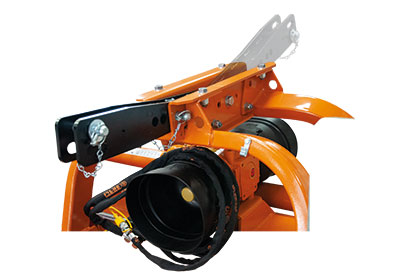

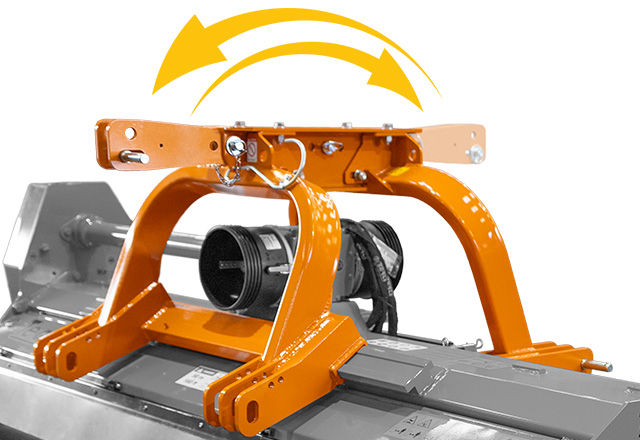

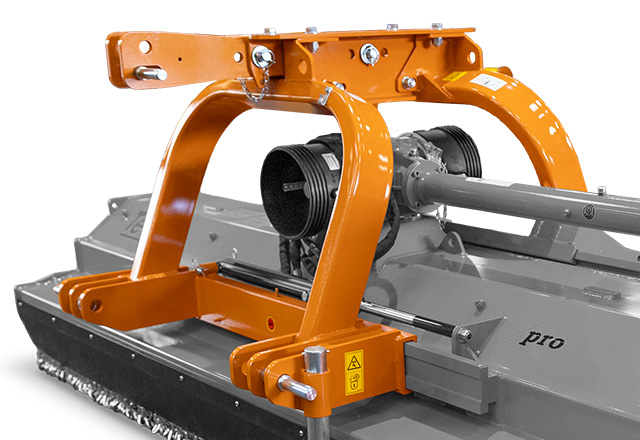

Reversible Linkage
Reversible Linkage
Reversible Linkage

The reversible top linkage arm for front or rear mounting.

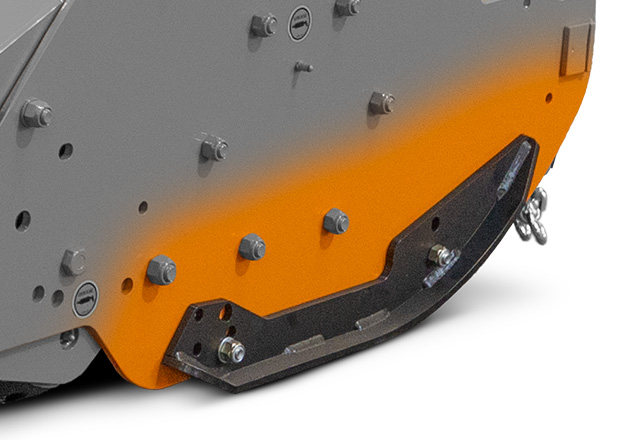

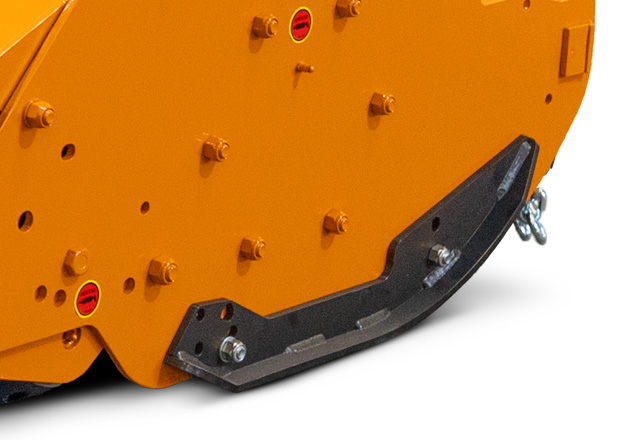

Side Skids
Side Skids
Side Skids

Hardox in the skids for greater durability.

Watch all Flail Mulchers in action

Dual Flail Mower

1. Automatic Belt Tensioning
The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

2. High Quality Driveline
From the Waltersheid PTO shaft to the high quality gearbox, components have been carefully selected to offer trouble free operation.

3. Robust Body
The Double skin body incorporates Strenx high performance steel in the inner hood and Hardox in the skids for greater durability. The body is shot blasted and protected with a high quality paint finish.

4. Side skids
All front and rear models come with side skids fitted.

Specifications

More
Description
X-PRO 200X-PRO 230X-PRO 250X-PRO 280X-PRO 300
Working width
2.0m2.3m2.5m2.8m3.0m
Power - min/max
100 - 250HP100 - 250HP
100 - 250HP
100 - 250HP
100 - 250HP
Lateral displacement (mm) LH1250/7501320/9801500/10001610/11901610/1390
Lateral displacement (mm) RH730/1270800/1500980/15201090/17101090/1910
No. of 'A' hammers
1820222628
No. of belts
55555
Overall height1.22m1.22m
1.22m
1.22m
1.22m
Overall length2.50m2.50m
2.70m
3.0m3.20m
Overall width1.37m1.37m
1.37m
1.37m
1.37m
PTO (rpm)
1000 (540)1000 (540)
1000 (540)
1000 (540)
1000 (540)
Weight - min/max
1,275/1,555kg1,355/1,645kg
1,415/1,705kg
1,520/1,810kg
1,560/1,850kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
