Working Width
Working Width 1.15m - 1.8m
Tractor
Power 20 - 60HP
PTO
PTO 540/1000 rpm
Hammer Flails
Hammer Flails 'G' Type
Weight
Weight 200kg - 430kg

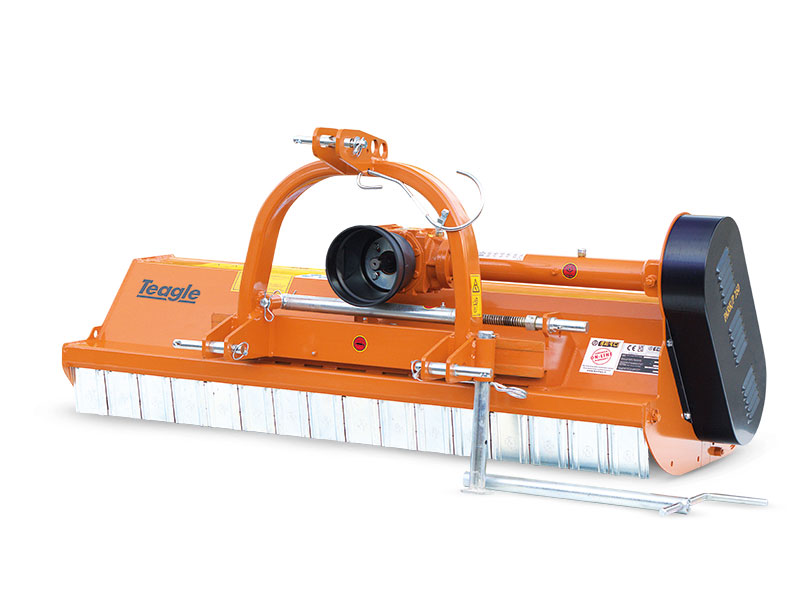

Why choose the PARK/P

Suited to mulch grass, bushes and light pruning  up to 3 cm diameter for parks, green areas and sport courts.

Key Benefits:

  • Displaceable 3-points linkage, Cat. I

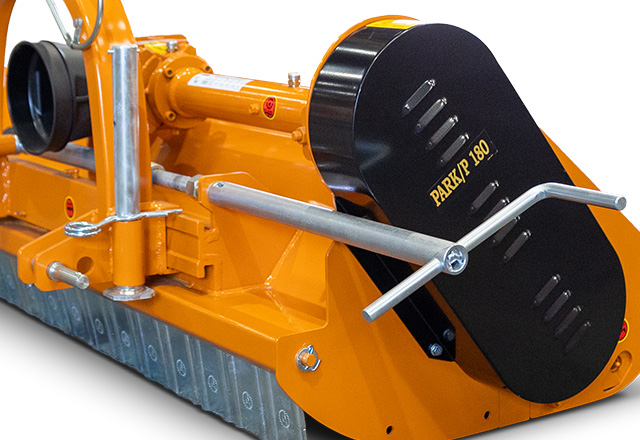

  • Mechanical side shift (hydraulic opt.)
  • Height adjustable self-cleaning levelling roller
  • Optional skids available
  • Self-cleaning and adjustable Ø139 rear roller

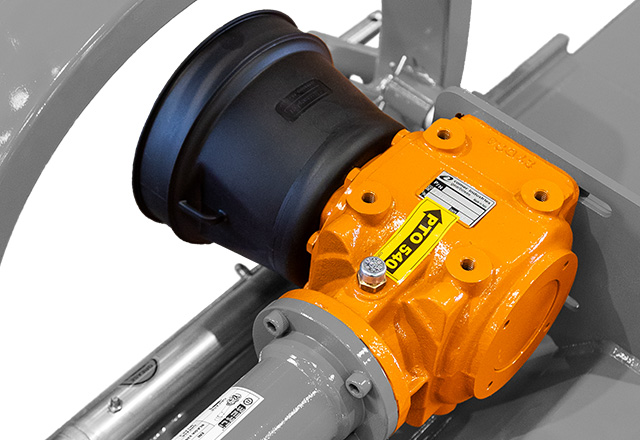

  • Free wheel in the gearbox.
  • PTO 540/1000 rpm (reversing the pulleys)

Explore the PARK/P

Features
Options

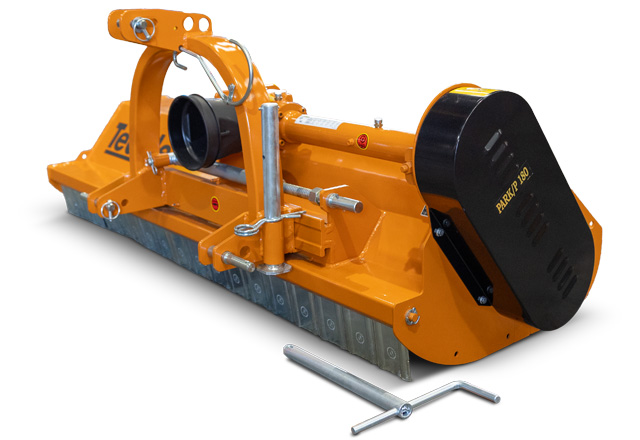

PARK/P features

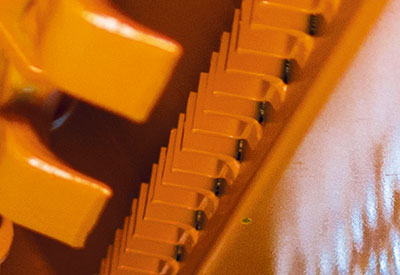

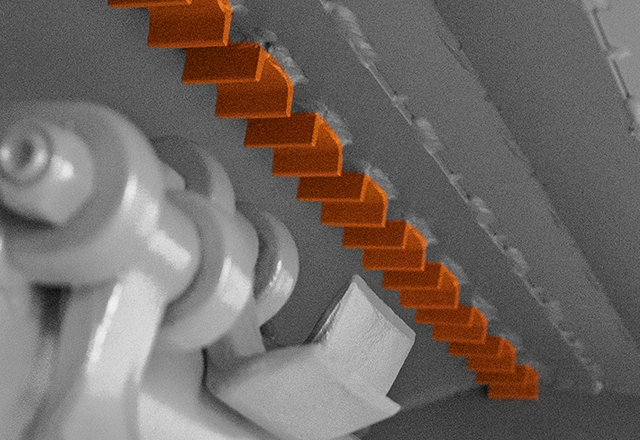

Counter Blades
Counter Blades
Counter Blades

For improved mulching performance the PARK/P, TBM, TBM/S, LAND/S and LAND/P all are fitted with a set of counter blades.

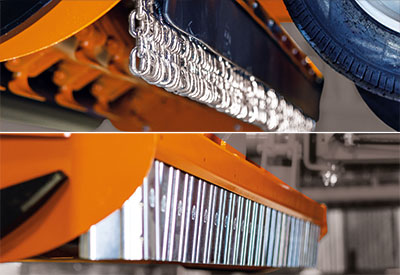

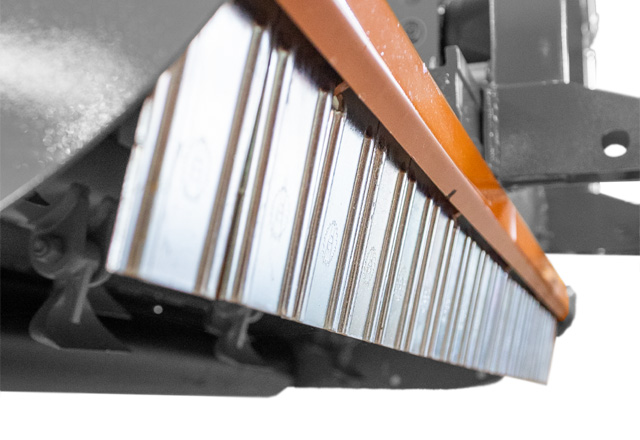

Debris Protection
Debris Protection
Debris Protection

Pivoting steel flaps or chains are fitted to the front of the machine to prevent debris being thrown up at the tractor.

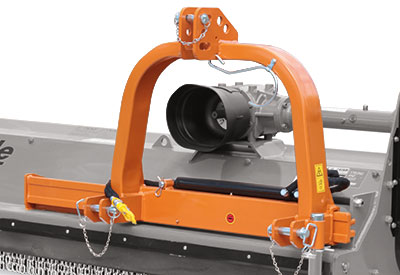

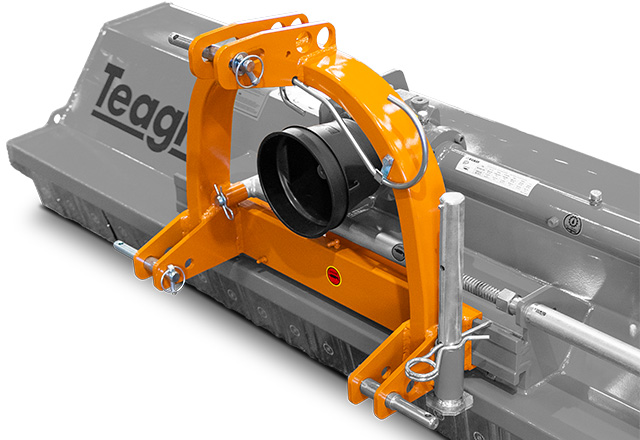

Displaceable 3 point linkage
Displaceable 3 point linkage
Displaceable 3 point linkage

The robust rear mount headstock runs on a greaseable rolled steel profile.

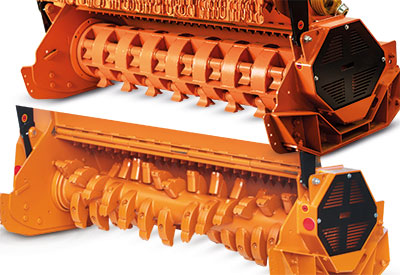

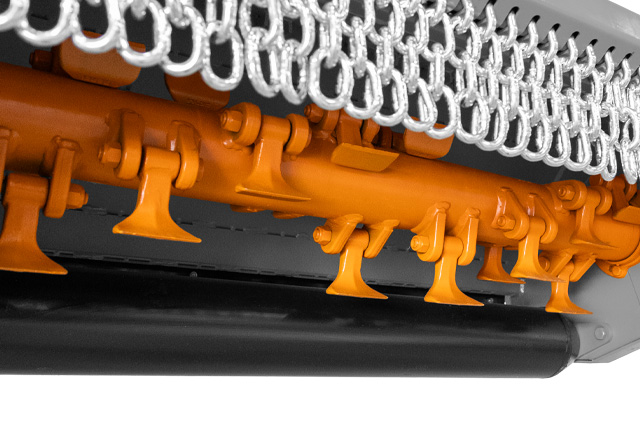

High Performance Rotor
High Performance Rotor
High Performance Rotor

The large diameter seamless tube is dynamically balanced and delivers a market leading tip speed, as well as strength in operation. Stout lugs hold the flails firmly in place.

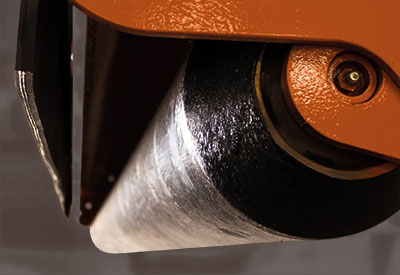

Large Diameter Roller
Large Diameter Roller
Large Diameter Roller

The large diameter roller runs on greasable bearings that are protected from debris within a deep labyrinth arrangement.

OPTION : Displaceable 3 point linkage
OPTION : Displaceable 3 point linkage
OPTION : Displaceable 3 point linkage

Headstock can be adjusted with hydraulic sideshift.

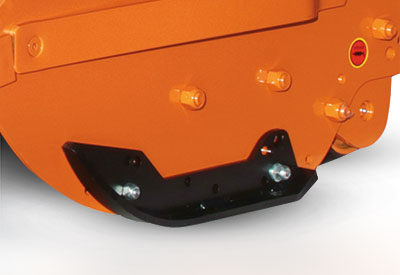

OPTION : Side Skids
OPTION : Side Skids
OPTION : Side Skids

Our side skids are made from Hardox for greater durability

Features
Options
PARK/P options
OPTION : Displaceable 3 point linkage
OPTION : Displaceable 3 point linkage
OPTION : Displaceable 3 point linkage

Headstock can be adjusted with hydraulic sideshift.

OPTION : Side Skids
OPTION : Side Skids
OPTION : Side Skids

Our side skids are made from Hardox for greater durability

Watch Flail Mulchers in action

Dual Flail Mower

Performance

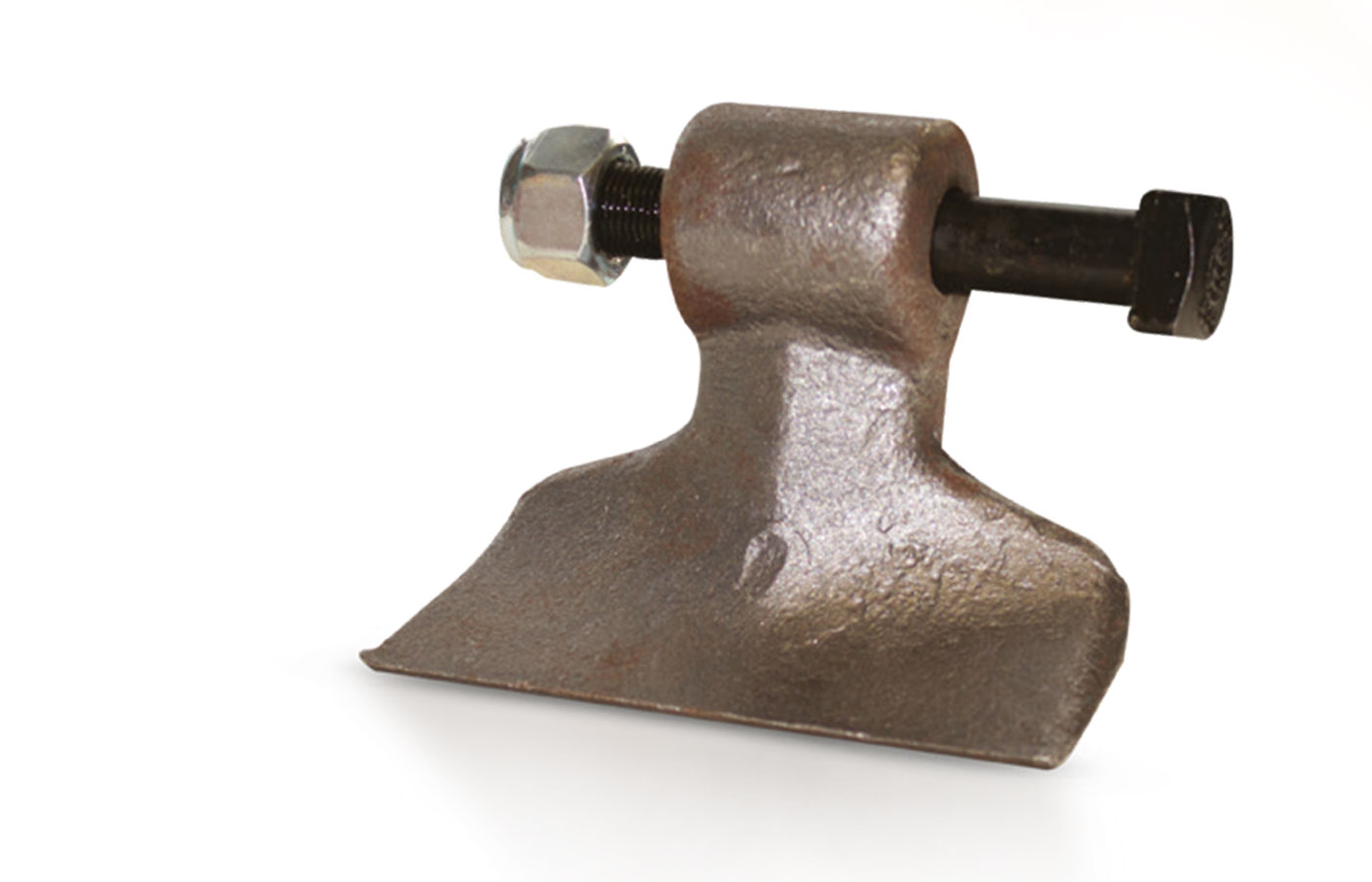

The heavyweight 1.9kg A Type flail remains extended even when mulching tough material. The wide cutting edge lifts material effectively and leaves a clean cut finish. The wide flail means fewer flails are required, keeping running costs down.

Longevity
The flail is engineered with a thick shank for greater strength, and a fitted curve on the rear face to prevent damage to the rotor tube when a foreign object is encountered. Flails are retained by a 19mm high tensile bolt with a square head, recessed into the rotor lug, for easy maintenance.

Specifications

More


Description
PARK/P 115PARK/P 125
PARK/P 145
PARK/P 160PARK/P 180
Working width
1.15m1.25m1.45m1.6m1.8m
Power - min/max
20 - 60HP20 - 60HP
20 - 60HP
20 - 60HP
20 - 60HP
No. of 'L' hammers
1012141416
No. of 'YA' blades*
3036424248
Lateral displacement (mm) LH590/560690/560775/675875/715875/915
Lateral displacement (mm) RH270/880370/880455/995555/1045555/1245
No. of belts
22222
PTO (rpm)
540 (1000*)540 (1000*)
540 (1000*)
540 (1000*)
540 (1000*)
Weight - min/max
280/340kg295/350kg
320/375kg
355/405kg
370/430kg
*By special order only
