Working Width
Working Width 1.8m - 2.7m
Tractor
Power 50 - 110HP
PTO
PTO 540/1000 rpm
Hammer Flails
Hammer Flails 'A' Type
Weight
Weight 735kg - 1,070kg

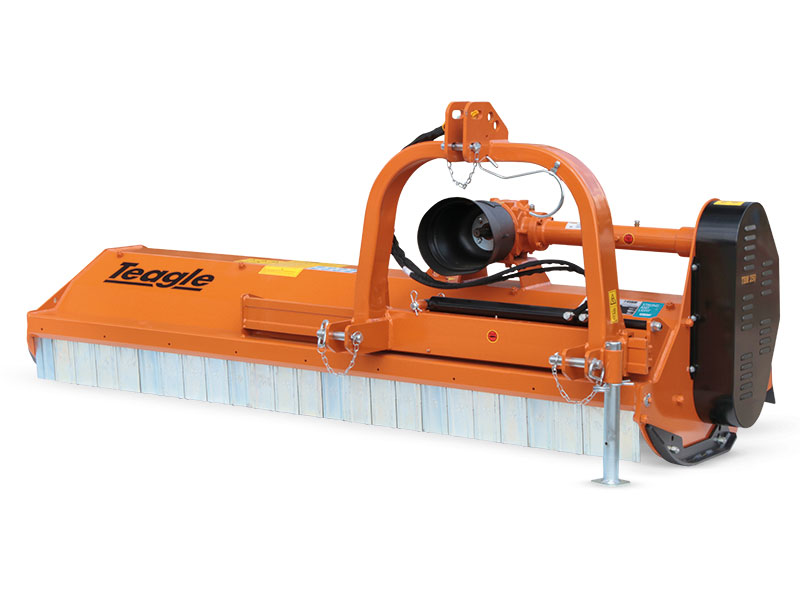

Why choose the TBM

Ideal for general clearing of open-field crops, green areas, parks, gardens, vineyards and for set aside applications.

Key Benefits:

  • Displaceable 3-points linkage, Cat. II
  • Hydraulic side shift
  • Full automatic belts adjuster
  • Self-cleaning and adjustable Ø194 rear roller

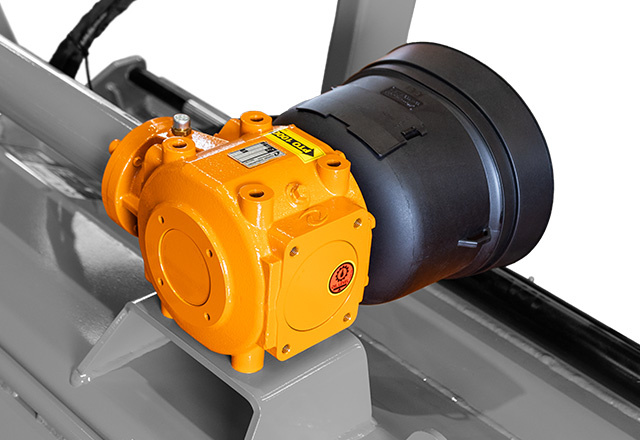

  • Free wheel in the gearbox.
  • PTO 540/1000 rpm (reversing the pulleys)


Explore the TBM

Features

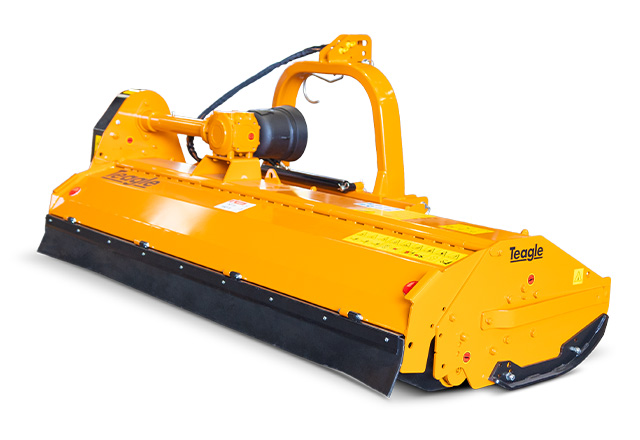

TBM features

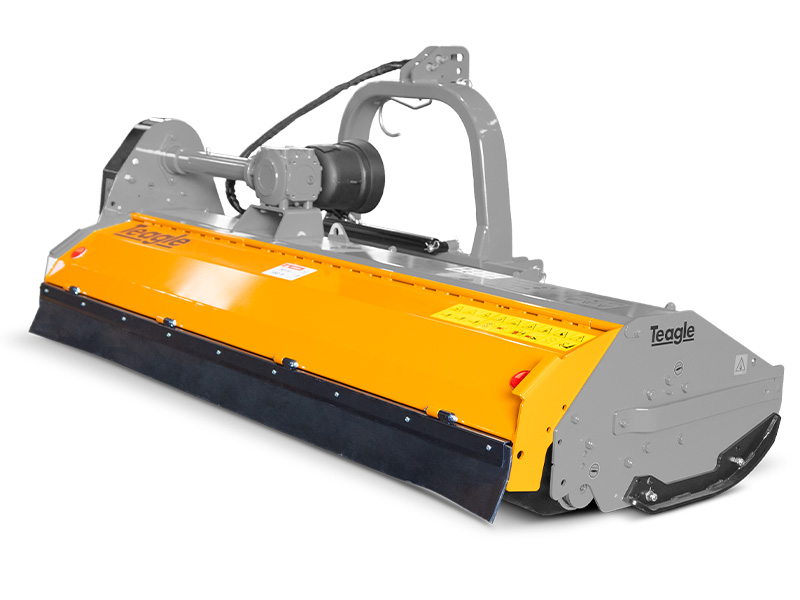

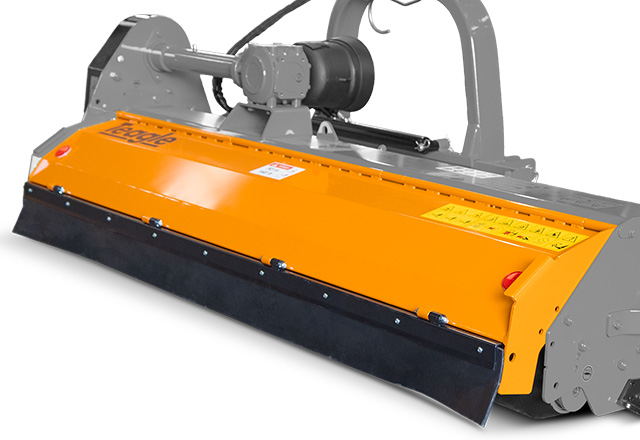

Adjustable Hood
Adjustable Hood
Adjustable Hood

For improved mulching performance, the adjustable hoods contain or release cut material as required.

Belt Tensioning
Belt Tensioning
Belt Tensioning

The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

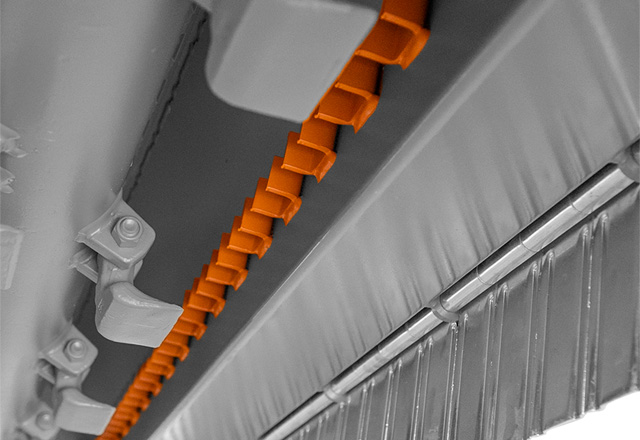

Counter Blades
Counter Blades
Counter Blades

For improved mulching performance the PARK/P, TBM, TBM/S, LAND/S and LAND/P all are fitted with a set of counter blades.

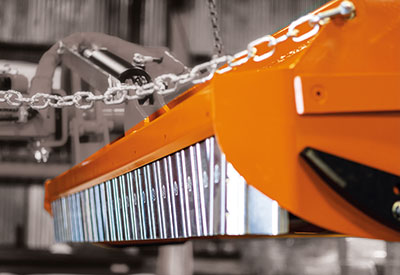

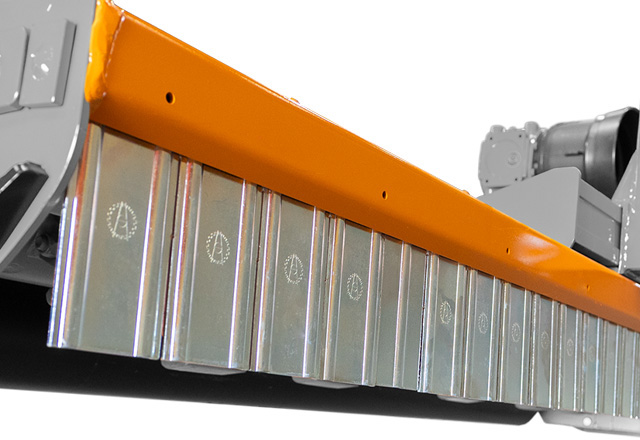

Debris Protection
Debris Protection
Debris Protection

Pivoting steel flaps are fitted to the front of the machine to prevent debris being thrown up at the tractor.

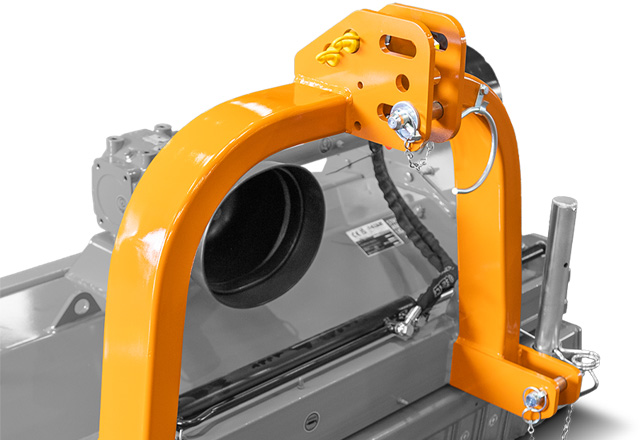

Displaceable 3 point linkage
Displaceable 3 point linkage
Displaceable 3 point linkage

The robust rear mount headstock runs on a greaseable rolled steel profile.

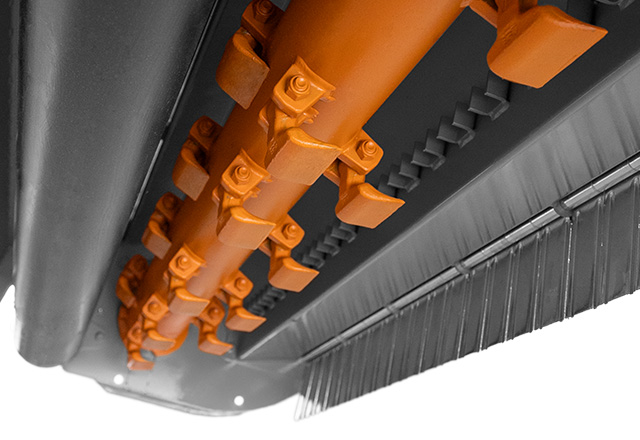

High Performance Rotor
High Performance Rotor
High Performance Rotor

The large diameter seamless tube is dynamically balanced and delivers a market leading tip speed, as well as strength in operation. Stout lugs hold the flails firmly in place.

Large Diameter Roller
Large Diameter Roller
Large Diameter Roller

The large diameter roller runs on greasable bearings that are protected from debris within a deep labyrinth arrangement.

Watch Flail Mulchers in action

Dual Flail Mower

Performance

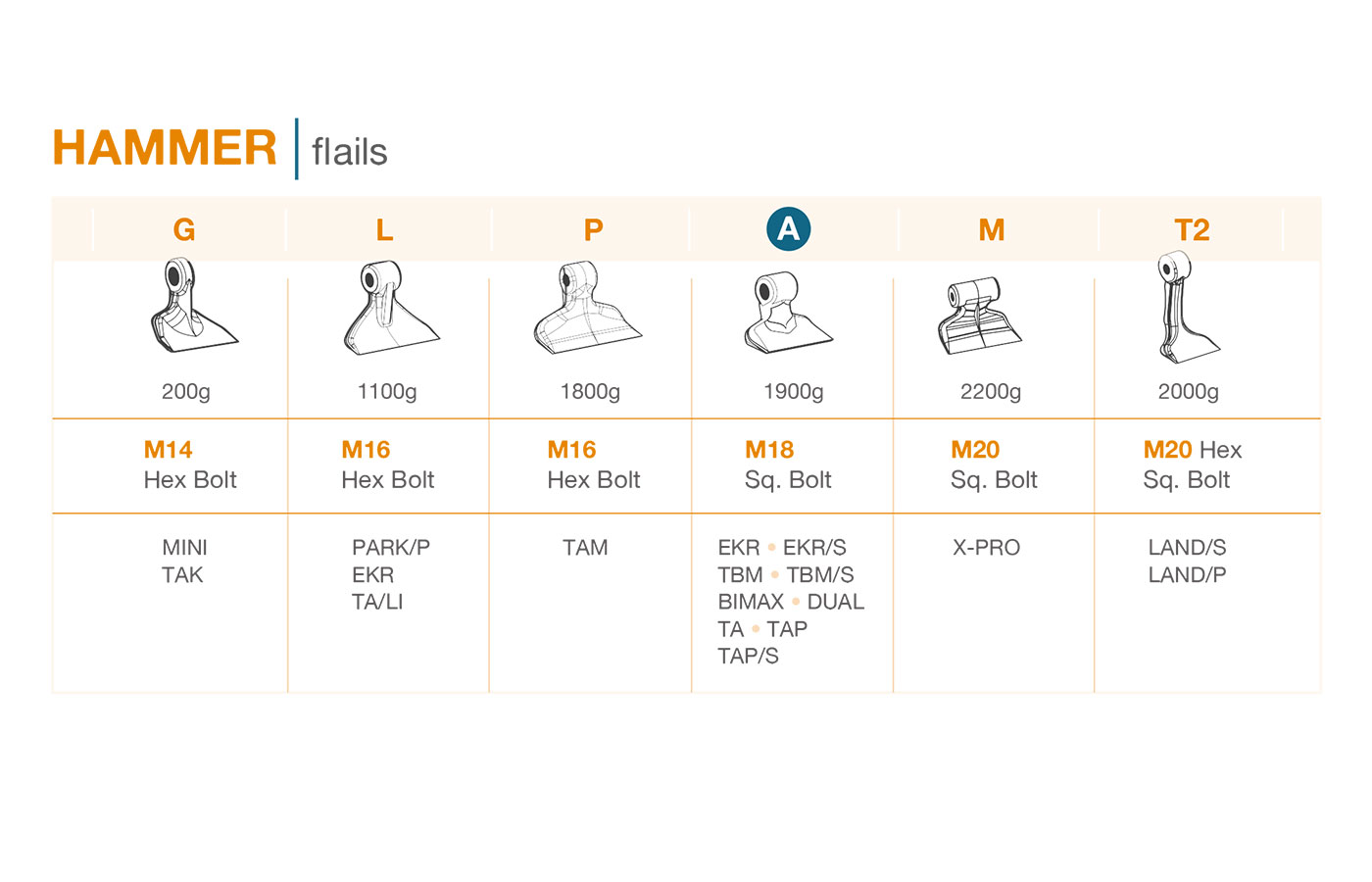

The heavyweight 1.9kg A Type flail remains extended even when mulching tough material. The wide cutting edge lifts material effectively and leaves a clean cut finish. The wide flail means fewer flails are required, keeping running costs down.

Longevity
The flail is engineered with a thick shank for greater strength, and a fitted curve on the rear face to prevent damage to the rotor tube when a foreign object is encountered. Flails are retained by a 19mm high tensile bolt with a square head, recessed into the rotor lug, for easy maintenance.

Specifications

More


Description
TBM 180TBM 200
TBM 220
TBM 250TBM 270
Working width
1.8m2.0m2.2m2.5m2.7m
Power - min/max
50 - 110HP50 - 110HP
60 - 110HP
60 - 110HP
60 - 110HP
No. of 'A' hammers
1618202224
No. of 'YA' blades*
4854606672
Lat. displacement (mm) LH875/9251040/9601040/1160
1040/1460
1040/1660
Lat. displacement (mm) RH355/1445520/1480520/1680520/1980520/2180
No. of belts
44444
PTO (rpm)
540 (1000)540 (1000)
540 (1000)
540 (1000)
540 (1000)
Weight - min/max
735/815kg780/870kg
820/920kg
905/1,025kg
935/1,070kg
* By special order only
