Working Width
Working Width 1.8m - 3.0m
Tractor
Power 75 - 150HP
PTO
PTO 540/1000 rpm
Hammer Flails
Hammer Flails 'A' Type
Weight
Weight 845kg - 1,270kg

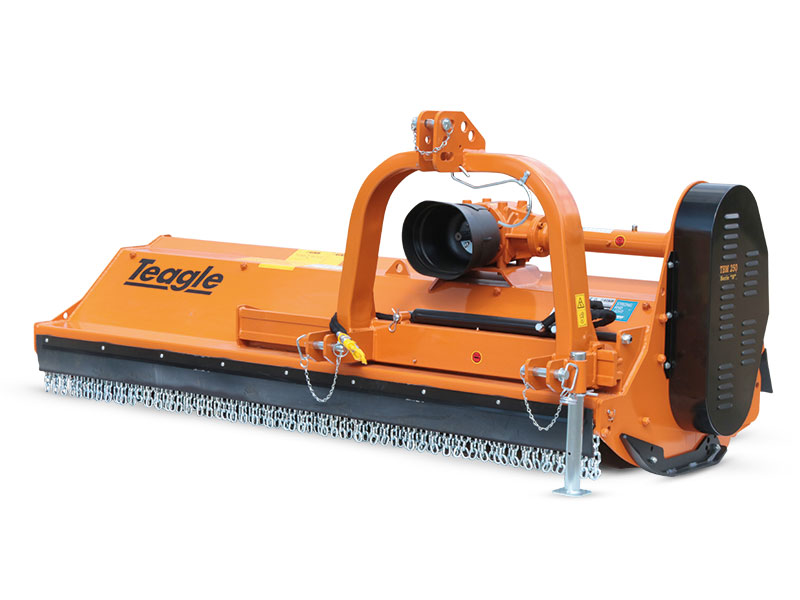

Why choose the TBM/S

Ideal for general clearing of uncultivated fields, open-field crops, green areas, under wood, parks, gardens, and for set aside applications.

Key Benefits:

  • Displaceable 3-points linkage, Cat. II
  • Hydraulic side shift
  • Full automatic belts adjuster
  • Self-cleaning and adjustable Ø194 rear roller

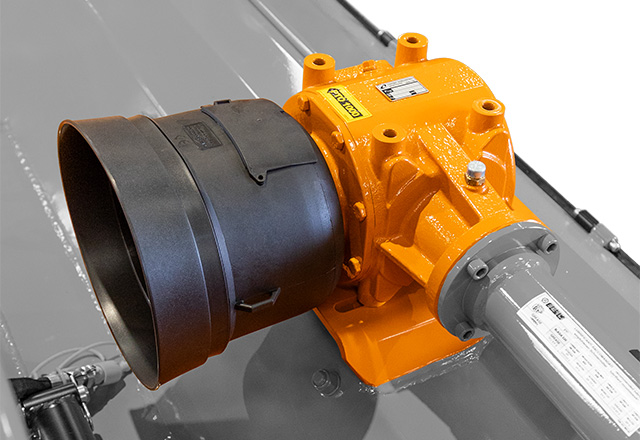

  • Free wheel in the gearbox 1000rpm (540rpm special order)

Explore the TBM/S

Features
TBM/S features

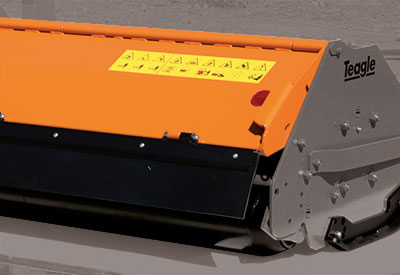

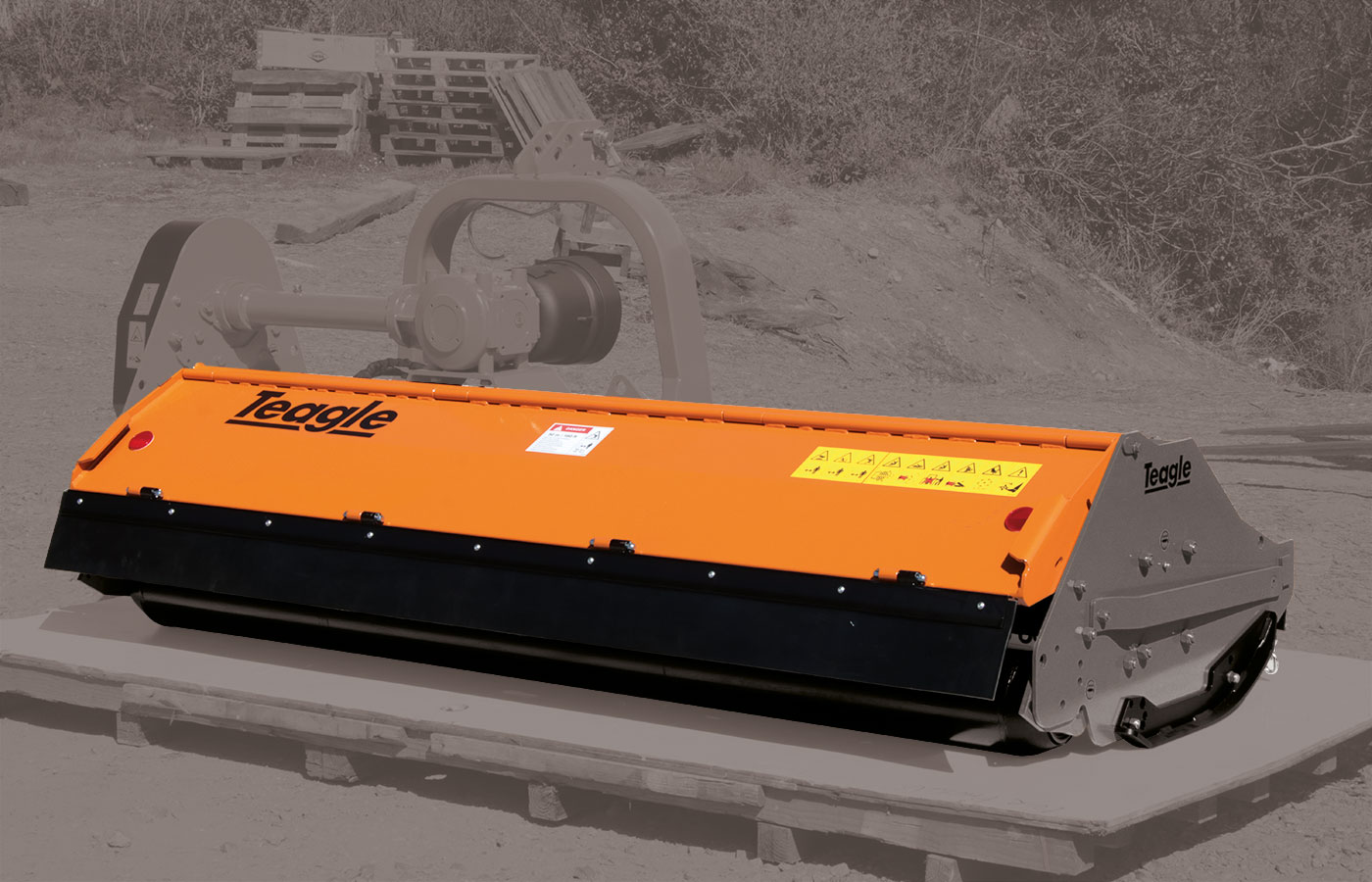

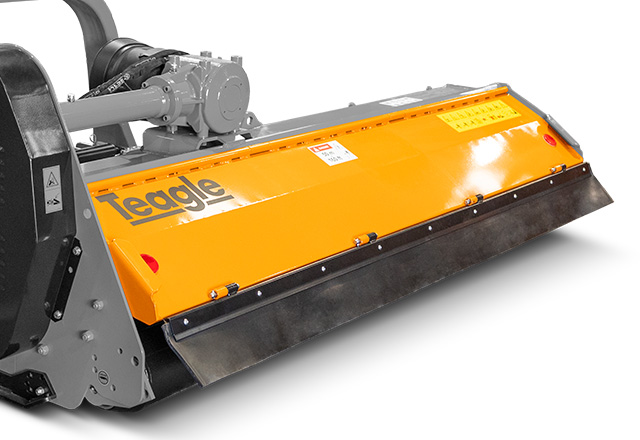

Adjustable Hood
Adjustable Hood
Adjustable Hood

For improved mulching performance, the adjustable hoods contain or release cut material as required.

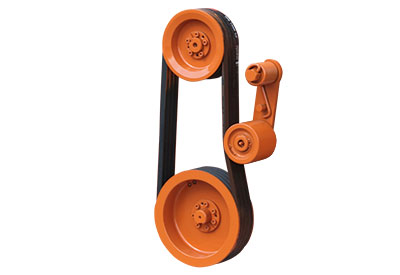

Belt tensioning
Belt tensioning
Belt tensioning

The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

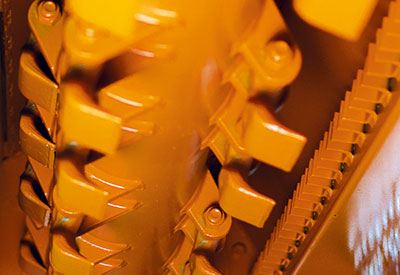

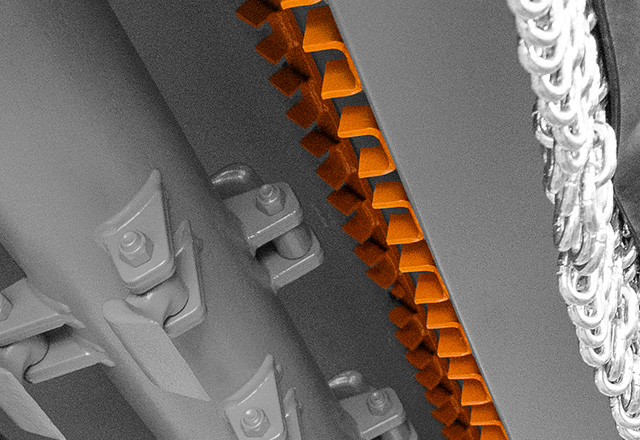

Counter Blades
Counter Blades
Counter Blades

For improved mulching performance the PARK/P, TBM, TBM/S, LAND/S and LAND/P all are fitted with a set of counter blades.

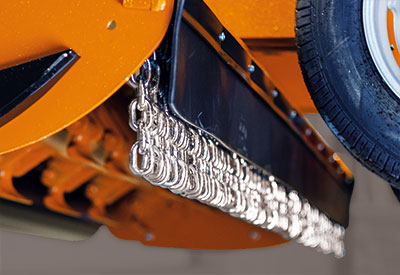

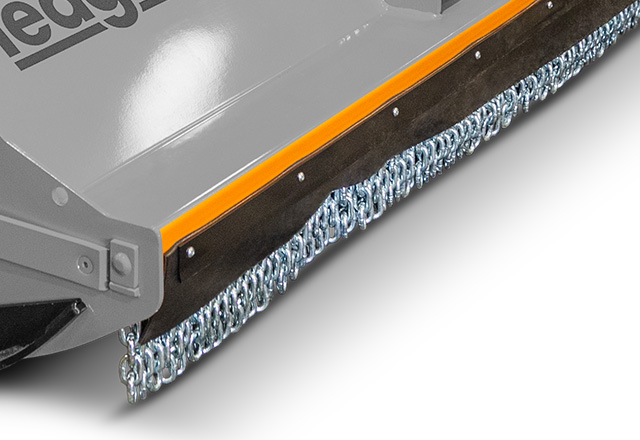

Debris Protection
Debris Protection
Debris Protection

Pivoting steel flaps or chains are fitted to the front of the machine to prevent debris being thrown up at the tractor.

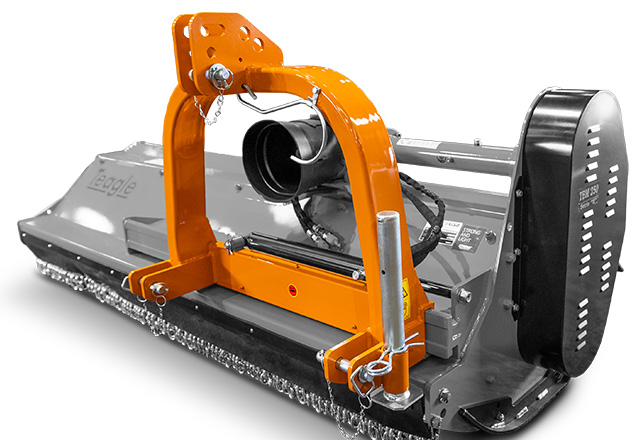

Displaceable 3 point linkage
Displaceable 3 point linkage
Displaceable 3 point linkage

The robust rear mount headstock runs on a greaseable rolled steel profile. Headstock can be adjusted with hydraulic sideshift.

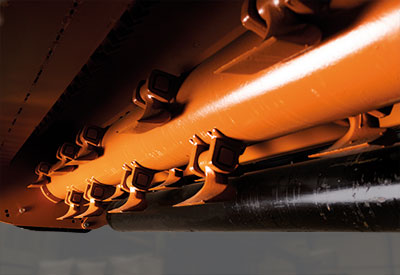

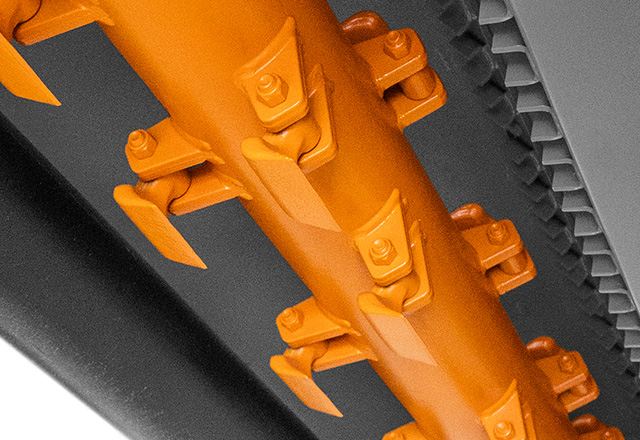

High Performance Rotor
High Performance Rotor
High Performance Rotor

The large diameter seamless tube is dynamically balanced and delivers a market leading tip speed, as well as strength in operation. Stout lugs hold the flails firmly in place.

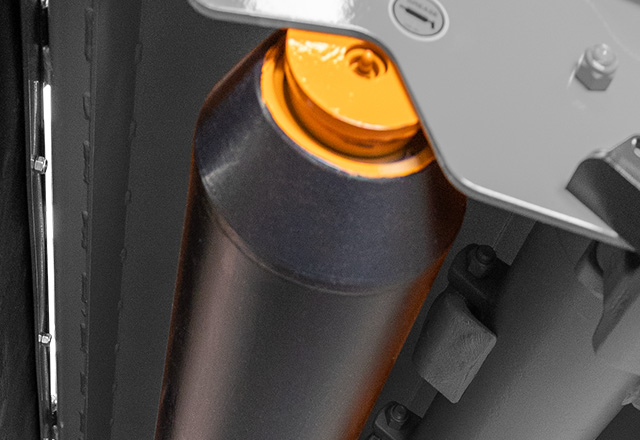

Large Diameter Roller
Large Diameter Roller
Large Diameter Roller

The large diameter roller runs on greasable bearings that are protected from debris within a deep labyrinth arrangement.

Watch our Flail Mulchers in action

Dual Flail Mower

Customer Review

JOHN DRUMMOND

Kingfisher Forestry and Moorland

Here at Kingfisher forestry and moorland we have two TBM/S and a TSB/S these are used for heather, rush, pasture and mulching of crops, the double chop of the Teagle and the large drum capacity leaves a very fine mulch, which is perfect for all applications.

I’ve been using the Teagles now for almost ten years and wouldn’t consider anything else - they are strong and go to work with very little maintenance day in day out.

The team at Teagle give great advice and co-operation with regards to finding the right machine for your needs, we at Kingfisher have had a good working relationship with Teagle sales, which shows they have confidence in their machines. If they give you one on demo, you won’t want to give it back!

Find your Local Dealer

Specifications

More


Description
TBM/S 180TBM/S 200
TBM/S 220
TBM/S 250TBM/S 280**TBM/S 300**
Working width
1.8m2.0m2.2m2.5m2.8m3.0m
Power - min/max
75 - 150HP75 - 150HP
75 - 150HP
75 - 150HP
85 - 150HP
85 - 150HP
No. of 'A' hammers
1618202226
28
No. of 'YA' blades*
485460667884
Lat. displacement (mm) LH1050/7501050/950
1050/1150
1050/1450
1660/11841616/1384
Lat. displacement (mm) RH530/1270530/1470
530/1670
530/1970
1094/17061094/1906
No. of belts
55555
5
PTO (rpm)
1000 (540*)1000 (540*)
1000 (540*)
1000 (540*)
1000 (540*)
1000 (540*)
Weight - min/max
845/955kg890/1,020kg
935/1,080kg
1,000/1,160kg
1,090/1,260kg
1,135/1,270kg
*By special order only.  ** Centre mounted linkage fitted as standard
