Working Width
Working Width 1.15m - 1.45m
Tractor
Power 25 - 50HP
PTO
PTO 540 rpm
Hammer Flails
Hammer Flails 'G' Type
Weight
Weight 300kg - 375kg

Why use a TA/PS mulcher?

Ideal for clearing green areas up to Ø2cm cut,  gardens, slopes, ditches, banks of watercourses and road side banks.

Key Benefits:

  • 3-point linkage, Cat. I
  • Hydraulic side shift with breakaway valve
  • Full automatic belts adjuster
  • Skids of anti-wearing steel
  • Mechanical breakway device
  • Hydraulic cylinder for head positioning with floating link and safety valve
  • Self-cleaning and adjustable Ø 114 rear roller
  • Free wheel in the gearbox (540 rpm only)
  • RH cut only

Explore the TA/PS

Features
TA/K features
Automatic Belt tensioning
Automatic Belt tensioning
Automatic Belt tensioning

The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

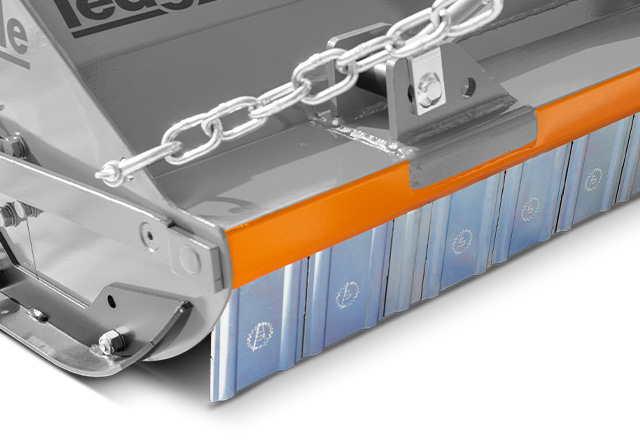

Debris Protection
Debris Protection
Debris Protection

Pivoting steel flaps are fitted to the front of the machine to prevent debris being thrown up at the tractor.

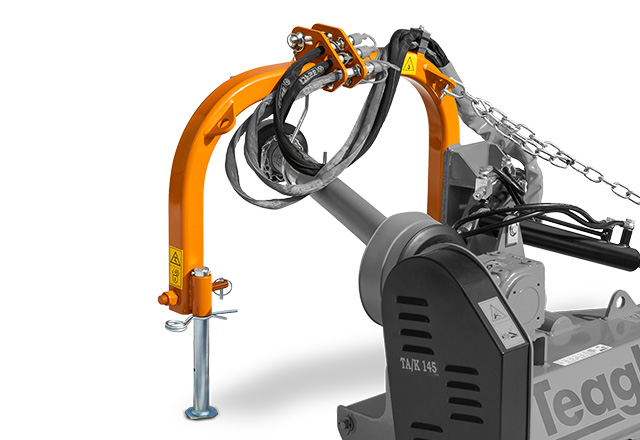

Displaceable 3 point linkage
Displaceable 3 point linkage
Displaceable 3 point linkage

The robust rear mount headstock uses parallel arms for side shift adjustment with a built in float mechanism.

High Performance Rotors
High Performance Rotors
High Performance Rotors

The large diameter seamless tube is dynamically balanced and delivers a market leading tip speed, as well as strength in operation. Stout lugs hold the flails firmly in place.

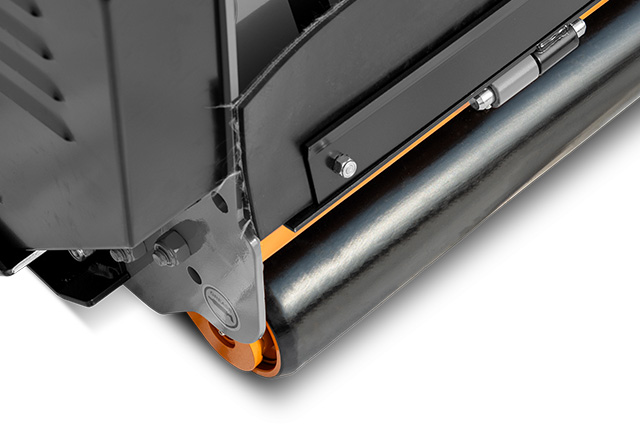

Large Diameter Roller
Large Diameter Roller
Large Diameter Roller

The large diameter roller runs on greasable bearings that are protected from debris within a deep labyrinth arrangement.

Watch the FLAIL mower in action

Dual Flail Mower

1. Automatic Belt Tension
The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

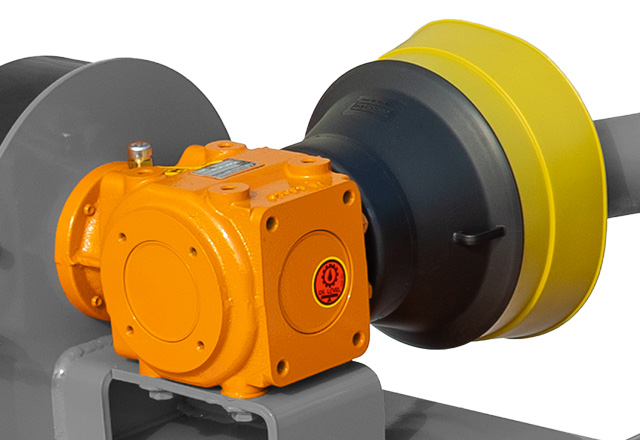

2. High Quality Driveline
From the Waltersheid / Comer PTO shaft to the high quality gearbox, components have been carefully selected to offer trouble free operation. (Double wide angle fitted to selected models)

3. Robust Body
The double skin body incorporates Strenx high performance steel in the inner hood (we also use Hardox in the skids for greater durability). The body is shot blasted and protected with a high quality paint finish.

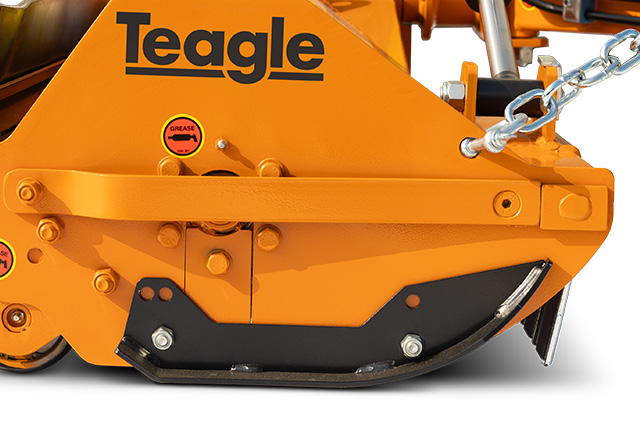

4. Side skids
Side skids fitted to all verge mowers.

Specifications

More
Description
TA/K 115TA/K 125
TA/K 145
Working width
1.15m1.25m1.45m
Power - min/max
25 - 50HP 25 - 50HP 25 - 50HP
No. of 'G' hammers
323436
No. of 'YG' blades*
646880
No. of belts
222
PTO
540 rpm540 rpm
540 rpm
Weight - min/max
300/345kg310/355kg
330/375kg
*By special order only.
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
