Working Width
Working Width 1.35m - 1.60m
Tractor
Power 35 - 60HP
PTO
PTO 540 rpm
Hammer Flails
Hammer Flails 'L' Type
Weight
Weight 435kg - 540kg

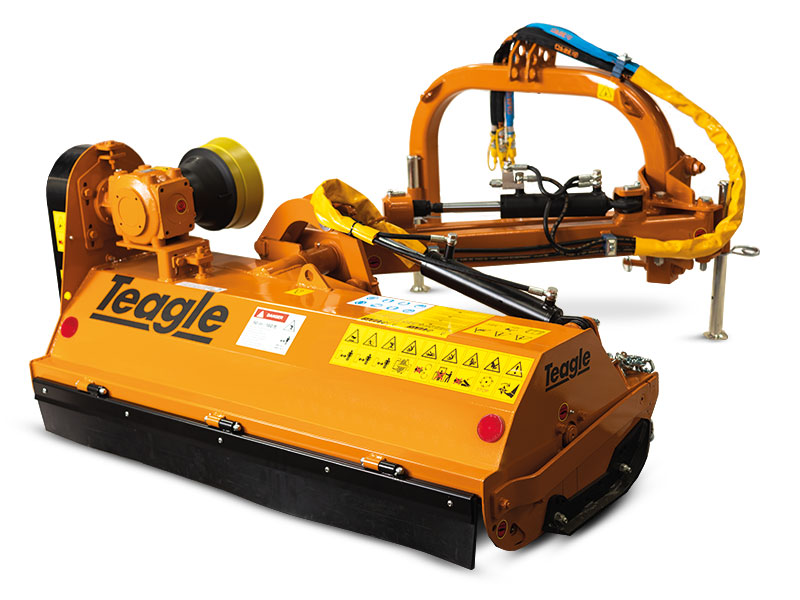

Why use a TA/LI mulcher?

Ideal for clearing green areas up to Ø2cm cut, gardens, slopes, ditches, banks of watercourses and road side banks.

Key Benefits:

  • 3-point linkage Cat. I with floating system and safety lock
  • Hydraulic side shift with breakaway valve
  • Skids of anti-wearing steel
  • Hydraulic cylinder for head positioning with floating link and safety valve
  • Forged and hardened BERTI hammers or blades
  • Self-cleaning and adjustable Ø 139 rear roller
  • Free wheel in the gearbox (540 rpm only)
  • RH cut only

Explore the TA/LI

Features
TA/LI features
Automatic Belt tensioning
Automatic Belt tensioning
Automatic Belt tensioning

The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

Debris Protection
Debris Protection
Debris Protection

Pivoting steel flaps are fitted to the front of the machine to prevent debris being thrown up at the tractor.

Displaceable 3 point linkage
Displaceable 3 point linkage
Displaceable 3 point linkage

The robust rear mount headstock uses parallel arms for side shift adjustment with a built in float mechanism.

High Performance Rotors
High Performance Rotors
High Performance Rotors

The large diameter seamless tube is dynamically balanced and delivers a market leading tip speed, as well as strength in operation. Stout lugs hold the flails firmly in place.

Large Diameter Roller
Large Diameter Roller
Large Diameter Roller

The large diameter roller runs on greasable bearings that are protected from debris within a deep labyrinth arrangement.

Skid Steers
Skid Steers
Skid Steers

Hardox side skids fitted to all verge mowers.

Watch the FLAIL mower in action

Dual Flail Mower

1. Automatic Belt Tension
The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

2. High Quality Driveline
From the Waltersheid / Comer PTO shaft to the high quality gearbox, components have been carefully selected to offer trouble free operation. (Double wide angle fitted to selected models)

3. Robust Body
The double skin body incorporates Strenx high performance steel in the inner hood (we also use Hardox in the skids for greater durability). The body is shot blasted and protected with a high quality paint finish.

4. Side skids
Side skids fitted to all verge mowers.

Specifications

More
Description
TA/LI 135TA/LI 145
TA/LI 160
Working width
1.35m1.45m1.6m
Power - min/max
35 - 60HP35 - 60HP
35 - 60HP
No. of 'L' hammers
121414
No. of 'YL' blades*
364242
No. of belts
333
PTO
540 rpm540 rpm
540 rpm
Weight - min/max
435/515kg445/525kg
460/540kg
*By special order only.
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.

Dwnload PDF
