Working Width
Working Width 1.45m - 2.0m
Tractor
Power 50 - 90HP
PTO
PTO 540 rpm
Hammer Flails
Hammer Flails 'P' Type
Weight
Weight 590 - 800kg

Why use a TA/M mulcher?

For ditches, banks of watercourses, road side banks. Up to Ø5cm cut.

Key Benefits:

  • 3-point linkage Cat. II with floating system and safety lock (Cat. I by special request)
  • Gearbox positioned outside chassis body
  • Skids of anti-wearing steel
  • Full automatic belts adjuster
  • Hydraulic side shift with breakaway valve
  • Self-cleaning and adjustable Ø139 rear roller
  • Free wheel in the gearbox (540 rpm only)
  • RH cut only

Explore the TA/M

Features
TA/M features
Automatic Belt Tensioning
Automatic Belt Tensioning
Automatic Belt Tensioning

The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

Counter Blades
Counter Blades
Counter Blades

These are added for improved mulching performance

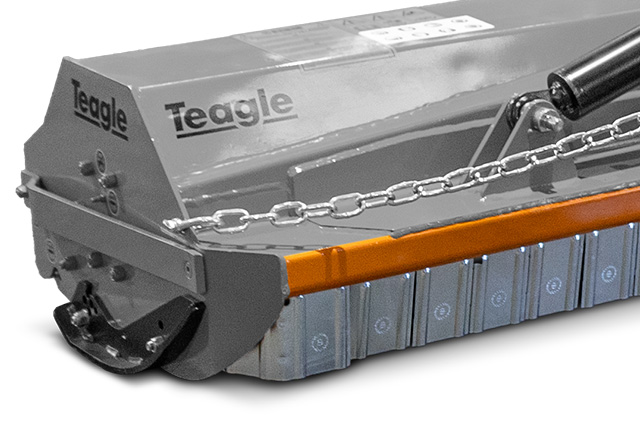

Debris Protection
Debris Protection
Debris Protection

Pivoting steel flaps or chains are fitted to the front of the machine to prevent debris being thrown up at the tractor.

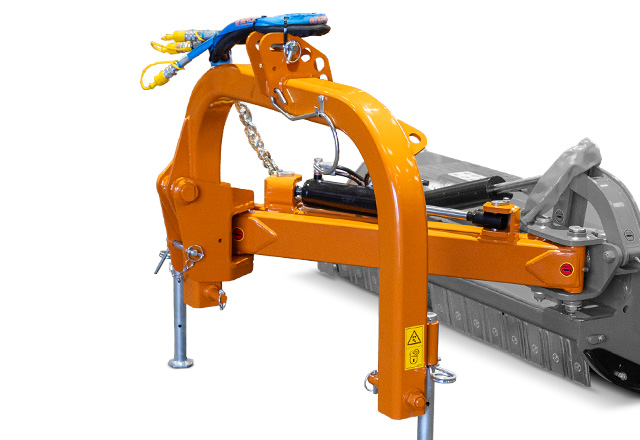

Displaceable 3 point linkage
Displaceable 3 point linkage
Displaceable 3 point linkage

The robust rear mount headstock uses parallel arms for side shift adjustment with a built in float mechanism.

High Performance Rotor
High Performance Rotor
High Performance Rotor

The large diameter seamless tube is dynamically balanced and delivers a market leading tip speed, as well as strength in operation. Stout lugs hold the flails firmly in place.

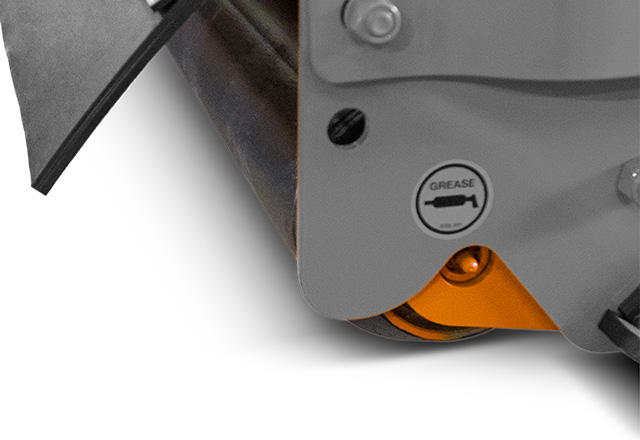

Large Diameter Roller
Large Diameter Roller
Large Diameter Roller

The large diameter roller runs on greasable bearings that are protected from debris within a deep labyrinth arrangement.

Watch the FLAIL mower in action

Dual Flail Mower

1. Automatic Belt Tension
The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

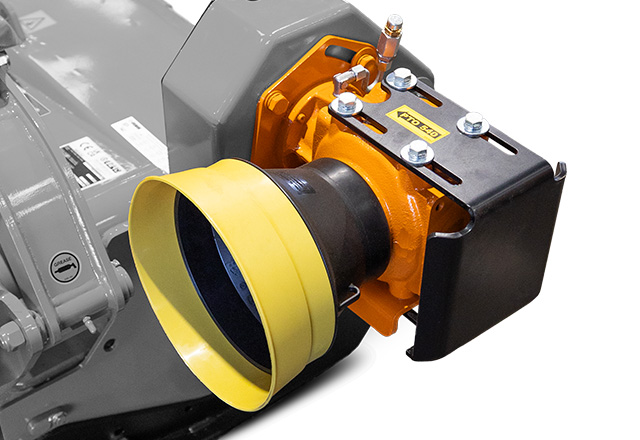

2. High Quality Driveline
From the Waltersheid / Comer PTO shaft to the high quality gearbox, components have been carefully selected to offer trouble free operation. (Double wide angle fitted to selected models)

3. Robust Body
The double skin body incorporates Strenx high performance steel in the inner hood (we also use Hardox in the skids for greater durability). The body is shot blasted and protected with a high quality paint finish.

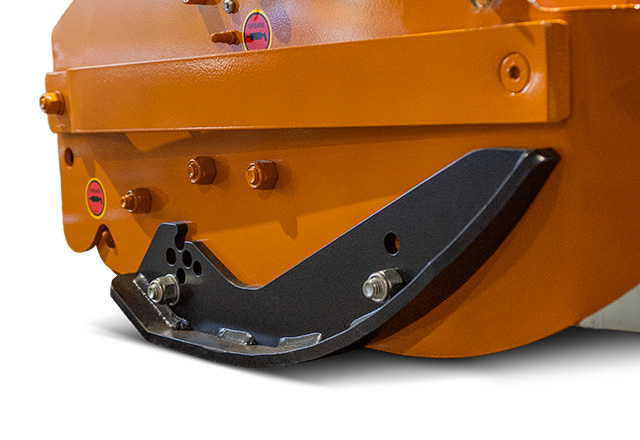

4. Side skids
Side skids fitted to all verge mowers.

Specifications

More
Description
TA/M 145TA/M 160TA/M 180TA/M 200
Working width
1.45m1.6m1.8m2.0m
Power - min/max
50 - 90HP50 - 90HP
50 - 90HP
50 - 90HP
No. of 'P' hammers
14141618
No. of 'YP' blades*
42424854
No. of belts
3333
PTO
540 rpm540 rpm
540 rpm
540 rpm
Weight - min/max
590/700kg620/730kg
655/765kg
690/800kg
*By special order only.
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
