Working Width
Working Width 1.8m - 2.5m
Tractor
Power 80 - 200HP
PTO
PTO 540 rpm
Hammer Flails
Hammer Flails 'A' Type
Weight
Weight 970 - 1,290kg

Why use a TA/P mulcher?

It's an ideal machine for contractors who need to clear slopes, ditches, banks of watercourses, road side banks and public green areas. Up to Ø10cm cut.

Key Benefits:

  • 3-point linkage Cat. II with floating system and safety lock
  • Adjustable rear discharge
  • Skids of anti-wearing steel
  • Hydraulic side shift with breakaway valve
  • Self-cleaning and adjustable Ø159
  • Free wheel in the gearbox with 1” 3/4 input shaft (540 rpm only)


Explore the TA/P

Features

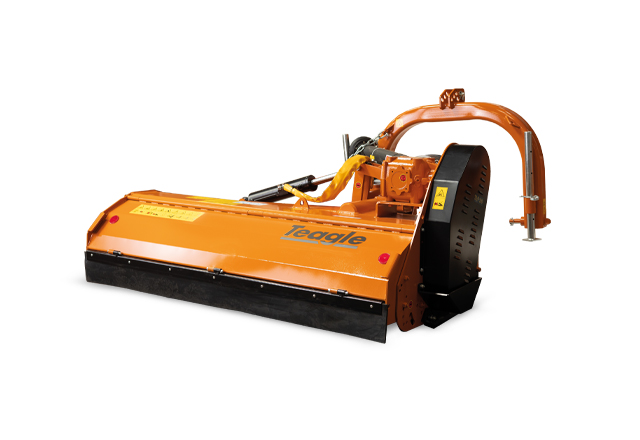

TA/P features

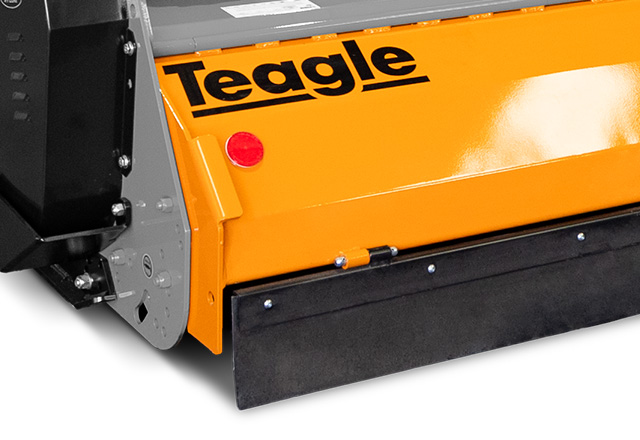

Adjustable hoods
Adjustable hoods
Adjustable hoods

For improved mulching performance, the adjustable hoods contain or release cut material as required.

Automatic Belt Tensioning
Automatic Belt Tensioning
Automatic Belt Tensioning

The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

Counter Blades
Counter Blades
Counter Blades

For improved mulching performance

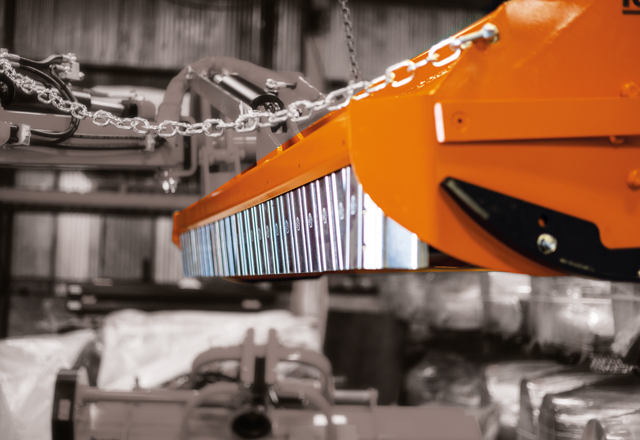

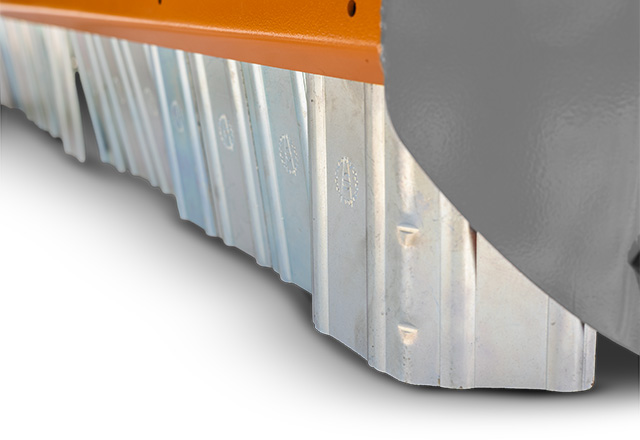

Debris Protection
Debris Protection
Debris Protection

Pivoting steel flaps are fitted to the front of the machine to prevent debris being thrown up at the tractor.

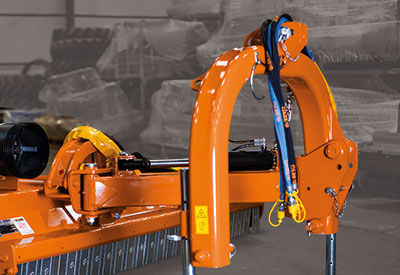

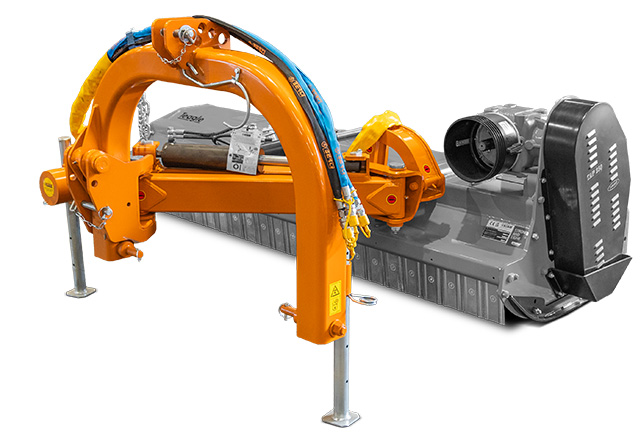

Displaceable 3 point linkag
Displaceable 3 point linkag
Displaceable 3 point linkag

The robust rear mount headstock uses parallel arms for side shift adjustment with a built in float mechanism.

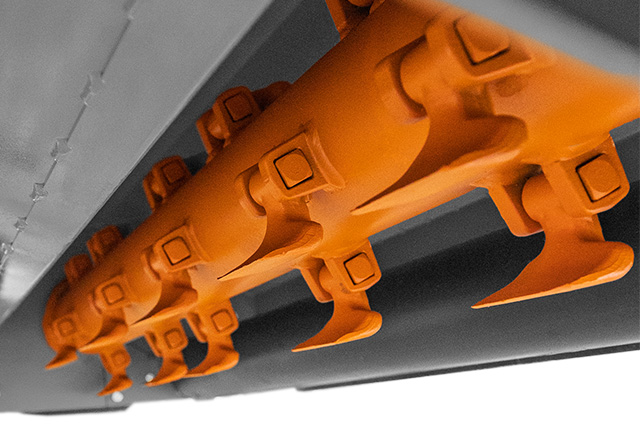

High Performance Rotors
High Performance Rotors
High Performance Rotors

The large diameter seamless tube is dynamically balanced and delivers a market leading tip speed, as well as strength in operation. Stout lugs hold the flails firmly in place.

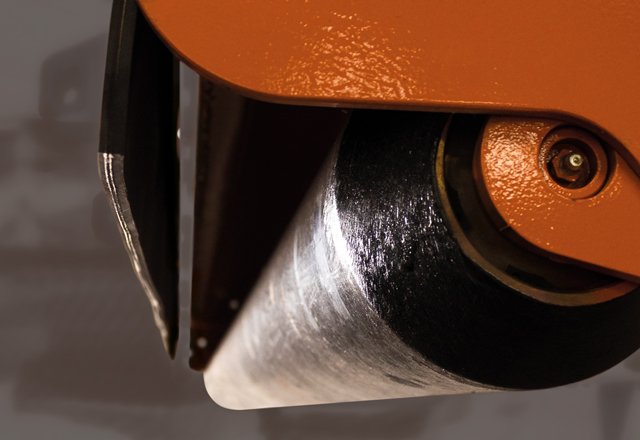

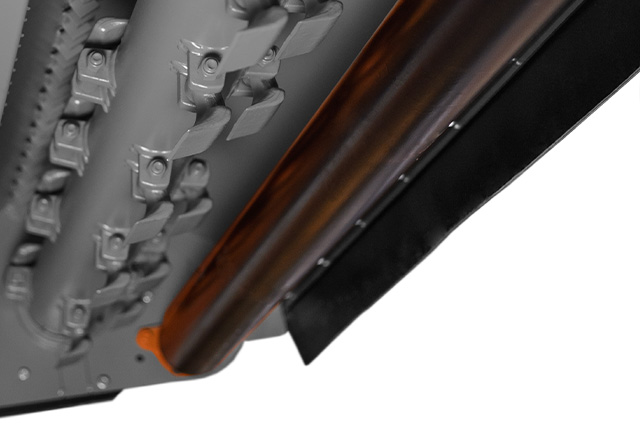

Large Diameter Roller
Large Diameter Roller
Large Diameter Roller

The large diameter roller runs on greasable bearings that are protected from debris within a deep labyrinth arrangement.

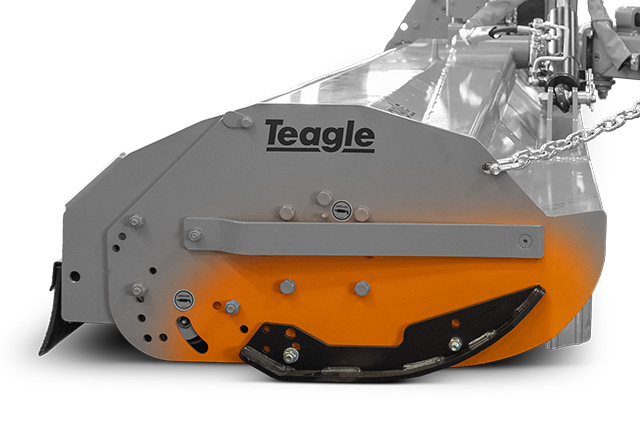

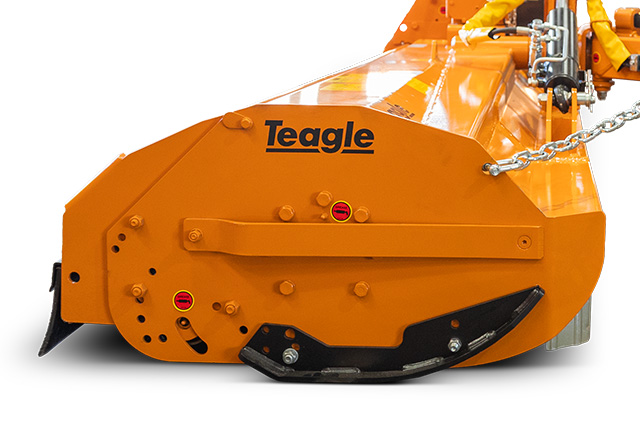

Skid Steers
Skid Steers
Skid Steers

Durable Hardox side skids are fitted to all verge mowers.

Watch the FLAIL mower in action

Dual Flail Mower

1. Automatic Belt Tension
The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

2. High Quality Driveline
From the Waltersheid / Comer PTO shaft to the high quality gearbox, components have been carefully selected to offer trouble free operation. (Double wide angle fitted to selected models)

3. Robust Body
The double skin body incorporates Strenx high performance steel in the inner hood (we also use Hardox in the skids for greater durability). The body is shot blasted and protected with a high quality paint finish.

4. Side skids
Side skids fitted to all verge mowers.

Specifications

More
Description
TA/P 180TA/P 200
TA/P 220
TA/P 250
Working width
1.8m2.0m2.2m2.5m
Power - min/max
80 - 200HP80 - 200HP
80 - 200HP
100 - 200HP
No. of 'A' hammers
16182022
No. of 'YA' blades*
48546066
No. of belts
5555
PTO
540 rpm540 rpm
540 rpm
540 rpm
Weight - min/max
970/1,125kg1,020/1,175kg
1,070/1,225kg
1,135/1,290kg
*By special order only.
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
