Working Width
Working Width 2.2m
Tractor
Power (min.) 60HP / 45kW
Tractor Linkage
Tractor Linkage Cat 2
PTO speed
PTO Speed 540 rpm
Weight
Weight 795kg

Get the most from your crop with a Super-ted?

Reap the rewards of faster drying times or crop recovery following wet weather.

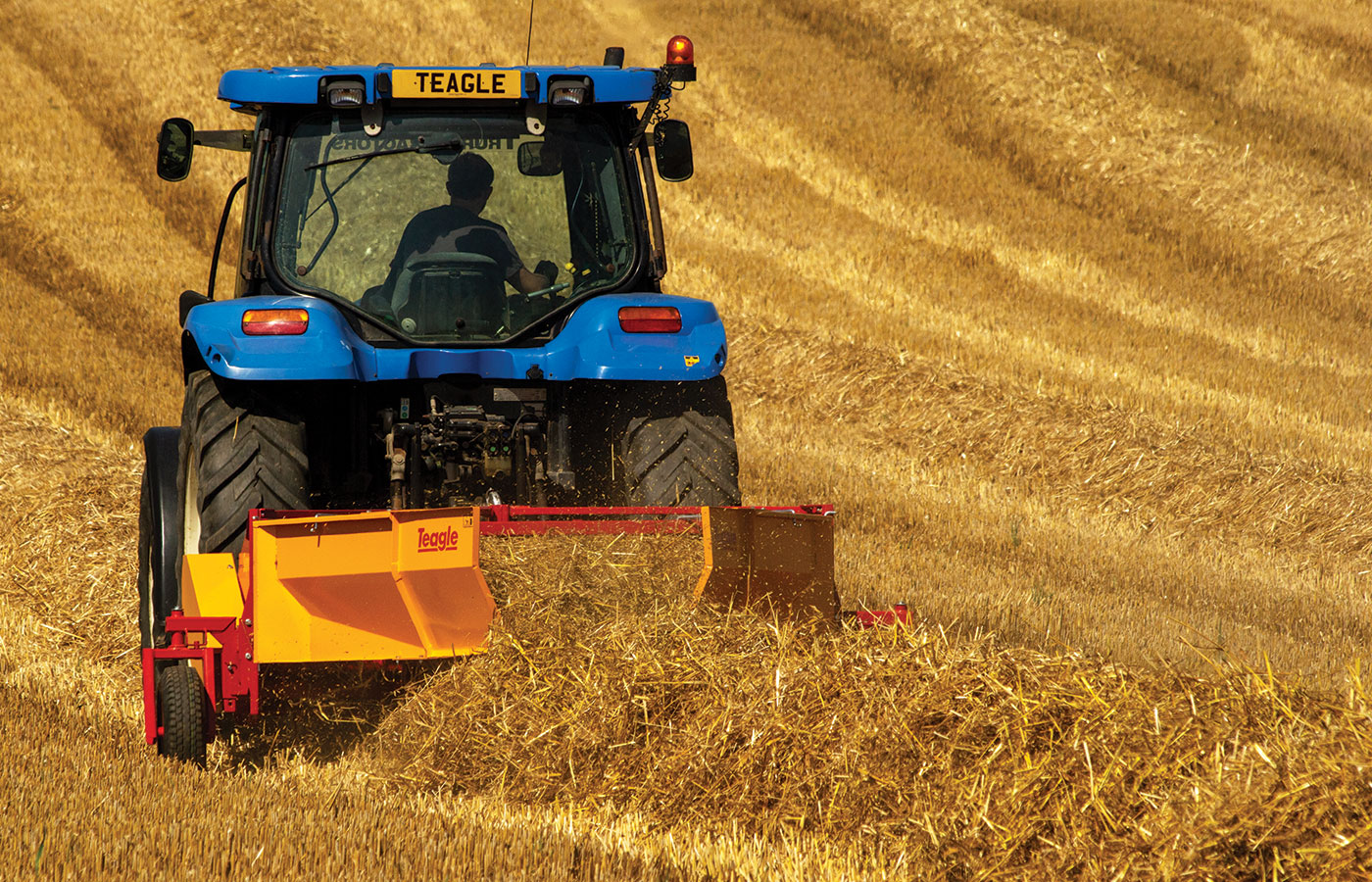

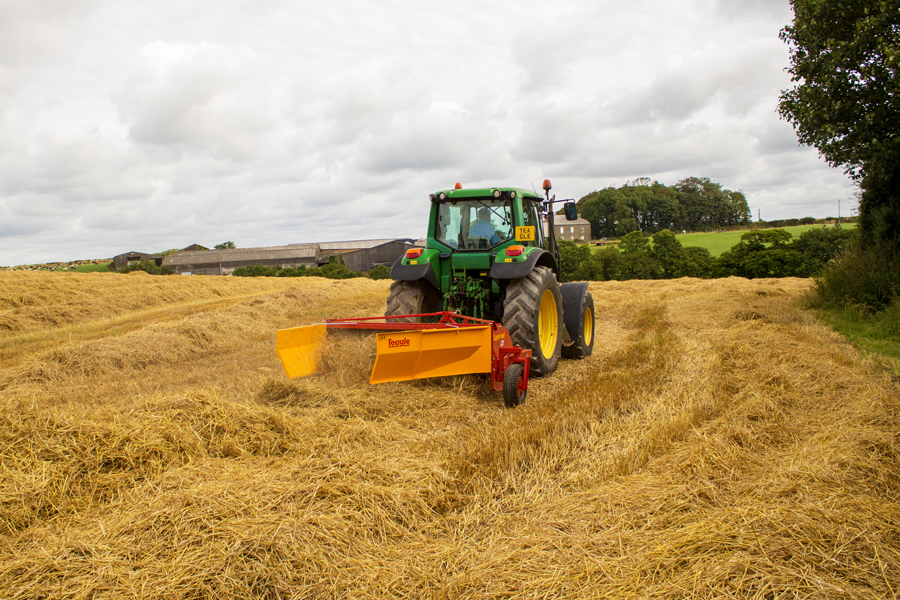

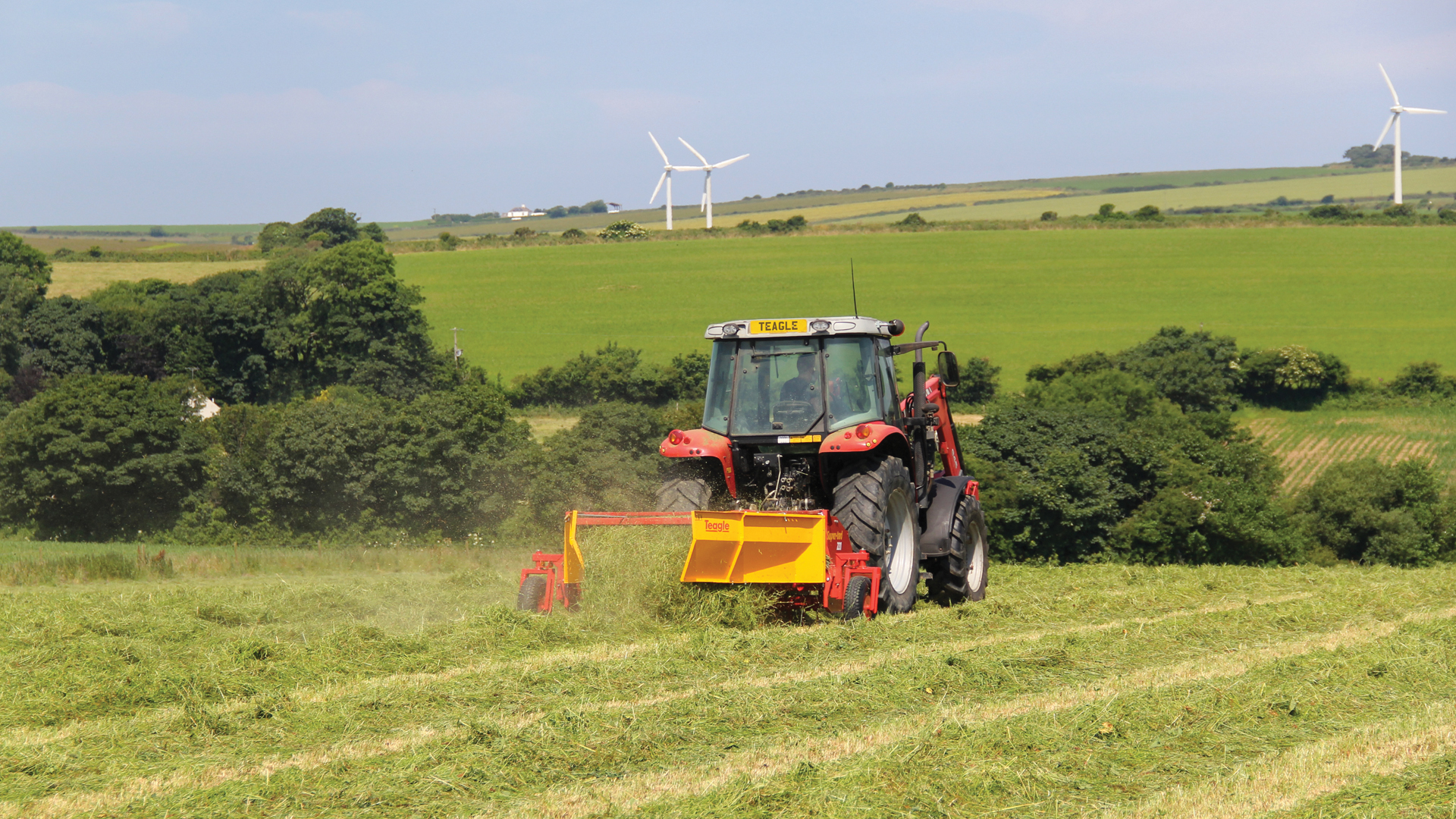

The Super-ted Swath Conditioner quickly and effectively enables farmers to preserve the quality of their crops in the field.

Key Benefits:

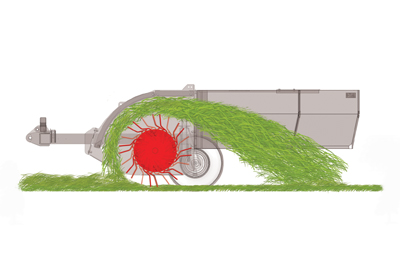

  • Faster Drying: The crop is lifted, with air being introduced to the swath for more even drying from top to bottom.

  • Tidier Swaths: The swaths produced by the Super-ted are box shaped with clean edges and can be adjusted in width and offset using the rear doors.

  • Efficiency: Increase workrate in the following harvesting or baling operation.

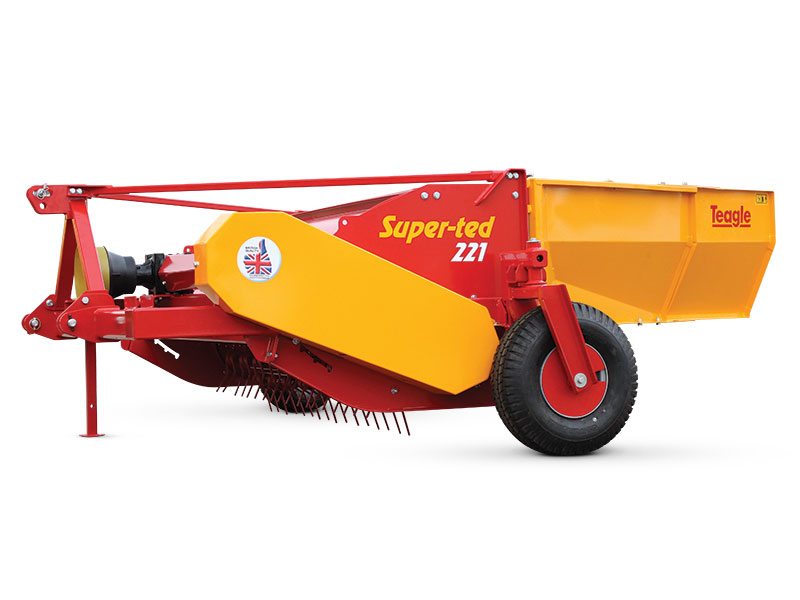

Explore the Super-ted 221

Features
Super-ted 221 features
Adjustable hood
Adjustable hood
Adjustable hood

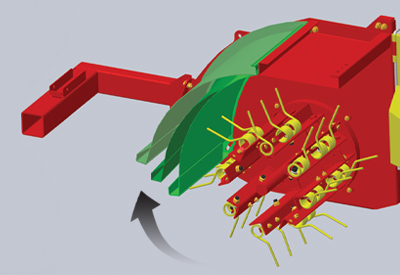

Set conditioning intensity to suit your swath by adjusting the front hood clearance.

Retained Tines
Retained Tines
Retained Tines

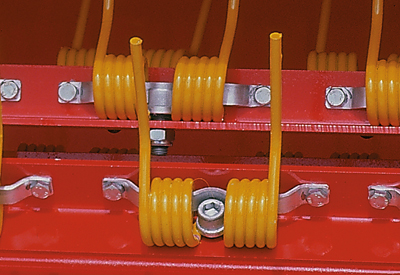

Individual tine retainers prevent crop contamination and potential damage to following machinery.

Tidier Swaths
Tidier Swaths
Tidier Swaths

The swaths produced by the Super-ted are box shaped with clean edges and can be adjusted in width and offset using the rear doors.

Why settle for less?
Why settle for less?
Why settle for less?

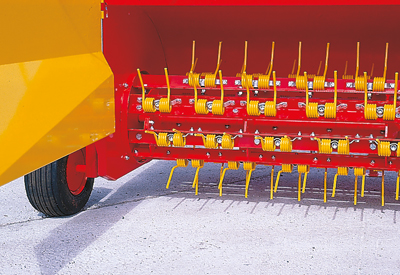

8 rows of high grade spring steel twin-fork tines ensure intensive conditioning.

British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

Watch the Super-ted 221

Swath Conditioner

Customer Review

ALISTAIR HODNETT

He farms 255 acres in partnership with his father Michael on the outskirts of Dundee.

Last year over 24,000 tonnes of straw were procured and retailed, with over 6000 acres of straw from farms in and around the Angus, Fife and Perthshire areas purchased and baled. In addition, 80 acres of haylage and 80 acres of hay are baled on the farm and sold throughout Scotland.

Attention to detail in producing a quality product is paramount when supplying to such a large customer base. Alistair uses a Super-ted 221, to ted and condition his grass and straw (following a 40’ combine header).

“I achieve fantastic work rates at a forward speed of around 10mph”.

“We use the Super-ted prior to baling as it lifts the crop off the ground, to not only aid drying, but the crop is more easily picked up by the balers. This reduces mechanical damage to the baler pick up and allows the balers to travel faster over the field”.

Specifications

Description
Super-ted 221
Pick-up width
2.20m
Overall width (with wheels/without wheels)
3.10m / 2.54m
Overall length - doors open
3.27m
Overall length - doors closed
1.86m
Overall height - in lowest working position
1.04m
Height adjustment
40 - 200mm
Castor wheel tyre size
6.00 - 9 - 10
Tractor power (min.)
60HP / 45kW
PTO speed
540 rpm
PTO type
with overrun clutch
Number of drive belts
4 x 'B' Section
Linkage
Cat. 2
Weight
795 kg
More

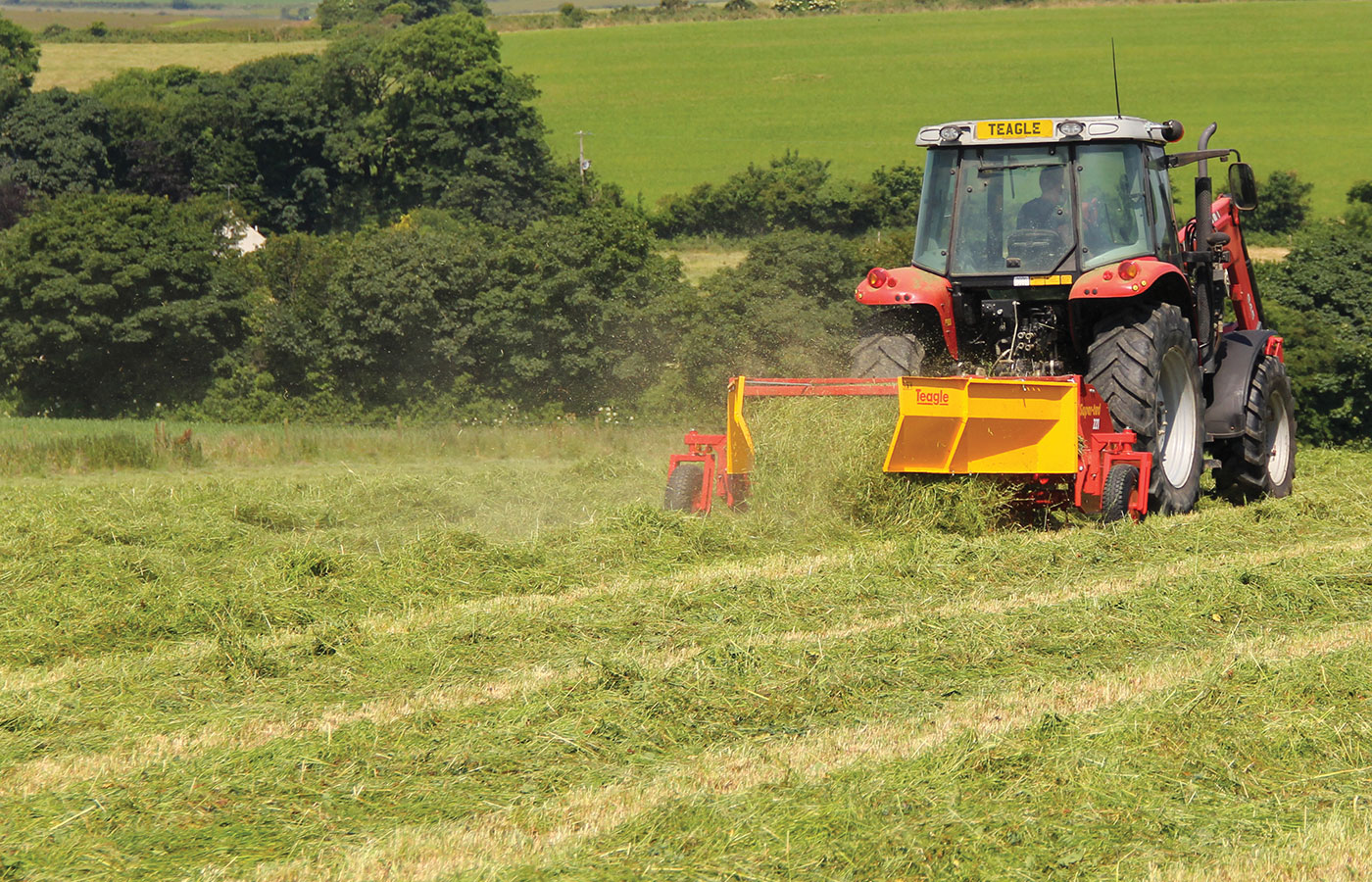

Wet weather insurance


Get the most from your crop with a Teagle Super-ted and reap the rewards of faster drying times and crop recovery following wet weather.
