FS-Length
Overall Length 4.12m
Tractor
Power (min.) 120HP / 90kW
FS-Weight
Weight 1,386kg
Bale rectangular
Straw Bale 1 x 4'x4'x8'
Round bale size
Straw Bales 2 x 5'

Why choose the Tomahawk 505FSM?

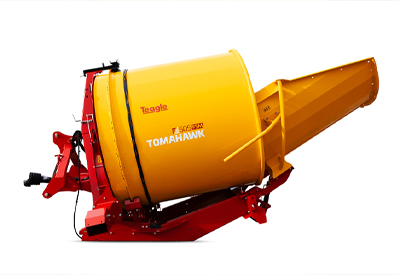

Easy loading, precision processing.

Process round or rectangular bales of dry material to a consistent length from 8mm to 120mm, depending on mill screen size. Output up to 4 t/hr. with uniform chop length for optimal nutrition and bedding.

Key Benefits:

  • Precision Output: Delivers a fine uniform chop from the high performance mill system. Output can be calibrated by changing screens in the mill.

  • Non-stop processing: The rear hydraulically angled feed slide allows constant material feed when the mill is operating in a stationary position.

Explore the 505FSM

Highlights
Features
Options
Overview
Tomahawk 505FSM highlights
Precision Processing
Precision Processing
Precision Processing

Bales of dry material (<20% moisture) are milled to a precise length by 40 blades (20 hammer option also available), with chop length controlled by a hardox screen.

Calibrated Output
Calibrated Output
Calibrated Output

Hardox Screens are interchangable, with hole diameters from 8mm - 120mm.

Continuous Loading
Continuous Loading
Continuous Loading

The hydraulically angled feed slide allows constant material feed at up to 4000kg/hr.

Discharge to one or both sides
Discharge to one or both sides
Discharge to one or both sides

Chutes on left and right hand sides can be open or shut independently. Various chutes are available for special applications. See Options.

Cat. II/III Linkage
Cat. II/III Linkage
Cat. II/III Linkage

All models in the Tomahawk 500 series are now compatible with both Cat. II and Cat. III tractor linkages.

Clean Operation
Clean Operation
Clean Operation

A brush seal kit is fitted as standard for material containment.

Driveline protection
Driveline protection
Driveline protection

A wide angle PTO is supplied as standard, with friction clutch overload protection. Optional 8 or 21 spline versions available.

Feed control
Feed control
Feed control

For fine control of the drum rotation speed and output, a hydraulic flow divider is supplied as standard with the 500FSM.

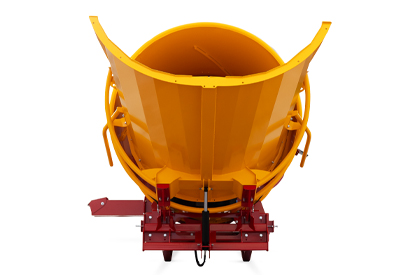

Feed Slide - 2 modes of operation
Feed Slide - 2 modes of operation
Feed Slide - 2 modes of operation

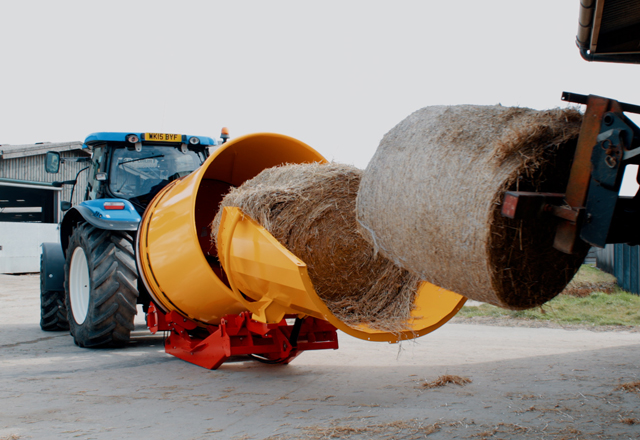

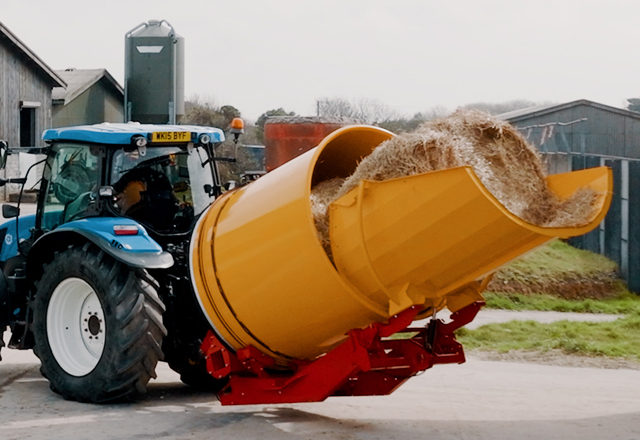

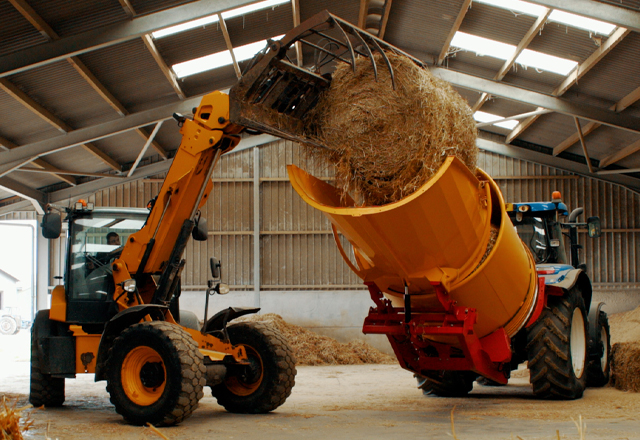

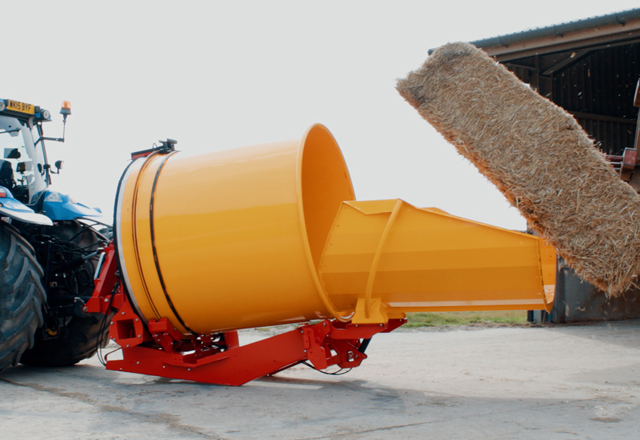

The feed slide can be operated horizontal for easy loading from ground level, or inclined with bales dropped onto the slide.

OPTION : Drum Hose Adaptor
OPTION : Drum Hose Adaptor
OPTION : Drum Hose Adaptor

For connection to 180mm (6") hose. Available for models with lower chute output.

OPTION : Dust Suppression Kit
OPTION : Dust Suppression Kit
OPTION : Dust Suppression Kit

The liquid spray kit can be fitted to any model in the 400 - 500 Tomahawk range to reduce dust from milled straw, or to enable the application of anti-bacterial products to bedding.

OPTION : Electric Drive
OPTION : Electric Drive
OPTION : Electric Drive

Simple to use and efficient to run. The Tomahawk 500E offers semi-automated straw processing, with less than half the running cost of a tractor.

OPTION : Hydraulic Flap Control
OPTION : Hydraulic Flap Control
OPTION : Hydraulic Flap Control

For controlled delivery, available on all Giraffe Chutes.

OPTION : Hydraulic Top Link
OPTION : Hydraulic Top Link
OPTION : Hydraulic Top Link

For straightforward, in-cab adjustment of drum angle and feed rate.

OPTION : Multi Rotor
OPTION : Multi Rotor
OPTION : Multi Rotor

Suitable for processing straw for bedding loose housing (does not chop short), feeding silage & root crops. See model T5050FS

OPTION : Radio Remote Control
OPTION : Radio Remote Control
OPTION : Radio Remote Control

The radio remote control allows you to remotely trigger mulching while using the hose. Includes: drum speed regulator, power cable, distributor unit, and radio remote control.

OPTION : Straw Giraffe Chute
OPTION : Straw Giraffe Chute
OPTION : Straw Giraffe Chute

Increase delivery height and blow distance. For Mill Rotor models.

OPTION : Strawberry Chute Kit
OPTION : Strawberry Chute Kit
OPTION : Strawberry Chute Kit

To deliver straw directly between row crops, on both sides of the machine.

OPTION : Swivel Giraffe Chute
OPTION : Swivel Giraffe Chute
OPTION : Swivel Giraffe Chute

Increase delivery height, available with hydraulic rotation and deflector. Dry materials only.

OPTION : Trailed Chassis
OPTION : Trailed Chassis
OPTION : Trailed Chassis

A trailed chassis to accommodate all models in the Drum Tomahawk range. Convenience, control for smaller tractors.

OPTION :135° chute
OPTION :135° chute
OPTION :135° chute

To deflect straw under the machine when spreading straw evenly when bedding poultry sheds.

British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

Save Straw / Save Time
Save Straw / Save Time
Save Straw / Save Time

Users regularly report up to 30% savings by spreading the correct amount of straw evenly across the bedding area.

Highlights
Features
Options
Overview
Tomahawk 505FSM features
Cat. II/III Linkage
Cat. II/III Linkage
Cat. II/III Linkage

All models in the Tomahawk 500 series are now compatible with both Cat. II and Cat. III tractor linkages.

Clean Operation
Clean Operation
Clean Operation

A brush seal kit is fitted as standard for material containment.

Driveline protection
Driveline protection
Driveline protection

A wide angle PTO is supplied as standard, with friction clutch overload protection. Optional 8 or 21 spline versions available.

Feed control
Feed control
Feed control

For fine control of the drum rotation speed and output, a hydraulic flow divider is supplied as standard with the 500FSM.

Feed Slide - 2 modes of operation
Feed Slide - 2 modes of operation
Feed Slide - 2 modes of operation

The feed slide can be operated horizontal for easy loading from ground level, or inclined with bales dropped onto the slide.

Highlights
Features
Options
Overview
Tomahawk 505FSM options
OPTION : Drum Hose Adaptor
OPTION : Drum Hose Adaptor
OPTION : Drum Hose Adaptor

For connection to 180mm (6") hose. Available for models with lower chute output.

OPTION : Dust Suppression Kit
OPTION : Dust Suppression Kit
OPTION : Dust Suppression Kit

The liquid spray kit can be fitted to any model in the 400 - 500 Tomahawk range to reduce dust from milled straw, or to enable the application of anti-bacterial products to bedding.

OPTION : Electric Drive
OPTION : Electric Drive
OPTION : Electric Drive

Simple to use and efficient to run. The Tomahawk 500E offers semi-automated straw processing, with less than half the running cost of a tractor.

OPTION : Hydraulic Flap Control
OPTION : Hydraulic Flap Control
OPTION : Hydraulic Flap Control

For controlled delivery, available on all Giraffe Chutes.

OPTION : Hydraulic Top Link
OPTION : Hydraulic Top Link
OPTION : Hydraulic Top Link

For straightforward, in-cab adjustment of drum angle and feed rate.

OPTION : Multi Rotor
OPTION : Multi Rotor
OPTION : Multi Rotor

Suitable for processing straw for bedding loose housing (does not chop short), feeding silage & root crops. See model T5050FS

OPTION : Radio Remote Control
OPTION : Radio Remote Control
OPTION : Radio Remote Control

The radio remote control allows you to remotely trigger mulching while using the hose. Includes: drum speed regulator, power cable, distributor unit, and radio remote control.

OPTION : Straw Giraffe Chute
OPTION : Straw Giraffe Chute
OPTION : Straw Giraffe Chute

Increase delivery height and blow distance. For Mill Rotor models.

OPTION : Strawberry Chute Kit
OPTION : Strawberry Chute Kit
OPTION : Strawberry Chute Kit

To deliver straw directly between row crops, on both sides of the machine.

OPTION : Swivel Giraffe Chute
OPTION : Swivel Giraffe Chute
OPTION : Swivel Giraffe Chute

Increase delivery height, available with hydraulic rotation and deflector. Dry materials only.

OPTION : Trailed Chassis
OPTION : Trailed Chassis
OPTION : Trailed Chassis

A trailed chassis to accommodate all models in the Drum Tomahawk range. Convenience, control for smaller tractors.

OPTION :135° chute
OPTION :135° chute
OPTION :135° chute

To deflect straw under the machine when spreading straw evenly when bedding poultry sheds.

Highlights
Features
Options
Overview
Tomahawk 505FSM overview
British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

Save Straw / Save Time
Save Straw / Save Time
Save Straw / Save Time

Users regularly report up to 30% savings by spreading the correct amount of straw evenly across the bedding area.

Watch the Tomahawk 505FSM in action

Tomahawk Feed Slide

Who get's the most out of their Tomahawk 505FSM 'Feed Slide'?

Straw is a very useful feed if prepared in the right way.

  • In dry cow rations it can be used to control energy intake and reduce the risk of milk fever.
  • In milking cow rations it can be very useful as physically effective fibre when required.

For either group the key to feeding straw is incorporation to create a homogenous mix. Poorly processed straw will not blend which can encourage cows to sort the ration, making the problem worse rather than better. The straw should be pre-processed, and we find milled straw to provide the best results.

Specifications

Description
505FSM
Drum diameter
1.83m
Round bale diameter (max.)
1.60m
Rectangular bale size (max.)
1.2m x 1.2m
Height overall with machine on ground
2.59m
Width with chutes closed
2.01m
Lower chute discharge height*
0.55m
Upper chute discharge height*
1.26m
Overall length
4.12m
Operating width
3.13m
Weight
1386 KG
Tractor power (min.)**
120HP / 90kW
PTO speed1,000 rpm
Short Chop Straw
Yes

*Working heights will increase by up to 1m depending on tractor
** Typical tractor size to provide adequate lifting capacity and stability
***Chute extensions not fitted
