6200H-blow
Blow Distance 13.5m
Oil Flow
Oil Flow 60 I/min
6100-lift capacity
Lift Capacity (min.) 2.8t
6200H-height
Overall Height 2.52m
Bale rectangular
Rectangular Bales 1 x 4'x4'

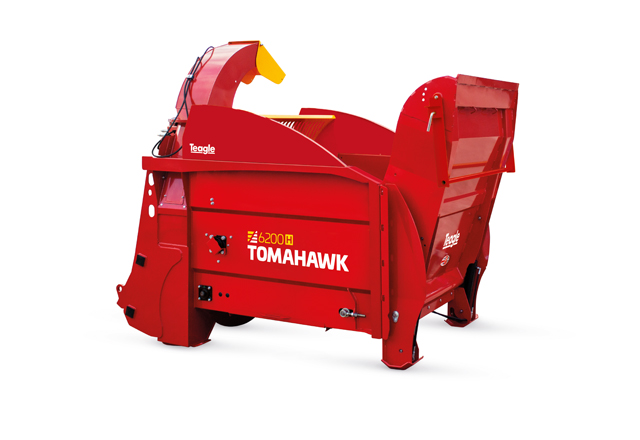

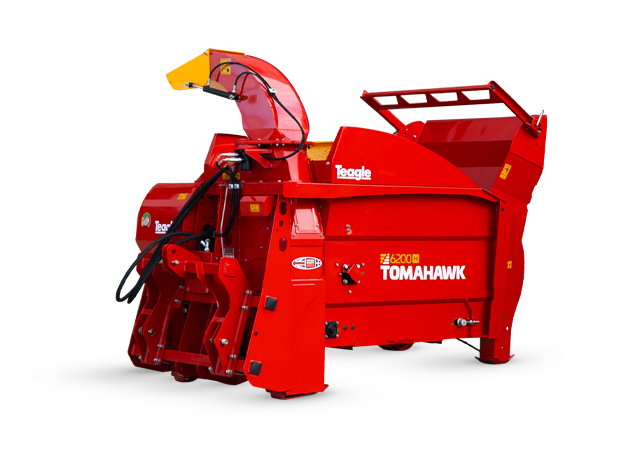

Introducing the 6200H

No PTO Required!

  • Versatile Hydraulic Drive: Hydraulic drive means the 6200H is suitable for Telehandlers and Pivot Steers from 2800kg lift capacity. Tractor three point hitch can also be used.

  • All Bale Sizes: The 6200H can accommodate a full 4' x 4' x 8' (1.2 x 1.2 x 2.4m) rectangular bale, or a 5' (1.5m) round bale. Straw and Dry Hay can be processed.

  • Maximise profitability: Reduces time and effort compared to bedding by hand. Evenly spreading bales in bedding areas reduces straw usage and improves comfort with a uniform bed structure for cleaner, healthier livestock.

Explore the 6200H

Highlights
Features
Options
Overview
Tomahawk 6200H highlights

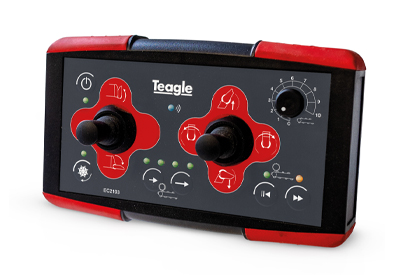

Convenient Wireless Control
Convenient Wireless Control
Convenient Wireless Control

Pause / Run modes control processing at the touch of a button. Loading gate, chute and processing are reliably controlled from the handler cab. Cab and external 12V supplies are required.

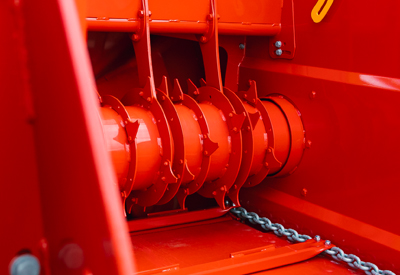

Load Sensing Auto Control
Load Sensing Auto Control
Load Sensing Auto Control

The blades/hooks on the full width crossbeater break the bale apart, then feed the straw into the fan.

Optimise output
Optimise output
Optimise output

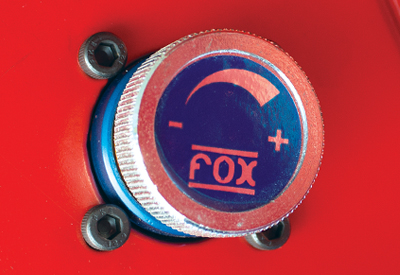

A pressure switch automatically reverses the bedchain and crossbeater when overloaded. The pressure is easily adjustable for optimisation for handler / bale type.

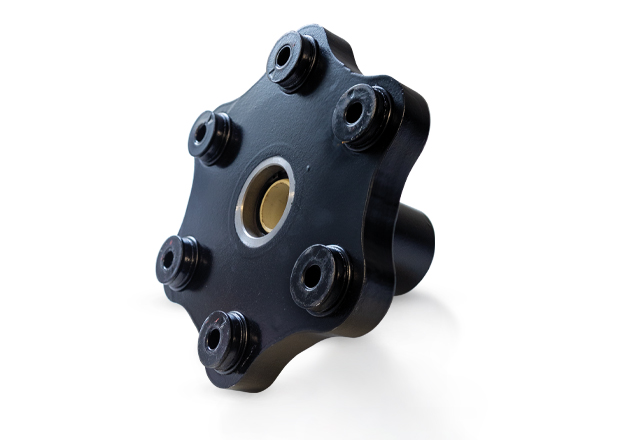

Robust Driveline
Robust Driveline
Robust Driveline

For extended / service life intervals, a self-aligning cush drive absorbs loading as the crossbeater reverses and reengages to process the bale.

Self Loading
Self Loading
Self Loading

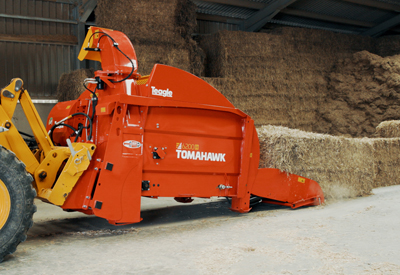

The hydraulic loading gate with adjustable bale beam makes it easy to self load round or rectangular bales.

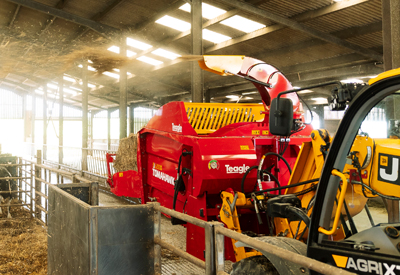

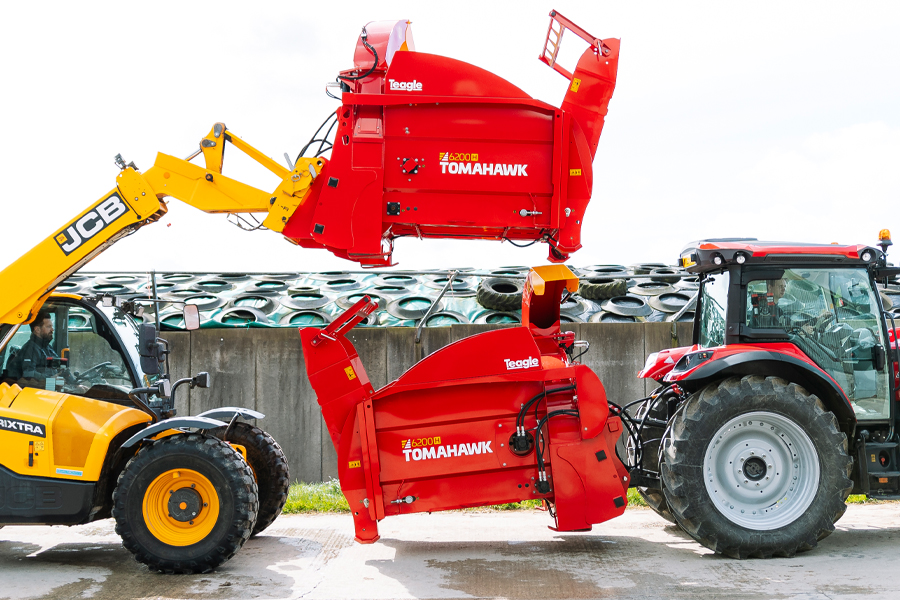

Telehandler
Telehandler
Telehandler

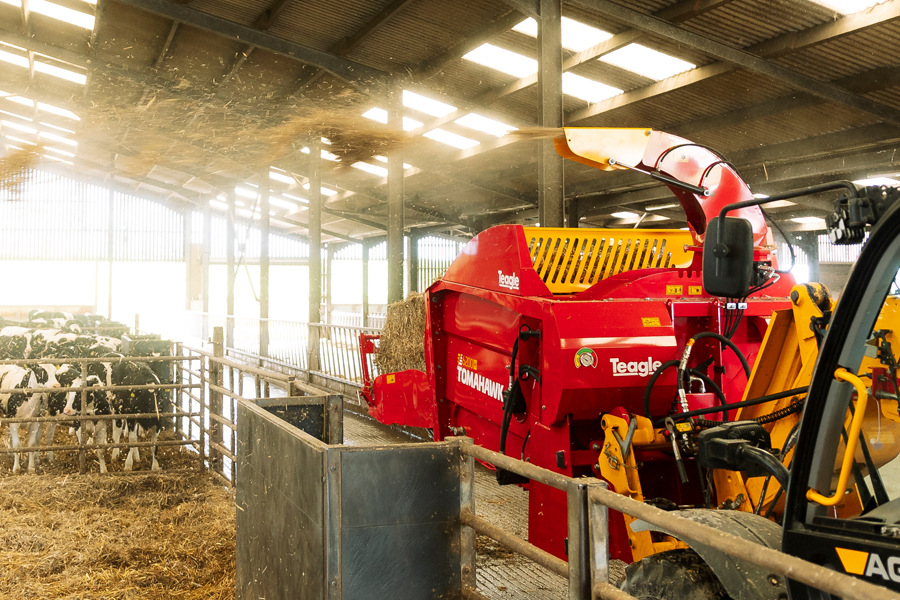

Access are areas with the handler mounted Tomahawk 6200H

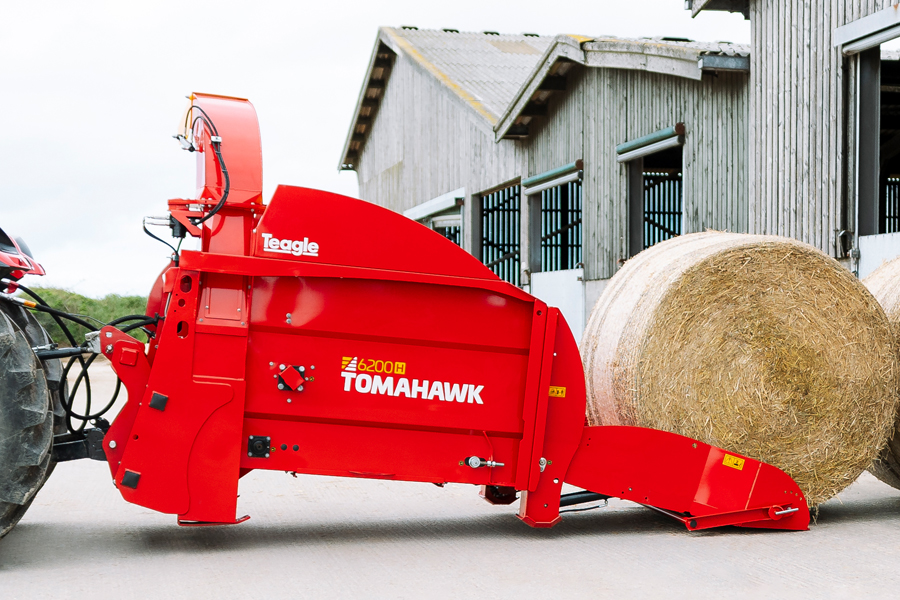

Tractor
Tractor
Tractor

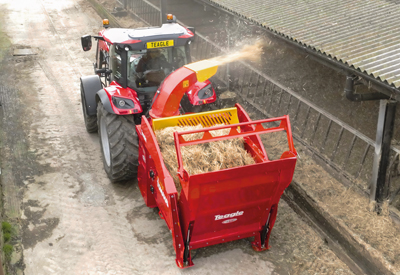

The three-point tractor bracket allows the machine to be mounted either in front or behind the tractor.

High strength bed conveyor
High strength bed conveyor
High strength bed conveyor

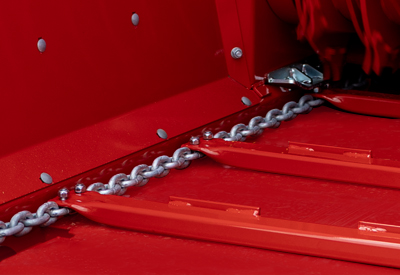

Six heavy-duty 60mm x 40mm bed slats are attached with U-Bolts for straightforward servicing to large 10mm diameter galvanised bed chains.

Deliver bedding up to 14m
Deliver bedding up to 14m
Deliver bedding up to 14m

The 8 paddle fan (775rpm) ensures maximum blow distance. Paddles are easily replaced for straightforward servicing. The fan can be paused using the WiFi control desk to move between sheds.

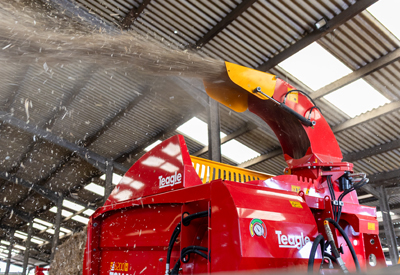

Even Distribution
Even Distribution
Even Distribution

The large capacity 320mm wide chute a Hardox wearing surface for durability. The chute rotates 280 deg. enabling the operator to easily place straw across the entire bedding area.

Straightforward Setup
Straightforward Setup
Straightforward Setup

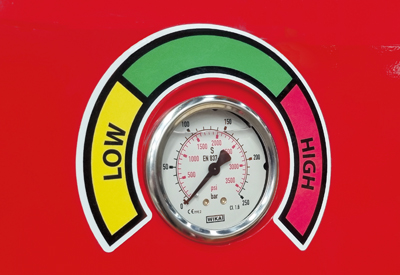

A pressure gauge assists the operator in setting up the auto-reverse function to ensure efficient operation.

OPTION : Crossbeater Configuration
OPTION : Crossbeater Configuration
OPTION : Crossbeater Configuration

Achieve optimum bedding. Hooks, in lieu of blades, can be specified to reduce the amount of chopping as the bale is processed.

OPTION : Hydraulic Flow Divider
OPTION : Hydraulic Flow Divider
OPTION : Hydraulic Flow Divider

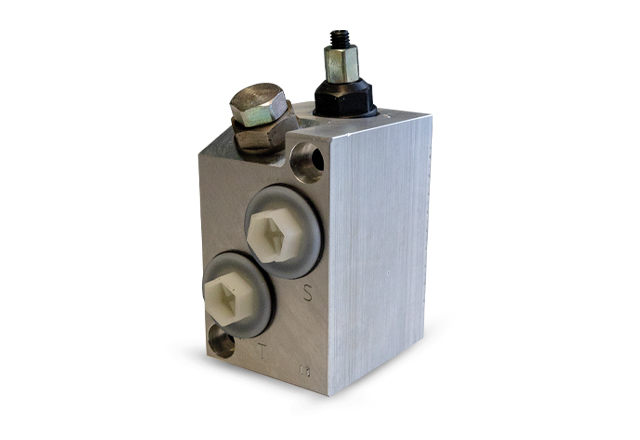

Required for hydraulic oil flows over 120 I/min (26.6 gal/min) / 270 bar (3915psi) @ 80°C (176°F).

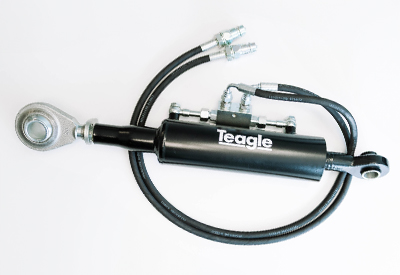

OPTION : Hydraulic Top Link
OPTION : Hydraulic Top Link
OPTION : Hydraulic Top Link

For straightforward, in-cab adjustment of machine angle when using tractor three point linkage.

OPTION : In-Line High Pressure Filter
OPTION : In-Line High Pressure Filter
OPTION : In-Line High Pressure Filter

Prevents contamination damaging the valve equipment.

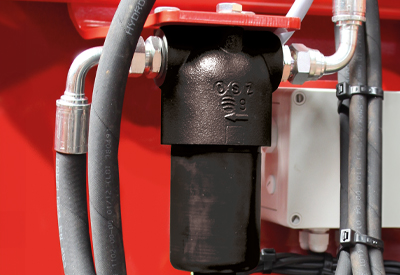

OPTION : Oil Filter
OPTION : Oil Filter
OPTION : Oil Filter

In-line high pressure filter prevents contamination from damaging the valve equipment.

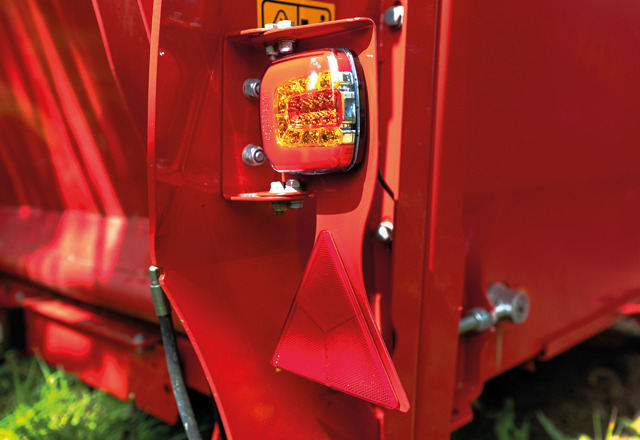

OPTION : Road Lighting Kit
OPTION : Road Lighting Kit
OPTION : Road Lighting Kit

Essential for highway use when the tractor 3 point hitch bracket is specified. The rear markers ensure that you operate safely when travelling on the road.

OPTION : Ski Jump Chute
OPTION : Ski Jump Chute
OPTION : Ski Jump Chute

The optional ‘Ski Jump Chute’ complete with adjustable comb and extended beak is perfect for bedding pig arcs and mulching fruit trees.

OPTION : Tailgate Switch
OPTION : Tailgate Switch
OPTION : Tailgate Switch

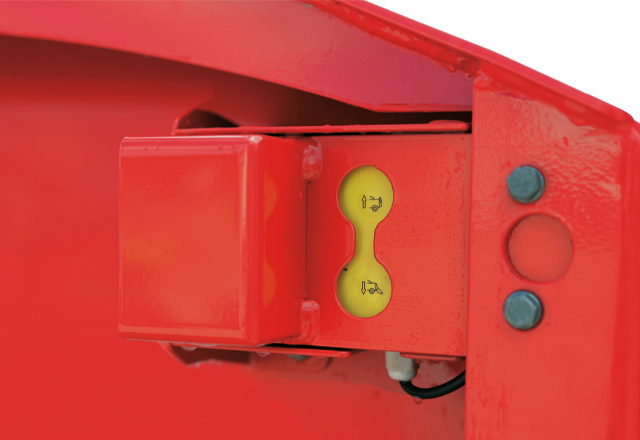

Control the loading gate and bed chain from the ground when loading with the remote loading gate switch.

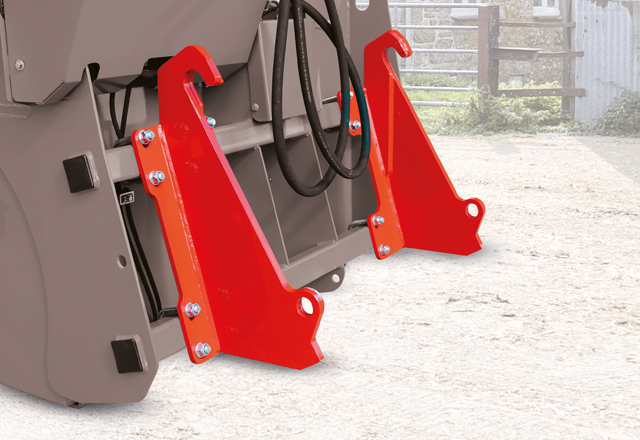

OPTION : Telehandler / Loader brackets
OPTION : Telehandler / Loader brackets
OPTION : Telehandler / Loader brackets

Are available for most Skid Steer, Telehandler, Pivot Steer and Tractor front loader models.

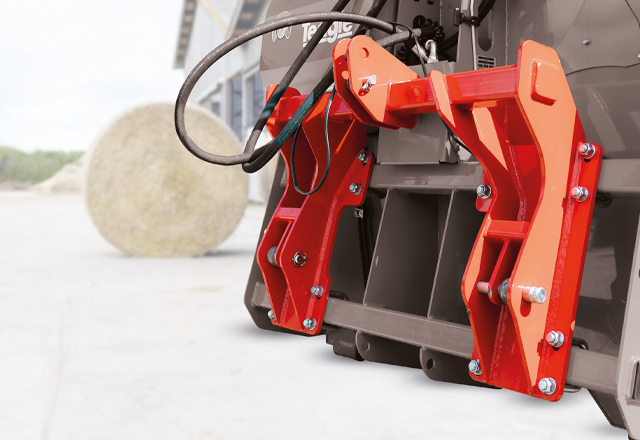

OPTION : Tractor Bracket
OPTION : Tractor Bracket
OPTION : Tractor Bracket

Is available to fit Category II and III linkages.

British Built
British Built
British Built

British Built. Making an impression worldwide!

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

Farming Simulator
Farming Simulator
Farming Simulator

The detailed 6200H mod allows selection of the telehandler or tractor bracket type with fully functional loading gate, chute movement and bale processing operation.

Highlights
Features
Options
Overview
Tomahawk 6200H features
High strength bed conveyor
High strength bed conveyor
High strength bed conveyor

Six heavy-duty 60mm x 40mm bed slats are attached with U-Bolts for straightforward servicing to large 10mm diameter galvanised bed chains.

Deliver bedding up to 14m
Deliver bedding up to 14m
Deliver bedding up to 14m

The 8 paddle fan (775rpm) ensures maximum blow distance. Paddles are easily replaced for straightforward servicing. The fan can be paused using the WiFi control desk to move between sheds.

Even Distribution
Even Distribution
Even Distribution

The large capacity 320mm wide chute a Hardox wearing surface for durability. The chute rotates 280 deg. enabling the operator to easily place straw across the entire bedding area.

Straightforward Setup
Straightforward Setup
Straightforward Setup

A pressure gauge assists the operator in setting up the auto-reverse function to ensure efficient operation.

Highlights
Features
Options
Overview
Tomahawk 6200H options
OPTION : Crossbeater Configuration
OPTION : Crossbeater Configuration
OPTION : Crossbeater Configuration

Achieve optimum bedding. Hooks, in lieu of blades, can be specified to reduce the amount of chopping as the bale is processed.

OPTION : Hydraulic Flow Divider
OPTION : Hydraulic Flow Divider
OPTION : Hydraulic Flow Divider

Required for hydraulic oil flows over 120 I/min (26.6 gal/min) / 270 bar (3915psi) @ 80°C (176°F).

OPTION : Hydraulic Top Link
OPTION : Hydraulic Top Link
OPTION : Hydraulic Top Link

For straightforward, in-cab adjustment of machine angle when using tractor three point linkage.

OPTION : In-Line High Pressure Filter
OPTION : In-Line High Pressure Filter
OPTION : In-Line High Pressure Filter

Prevents contamination damaging the valve equipment.

OPTION : Oil Filter
OPTION : Oil Filter
OPTION : Oil Filter

In-line high pressure filter prevents contamination from damaging the valve equipment.

OPTION : Road Lighting Kit
OPTION : Road Lighting Kit
OPTION : Road Lighting Kit

Essential for highway use when the tractor 3 point hitch bracket is specified. The rear markers ensure that you operate safely when travelling on the road.

OPTION : Ski Jump Chute
OPTION : Ski Jump Chute
OPTION : Ski Jump Chute

The optional ‘Ski Jump Chute’ complete with adjustable comb and extended beak is perfect for bedding pig arcs and mulching fruit trees.

OPTION : Tailgate Switch
OPTION : Tailgate Switch
OPTION : Tailgate Switch

Control the loading gate and bed chain from the ground when loading with the remote loading gate switch.

OPTION : Telehandler / Loader brackets
OPTION : Telehandler / Loader brackets
OPTION : Telehandler / Loader brackets

Are available for most Skid Steer, Telehandler, Pivot Steer and Tractor front loader models.

OPTION : Tractor Bracket
OPTION : Tractor Bracket
OPTION : Tractor Bracket

Is available to fit Category II and III linkages.

Highlights
Features
Options
Overview
Tomahawk 6200H overview
British Built
British Built
British Built

British Built. Making an impression worldwide!

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

Farming Simulator
Farming Simulator
Farming Simulator

The detailed 6200H mod allows selection of the telehandler or tractor bracket type with fully functional loading gate, chute movement and bale processing operation.

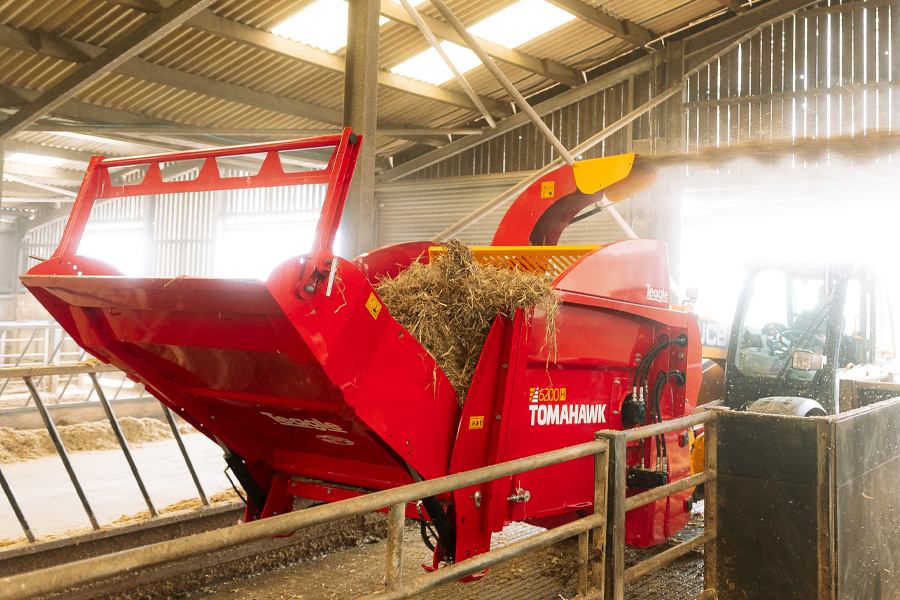

Watch the Tomahawk 6200H in action

Tomahawk 6200H

Keys to profitability

What are the benefits of a straw blower?

How often an operator beds down, and how much straw they use, will determine the amount of time and straw saved. In every case there will be an improvement in livestock heath and cleanliness if the correct machine is used, particularly with a little and often bedding strategy.

Also consider convenience, reduced risk by not entering the pen, and improved manure quality.

How does a straw blower save straw?

Bales are efficiently broken apart and spread evenly over the bedding area. Straw is lightly bruised to make it absorbent, but not chopped short. Long straw provides structure in the bed. If you only need a part bale for a pen, no problem, save the rest of the bale for another area.

Specifications

Description
6200H
Chute
Swivel
Dual chop
No
Silage
No
Straw
Spread
Crossbeaters
Capacity (m3)
2.5
No. of 5’ round bales
1
No. of 8’ rect' bales (4’x 2’6”/ 4’x4’)
1/1
Bale chamber (tailgate down) W x H x L
1.43 x 1.20 x 2.90m
Blow distance (max.)
13.5m
Tractor power (min.)
80HP / 60kW
Overall width (chute closed)
1.69m
Overall length (tailgate up)
2.70m
Overall length (tailgate/bale clamp down)
4.0m
Overall height (chute closed)
2.52m
Unladen weight
1,510kg
Tyre size
N/A
Oil flow rate (min/max) (l/min)
60 - 120
Lift capacity (min.)2.8t
More

Designed and built for you

Farmers benefit daily from our experience in designing and manufacturing machinery that delivers on performance and reliability
