8200M-blow
Blow Distance 20m
Tractor
Power (min.) 140HP / 105kW
8200M-height
Overall Height 2.43m
Bale rectangular
Straw / Silage Bales 1 x 4’x4'x8'
bale size
Straw / Silage Bales 2 x 5'

Why choose the 8200 Series?

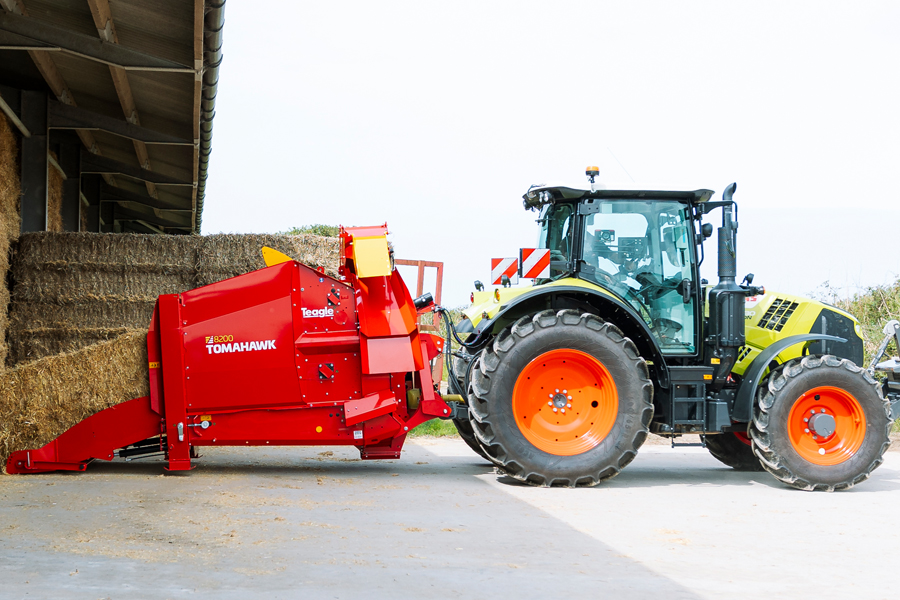

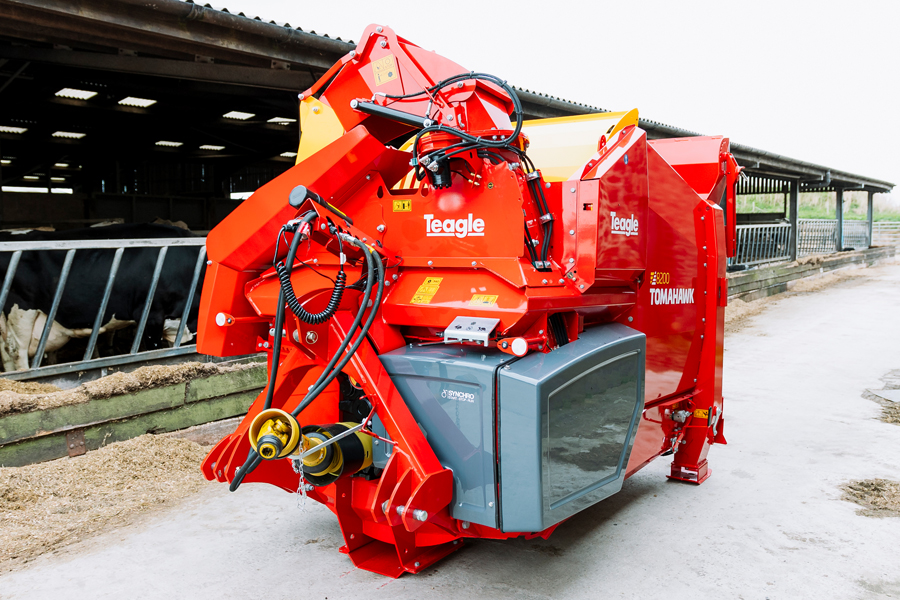

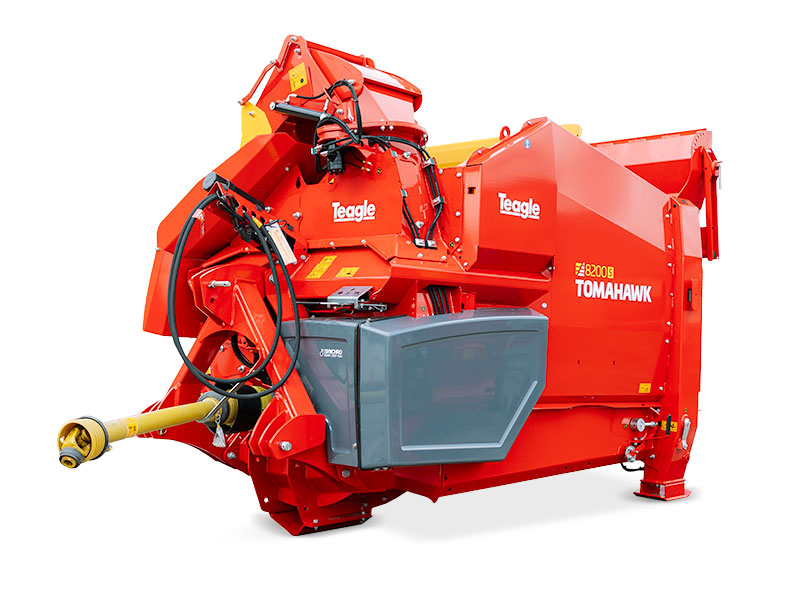

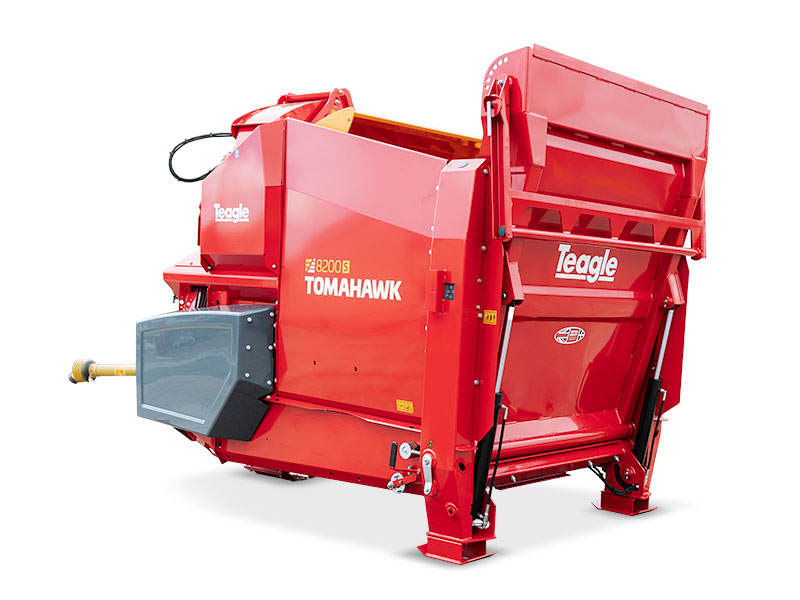

The 8200 Bale Processor - Designed for your Feeding and Bedding

The 8200 feeder bedder, which replaces the 7100 and 8100 models, now features a significantly larger diameter crossbeater for increased processing speed. The 8200 is available either three point mounted (8200M) or trailed (8200T).

Key Benefits:

  • Any bale - Anywhere. Process Straw, Hay, Silage bales or Clamp Silage.

  • Synchro Processing System: Stop / Start spreading at the touch of a button, control feed rate with one simple control.
How Synchro works

Explore the 8200M

Highlights
Features
Options
Overview

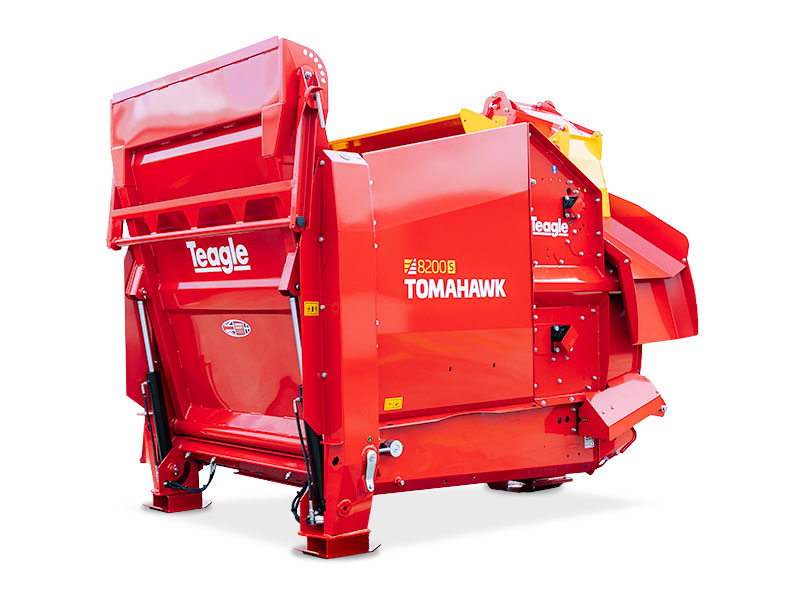

Tomahawk 8200M highlights
Adjustable bale restraint
Adjustable bale restraint
Adjustable bale restraint

Variable position bale restraint (adjusted via WIFI control) ensures optimum output with straw, hay or silage.

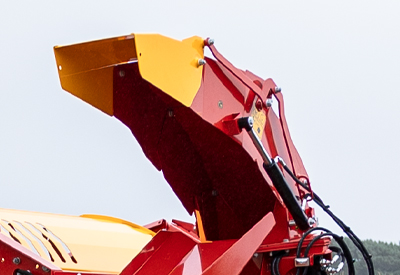

Hardox Chute
Hardox Chute
Hardox Chute

Manufactured using Hardox, the wearing surfaces in the chute offer a service life up to 3 times longer than standard steel.

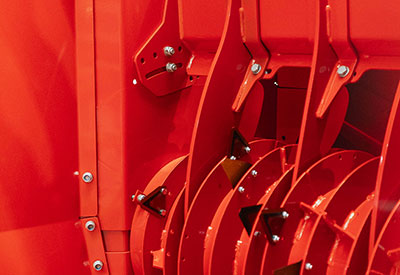

OPTION : Fixed Bale Restraint
OPTION : Fixed Bale Restraint
OPTION : Fixed Bale Restraint

For operators familiar with the previous 7100 and 8100 models, a fixed bale restraint is available as an option.

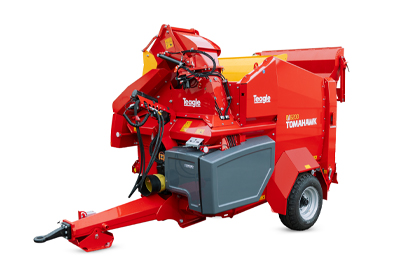

OPTION : Trailed Version
OPTION : Trailed Version
OPTION : Trailed Version

For smaller tractors or improved maneuverability in tight yards the 8200M is also available trailed, as the 8200T.

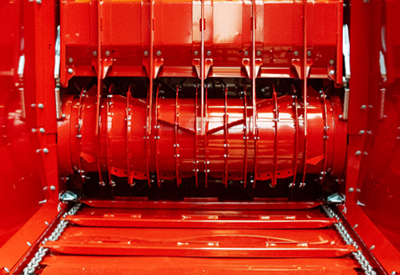

Silage Crossbeater
Silage Crossbeater
Silage Crossbeater

Our latest large diameter crossbeater design handles all materials, with 54 blades to provide an even feed rate.

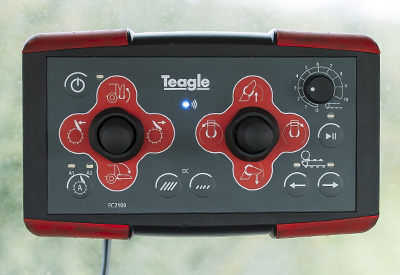

Wireless Control with SYNCHRO
Wireless Control with SYNCHRO
Wireless Control with SYNCHRO

The tethered WiFi control desk has been updated to include the new 'SYNCHRO' functions to get the most from the Dual Chop system. Maximum output, minimum effort.

8 Paddle Fan
8 Paddle Fan
8 Paddle Fan

Our 2 speed fan has an updated paddle design to ensure a consistent delivery and maximum blow distance. The 8 paddles are easily replaced for straightforward servicing.

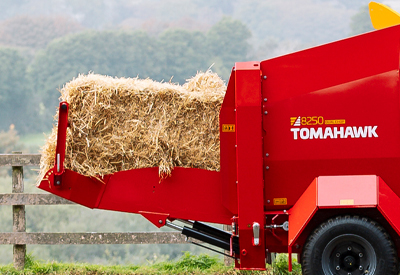

Bale Beam
Bale Beam
Bale Beam

The bale retention beam on the tailgate can be adjusted between one loading and six operating positions.

Bed Slats
Bed Slats
Bed Slats

Seven heavy-duty 60mm x 40mm bed slats are attached with U-Bolts for straightforward servicing to large 10mm diameter galvanised bed chains.

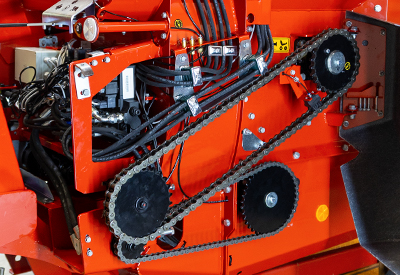

Chain Drive to Crossbeater
Chain Drive to Crossbeater
Chain Drive to Crossbeater

For reliable transmission of power the 8250 crossbeater has a heavy duty chain drive that is automatically lubricated when the bed chain is running.

Clean Operation
Clean Operation
Clean Operation

The 8200 series is designed with high sides to contain material, with horizontal surfaces also eliminated to keep the machine clean.

Driveline Protection
Driveline Protection
Driveline Protection

The PTO is fitted with overrun and Slip Clutch driveline protection.

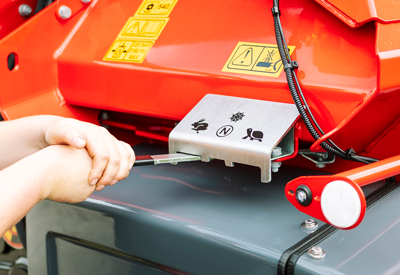

Pre-selector gearbox
Pre-selector gearbox
Pre-selector gearbox

All Tomahawk models feature a high specification gearbox, with high/low fan speed gear preselection.

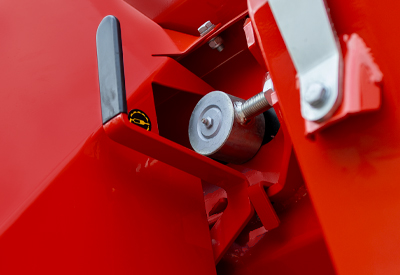

Stone Trap
Stone Trap
Stone Trap

Stones and debris can quickly be removed from the drop down hatch at the rear of the machine.

Swivel Chute
Swivel Chute
Swivel Chute

For flexibility of delivery, the chute rotates 280 degrees allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.

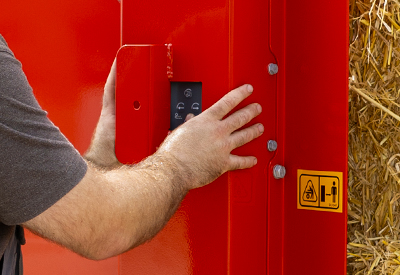

Tailgate Switch
Tailgate Switch
Tailgate Switch

Load bales without having to return to the tractor cab, ideal when removing netting or wrap.

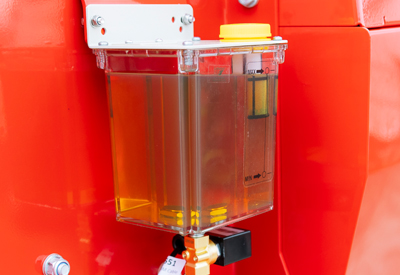

OPTION : Central Lubrication
OPTION : Central Lubrication
OPTION : Central Lubrication

Auto chain oiler (crossbeater drive) is recommended for high-use operations.

OPTION : Hydroshield - Dust Supression
OPTION : Hydroshield - Dust Supression
OPTION : Hydroshield - Dust Supression

Reduce respirable dust by up to 40% with our Hydroshield water spray system. An onboard tank and 5 high pressure spray nozzles.

OPTION : Oil Filter
OPTION : Oil Filter
OPTION : Oil Filter

In-line high pressure filter prevents contamination from damaging the valve equipment.

OPTION : Ski Jump Chute
OPTION : Ski Jump Chute
OPTION : Ski Jump Chute

The optional ‘Ski Jump Chute’ is perfect for bedding pig arcs and mulching fruit trees. As standard it is fitted with hydraulic control of the angle (requires second spool).

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

Safety
Safety
Safety

All of our trailed implements are manufactured in accordance with In Homologation certification according Article 35 of Regulation (EU) No. 167/2013.

Save Straw / Save Time
Save Straw / Save Time
Save Straw / Save Time

Owners and operators report up to 30% straw savings compared to manual bedding, as well as a significant time saving by pre-processing the straw element of a TMR ration.

Highlights
Features
Options
Overview
Tomahawk 8200M features
8 Paddle Fan
8 Paddle Fan
8 Paddle Fan

Our 2 speed fan has an updated paddle design to ensure a consistent delivery and maximum blow distance. The 8 paddles are easily replaced for straightforward servicing.

Bale Beam
Bale Beam
Bale Beam

The bale retention beam on the tailgate can be adjusted between one loading and six operating positions.

Bed Slats
Bed Slats
Bed Slats

Seven heavy-duty 60mm x 40mm bed slats are attached with U-Bolts for straightforward servicing to large 10mm diameter galvanised bed chains.

Chain Drive to Crossbeater
Chain Drive to Crossbeater
Chain Drive to Crossbeater

For reliable transmission of power the 8250 crossbeater has a heavy duty chain drive that is automatically lubricated when the bed chain is running.

Clean Operation
Clean Operation
Clean Operation

The 8200 series is designed with high sides to contain material, with horizontal surfaces also eliminated to keep the machine clean.

Driveline Protection
Driveline Protection
Driveline Protection

The PTO is fitted with overrun and Slip Clutch driveline protection.

Pre-selector gearbox
Pre-selector gearbox
Pre-selector gearbox

All Tomahawk models feature a high specification gearbox, with high/low fan speed gear preselection.

Stone Trap
Stone Trap
Stone Trap

Stones and debris can quickly be removed from the drop down hatch at the rear of the machine.

Swivel Chute
Swivel Chute
Swivel Chute

For flexibility of delivery, the chute rotates 280 degrees allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.

Tailgate Switch
Tailgate Switch
Tailgate Switch

Load bales without having to return to the tractor cab, ideal when removing netting or wrap.

Highlights
Features
Options
Overview
Tomahawk 8200M options
OPTION : Central Lubrication
OPTION : Central Lubrication
OPTION : Central Lubrication

Auto chain oiler (crossbeater drive) is recommended for high-use operations.

OPTION : Hydroshield - Dust Supression
OPTION : Hydroshield - Dust Supression
OPTION : Hydroshield - Dust Supression

Reduce respirable dust by up to 40% with our Hydroshield water spray system. An onboard tank and 5 high pressure spray nozzles.

OPTION : Oil Filter
OPTION : Oil Filter
OPTION : Oil Filter

In-line high pressure filter prevents contamination from damaging the valve equipment.

OPTION : Ski Jump Chute
OPTION : Ski Jump Chute
OPTION : Ski Jump Chute

The optional ‘Ski Jump Chute’ is perfect for bedding pig arcs and mulching fruit trees. As standard it is fitted with hydraulic control of the angle (requires second spool).

Highlights
Features
Options
Overview
Tomahawk 8200M overview
A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

Safety
Safety
Safety

All of our trailed implements are manufactured in accordance with In Homologation certification according Article 35 of Regulation (EU) No. 167/2013.

Save Straw / Save Time
Save Straw / Save Time
Save Straw / Save Time

Owners and operators report up to 30% straw savings compared to manual bedding, as well as a significant time saving by pre-processing the straw element of a TMR ration.

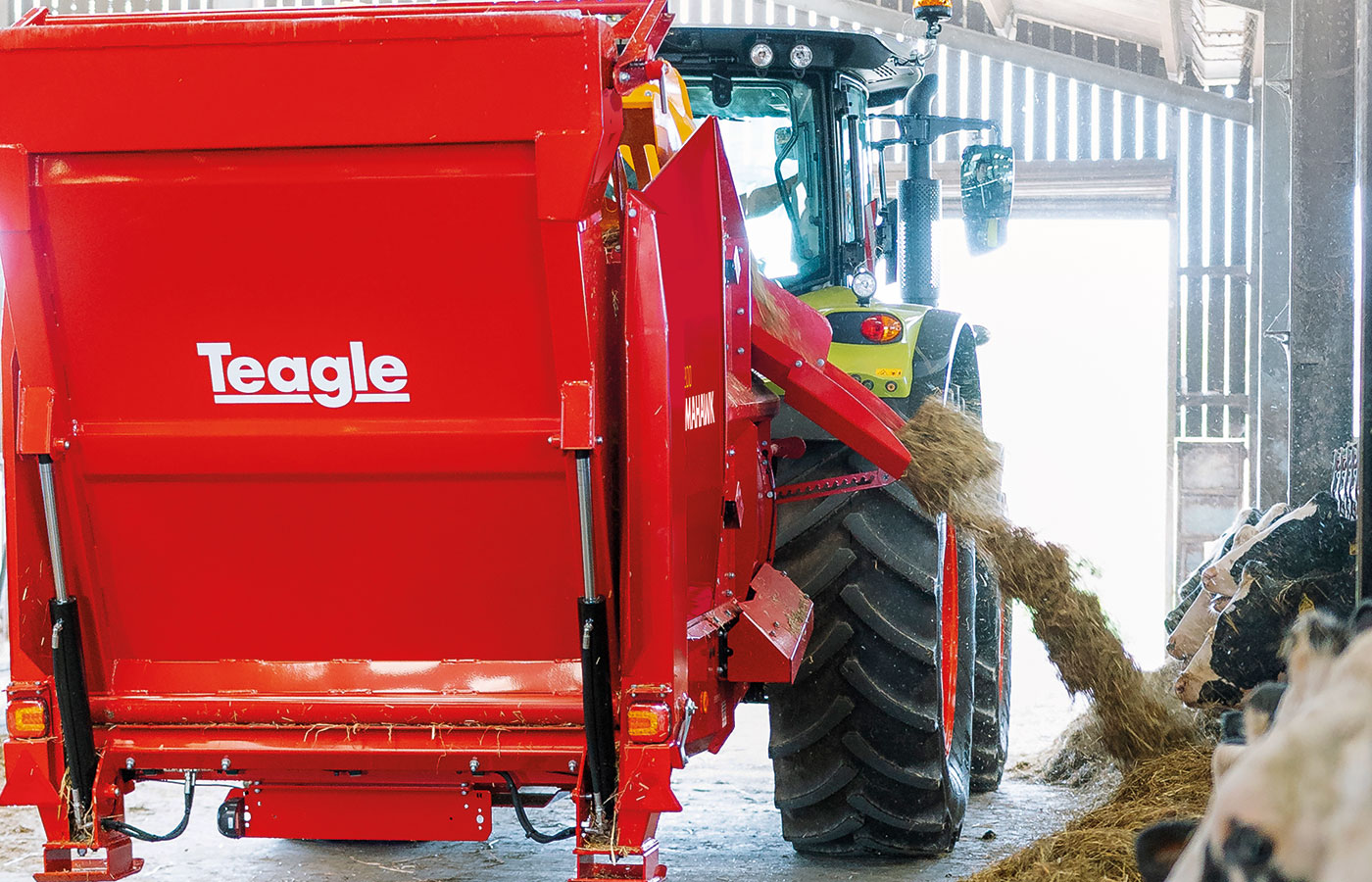

Watch the Tomahawk 8200 in action

Tomahawk 8200 series

Why feed with a bale processor?

One machine, two jobs - Bed down & feed with the same machine.

Versatility - If you can bale a crop, we can shred it!

Improve palatability - Operators report improved feed conversion of shredded bale silage.

- Feed clamp or baled silage, hay and root crops.

- Livestock cannot be selective and wastage is reduced.

Specifications

Description
8200M
Chute
Swivel
Dual Chop
No
Silage
Yes
Straw
Spread
Crossbeaters
1
Capacity (m3)
3.2
No. of 5’ round bales
2
No. of 8’ rect' bales (4’x 2’6”/ 4’x4’)
1/1
Bale chamber (tailgate down) W x H x L
1.43 x 1.35 x 3.00m
Blow distance (max.)
20m
Tractor power (min.)
140HP / 105kW
PTO speed1,000 rpm
Overall width (chute closed)
1.87m
Overall length (tailgate up)
3.02m
Overall length (tailgate/bale clamp down)
4.88m
Overall height (chute closed)2.43m
Unladen weight2,022kg
Tyre sizeN/A
Oil flow rate (min/max) (l/min)35 - 60
More

Save time and labour

Pre-processing bales saves time and labour compared to manually breaking them apart or feeding them whole, making the feeding process more efficient, especially on large-scale operations.
