Why choose the 5050?

In addition to spreading straw for mulching strawberries and soil erosion control, the 5050 is designed to bed down loose housing and dispense Hay / Silage for feeding

The robust chopping rotor shreds material from round or rectangular bales and delivers a steady feed to either side of the machine.

Key Benefits:

  • Improve palatability - operators report increased feed conversion of shredded bale silage.

  • Reduced wastage - Selective feeding / sorting is minimised and less material is pulled back into the bedding area when long silage is shredded.

  • Versatility - if you can bale it we can shred it! Feed clamp or baled silage, hay and root crops.

Explore the 5050

Highlights
Features
Options
Overview

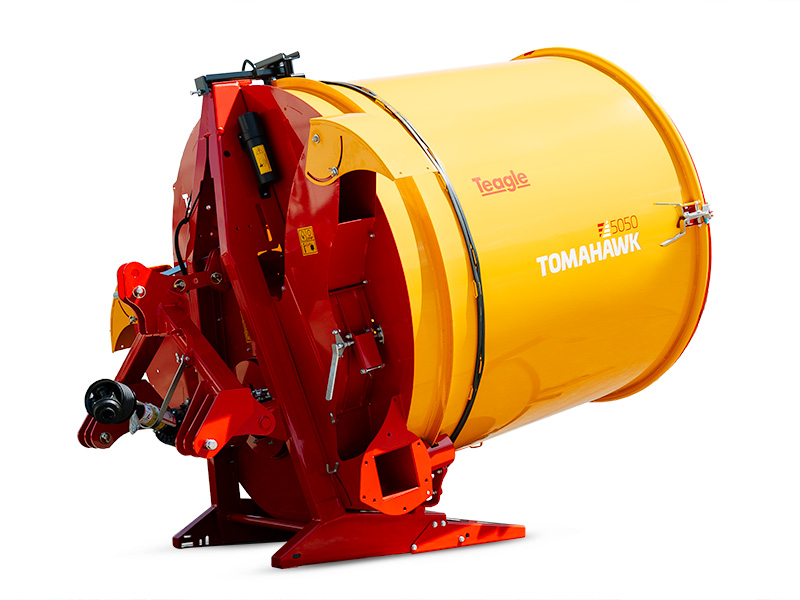

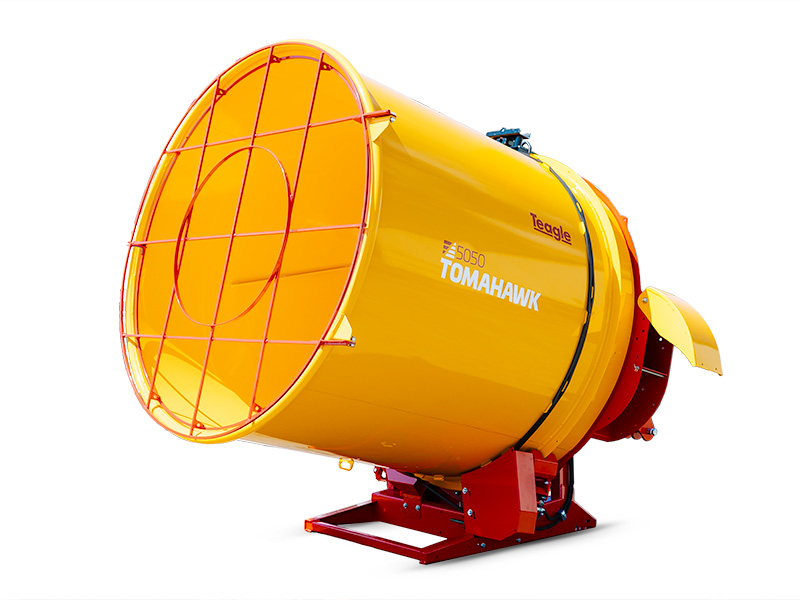

Tomahawk 5050 highlights

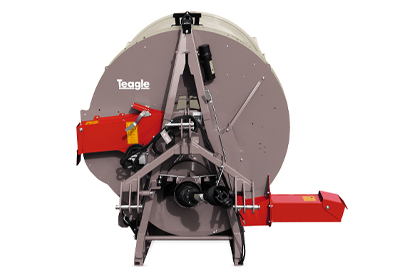

Discharge to one or both sides
Discharge to one or both sides
Discharge to one or both sides

Chutes on left and right hand sides can be open or shut independently. Lower left hand chute is optional for multi-rotor models. Various chutes are available for special applications. See Options.

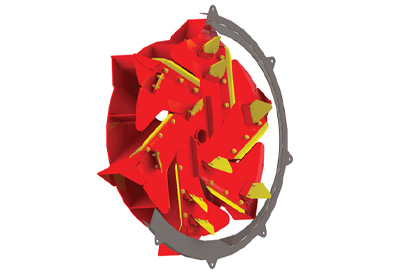

Multi Rotor
Multi Rotor
Multi Rotor

The 5050 is fitted with a rotor suitable for processing straw for bedding loose housing (does not chop short), feeding silage & root crops.

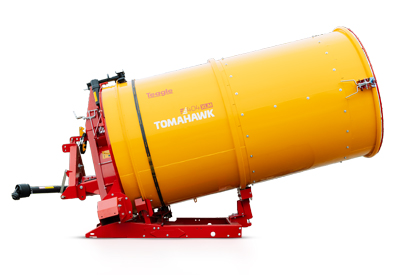

OPTION : 3m Long Drum
OPTION : 3m Long Drum
OPTION : 3m Long Drum

Long drum (See XL specification) enables a complete large rectangular bale up to 4' x 4' x 8' to be loaded, and for improved material containment..

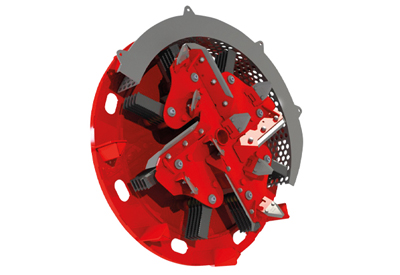

OPTION : Precision Processing
OPTION : Precision Processing
OPTION : Precision Processing

Select the mill rotor (T505M model) for precision processing of bales of dry material (<20% moisture).

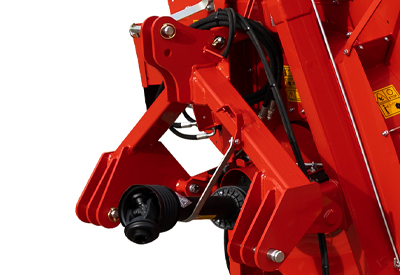

Cat. II/III Linkage
Cat. II/III Linkage
Cat. II/III Linkage

All models in the Tomahawk 500 series are now compatible with both Cat. II and Cat. III tractor linkages.

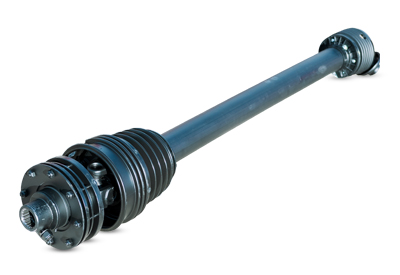

Driveline protection
Driveline protection
Driveline protection

PTO is supplied as standard with friction clutch overload protection. Tractor PTO speed is 1000rpm. Optional 21 spline version available.

OPTION : Driveline protection
OPTION : Driveline protection
OPTION : Driveline protection

A wide angle PTO is available for high use operators, with friction clutch overload protection. Optional 8 or 21 spline versions available.

OPTION : Dust seal brush
OPTION : Dust seal brush
OPTION : Dust seal brush

A brush seal kit ensure straw stays in the machine.

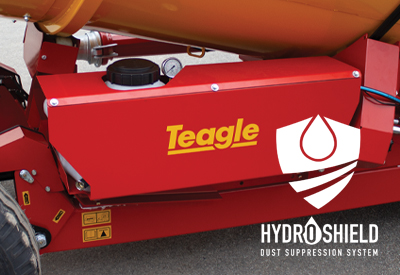

OPTION : Dust Suppression Kit
OPTION : Dust Suppression Kit
OPTION : Dust Suppression Kit

The liquid spray kit can be fitted to any model in the 400 - 500 Tomahawk range to reduce dust from milled straw, or to enable the application of anti-bacterial products to bedding.

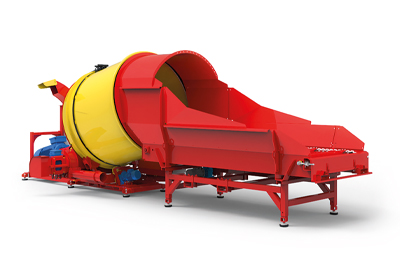

OPTION : Electric Drive
OPTION : Electric Drive
OPTION : Electric Drive

Simple to use and efficient to run. The Tomahawk 500E offers semi-automated straw processing, with less than half the running cost of a tractor.

OPTION : Feed control
OPTION : Feed control
OPTION : Feed control

For fine control of the drum rotation speed and output, a hydraulic flow divider is available for the T505M.

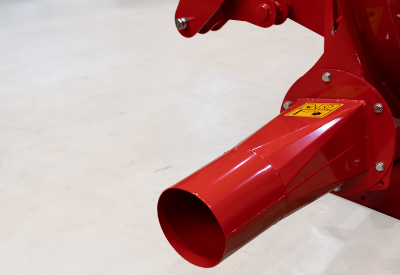

OPTION : Hose Adaptor
OPTION : Hose Adaptor
OPTION : Hose Adaptor

For connection to 180mm (6") hose. Available for models with lower chute output.

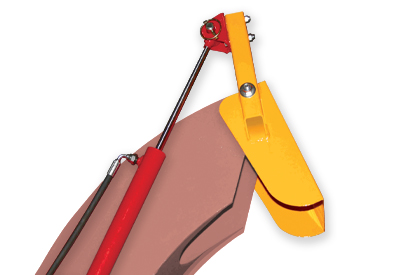

OPTION : Hydraulic Flap Control
OPTION : Hydraulic Flap Control
OPTION : Hydraulic Flap Control

For controlled delivery, available on all Giraffe Chutes.

OPTION : Hydraulic Top Link
OPTION : Hydraulic Top Link
OPTION : Hydraulic Top Link

For straightforward, in-cab adjustment of drum angle and feed rate.

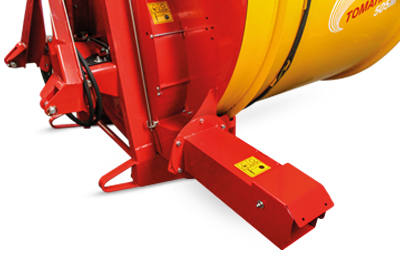

OPTION : Lower Left Hand Chute
OPTION : Lower Left Hand Chute
OPTION : Lower Left Hand Chute

Lower chute (optional for for Multi rotor models 4040 and 5050) enables discharge to both sides.

OPTION : Precision Processing
OPTION : Precision Processing
OPTION : Precision Processing

Select the mill rotor (T505M model) for precision processing of bales of dry material (<20% moisture).

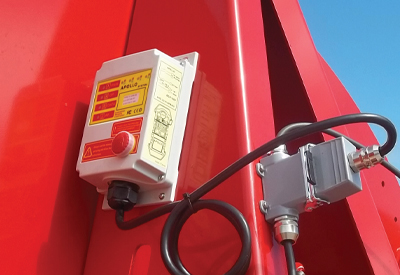

OPTION : Radio Remote Control
OPTION : Radio Remote Control
OPTION : Radio Remote Control

The radio remote control allows you to remotely trigger mulching while using the hose. Includes: drum speed regulator, power cable, distributor unit, and radio remote control.

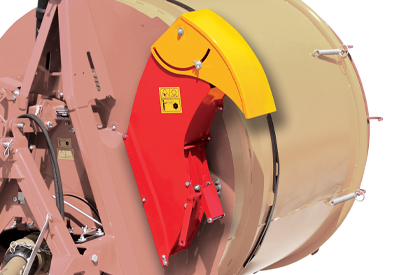

OPTION : Silage Giraffe Chute
OPTION : Silage Giraffe Chute
OPTION : Silage Giraffe Chute

To deliver silage into a ring feeder, or straw over a feed barrier into loose housing.

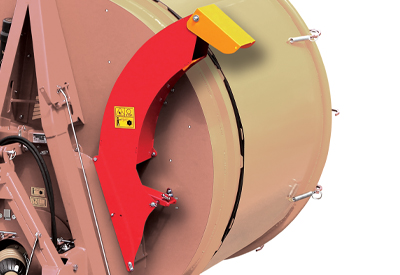

OPTION : Straw Giraffe Chute
OPTION : Straw Giraffe Chute
OPTION : Straw Giraffe Chute

Increase delivery height and blow distance. For Mill Rotor models.

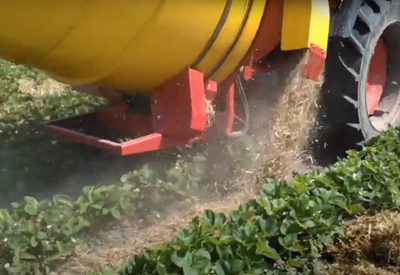

OPTION : Strawberry Chute Kit
OPTION : Strawberry Chute Kit
OPTION : Strawberry Chute Kit

To deliver straw directly between row crops, on both sides of the machine.

OPTION : Swivel Giraffe Chute
OPTION : Swivel Giraffe Chute
OPTION : Swivel Giraffe Chute

Increase delivery height, available with hydraulic rotation and deflector. Dry materials only.

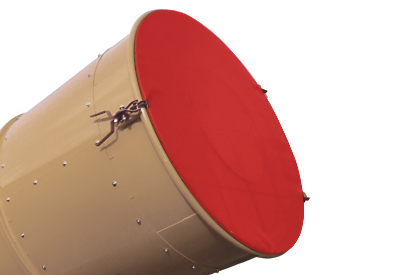

OPTION : Tailgate Mesh
OPTION : Tailgate Mesh
OPTION : Tailgate Mesh

Available for all models with tailgates to improve containment.

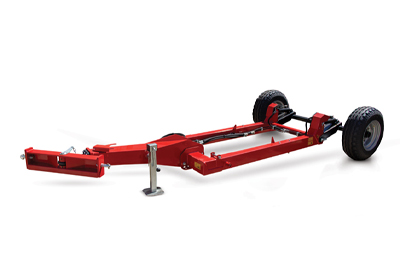

OPTION : Trailed Chassis
OPTION : Trailed Chassis
OPTION : Trailed Chassis

A trailed chassis to accommodate all models in the Drum Tomahawk range. Convenience, control for smaller tractors.

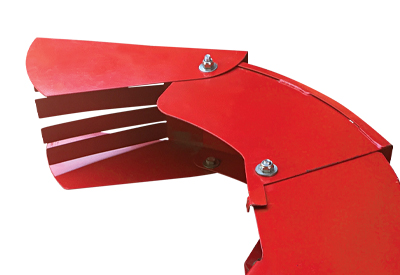

OPTION :135° chute
OPTION :135° chute
OPTION :135° chute

To deflect straw under the machine when spreading straw evenly when bedding poultry sheds.

British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

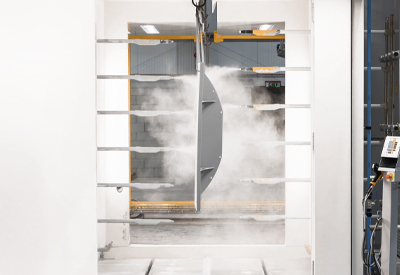

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

Save Straw / Save Time
Save Straw / Save Time
Save Straw / Save Time

Users regularly report up to 30% savings by spreading the correct amount of straw evenly across the bedding area.

Highlights
Features
Options
Overview
Tomahawk 5050 features
Cat. II/III Linkage
Cat. II/III Linkage
Cat. II/III Linkage

All models in the Tomahawk 500 series are now compatible with both Cat. II and Cat. III tractor linkages.

Driveline protection
Driveline protection
Driveline protection

PTO is supplied as standard with friction clutch overload protection. Tractor PTO speed is 1000rpm. Optional 21 spline version available.

Highlights
Features
Options
Overview
Tomahawk 5050 options
OPTION : Driveline protection
OPTION : Driveline protection
OPTION : Driveline protection

A wide angle PTO is available for high use operators, with friction clutch overload protection. Optional 8 or 21 spline versions available.

OPTION : Dust seal brush
OPTION : Dust seal brush
OPTION : Dust seal brush

A brush seal kit ensure straw stays in the machine.

OPTION : Dust Suppression Kit
OPTION : Dust Suppression Kit
OPTION : Dust Suppression Kit

The liquid spray kit can be fitted to any model in the 400 - 500 Tomahawk range to reduce dust from milled straw, or to enable the application of anti-bacterial products to bedding.

OPTION : Electric Drive
OPTION : Electric Drive
OPTION : Electric Drive

Simple to use and efficient to run. The Tomahawk 500E offers semi-automated straw processing, with less than half the running cost of a tractor.

OPTION : Feed control
OPTION : Feed control
OPTION : Feed control

For fine control of the drum rotation speed and output, a hydraulic flow divider is available for the T505M.

OPTION : Hose Adaptor
OPTION : Hose Adaptor
OPTION : Hose Adaptor

For connection to 180mm (6") hose. Available for models with lower chute output.

OPTION : Hydraulic Flap Control
OPTION : Hydraulic Flap Control
OPTION : Hydraulic Flap Control

For controlled delivery, available on all Giraffe Chutes.

OPTION : Hydraulic Top Link
OPTION : Hydraulic Top Link
OPTION : Hydraulic Top Link

For straightforward, in-cab adjustment of drum angle and feed rate.

OPTION : Lower Left Hand Chute
OPTION : Lower Left Hand Chute
OPTION : Lower Left Hand Chute

Lower chute (optional for for Multi rotor models 4040 and 5050) enables discharge to both sides.

OPTION : Precision Processing
OPTION : Precision Processing
OPTION : Precision Processing

Select the mill rotor (T505M model) for precision processing of bales of dry material (<20% moisture).

OPTION : Radio Remote Control
OPTION : Radio Remote Control
OPTION : Radio Remote Control

The radio remote control allows you to remotely trigger mulching while using the hose. Includes: drum speed regulator, power cable, distributor unit, and radio remote control.

OPTION : Silage Giraffe Chute
OPTION : Silage Giraffe Chute
OPTION : Silage Giraffe Chute

To deliver silage into a ring feeder, or straw over a feed barrier into loose housing.

OPTION : Straw Giraffe Chute
OPTION : Straw Giraffe Chute
OPTION : Straw Giraffe Chute

Increase delivery height and blow distance. For Mill Rotor models.

OPTION : Strawberry Chute Kit
OPTION : Strawberry Chute Kit
OPTION : Strawberry Chute Kit

To deliver straw directly between row crops, on both sides of the machine.

OPTION : Swivel Giraffe Chute
OPTION : Swivel Giraffe Chute
OPTION : Swivel Giraffe Chute

Increase delivery height, available with hydraulic rotation and deflector. Dry materials only.

OPTION : Tailgate Mesh
OPTION : Tailgate Mesh
OPTION : Tailgate Mesh

Available for all models with tailgates to improve containment.

OPTION : Trailed Chassis
OPTION : Trailed Chassis
OPTION : Trailed Chassis

A trailed chassis to accommodate all models in the Drum Tomahawk range. Convenience, control for smaller tractors.

OPTION :135° chute
OPTION :135° chute
OPTION :135° chute

To deflect straw under the machine when spreading straw evenly when bedding poultry sheds.

Highlights
Features
Options
Overview
Tomahawk 5050 overview
British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

Save Straw / Save Time
Save Straw / Save Time
Save Straw / Save Time

Users regularly report up to 30% savings by spreading the correct amount of straw evenly across the bedding area.

Watch the Tomahawk 5050 in action

Tomahawk Drum Range

Specifications

Description
50505050XL
Rotor
Chop
Chop
Max. round bale diam.
1.50m
1.50m
Max. rect. bale size
N/A
1.2m x 1.2m
Overall height*
2.44m
2.84m
Overall length
2.36m
3.68m
Drum diam.
1.83m
1.83m
Drum length (std.)
1.55m
3.00m
Long drum (opt.)
1.85m
N/A
Lower chute discharge height*
0.40m
0.40m
Upper chute discharge height*
1.14m
1.09m
Tractor power (min.)**
80HP / 60kW
100HP / 75kW
PTO speed540 rpm540 rpm
Transport width***
2.06m
2.06m
Operating width
2.42m
2.42m
Straw giraffe discharge height*
1.84m
1.84m
Silage giraffe discharge height*
1.53m1.53m
Weight877kg1,123kg

*Working heights will increase by up to 1m depending on tractor
** Typical tractor size to provide adequate lifting capacity and stability
***Chute extensions not fitted
****No optional left-hand chute fitted
