8200T-blow
Blow Distance 20m
Tractor
Power (min.) 60HP / 45kW
8200T-height
Overall Height 2.57m
Bale rectangular
Straw / SIlage Bales 1 x 4’x4'x8'
bale size
Straw / Silage Bales 2 x 5'

Why choose the 8200 Series?

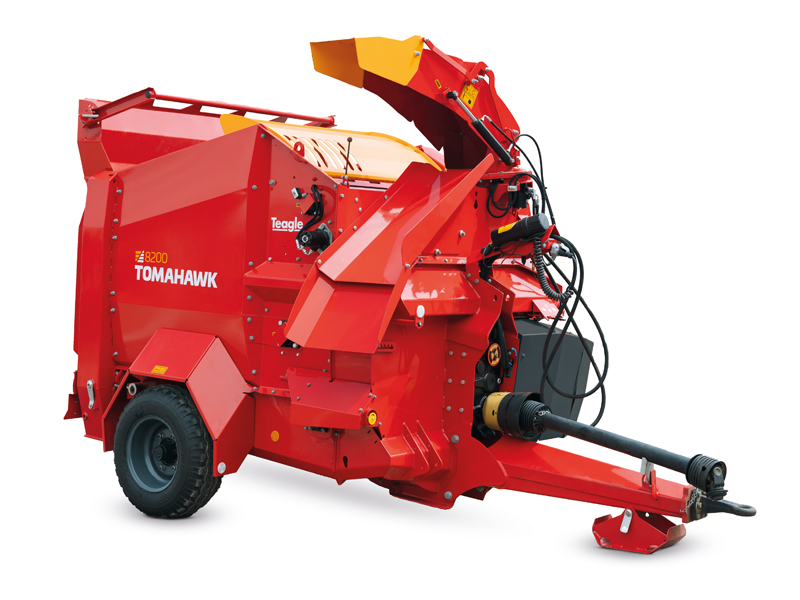

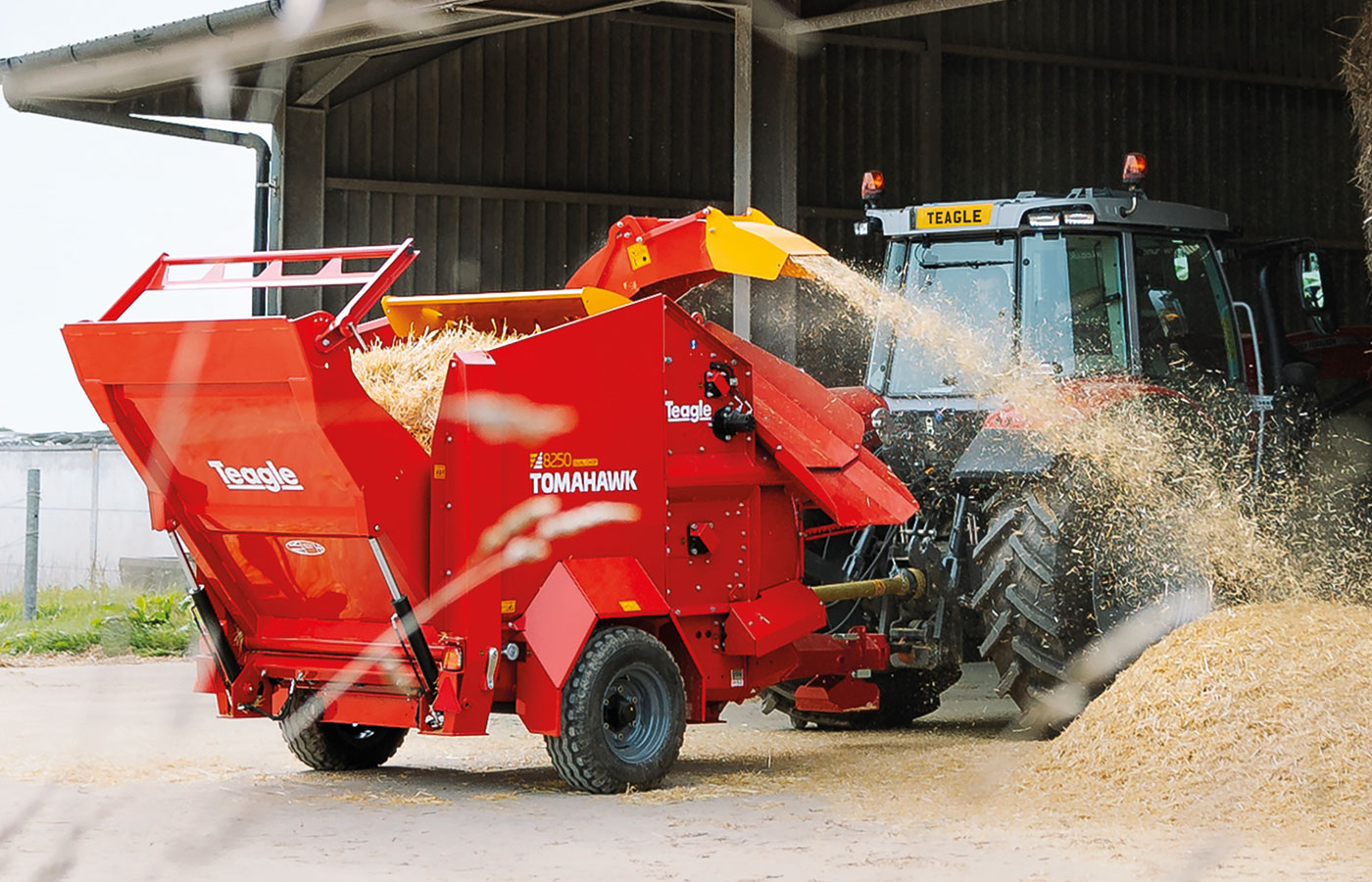

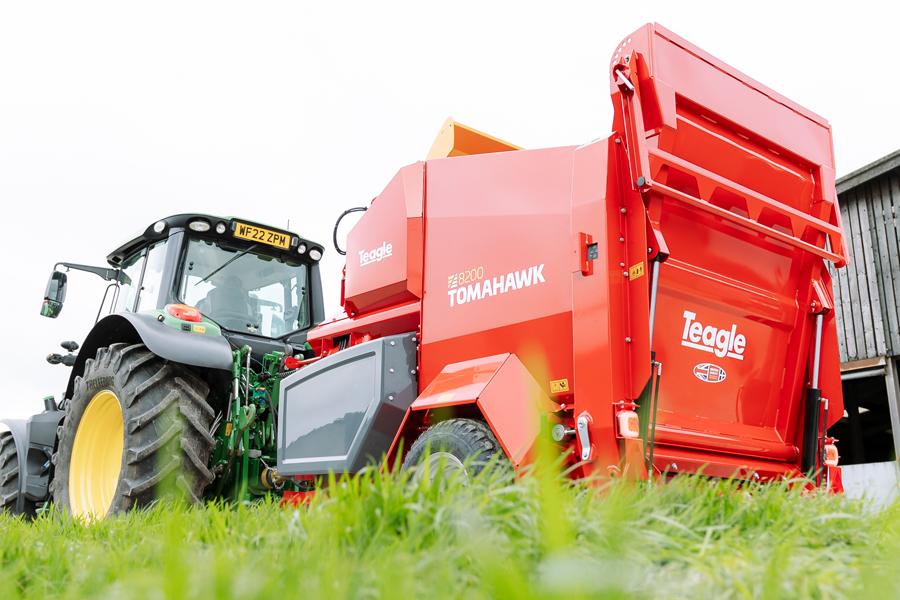

The 8200 Bale Processor - Designed for your Feeding and Bedding

The 8200 feeder bedder, which replaces the 7100 and 8100 models, now features a significantly larger diameter crossbeater for increased processing speed.

Key Benefits:

  • Any bale - Anywhere. Process Straw, Hay or Silage bales, or Clamp Silage.

  • Synchro Processing System: Stop / Start spreading at the touch of a button, control feed rate with one simple control.

Explore the 8200T

Highlights
Features
Options
Overview

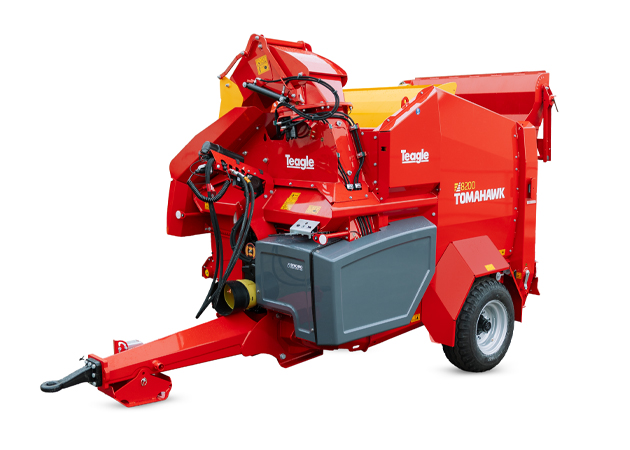

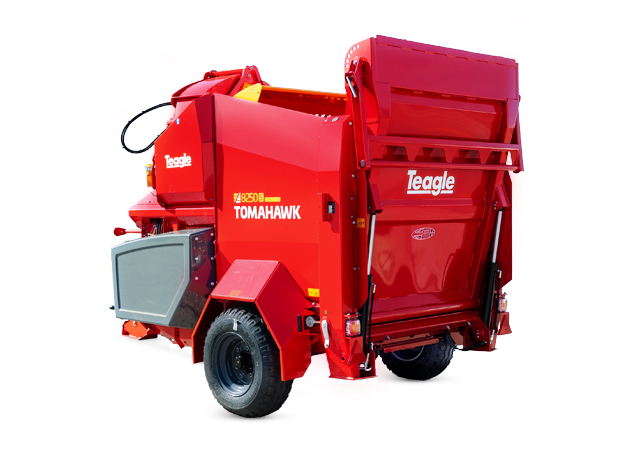

Tomahawk 8200T highlights
This is why the 8250 is different from the competition:
Adjustable bale restraint
Adjustable bale restraint
Adjustable bale restraint

Variable position bale restraint (adjusted via WIFI control) ensures optimum output with straw, hay or silage.

Hardox Chute
Hardox Chute
Hardox Chute

Manufactured using Hardox, the wearing surfaces in the chute offer a service life up to 3 times longer than standard steel.

OPTION : Fixed Bale Restraint
OPTION : Fixed Bale Restraint
OPTION : Fixed Bale Restraint

For operators familiar with the previous 7100 and 8100 models, a fixed bale restraint is available as an option.

OPTION : Mounted or Trailed
OPTION : Mounted or Trailed
OPTION : Mounted or Trailed

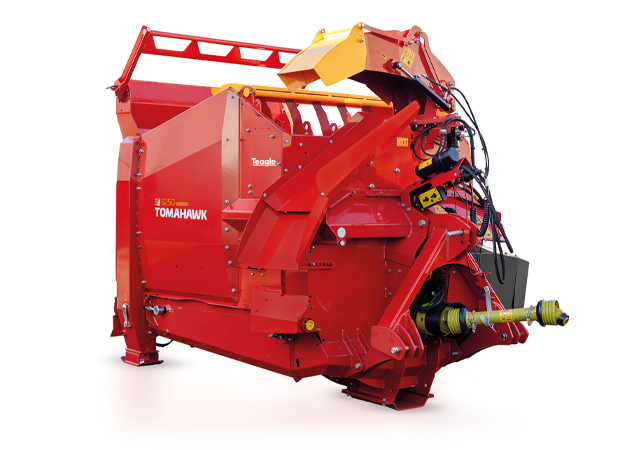

The 8200T is also available as the 8200M 'Mounted' model.

Silage Crossbeater
Silage Crossbeater
Silage Crossbeater

Our latest large diameter crossbeater design handles all materials, with 54 blades to provide an even feed rate.

Wireless Control with SYNCHRO
Wireless Control with SYNCHRO
Wireless Control with SYNCHRO

The tethered WiFi control desk has been updated to include the new 'SYNCHRO' functions to get the most from the Dual Chop system. Maximum output, minimum effort.

8 Paddle Fan
8 Paddle Fan
8 Paddle Fan

Our 2 speed fan has an updated paddle design to ensure a consistent delivery and maximum blow distance. The 8 paddles are easily replaced for straightforward servicing.

Bale Beam
Bale Beam
Bale Beam

The bale retention beam on the tailgate can be adjusted between one loading and six operating positions.

Bed Slats
Bed Slats
Bed Slats

Seven heavy-duty 60mm x 40mm bed slats are attached with U-Bolts for straightforward servicing to large 10mm diameter galvanised bed chains.

Chain Drive to Crossbeater
Chain Drive to Crossbeater
Chain Drive to Crossbeater

For reliable transmission of power the 8250 crossbeater has a heavy duty chain drive that is automatically lubricated when the bed chain is running.

Clean Operation
Clean Operation
Clean Operation

The 8200 series is designed with high sides to contain material, with horizontal surfaces also eliminated to keep the machine clean.

Driveline Protection
Driveline Protection
Driveline Protection

The PTO is fitted with overrun and Slip Clutch driveline protection.

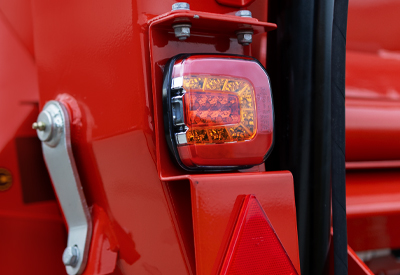

LED Road Lights & Mudguards
LED Road Lights & Mudguards
LED Road Lights & Mudguards

Essential for highway use, the front and rear markers ensure that you operate safely when travelling on the road. (standard on trailed models).

Pre-selector gearbox
Pre-selector gearbox
Pre-selector gearbox

All Tomahawk models feature a high specification gearbox, with high/low fan speed gear preselection.

Stone Trap
Stone Trap
Stone Trap

Stones and debris can quickly be removed from the drop down hatch at the rear of the machine.

Swivel Chute
Swivel Chute
Swivel Chute

For flexibility of delivery, the chute rotates 280 degrees allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.

Tailgate Switch
Tailgate Switch
Tailgate Switch

Load bales without having to return to the tractor cab, ideal when removing netting or wrap.

OPTION : Central Lubrication
OPTION : Central Lubrication
OPTION : Central Lubrication

Auto chain oiler (crossbeater drive) is recommended for high-use operations.

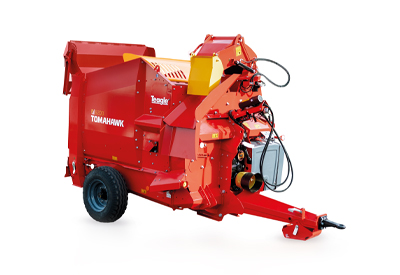

OPTION : Economy package
OPTION : Economy package
OPTION : Economy package

The 8200T is also available with a fixed bale restraint and no mudguards (UK only).

OPTION : Hitch Specification
OPTION : Hitch Specification
OPTION : Hitch Specification

Ring or K80 hitches can be specified.

OPTION : Hydroshield - Dust Suppression
OPTION : Hydroshield - Dust Suppression
OPTION : Hydroshield - Dust Suppression

Reduce respirable dust by up to 40% with our Hydroshield water spray system. An onboard tank and 5 high pressure spray nozzles.

OPTION : Oil Filter
OPTION : Oil Filter
OPTION : Oil Filter

In-line high pressure filter prevents contamination from damaging the valve equipment.

OPTION : Ski Jump Chute
OPTION : Ski Jump Chute
OPTION : Ski Jump Chute

The optional ‘Ski Jump Chute’ is perfect for bedding pig arcs and mulching fruit trees. As standard it is fitted with hydraulic control of the angle (requires second spool).

OPTION : Wide Angle PTO
OPTION : Wide Angle PTO
OPTION : Wide Angle PTO

For non-stop bedding when manoeuvering around yards, select the Wide Angle PTO option.

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

Safety
Safety
Safety

All of our trailed implements are manufactured in accordance with In Homologation certification according Article 35 of Regulation (EU) No. 167/2013.

Save straw / Save time
Save straw / Save time
Save straw / Save time

Owners and operators report up to 30% straw savings compared to manual bedding, as well as a significant time saving by pre-processing the straw element of a TMR ration.

Highlights
Features
Options
Overview
Tomahawk 8200T features
This is why the 8250 is different from the competition:
8 Paddle Fan
8 Paddle Fan
8 Paddle Fan

Our 2 speed fan has an updated paddle design to ensure a consistent delivery and maximum blow distance. The 8 paddles are easily replaced for straightforward servicing.

Bale Beam
Bale Beam
Bale Beam

The bale retention beam on the tailgate can be adjusted between one loading and six operating positions.

Bed Slats
Bed Slats
Bed Slats

Seven heavy-duty 60mm x 40mm bed slats are attached with U-Bolts for straightforward servicing to large 10mm diameter galvanised bed chains.

Chain Drive to Crossbeater
Chain Drive to Crossbeater
Chain Drive to Crossbeater

For reliable transmission of power the 8250 crossbeater has a heavy duty chain drive that is automatically lubricated when the bed chain is running.

Clean Operation
Clean Operation
Clean Operation

The 8200 series is designed with high sides to contain material, with horizontal surfaces also eliminated to keep the machine clean.

Driveline Protection
Driveline Protection
Driveline Protection

The PTO is fitted with overrun and Slip Clutch driveline protection.

LED Road Lights & Mudguards
LED Road Lights & Mudguards
LED Road Lights & Mudguards

Essential for highway use, the front and rear markers ensure that you operate safely when travelling on the road. (standard on trailed models).

Pre-selector gearbox
Pre-selector gearbox
Pre-selector gearbox

All Tomahawk models feature a high specification gearbox, with high/low fan speed gear preselection.

Stone Trap
Stone Trap
Stone Trap

Stones and debris can quickly be removed from the drop down hatch at the rear of the machine.

Swivel Chute
Swivel Chute
Swivel Chute

For flexibility of delivery, the chute rotates 280 degrees allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.

Tailgate Switch
Tailgate Switch
Tailgate Switch

Load bales without having to return to the tractor cab, ideal when removing netting or wrap.

Highlights
Features
Options
Overview
Tomahawk 8200T options
This is why the 8250 is different from the competition:
OPTION : Central Lubrication
OPTION : Central Lubrication
OPTION : Central Lubrication

Auto chain oiler (crossbeater drive) is recommended for high-use operations.

OPTION : Economy package
OPTION : Economy package
OPTION : Economy package

The 8200T is also available with a fixed bale restraint and no mudguards (UK only).

OPTION : Hitch Specification
OPTION : Hitch Specification
OPTION : Hitch Specification

Ring or K80 hitches can be specified.

OPTION : Hydroshield - Dust Suppression
OPTION : Hydroshield - Dust Suppression
OPTION : Hydroshield - Dust Suppression

Reduce respirable dust by up to 40% with our Hydroshield water spray system. An onboard tank and 5 high pressure spray nozzles.

OPTION : Oil Filter
OPTION : Oil Filter
OPTION : Oil Filter

In-line high pressure filter prevents contamination from damaging the valve equipment.

OPTION : Ski Jump Chute
OPTION : Ski Jump Chute
OPTION : Ski Jump Chute

The optional ‘Ski Jump Chute’ is perfect for bedding pig arcs and mulching fruit trees. As standard it is fitted with hydraulic control of the angle (requires second spool).

OPTION : Wide Angle PTO
OPTION : Wide Angle PTO
OPTION : Wide Angle PTO

For non-stop bedding when manoeuvering around yards, select the Wide Angle PTO option.

Highlights
Features
Options
Overview
Tomahawk 8200T overview
This is why the 8250 is different from the competition:
A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

Safety
Safety
Safety

All of our trailed implements are manufactured in accordance with In Homologation certification according Article 35 of Regulation (EU) No. 167/2013.

Save straw / Save time
Save straw / Save time
Save straw / Save time

Owners and operators report up to 30% straw savings compared to manual bedding, as well as a significant time saving by pre-processing the straw element of a TMR ration.

Watch the Tomahawk 8200 in action

Tomahawk 8200 series

Customer Review

Matt Annear at Tregair Farm nr. Newquay, Cornwall

"There are some great features on the new machine and it makes the jobs of bedding and feeding easier. We save at least half an hour each time by bedding with the Teagle compared to our usual bale processor.

The silage is chopped well and now the cattle eat all of the feed and there is no waste, they even look healthier and happier. We have only had the machine 4 months, but we can already see the daily gains.
Central greasing makes maintenance of the machine straightforward and easy, then the mudguards keep the machine clean.

Specifications

Description
8200T
ChuteSwivel
Dual Chop
No
Silage
Yes
Straw
Spread
Crossbeaters
Capacity (m3)
3.2
No. of 5’ round bale
2
No. of 8’ rect' bales (4’x 2’6”/ 4’x4’)
1/1
Bale chamber (tailgate down) W x H x L
1.43 x 1.35 x 3.00m
Blow distance (max.)
20m
Tractor power (min.)
60HP / 45kW
PTO speed1,000 rpm
Overall width (chute closed)
2.03m
Overall length (tailgate up)
4.12m
Overall length (tailgate/bale clamp down)
5.98m
Overall height (chute closed)
2.57m
Unladen weight
2,213kg
Tyre size
10.00/75-15.3
Oil flow rate (min/max) (l/min)
35 - 60
More

Extensive range

Farmers benefit daily from our experience in designing and manufacturing machinery that delivers on performance and reliability
