Working Width
Working Width 0.8m - 1.0m
Tonnes
Tonnes 4.5t - 5.5t
Flow Rate
Flow Rate 43 - 47 l/min
Hammer
Hammer 'B' Type
Weight
Weight 260kg - 315kg

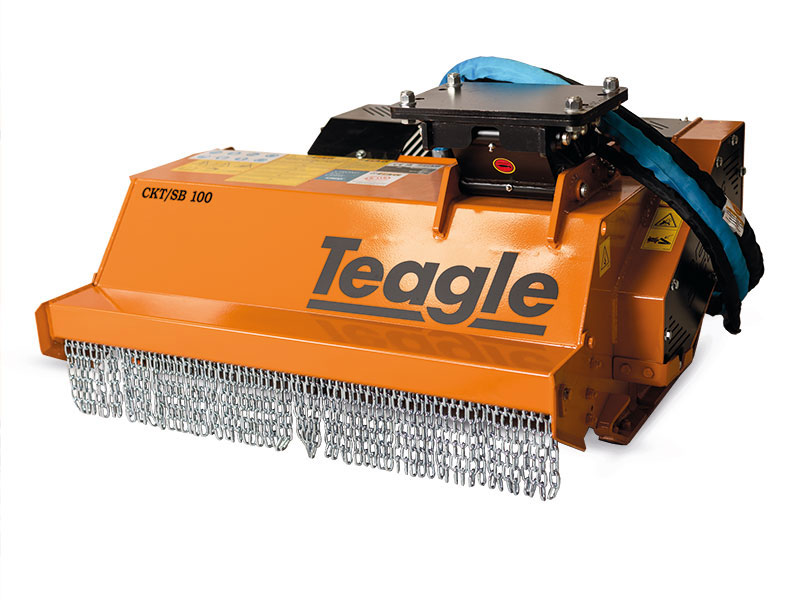

Excavator Mulcher CKT/SB

Hydraulic mulching head for mini-excavators of 4.5 - 5.5 tonnes, suited for mulching grass, bushes and scrub up to Ø 5cm.

Key Benefits:

  • Double chassis
  • Belts transmission

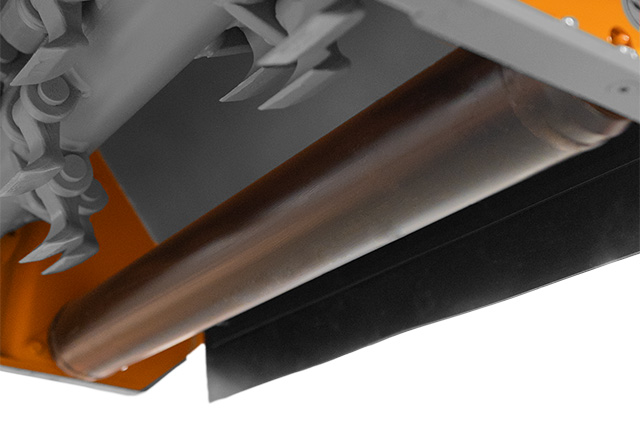

  • Height adjustable levelling roller
  • Skids with anti-wearing Hardox steel undershoes

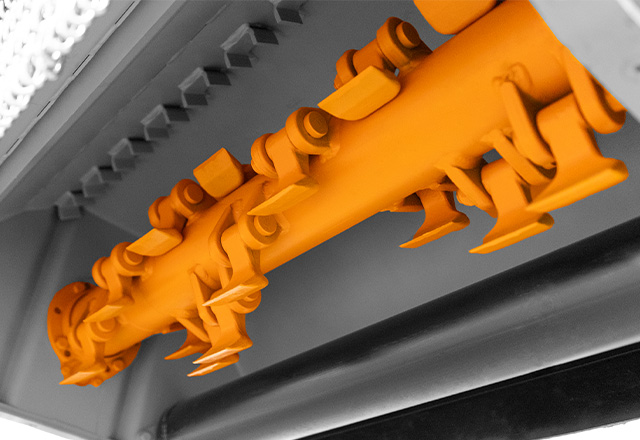

  • Helical design of flail rotor
  • Forged and hardened BERTI hammers or blades
  • Self-levelling support for mounting hitch
  • Counter blades

Explore the CKT/SB

Features
CKT/SB features

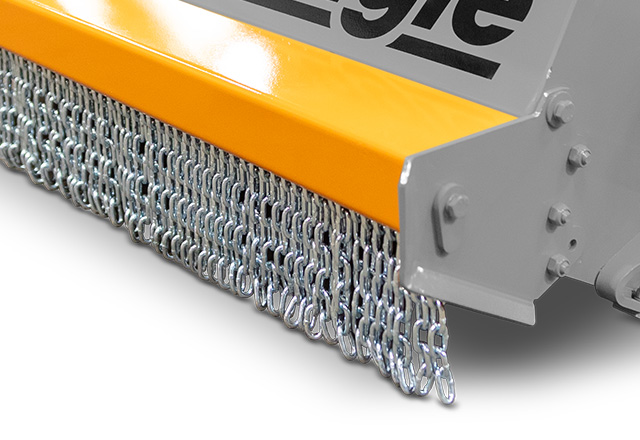

Front chain/flap protection
 Front chain/flap protection
Front chain/flap protection

Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Belt transmission
Belt transmission

Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

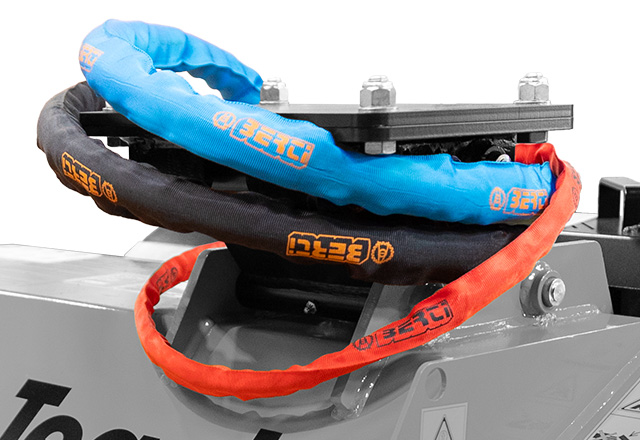

Connection
Connection
Connection

3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Floating Hitch
Floating Hitch
Floating Hitch

Some models use a floating hitch design for allowing uneven slewing at work.

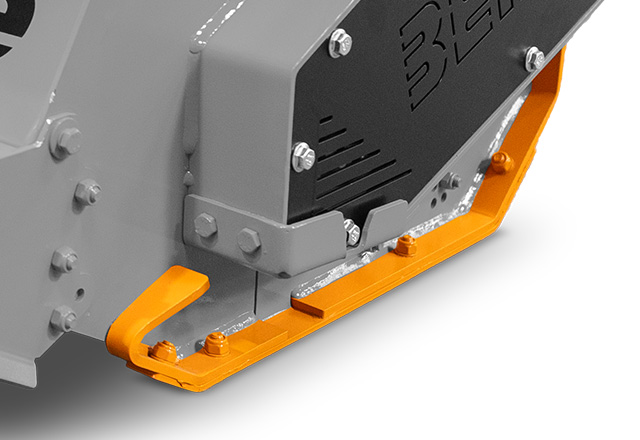

Side Skids
Side Skids
Side Skids

Hardox steel skids and anti-wearing plates used to protect the body chassis.

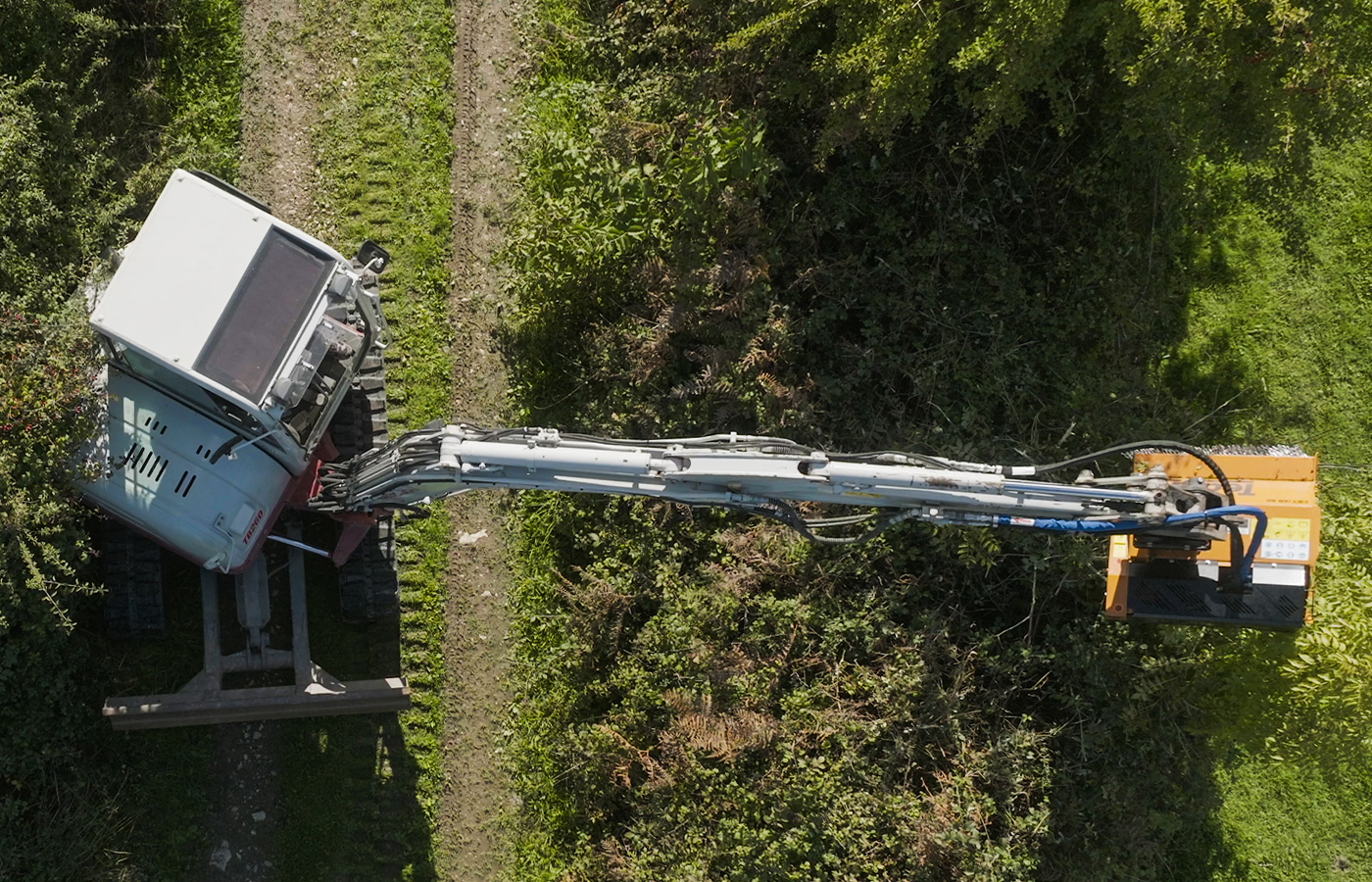

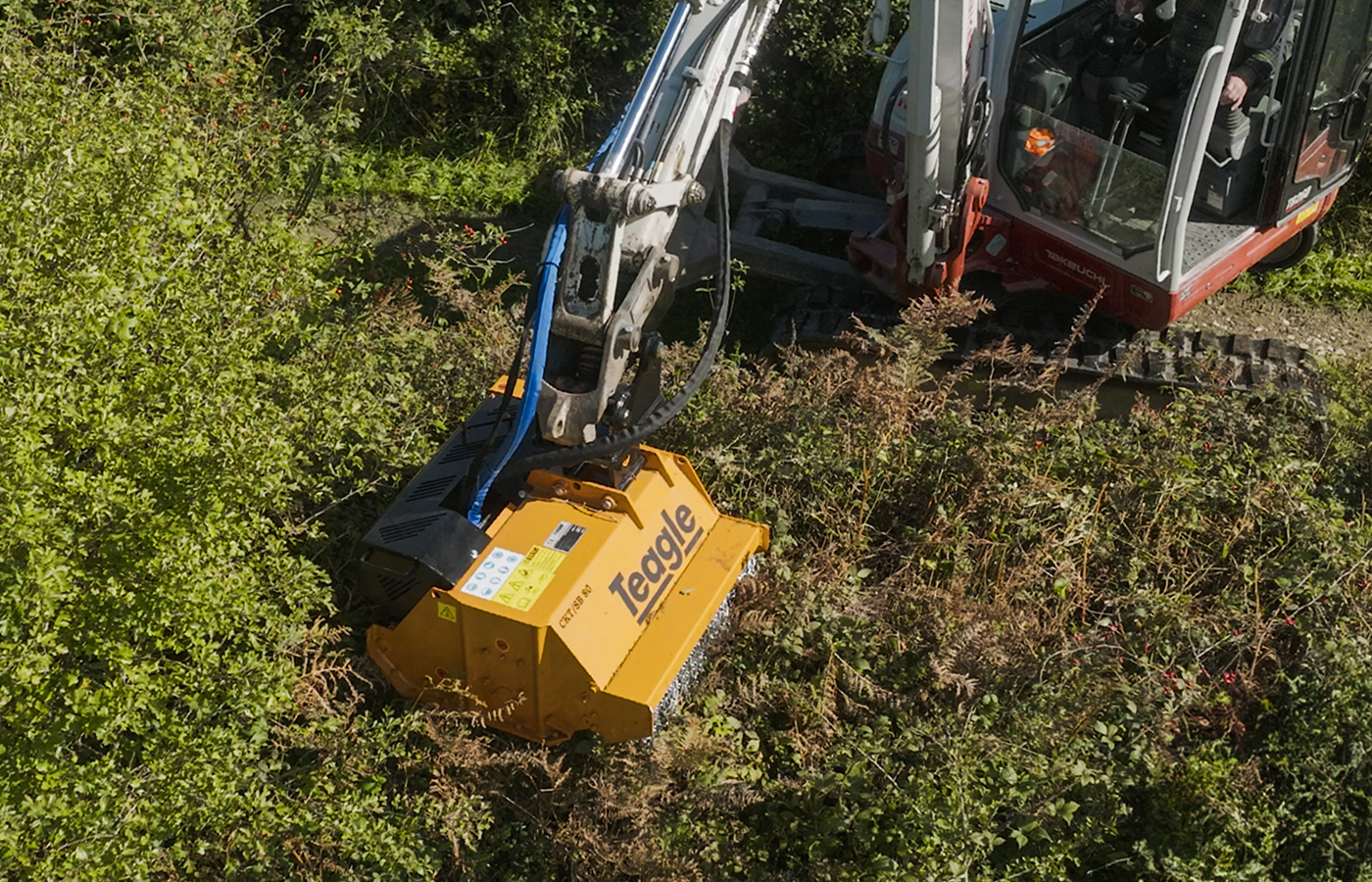

Watch the Excavator mulcher in action

Dual Flail Mower

Customer Review

ALI & DAVE PYE - Carn Wallos campsite

We use the Teagle CKT/SB 80 digger mounted flail, which is perfect for cutting the big banks and hedges.

The flail has genuine mounted cutters on the flail head, very robust. We've been using it now for six months, and there's hardly any wear and tear on the flail heads at all.

It's been over 20 years since the hedges have been cut back. Having the flail is so much more labor saving, so much easier than having to stand there with a hedging trimmer. I would definitely recommend this machine to others.

Specifications

More
Description
CKT/SB 80CKT/SB 100
Working width
0.8m1.0m
Tonnes
4.5t - 5.5t4.5t - 5.5t
No. of 'B' hammers
1216
No. of 'YB' blades3648
No. of belts
22
Overall height0.62m0.62m
Overall length0.95m1.15m
Overall width0.95m0.95m
Flow Rate ( l/min)
43 - 47
43 - 47
Pressure (Bar)245 - 255 245 - 255
Hitch25kg25kg
Weight - min/max
260/285kg290/315kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
