Working Width
Working Width 1.2m - 1.4m
Tonnes
Tonnes 15t - 20t
Flow Rate
Flow Rate 290 - 300 l/min
Hammer
Hammer 'DF' Type
Weight
Weight 1,140 - 1,415kg

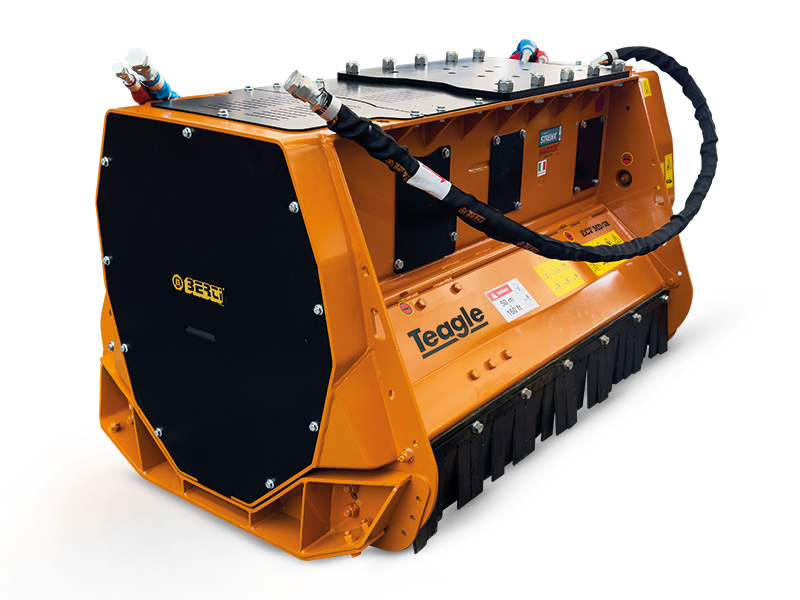

ECF MD/SB Excavator

Hydraulic forestry mulcher with swinging hammers rotor to be driven by excavators with operating weight from 15 to 20 tonnes.

Key Benefits:

  • Double chassis
  • Belts transmission
  • Full automatic belts adjuster
  • Skids with anti-wearing Hardox steel undershoes
  • Forestry cage rotor
  • Double edged BERTI hammers
  • Manual Hood (Hydraulic hood optional*)


* By special order only

Explore the ECF MD/SB

Features
Options
ECF MD/SB features
Front chain/flap protection
 Front chain/flap protection
Front chain/flap protection

Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Belt transmission
Belt transmission

Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Connection
Connection
Connection

3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Floating Hitch
Floating Hitch
Floating Hitch

Some models use a floating hitch design for allowing uneven slewing at work.

Manual Hood
Manual Hood
Manual Hood

Manual hood

Side Skids
Side Skids
Side Skids

Hardox steel skids and anti-wearing plates used to protect the body chassis.

OPTION : Hydraulic Hood
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood

Hydrauic hood

Features
Options
ECF MD/SB options
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood

Hydrauic hood

Watch the Excavator mulcher in action

Dual Flail Mower

Floating hitch
Some models use a floating hitch design for allowing uneven slewing at work.

Front chain/flap protection
Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Side skids
Hardox steel skids and anti-wearing plates used to protect the body chassis.

Connection
3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Specifications

More
Description
ECF MD/SB 120ECF MD/SB 140
Working width
1.2m1.4m
Tonnes
15t - 20t15t - 20t
No. of 'DF' hammers
2024
No. of belts
44
Overall height0.98m0.98m
Overall length1.53m1.73m
Overall width1.15m1.15m
Flow Rate ( l/min)
130 - 140130 - 140
Pressure (Bar)290 - 300 290 - 300
Hitch110kg110kg
Weight - min/max
1,140/1,310kg1,245/1,415kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
