Working Width
Working Width 0.6m - 0.8m
Tonnes
Tonnes 2.5t - 4t
Flow Rate
Flow Rate 33 - 42 l/min
Hammers
Hammers 'B' Type
Weight
Weight 185kg - 240kg

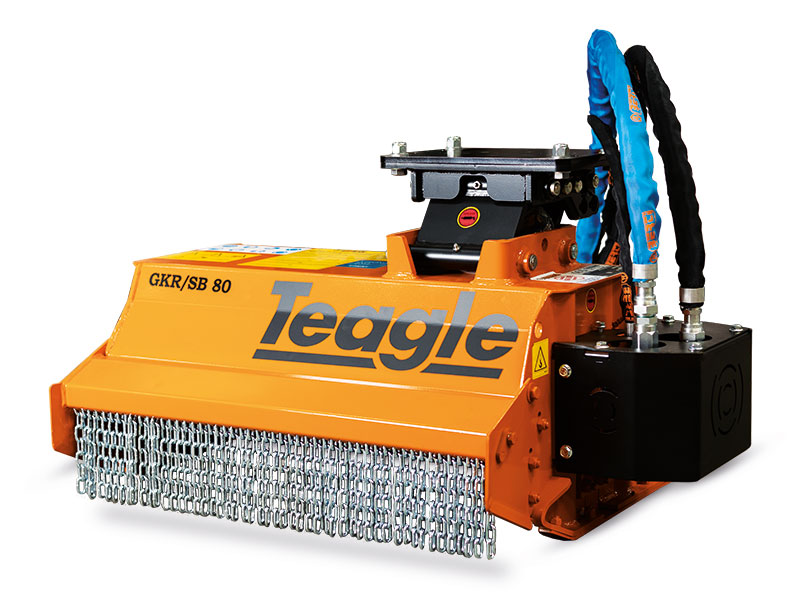

Excavator GKR/SB

Hydraulic mulcher for mini-excavators of 2.5-4 tonnes, suited for mulching grass and small bushes up to Ø 4cm.

Key Benefits:

  • Double chassis
  • Direct transmission to the flail rotor

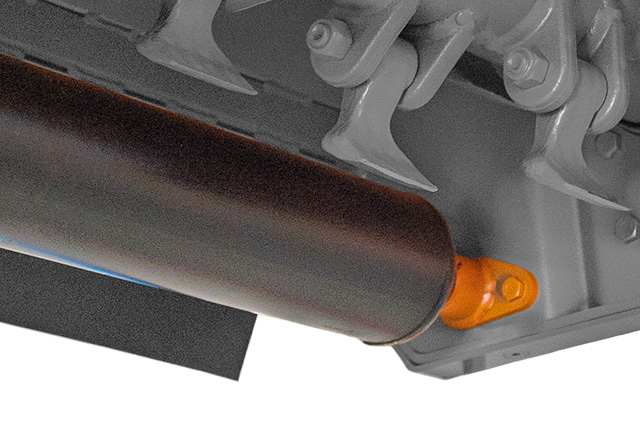

  • Height adjustable levelling roller
  • Skids with anti-wearing Hardox steel undershoes

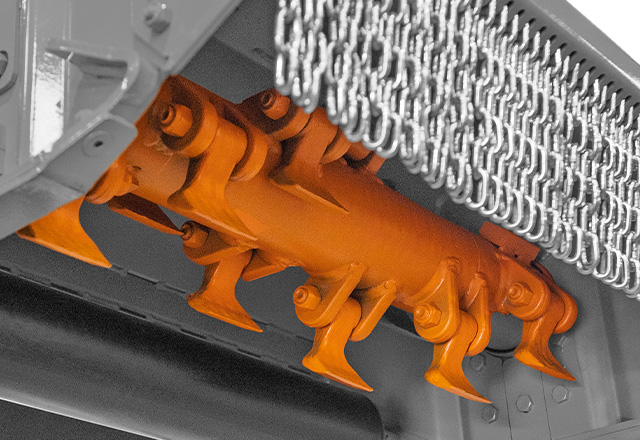

  • Helical design of flail rotor
  • Forged and hardened BERTI hammers
  • Self-levelling support for mounting hitch
  • Under plate for mounting hitch
  • Protective cover for motor

Explore the GKR/SB

Features
GKR/SB features

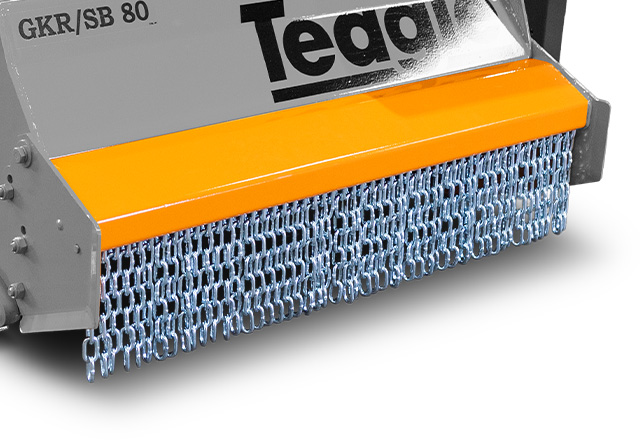

Front chain/flap protection
 Front chain/flap protection
Front chain/flap protection

Chains and rubber flap protection used to contain material but allowing entry to be cut.

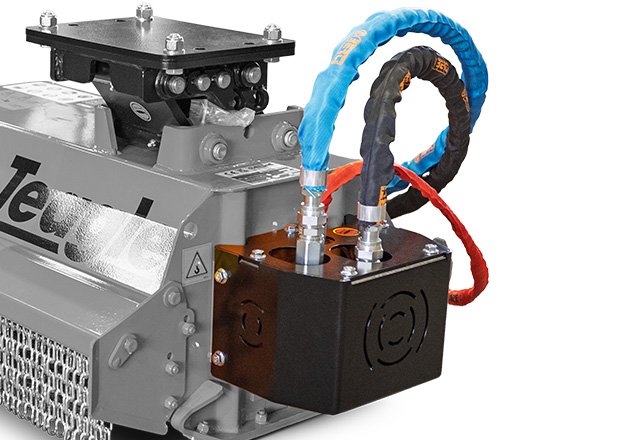

Connection
Connection
Connection

3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Drive motor transmission
Drive motor transmission
Drive motor transmission

Direct power to rotor transfer.

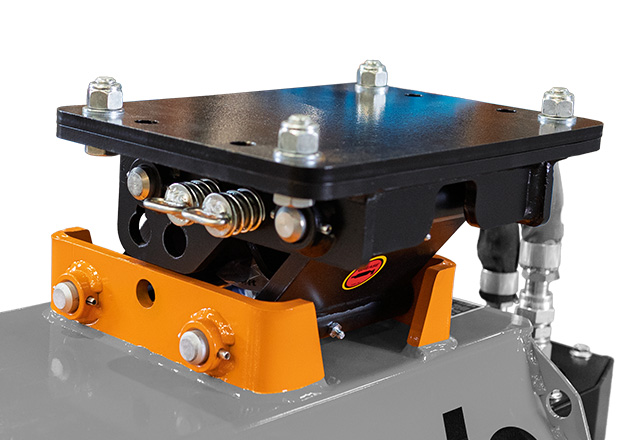

Floating Hitch
Floating Hitch
Floating Hitch

Some models use a floating hitch design for allowing uneven slewing at work.

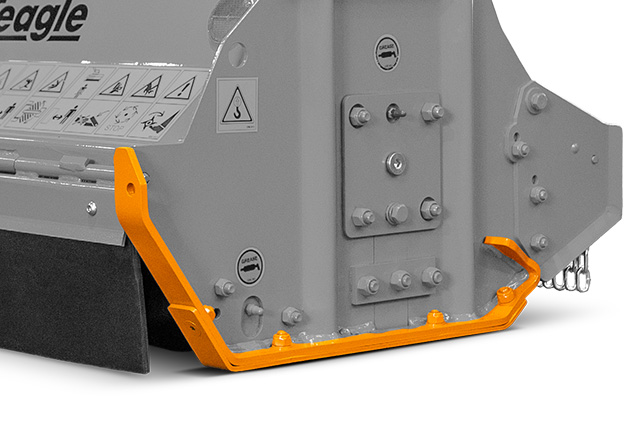

Side Skids
Side Skids
Side Skids

Hardox steel skids and anti-wearing plates used to protect the body chassis.

Watch the Excavator mulcher in action

Dual Flail Mower

Floating hitch
Some models use a floating hitch design for allowing uneven slewing at work.

Front chain/flap protection
Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Side skids
Hardox steel skids and anti-wearing plates used to protect the body chassis.

Connection
3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Specifications

More
Description
GKR/SB 60GKR/SB 80
Working width
0.6m0.8m
Tonnes
2.5t - 4t
2.5t - 4t
No. of 'B' hammers812
Overall height0.60m0.60m
Overall length0.90m1.10m
Overall width0.75m0.75m
Flow Rate ( l/min)
33 - 3738 - 42
Pressure (Bar)195 - 205195 - 205
Hitch25kg25kg
Weight - min/max
185/210kg215/240kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.

Download PDF
