Working Width
Working Width 0.6m - 0.8m
Tonnes
Tonnes 1.5t - 2.5t
Flow Rate
Flow Rate 25 - 30 l/min
Hammer
Hammer 'G' Type
Weight
Weight 120kg - 130kg

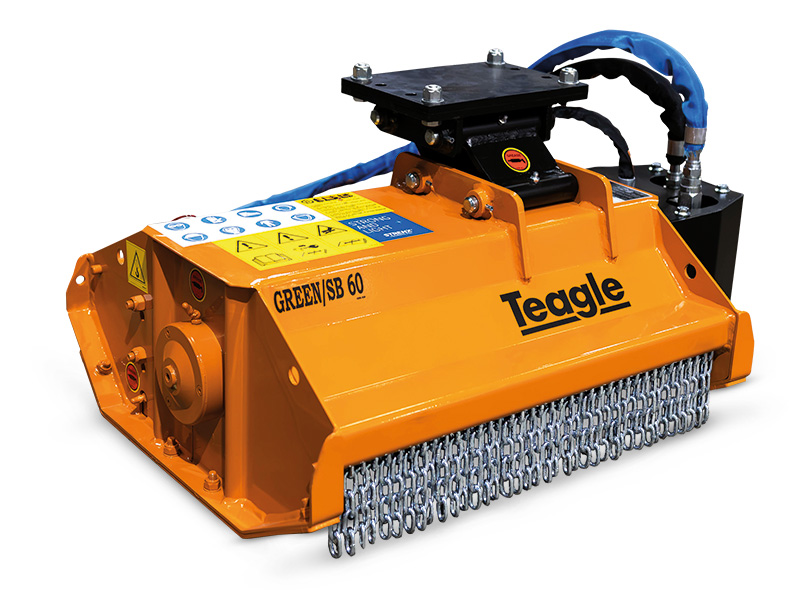

Excavator GREEN/SB

Hydraulic mulching head for mini-excavators of 1.5 - 2 tonnes, suited for mulching grass and bushes up to Ø 1-2 cm.

Key Benefits:

  • Double chassis
  • Direct transmission to the rotor
  • Height adjustable levelling roller
  • Skids with anti-wearing Hardox steel undershoes
  • Forged and hardened BERTI hammers or blades
  • Self-levelling support for mounting hitch

Explore the GREEN/SB

Features
GREEN/SB features

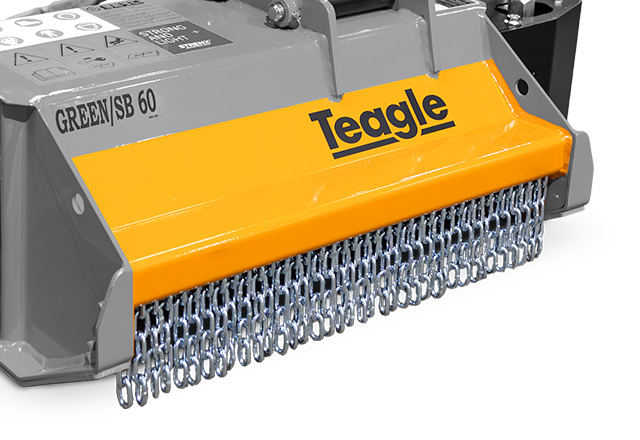

Front chain/flap protection
 Front chain/flap protection
Front chain/flap protection

Chains and rubber flap protection used to contain material but allowing entry to be cut.

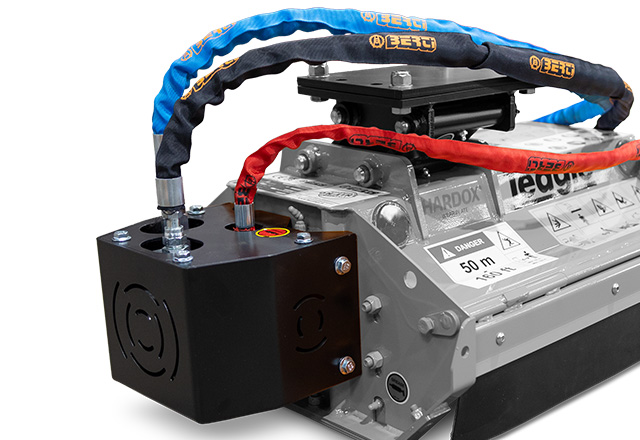

Connection
Connection
Connection

3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

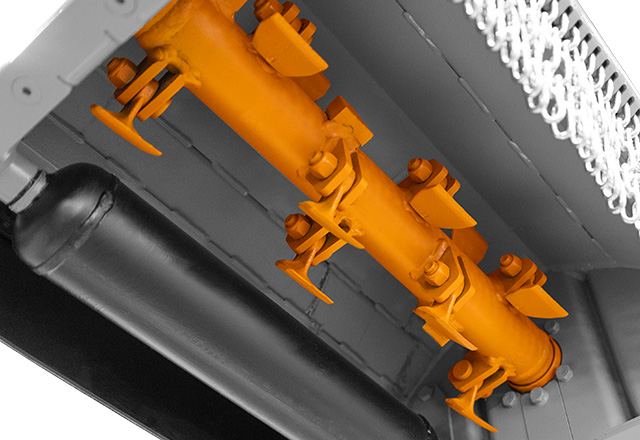

Direct motor transmission
Direct motor transmission
Direct motor transmission

Direct power to rotor transfer.

Floating Hitch
Floating Hitch
Floating Hitch

Some models use a floating hitch design for allowing uneven slewing at work.

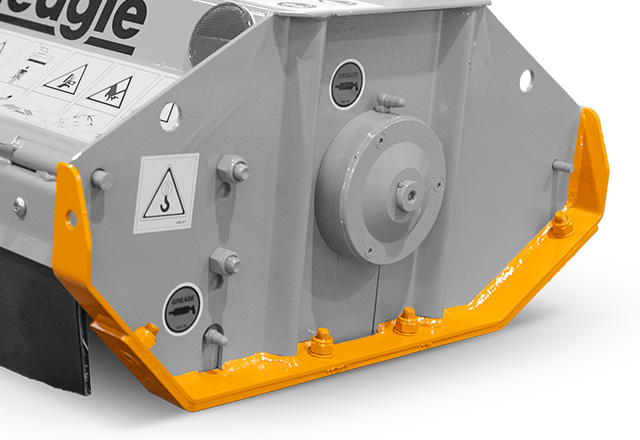

Side Skids
Side Skids
Side Skids

Hardox steel skids and anti-wearing plates used to protect the body chassis.

Watch the Excavator mulcher in action

Dual Flail Mower

Floating hitch
Some models use a floating hitch design for allowing uneven slewing at work.

Front chain/flap protection
Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Side skids
Hardox steel skids and anti-wearing plates used to protect the body chassis.

Connection
3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Specifications

More
Description
GREEN/SB 80GREEN/SB 100
Working width
0.8m1.0m
Tonnes
1.5t - 2.5t1.5t - 2.5t
No. of 'G' hammers
1014
No. of 'YG1' blades2028
Overall height0.50m0.50m
Overall length0.90m1.10m
Overall width0.60m0.60m
Flow Rate ( l/min)
25 - 3025 - 30
Pressure (Bar)195 - 205 195 - 205
Hitch20kg20kg
Weight - min/max
100/120kg110/130kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.

Download PDF
