Working Width
Working Width 1.6m - 2.0m
Tonnes
Tonnes 12t - 20t
Flow Rate
Flow Rate 115 - 160 l/min
Hammer
Hammer 'T1' Type
Weight
Weight 900kg - 1,350kg

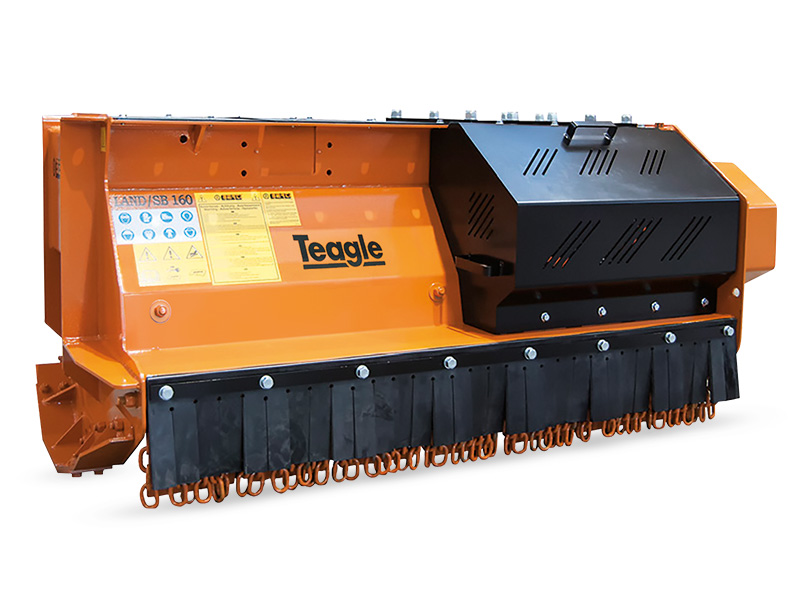

LAND/SB Excavator

Compact and reliable hydraulic mulcher  to be driven by excavators of 12 - 20 tonnes.

Key Benefits:

  • Double chassis
  • Belts transmission
  • Full automatic belts adjuster
  • Skids with anti-wearing Hardox steel undershoes
  • Forestry cage rotor
  • Double edged BERTI hammers
  • Manual Hood (Hydraulic hood optional*)


* By special order only

Explore the LAND/SB

Features
Options
LAND/SB features
Front chain/flap protection
 Front chain/flap protection
Front chain/flap protection

Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Belt transmission
Belt transmission

Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Connection
Connection
Connection

3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Floating Hitch
Floating Hitch
Floating Hitch

Some models use a floating hitch design for allowing uneven slewing at work.

Manual Hood
Manual Hood
Manual Hood

Manual hood

Side Skids
Side Skids
Side Skids

Hardox steel skids and anti-wearing plates used to protect the body chassis.

OPTION : Hydraulic Hood
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood

Hydrauic hood

Features
Options
LAND/SB options
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood

Hydrauic hood

Watch the Excavator mulcher in action

Dual Flail Mower

Floating hitch
Some models use a floating hitch design for allowing uneven slewing at work.

Front chain/flap protection
Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Side skids
Hardox steel skids and anti-wearing plates used to protect the body chassis.

Connection
3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Specifications

More
Description
LAND/SB 160LAND/SB 200
Working width
1.6m2.0m
Tonnes
12t - 20t12t - 20t
No. of 'T1' hammers
1620
No. of 'YT1' blades3240
No. of belts
44
Overall height0.87m0.87m
Overall length1.88m2.28m
Overall width1.10m1.10m
Flow Rate ( l/min)
115 - 125140 - 160
Pressure (Bar)275 - 285 290 - 300
Hitch100kg100kg
Weight - min/max
900/1,240kg1,100/1,350kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
