Working Width
Working Width 1.0m - 1.2m
Tonnes
Tonnes 7t - 11t
Flow Rate
Flow Rate 78 - 82 l/min
Hammer
Hammer 'XF2' Type
Weight
Weight 525kg - 710kg

Excavator PARK/FX

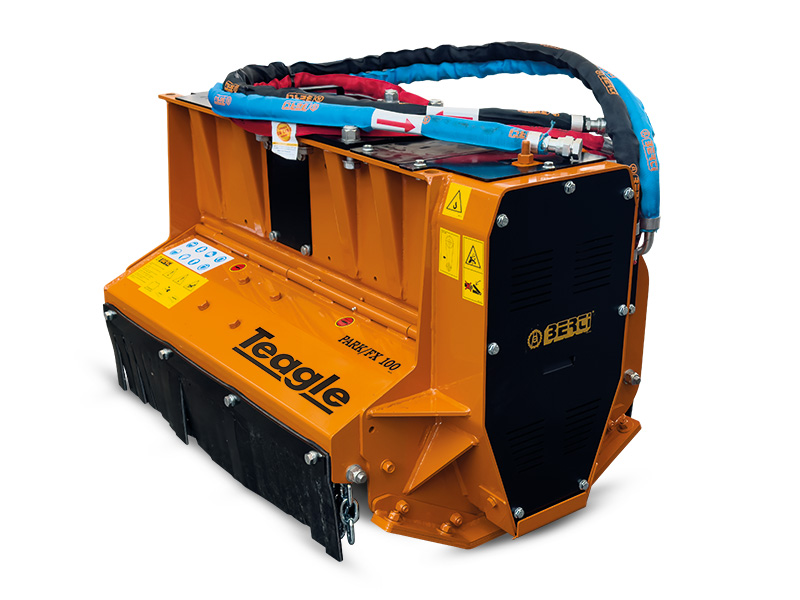

Hydraulic forestry mulcher with fixed tooth rotor, for excavators with operating weight from 7 to 11 tonnes.

Key Benefits:

  • Double chassis
  • Belts transmission
  • Skids with anti-wearing Hardox steel undershoes
  • Forestry fixed tooth rotor
  • Fixed BERTI hammers with tungsten carbide tips
  • Counter blades
  • Manual Hood (Hydraulic hood optional*)


* By special order only

Explore the PARK/FX

Features
Options
PARK/FX features
Front chain/flap protection
 Front chain/flap protection
Front chain/flap protection

Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Belt transmission
Belt transmission

Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Connection
Connection
Connection

3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Floating Hitch
Floating Hitch
Floating Hitch

Some models use a floating hitch design for allowing uneven slewing at work.

Manual Hood
Manual Hood
Manual Hood

Manual hood

Side Skids
Side Skids
Side Skids

Hardox steel skids and anti-wearing plates used to protect the body chassis.

OPTION : Hydraulic Hood
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood

Hydrauic hood

Features
Options
PARK/FX options
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood

Hydrauic hood

Watch the Excavator mulcher in action

Dual Flail Mower

Floating hitch
Some models use a floating hitch design for allowing uneven slewing at work.

Front chain/flap protection
Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Side skids
Hardox steel skids and anti-wearing plates used to protect the body chassis.

Connection
3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Specifications

More
Description
PARK/FX 100PARK/FX 120
Working width
1.0m1.2m
Tonnes
7t - 11t7t - 11t
No. of 'XF2' hammers
3745
No. of belts33
Overall height0.78m0.78m
Overall length1.22m1.42m
Overall width0.85m0.85m
Flow Rate ( l/min)
78 - 8278 - 82
Pressure (Bar)290 - 300 290 - 300
Hitch50kg50kg
Weight - min/max
525/640kg595/710kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.

Download PDF
