Working Width
Working Width 0.95m - 1.25m
Tonnes
Tonnes 7.5t - 9t
Flow Rate
Flow Rate 78 - 82 l/min
Hammer
Hammer 'A' Type
Weight
Weight 405kg - 590kg

RA/SB Excavator

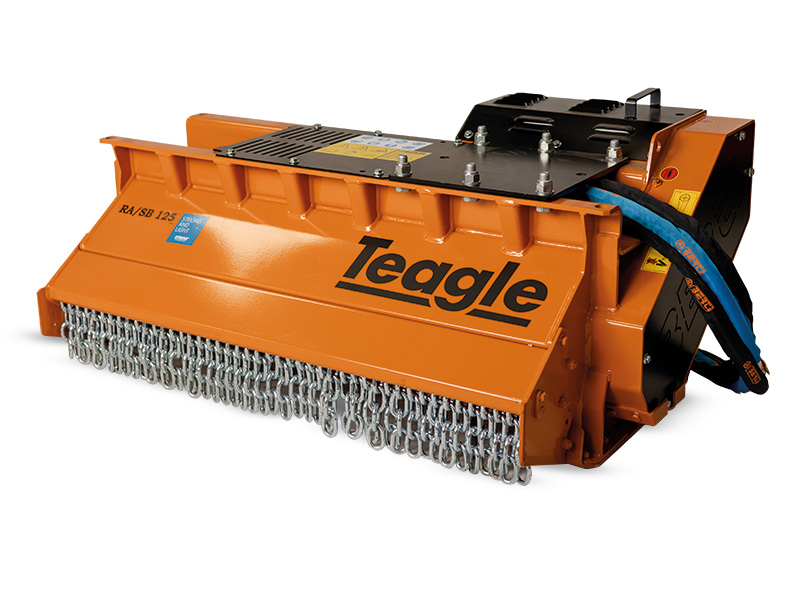

Hydraulic mulcher to be driven by excavators of 7.5 - 9 tonnes, suited for clearing and cutting purposes such as grass, canes, bushes and pruning up to Ø 7 cm.

Key Benefits:

  • Double chassis
  • Belts transmission

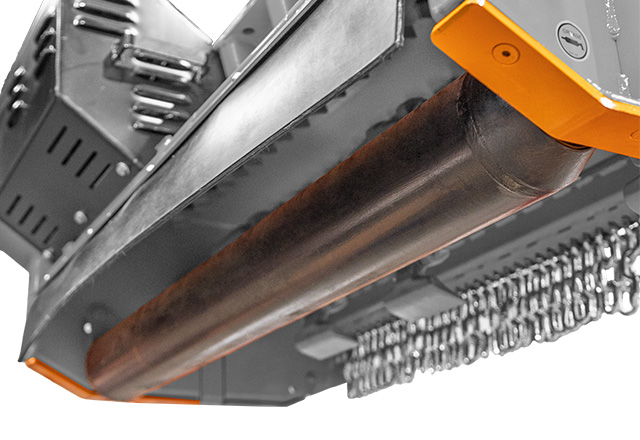

  • Height adjustable levelling roller
  • Skids with anti-wearing Hardox steel undershoes

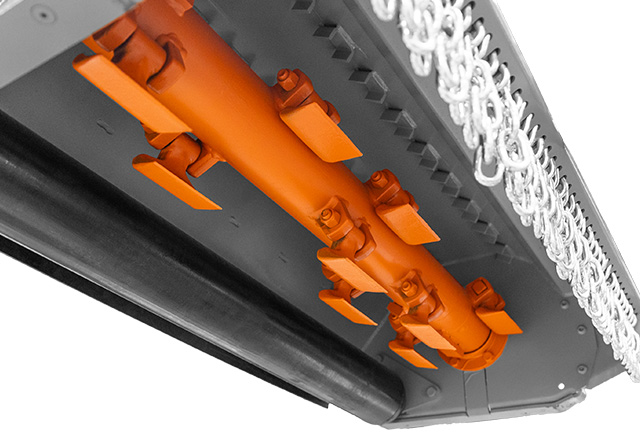

  • Heavy duty mulching-rotor
  • Forged and hardened BERTI hammers or  blades
  • Counter blades
  • Protective cover for motor

Explore the RA/SB

Features

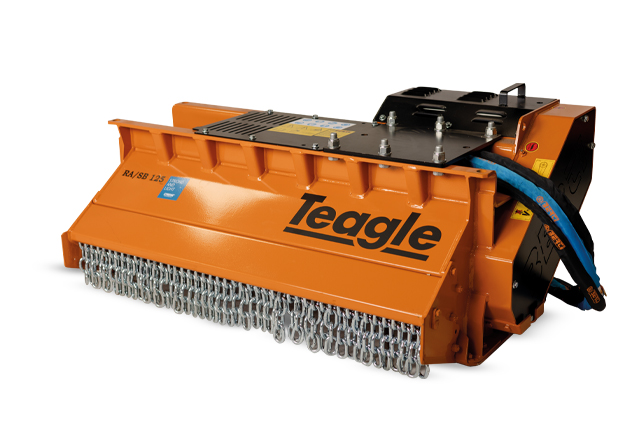

RA/SB features

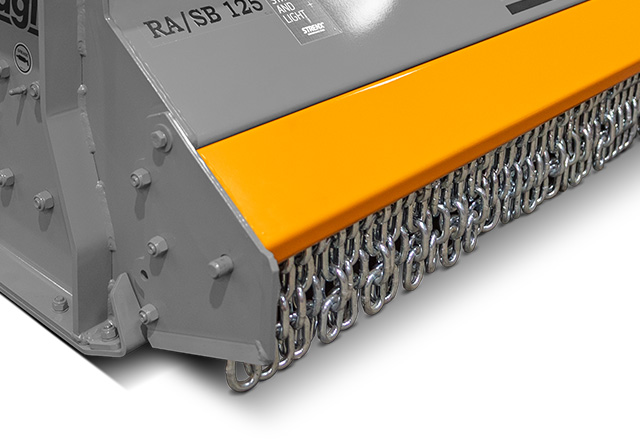

Front chain/flap protection
 Front chain/flap protection
Front chain/flap protection

Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Belt transmission
Belt transmission

Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Connection
Connection
Connection

3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Floating Hitch
Floating Hitch
Floating Hitch

Some models use a floating hitch design for allowing uneven slewing at work.

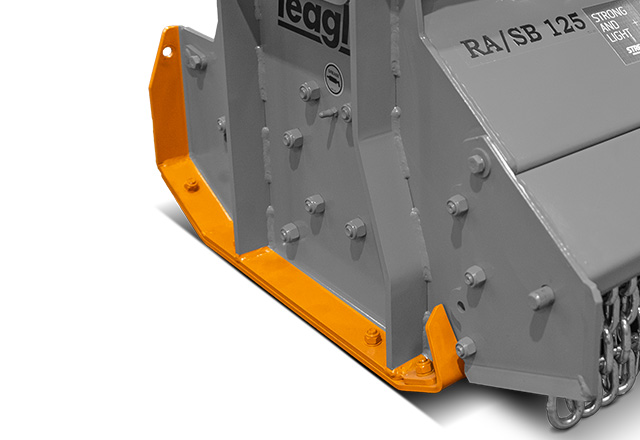

Side Skids
Side Skids
Side Skids

Hardox steel skids and anti-wearing plates used to protect the body chassis.

Watch the Excavator mulcher in action

Dual Flail Mower

Floating hitch
Some models use a floating hitch design for allowing uneven slewing at work.

Front chain/flap protection
Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Side skids
Hardox steel skids and anti-wearing plates used to protect the body chassis.

Connection
3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Specifications

More
Description
RA/SB 95RA/SB 115RA/SB 125
Working width
0.95m1.15m1.25m
Tonnes
7.5t - 9t7.5t - 9t
7.5t - 9t
No. of 'A' hammers
81012
No. of 'YA' blades*243036
No. of belts
333
Overall height0.69m0.69m0.69m
Overall length1.15m1.35m
1.45m
Overall width0.94m0.94m
0.94m
Flow Rate ( l/min)
78 - 8278 - 82
78 - 82
Pressure (Bar)245 - 255 245 - 255
245 - 255
Hitch50kg50kg50kg
Weight - min/max
405/520kg450/565kg
475/590kg
* By special order only
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.

Download PDF
