Working Width
Working Width 1.0m - 1.4m
Tonnes
Tonnes 12t - 16t
Flow Rate
Flow Rate 115 - 125 l/min
Hammer
Hammer 'MF1' Type
Weight
Weight 740kg - 1,110kg

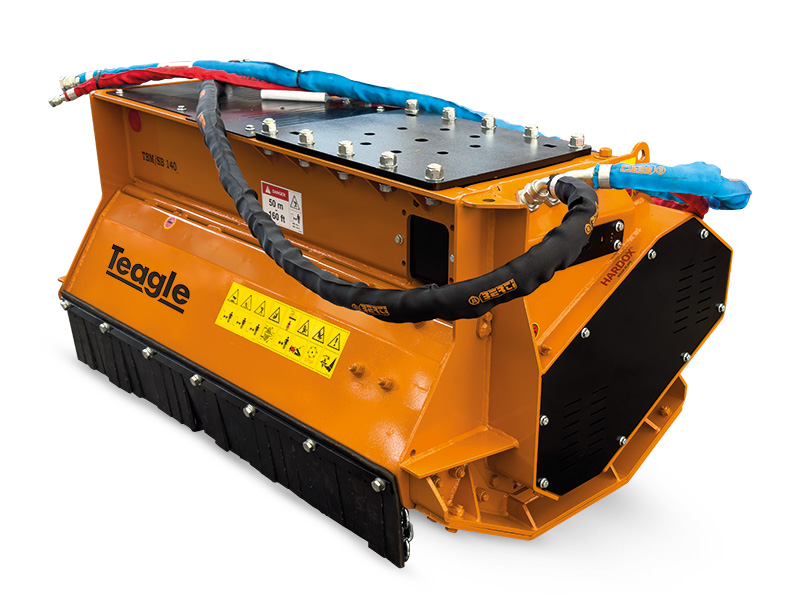

TBM/SB Excavator

Hydraulic forestry mulcher with swinging hammers rotor for excavators with operating weight from 12 to 16 tonnes.

Key Benefits:

  • Double chassis
  • Belts transmission
  • Full automatic belts adjuster
  • Skids with anti-wearing Hardox steel undershoes
  • Forestry cage rotor
  • Single edged BERTI hammers
  • Manual Hood (Hydraulic hood optional*)


* By special order only

Explore the TBM/SB

Features
Options

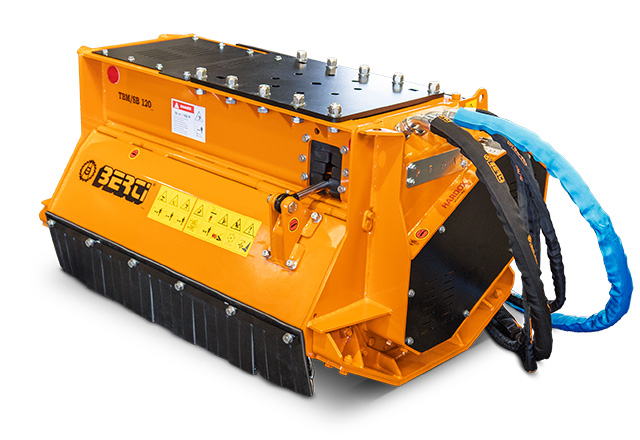

TBM/SB features
Front chain/flap protection
 Front chain/flap protection
Front chain/flap protection

Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Belt transmission
Belt transmission

Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Connection
Connection
Connection

3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Floating Hitch
Floating Hitch
Floating Hitch

Some models use a floating hitch design for allowing uneven slewing at work.

Manual Hood
Manual Hood
Manual Hood

Manual hood

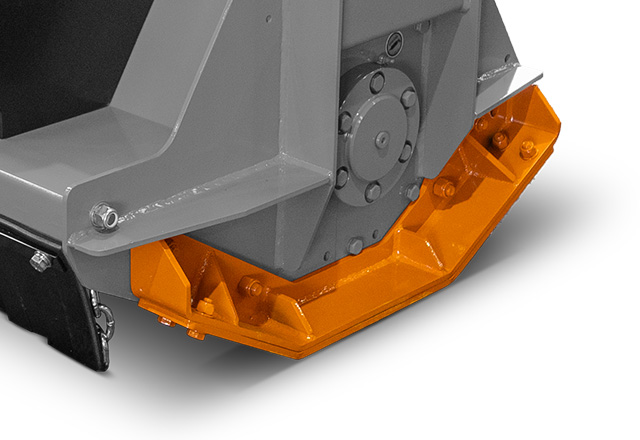

Side Skids
Side Skids
Side Skids

Hardox steel skids and anti-wearing plates used to protect the body chassis.

OPTION : Hydraulic Hood
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood

Hydrauic hood

Features
Options
TBM/SB options
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood

Hydrauic hood

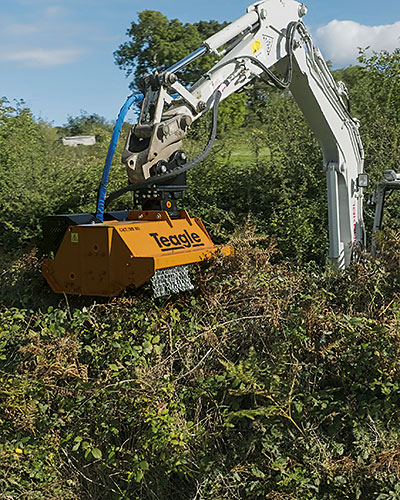

Watch the Excavator mulcher in action

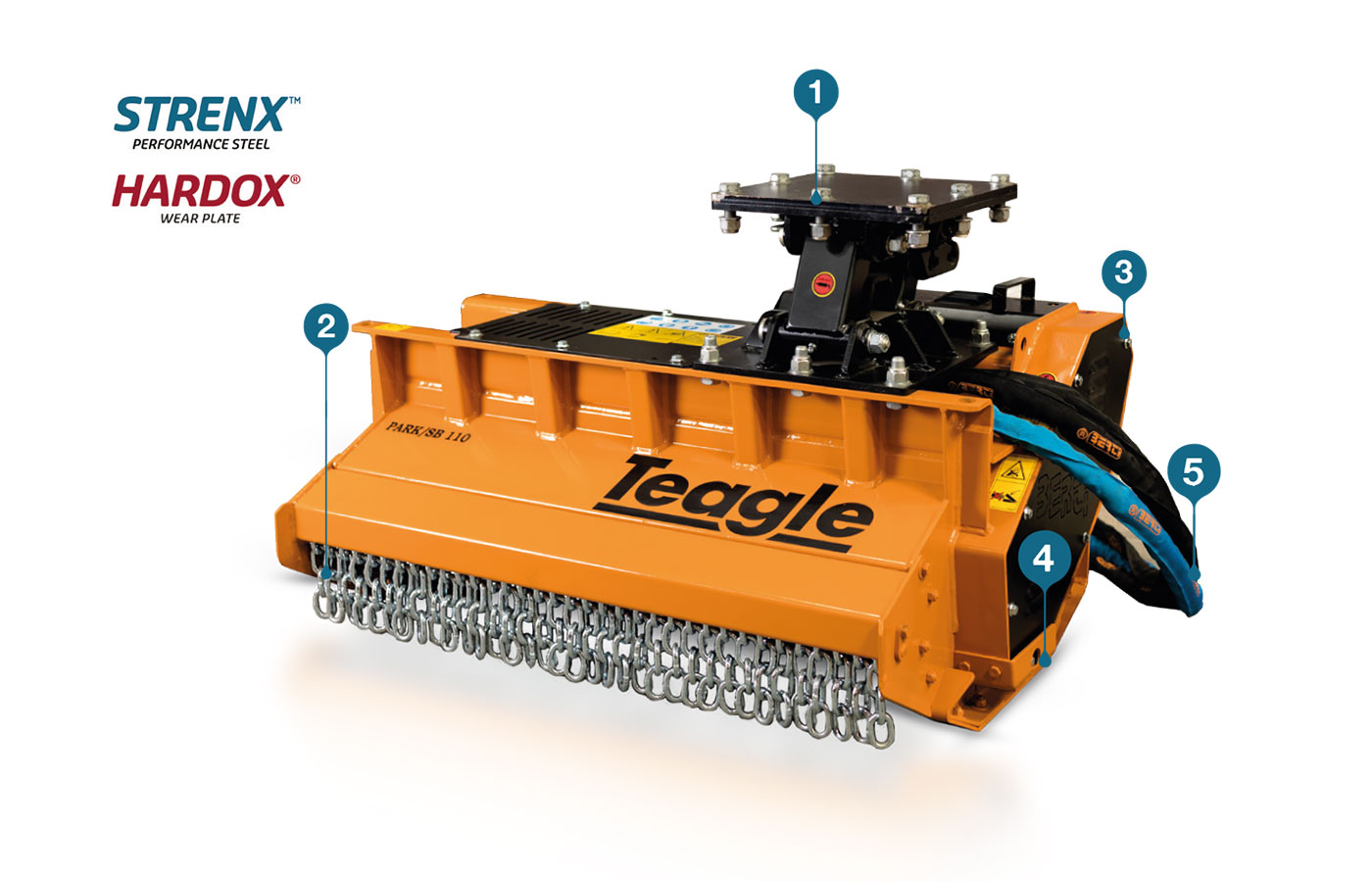

Dual Flail Mower

Floating hitch
Some models use a floating hitch design for allowing uneven slewing at work.

Front chain/flap protection
Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Side skids
Hardox steel skids and anti-wearing plates used to protect the body chassis.

Connection
3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Specifications

More
Description
TBM/SB 100TBM/SB 120
TBM/SB 140
Working width
1.0m1.2m1.4m
Tonnes
12t - 16t12t - 16t
12t - 16t
No. of 'MF1' hammers
182226
No. of belts
444
Overall height0.81m0.81m0.81m
Overall length1.27m1.47m1.67m
Overall width1.02m1.02m1.02m
Flow Rate ( l/min)
115 - 125115 - 125
115 - 125
Pressure (Bar)275 - 285 275 - 285
275 - 285
Hitch80kg80kg80kg
Weight - min/max
740/905kg825/1,025kg
910/1,110kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
