Working Width
Working Width 1.0m - 1.4m
Tonnes
Tonnes 11t - 16t
Flow Rate
Flow Rate 115 - 125 l/min
Hammer
Hammer 'XF1' Type
Weight
Weight 765kg - 1,150kg

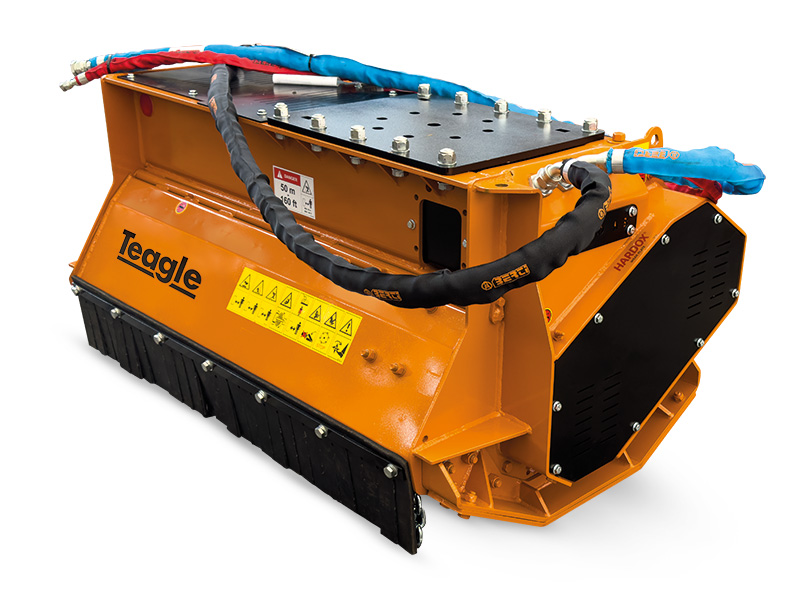

TFX/SB Excavator

Hydraulic forestry mulching head with fixed-tooth-rotor, for excavators with operating weight from 11 to 16 tonnes.

Key Benefits:

  • Double chassis
  • Belts transmission
  • Full automatic belts adjuster
  • Skids with anti-wearing Hardox steel undershoes

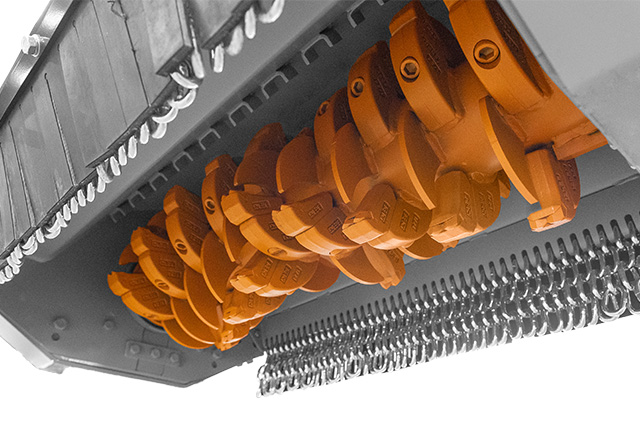

  • Forestry fixed tooth rotor
  • Fixed BERTI hammers with tungsten carbide tips
  • Manual Hood (Hydraulic hood optional*)


* By special order only

Explore the TFX/SB

Features
Options

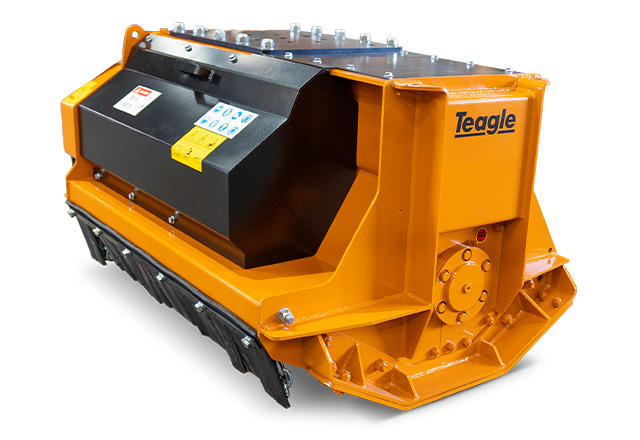

TFX/SB features

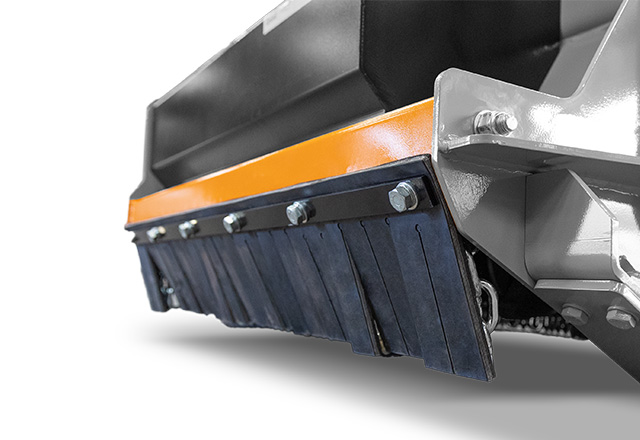

Front chain/flap protection
 Front chain/flap protection
Front chain/flap protection

Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Belt transmission
Belt transmission

Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

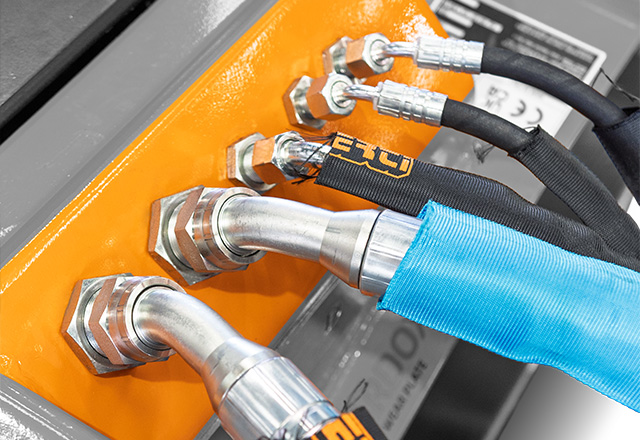

Connection
Connection
Connection

3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Floating Hitch
Floating Hitch
Floating Hitch

Some models use a floating hitch design for allowing uneven slewing at work.

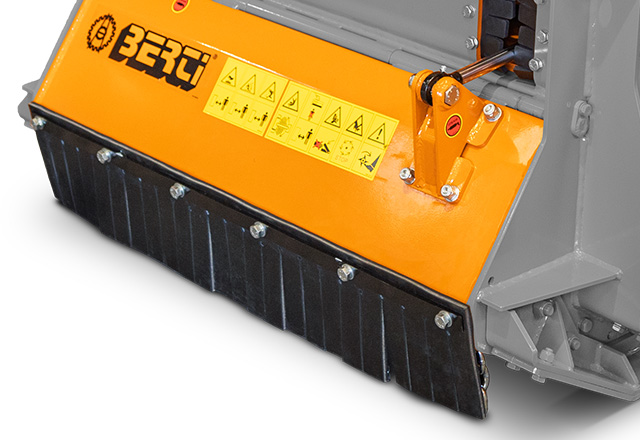

Manual Hood
Manual Hood
Manual Hood

Manual hood

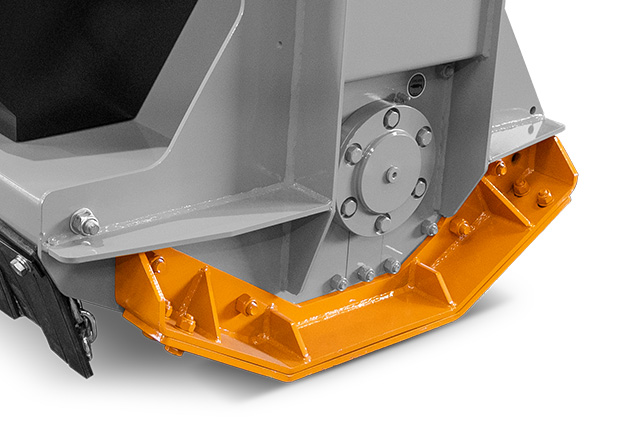

Side Skids
Side Skids
Side Skids

Hardox steel skids and anti-wearing plates used to protect the body chassis.

OPTION : Hydraulic Hood
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood

Hydrauic hood

Features
Options
TFX/SB options
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood

Hydrauic hood

Watch the Excavator mulcher in action

Dual Flail Mower

Floating hitch
Some models use a floating hitch design for allowing uneven slewing at work.

Front chain/flap protection
Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission
Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Side skids
Hardox steel skids and anti-wearing plates used to protect the body chassis.

Connection
3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Specifications

More
Description
TFX/SB 100TFX/SB 120
TFX/SB 140
Working width
1.0m1.2m1.4m
Tonnes
11t - 16t11t - 16t
11t - 16t
No. of 'XF1' hammers
243036
No. of belts
444
Overall height0.81m0.81m0.81m
Overall length1.27m1.47m1.67m
Overall width1.02m1.02m1.02m
Flow Rate ( l/min)
115 - 125115 - 125
115 - 125
Pressure (Bar)275 - 285 275 - 285
275 - 285
Hitch80kg80kg80kg
Weight - min/max
765/925kg860/1,060kg
950/1,150kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
