Working Width
Working Width 2.0m - 2.5m
Tractor
Power 120 - 250HP
PTO
PTO 1000 rpm
Hammer
Hammer 'DF' Type
Weight
Weight 2,100 - 2,880kg

The ECF/DT Mulcher

For mulching uncultivated vegetation, scrub, bushes, gorse trees, branches, trunks and plants up to Ø 35 cm.

Key Benefits:

  • Fixed 3-point linkage, Cat. II-III
  • Hydraulic adjusting of rear hood
  • Gearbox with single free wheel and 1"- 3/4 Z6 input shaft
  • Full automatic belts adjuster
  • Height adjustable skids of anti-wearing Hardox steel
  • Double belts transmission
  • Counter blades (plus bolted)
  • 1000 rpm only
  • Ø 520 Forestry fixed tooth rotor
  • Guard/Push Frame (manually operated standard)

Explore the ECF/DT

Features
Options
ECF/DT features

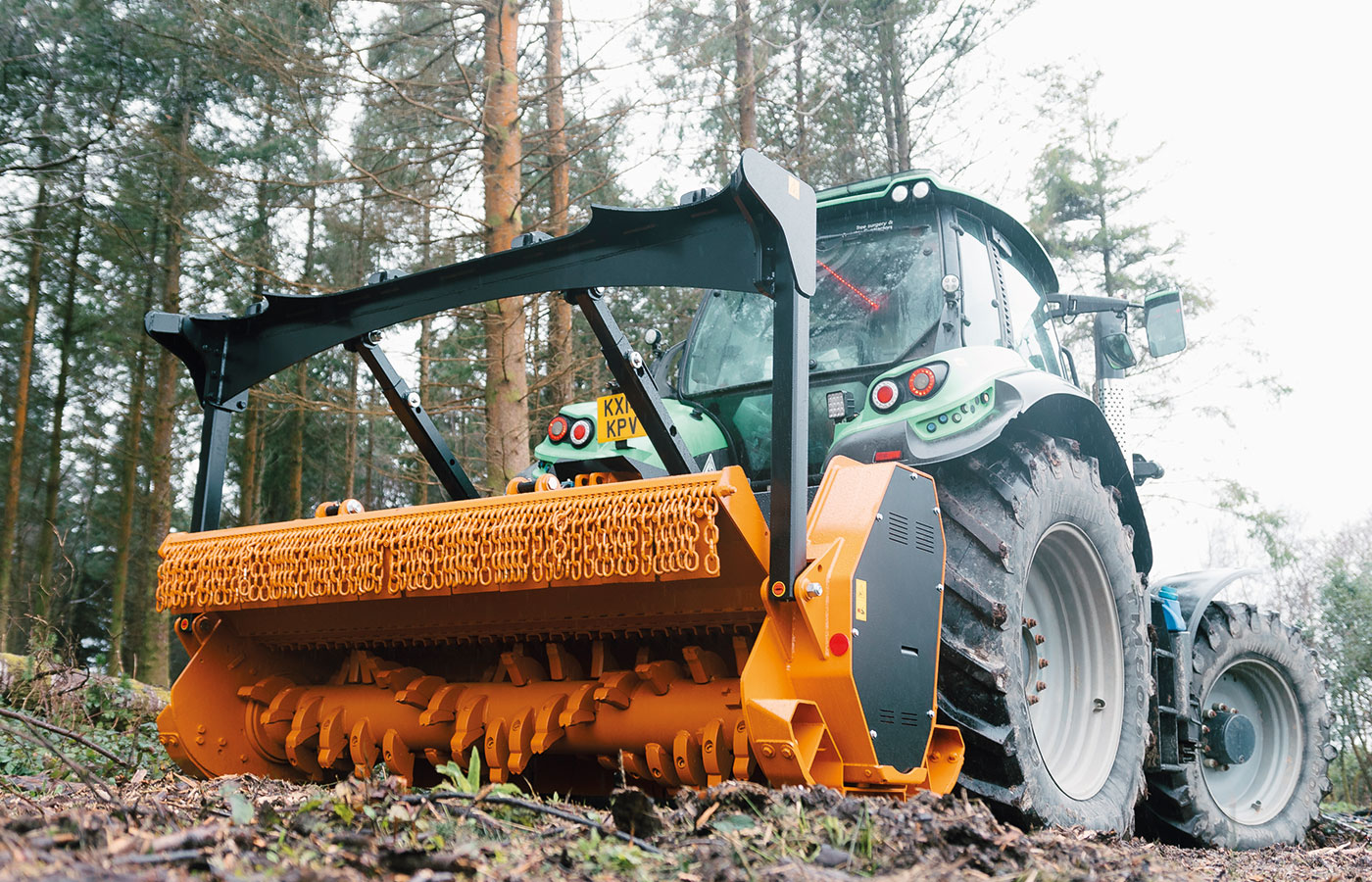

Adjustable hydraulic Hood
Adjustable hydraulic Hood
Adjustable hydraulic Hood

For improved mulching performance the adjustable hood can be set to release or contain material as required.

Automatic Belt Tensioning
Automatic Belt Tensioning
Automatic Belt Tensioning

The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

Counter Blades
Counter Blades
Counter Blades

For improved mulching performance, a number of counter blades are fitted for a finer mulch.

Debris Protection
Debris Protection
Debris Protection

Swinging steel flaps and chains are fitted to the front and back of the machine to prevent debris exiting.

Guard / Push Frame
Guard / Push Frame
Guard / Push Frame

Manual push frames make easy work of preparing material to enter the rotor.

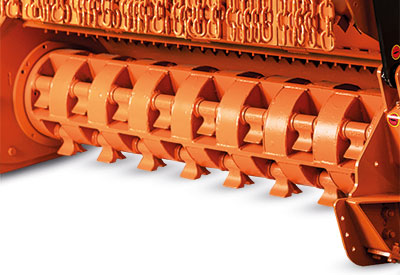

High Performance Rotors
High Performance Rotors
High Performance Rotors

The large diameter 0 440 and 0 520 dynamically balanced rotor delivers a market leading tip speed, as well as strength in operation.

Lateral transmission
Lateral transmission
Lateral transmission

Power transfer achieved through large gearbox with single free wheel and lateral universal driveline takes the power to double transmission belts.

OPTION : Hydraulic Push Frame
OPTION : Hydraulic Push Frame
OPTION : Hydraulic Push Frame

Hydraulic push frames make easy work of preparing material to enter the rotor.

Features
Options
ECF/DT options
OPTION : Hydraulic Push Frame
OPTION : Hydraulic Push Frame
OPTION : Hydraulic Push Frame

Hydraulic push frames make easy work of preparing material to enter the rotor.

Watch the FLAIL mowers in action

Dual Flail Mower

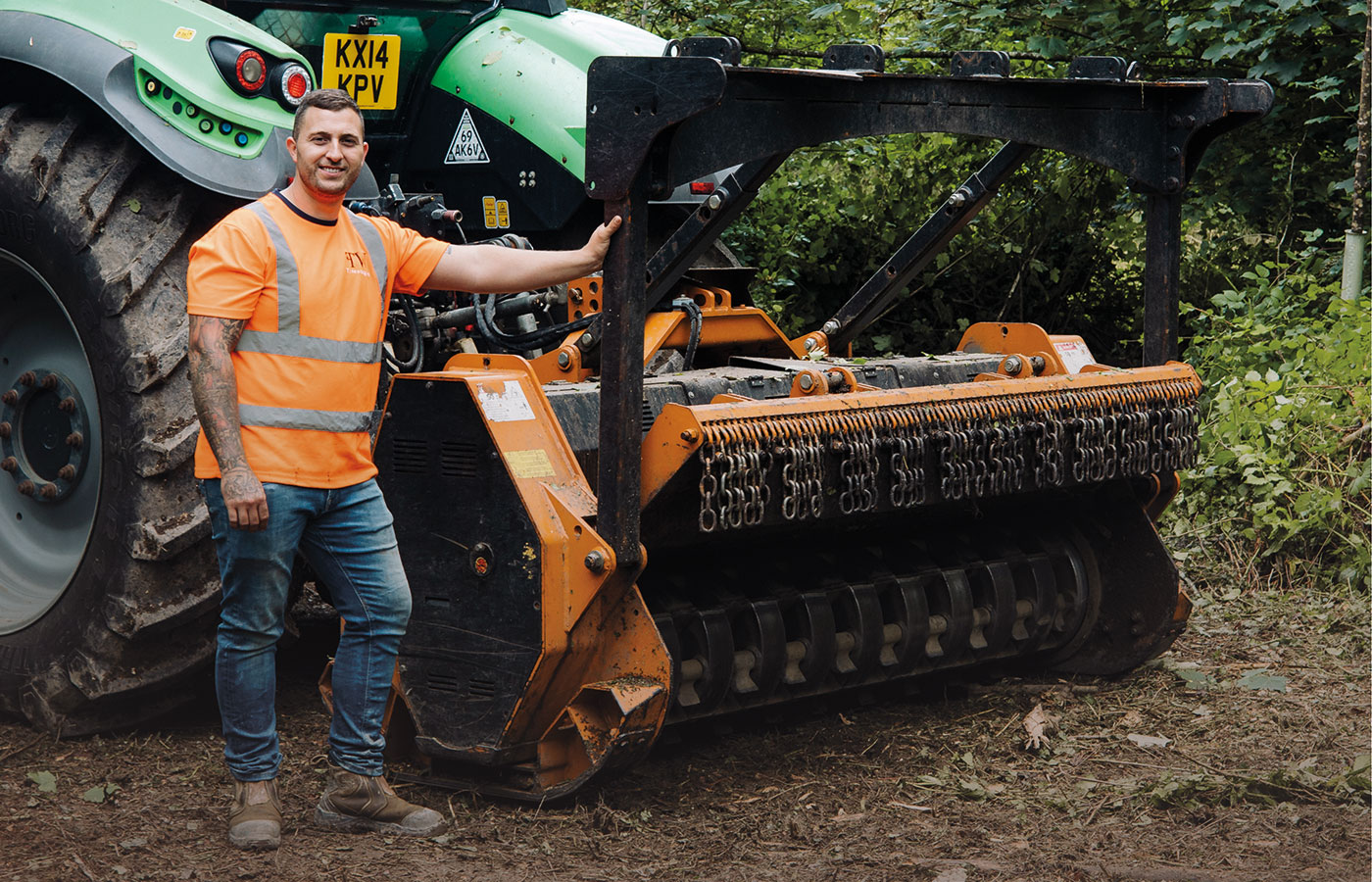

Customer Review

Travis from TW Tree Surgery and Forestry Contractors, based in Cornwall.

We use the Teagle Forestry Mulcher for a lot of land clearance and woodland management. This includes: scrub clearance, removing unnecessary tree saplings, tree stumps and large amounts of brambles.

The machine we chose had to last a long time. It was a big investment for our business, but it is certainly paying off for what we use it for. We've had the machine for two years, and we've only replaced the hammers three times and all the belts are still intact.

The machine is also very good on moorlands, where we use the Teagle ECF/DT 220 to put in firebreaks for the fire services. We will be looking to expand the fleet and the next Mulcher will be a Teagle again, this time the Fixed Tooth Mulcher, so we can handle bigger stuff, bigger stumps and provide a finer finish. So I would recommend this machine to anyone who asks, what kit to buy."

“This is more aggressive, provides more ease when chomping through larger diameter stumps, it buries down a bit deeper and produces the best finish - you ain’t going to get any better

Specifications

More
Description
ECF/DT 200ECF/DT 220
ECF/DT 250
Working width
2.0m2.2m2.5m
Power - min/max
120/250HP130/250HP130/250HP
No. of 'DF' hammers
363945
No. of belts
5 + 55 + 5
5 + 5
Lateral displacement (mm)1000/10001100/11001250/1250
PTO
1000 rpm1000 rpm
1000 rpm
Overall height1.23m1.23m
1.23m
Overall length2.50m2.70m
2.90m
Overall width1.30m1.30m
1.30m
Weight - min/max
2,100/2,450kg2,250/2,620kg
2,500/2,880kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
