Working Width
Working Width 1.4m - 2.2m
Tractor
Power 80 - 160HP
PTO
PTO 1000(540) rpm
Hammer
Hammer 'XF1' Type
Weight
Weight 1,090 - 1,590kg

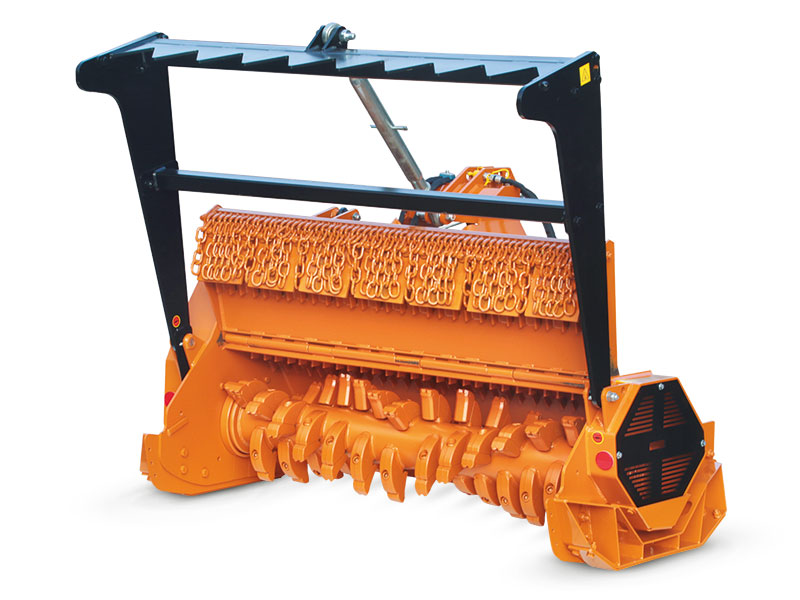

The EFX/MD Flail

For mulching uncultivated vegetation, scrub, bushes,  gorse trees, branches, trunks and plants up to Ø 20 cm.

Key Benefits:

  • Fixed 3-point linkage, Cat. I-II
  • Hydraulic adjusting of rear hood
  • Gearbox with double free wheel and 1"- 3/4 Z6  input shaft
  • Full automatic belts adjuster
  • Height adjustable skids of anti-wearing Hardox steel
  • 1000 rpm (540 rpm special order)
  • Counter blades
  • Ø 440 Forestry fixed tooth rotor

Explore the EFX/MD

Features
EFX/MD features
Adjustable hydraulic Hood
Adjustable hydraulic Hood
Adjustable hydraulic Hood

For improved mulching performance the adjustable hood can be set to release or contain material as required.

Counter Blades
Counter Blades
Counter Blades

For improved mulching performance, a number of counter blades are fitted for a finer mulch.

Debris Protection
Debris Protection
Debris Protection

Swinging steel flaps and chains are fitted to the front and back of the machine to prevent debris exiting.

Guard / Push Frame
Guard / Push Frame
Guard / Push Frame

Manual push frames make easy work of preparing material to enter the rotor.

High Performance Rotors
High Performance Rotors
High Performance Rotors

The large diameter ø440 and ø520 dynamically balanced rotor delivers a market leading tip speed, as well as strength in operation.

Lateral transmission
Lateral transmission
Lateral transmission

Power transfer achieved through large gearbox with single free wheel and lateral universal driveline takes the power to double transmission belts.

Watch the FLAIL mowers in action

Dual Flail Mower

1. Robust Body
The double skinned body incorporates Strenx high performance steel  in the second skin and Hardox is used in the skids for greater durability.  The body is shot blasted and protected with a high quality paint finish.

2. High Quality Driveline
Strong Waltersheid PTO shafts provide effective power transfer to the high quality large gearbox for trouble free operation.

3. Automatic Belt Tension
The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

4. Side skids
Side skids fitted for height adjustment with anti-wearing Hardox wear plates.

Specifications

More
Description
EFX/MD 140EFX/MD 160
EFX/MD 180
EFX/MD 200
EFX/MD 220
Working width
1.4m1.6m1.8m2.0m2.2m
Power - min/max
80/140HP90/140HP
90/140HP
90/160HP
90/160HP
No. of 'XF1' hammers
3642424448
No. of belts
44455
Lateral displacement (mm)680/720680/920880/920880/11201080/1120
PTO**
1000 (540)* rpm1000 (540)* rpm
1000 (540)* rpm
1000 (540)* rpm
1000 (540)* rpm
Overall height1.20m1.20m
1.20m
1.20m
1.20m
Overall length1.75m1.95m2.15m2.35m2.55m
Overall width1.30m1.30m1.30m1.30m
1.30m
Weight - min/max
1,090/1,290kg1,165/1,370kg1,230/1,435kg1,290/1,505kg1,370/1,590kg
* By special order only  **Centrifugal clutches are mandatory for Front Mounting
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
