Working Width
Working Width 1.5m - 1.9m
Tractor
Power 60 - 110HP
PTO
PTO 540/1000 rpm
Hammer
Hammer 'XF1' Type
Weight
Weight 690kg - 970kg

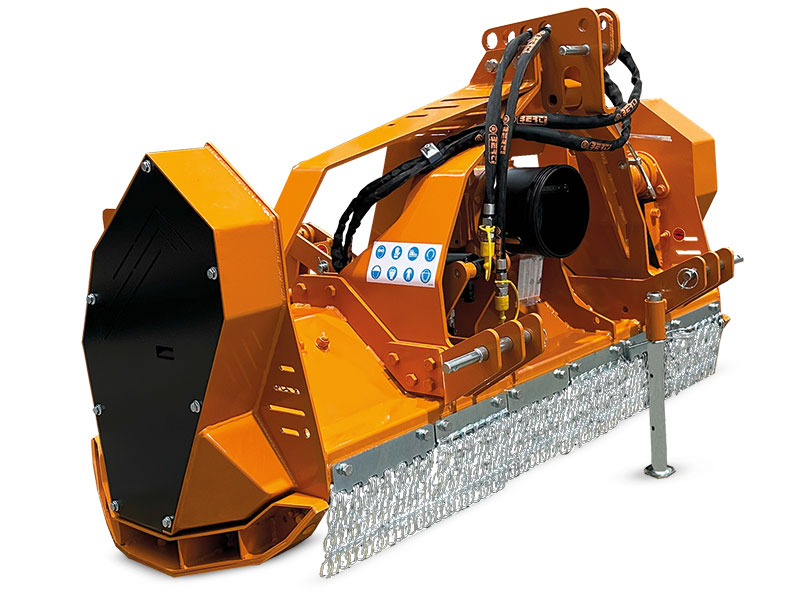

Why choose the KX ?

For mulching uncultivated vegetation, scrub, bushes, gorse trees, branches, trunks and plants up to Ø 15 cm.

Key Benefits:

  • Fixed 3-point linkage, Cat. I-ll.
  • Hydraulic adjustment of rear hood.
  • Gearbox with double free wheel and input shaft 1"- 3/18 Z6.
  • Full automatic belts adjuster.
  • Height adjustable skids of anti-wear Hardox steel.
  • Double chassis.
  • 'Smooth-cut design' forestry rotor, ø 360.
  • Counter-blades.
  • Tungsten-carbide toothed tips.
  • Fixed Tooth Rotor
  • Standard PTO 540 rpm (1000 rpm by special order).

Explore the KX

Features
Options
KX features
Adjustable hydraulic Hood
Adjustable hydraulic Hood
Adjustable hydraulic Hood

For improved mulching performance the adjustable hood can be set to release or contain material as required.

Counter Blades
Counter Blades
Counter Blades

For improved mulching performance, a number of counter blades are fitted for a finer mulch.

Debris Protection
Debris Protection
Debris Protection

Swinging steel flaps and chains are fitted to the front and back of the machine to prevent debris exiting.

Guard / Push Frame
Guard / Push Frame
Guard / Push Frame

Manual push frames make easy work of preparing material to enter the rotor.

High Performance Rotors
High Performance Rotors
High Performance Rotors

The large diameter 0 440 and 0 520 dynamically balanced rotor delivers a market leading tip speed, as well as strength in operation.

Lateral transmission
Lateral transmission
Lateral transmission

Power transfer achieved through large gearbox with single free wheel and lateral universal driveline takes the power to double transmission belts.

OPTION : Guard/Push frame
OPTION : Guard/Push frame
OPTION : Guard/Push frame

Mechanical push frames make easy work of preparing material to enter the rotor.

OPTION : Hydraulic Push Frame
OPTION : Hydraulic Push Frame
OPTION : Hydraulic Push Frame

Hydraulic push frames make easy work of preparing material to enter the rotor.

OPTION : PTO Shaft with CAM clutch
OPTION : PTO Shaft with CAM clutch
OPTION : PTO Shaft with CAM clutch

Copy here

Features
Options
KX options
OPTION : Guard/Push frame
OPTION : Guard/Push frame
OPTION : Guard/Push frame

Mechanical push frames make easy work of preparing material to enter the rotor.

OPTION : Hydraulic Push Frame
OPTION : Hydraulic Push Frame
OPTION : Hydraulic Push Frame

Hydraulic push frames make easy work of preparing material to enter the rotor.

OPTION : PTO Shaft with CAM clutch
OPTION : PTO Shaft with CAM clutch
OPTION : PTO Shaft with CAM clutch

Copy here

Watch the FLAIL mowers in action

Dual Flail Mower

1. Robust Body
The double skinned body incorporates Strenx high performance steel  in the second skin and Hardox is used in the skids for greater durability.  The body is shot blasted and protected with a high quality paint finish.

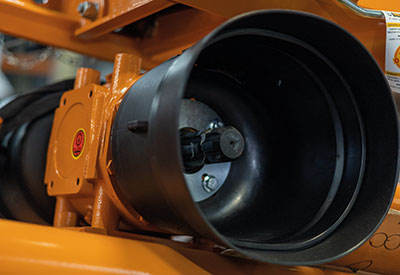

2. High Quality Driveline
Strong Waltersheid PTO shafts provide effective power transfer to the high quality large gearbox for trouble free operation.

3. Automatic Belt Tension
The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

4. Side skids
Side skids fitted for height adjustment with anti-wearing Hardox wear plates.

Specifications

More
Description
KX 150KX 170
KX 190
Working width
1.5m1.7m1.9m
Power - min/max
60/110HP60/110HP60/110HP
No. of 'XF1' hammers
485460
No. of belts
444
Lateral displacement (mm)750/750850/850950/950
PTO
540 (1000)* rpm540 (1000)* rpm
540 (1000)* rpm
Overall height1.05m1.05m
1.05m
Overall length1.80m2.0m
2.20m
Overall width0.96m0.96m
0.96m
Weight - min/max
2,000/2,350kg2,140/2,510kg
2,380/2,760kg
* By special order only
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
