Working Width
Working Width 1.60m - 2.0m
Skid Steer
Power 50 - 90HP
Flow Rate
Flow Rate 88 - 115 l/min
Hammer
Hammer 'A' Type
Weight
Weight 705kg - 810kg

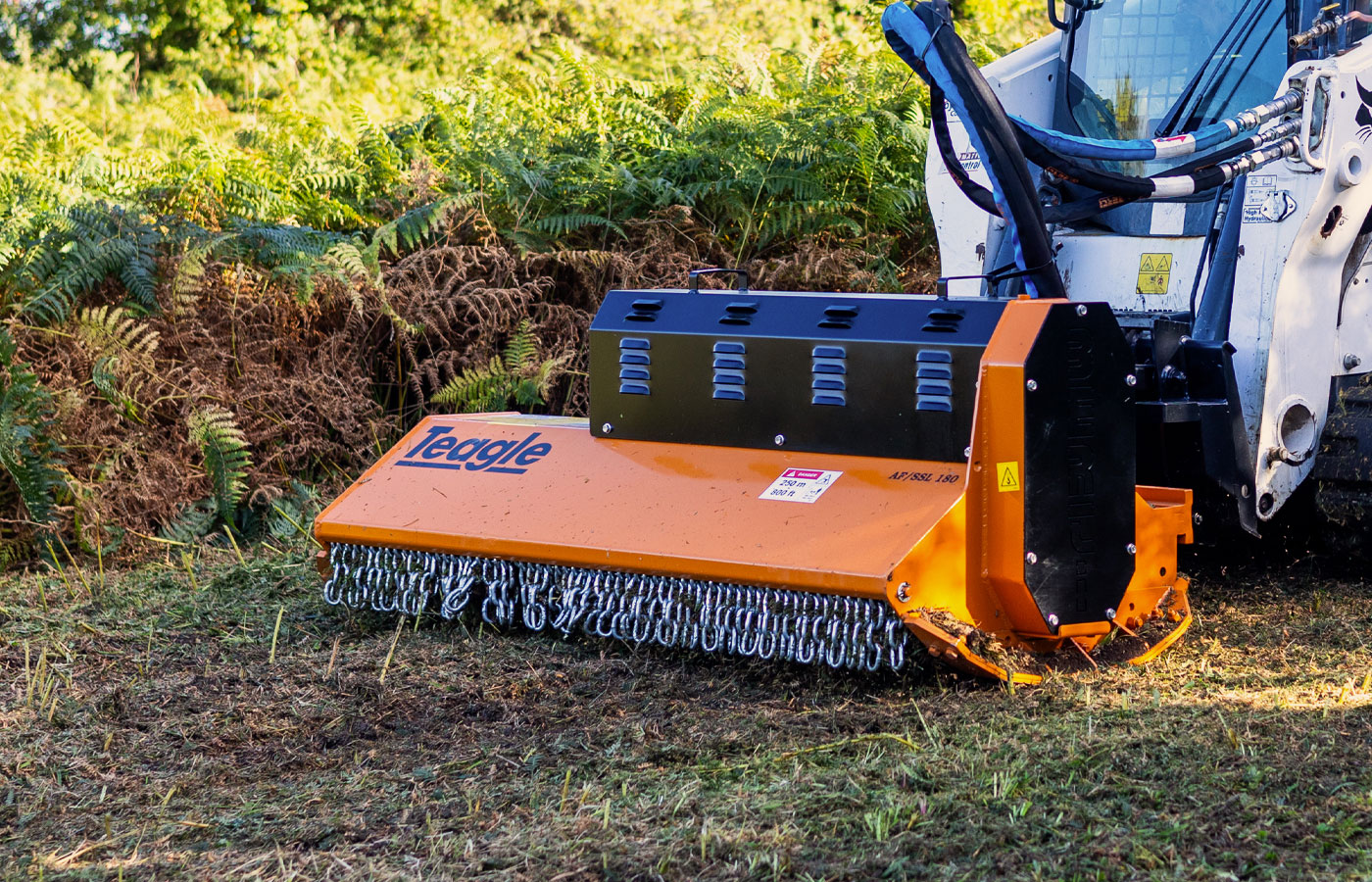

The AF/SSL

Hydraulic mulcher for grass, bushes, scrub and brushwood up to Ø6-7 cm.

Key Benefits:

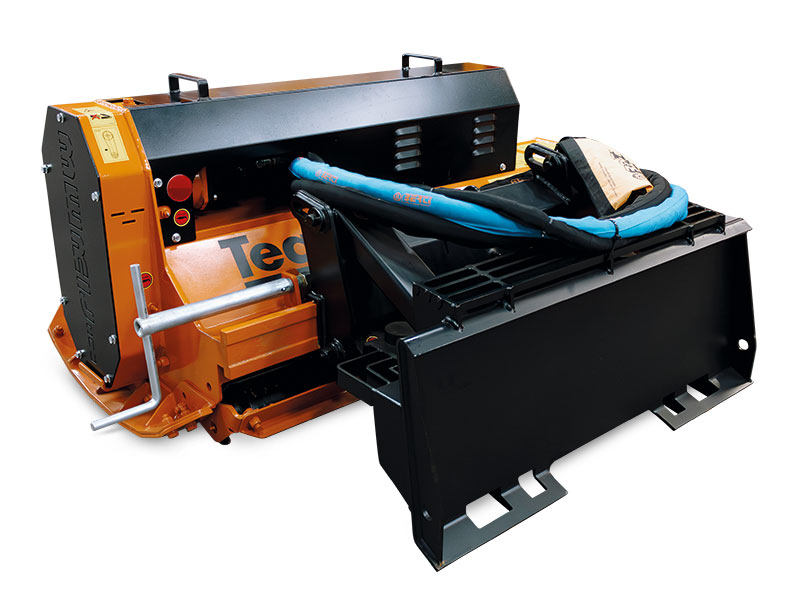

  1. Floating self-levelling universal hitch (SAE J2513)
  2. Belts transmission
  3. Height adjustable levelling roller
  4. Skids with anti-wearing Hardox steel undershoes
  5. Forged and hardened BERTI hammers type “A” or ”YA” blades
  6. Mechanical side shift (Hydraulic side shift option for low pressure system)

Explore the AF/SSL

Features
AF/SSL features

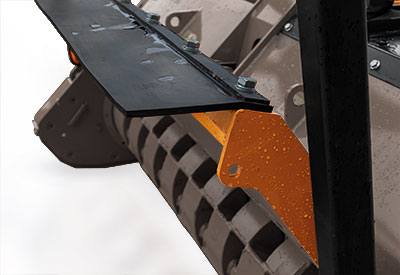

Adjustable hydraulic Hood
Adjustable hydraulic Hood
Adjustable hydraulic Hood

For improved mulching performance the adjustable hood can be set to release or contain material as required.

Belt tensioning
Belt tensioning
Belt tensioning

The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

Counter Blades
Counter Blades
Counter Blades

For improved mulching performance, counter blades are fitted for a finer mulch.

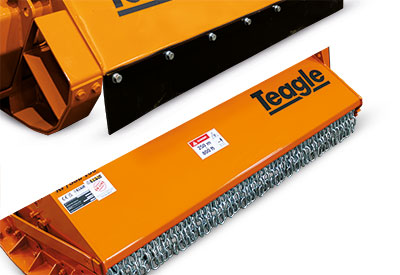

Debris Protection
Debris Protection
Debris Protection

Fixed rubber flaps and chains are fitted to the front of the machine to prevent debris escaping.

High Performance Rotors
High Performance Rotors
High Performance Rotors

The large diameter ø440 and ø520 dynamically balanced rotor delivers a market leading tip speed, as well as strength in operation.

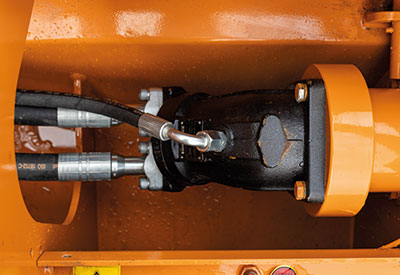

High Quality Hydraulic Motor
High Quality Hydraulic Motor
High Quality Hydraulic Motor

Hydraulic motor with flow, return and free flow case drain lines to ensure trouble free power delivery.

Watch the FLAIL mowers in action

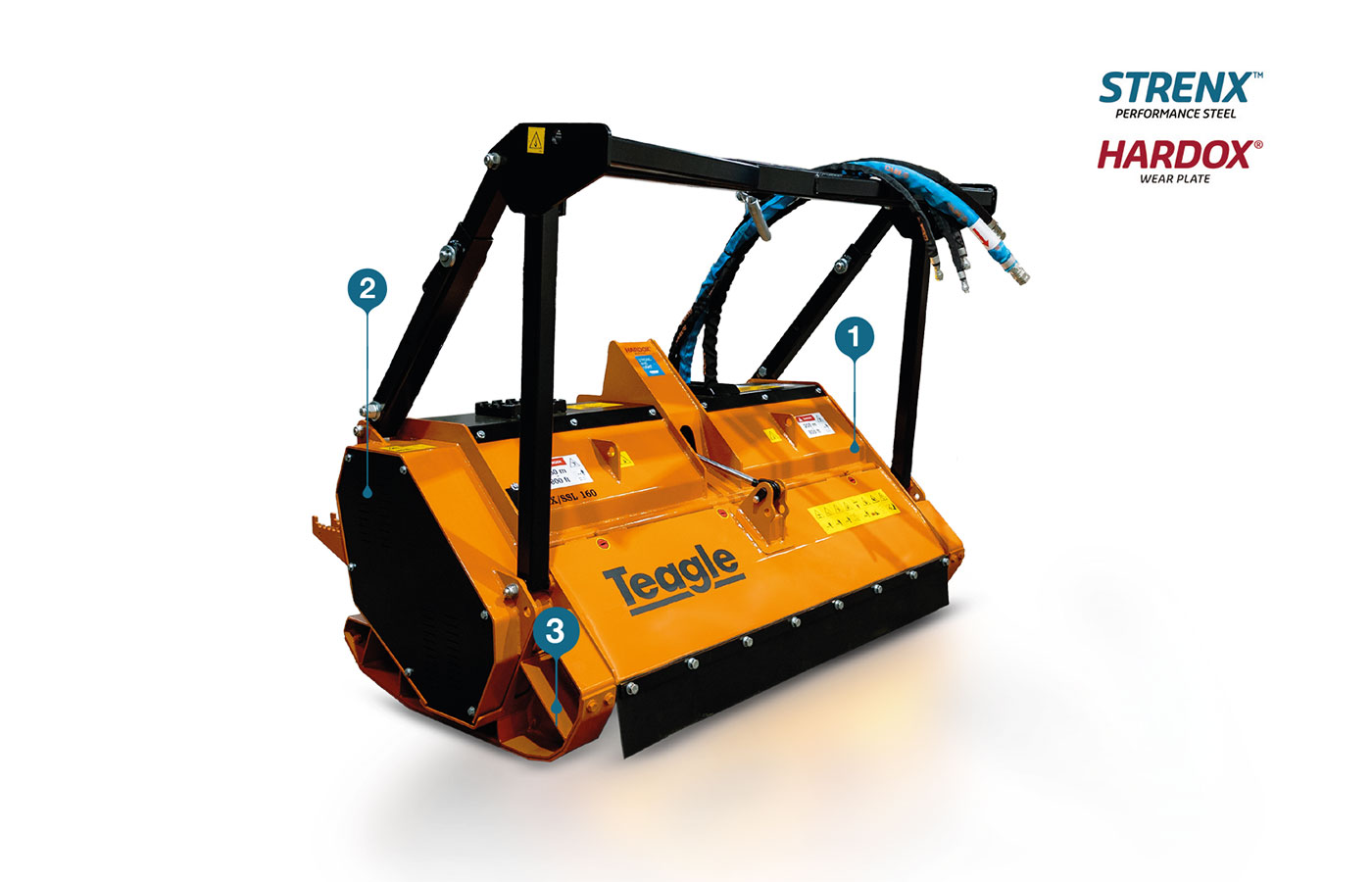

Dual Flail Mower

1. Robust Body
The double skin body incorporates Strenx high performance steel in the inner hood (we also use Hardox in the skids for greater durability). The body is shot blasted and protected with a high quality paint finish.

2. Automatic Belt Tension
The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

3. Side skids
Side skids fitted for height adjustment with anti-wearing Hardox wear plates.

Specifications

More
Description
AF/SSL 160AF/SSL 180AF/SSL 200
Working width
1.6m1.8m2.0m
Power - min/max
50/90HP50/90HP50/90HP
No. of 'A' hammers
141618
No. of 'YA' blades*424854
No. of belts
333
Lateral displacement (mm) LH1060/5401160/6401260/740
Lateral displacement (mm) RH540/1060640/1160740/1260
Overall height0.8m0.8m
0.8m
Overall length1.84m2.04m
2.24m
Overall width1.45m1.45m
1.45m
Flow Rate ( l/min)
88 - 92
88 - 92
105 - 115
Pressure (Bar)245 - 255 245 - 255
245 - 255
Weight - min/max
705/720kg745/760kg
795/810kg
*By special order only


More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.

Download PDF
