Working Width
Working Width 1.15m - 1.45m
Skid Steer
Power 20 - 50HP
Flow Rate
Flow Rate 43 - 47 l/min
Hammer
Hammer 'G' Type
Weight
Weight 180kg - 295kg

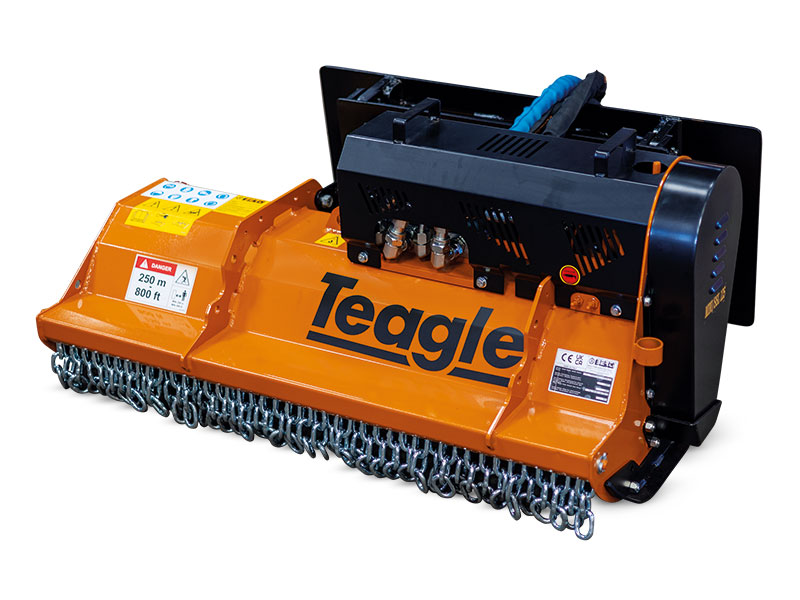

The MINI/SSL

Hydraulic mulcher for grass, bushes, scrub and brushwood up to Ø3cm.

Key Benefits:

  • Belts transmission
  • Height adjustable levelling roller
  • Skids of anti-wearing Hardox steel
  • Forged and hardened BERTI hammers type “G” or ”YG” blades
  • Counter blades
  • Hitch option by request

Explore the MINI/SSL

Features
MINI/SSL features
Counter Blades
Counter Blades
Counter Blades

For improved mulching performance, counter blades are fitted for a finer mulch.

Guard / Push Frame
Guard / Push Frame
Guard / Push Frame

Protection and material preparation achieved by manual height setting of guard/push frame.

High Performance Rotors
High Performance Rotors
High Performance Rotors

The large diameter ø440 and ø520 dynamically balanced rotor delivers a market leading tip speed, as well as strength in operation.

High Quality Hydraulic Motor
High Quality Hydraulic Motor
High Quality Hydraulic Motor

Hydraulic motor with flow, return and free flow case drain lines to ensure trouble free power delivery.

Watch the FLAIL mowers in action

Dual Flail Mower

1. Robust Body
The double skin body incorporates Strenx high performance steel in the inner hood (we also use Hardox in the skids for greater durability). The body is shot blasted and protected with a high quality paint finish.

2. Automatic Belt Tension
The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

3. Side skids
Side skids fitted for height adjustment with anti-wearing Hardox wear plates.

Specifications

More
Description
MINI/SSL 115MINI/SSL 125MINI/SSL 145
Working width
1.15m1.25m1.45m
Power - min/max
20/50HP20/50HP
20/50HP
No. of 'G' hammers
323440
No. of 'YG' blades*646880
No. of belts
222
Lateral displacement (mm) LH530/620530/720620/830
Overall height0.66m0.66m
0.66m
Overall length1.29m1.39m
1.59m
Overall width0.66m
0.66m
0.66m
Flow Rate ( l/min)
43 - 4743 - 47
43 - 47
Pressure (Bar)245 - 255 245 - 255
245 - 255
Weight - min/max
180/270kg190/280kg
205/295kg
* By special order only
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.

Download PDF
