Working Width
Working Width 1.60m - 1.80m
Skid Steer
Power 70 - 120HP
Flow Rate
Flow Rate 120 - 140 l/min
Hammer
Hammer 'XF1' Type
Weight
Weight 1,220 - 1,315kg

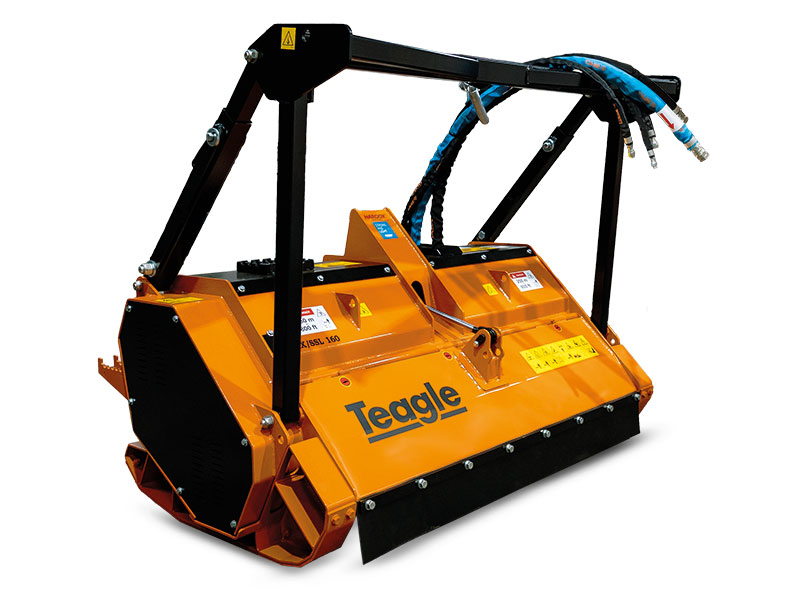

The MX/SSL

Suited to mulch any vegetable residue, branches and standing plants up to Ø20cm.

Key Benefits:

  1. Fixed universal hitch (SAE J2513)
  2. Double chassis
  3. Belts transmission
  4. Full automatic belts adjuster
  5. Skids with anti-wearing Hardox steel undershoes
  6. Forestry rotor

Explore the MX/SSL

Features
MX/SSL features
Adjustable hydraulic Hood
Adjustable hydraulic Hood
Adjustable hydraulic Hood

For improved mulching performance the adjustable hood can be set to release or contain material as required.

Counter Blades
Counter Blades
Counter Blades

For improved mulching performance, counter blades are fitted for a finer mulch.

Debris Protection
Debris Protection
Debris Protection

Fixed rubber flaps and chains are fitted to the front of the machine to prevent debris escaping.

Guard / Push Frame
Guard / Push Frame
Guard / Push Frame

Protection and material preparation achieved by manual height setting of guard/push frame.

High Performance Rotors
High Performance Rotors
High Performance Rotors

The large diameter ø440 and ø520 dynamically balanced rotor delivers a market leading tip speed, as well as strength in operation.

High Quality Hydraulic Motor
High Quality Hydraulic Motor
High Quality Hydraulic Motor

Hydraulic motor with flow, return and free flow case drain lines to ensure trouble free power delivery.

Watch the FLAIL mowers in action

Dual Flail Mower

1. Robust Body
The double skin body incorporates Strenx high performance steel in the inner hood (we also use Hardox in the skids for greater durability). The body is shot blasted and protected with a high quality paint finish.

2. Automatic Belt Tension
The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

3. Side skids
Side skids fitted for height adjustment with anti-wearing Hardox wear plates.

Specifications

More
Description
MX/SSL 160MX/SSL 180
Working width
1.6m1.8m
Power - min/max
70/120HP70/120HP
No. of 'XF1' hammers
4242
No. of belts
44
Overall height1.18m1.18m
Overall length1.92m2.12m
Overall width1.55m1.55m
Flow Rate ( l/min)
120 - 140120 - 140
Pressure (Bar)290 - 300 290 - 300
Weight - min/max
1,220/1,235kg1,300/1,315kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
