Working Width
Working Width 1.8m - 3.6m
Linkage
Linkage Cat. 1 & 2
PTO
PTO 540/1000 rpm
Tractor
Power 40 - 100HP
Weight
Weight 595kg - 770kg

Why choose the AV ?

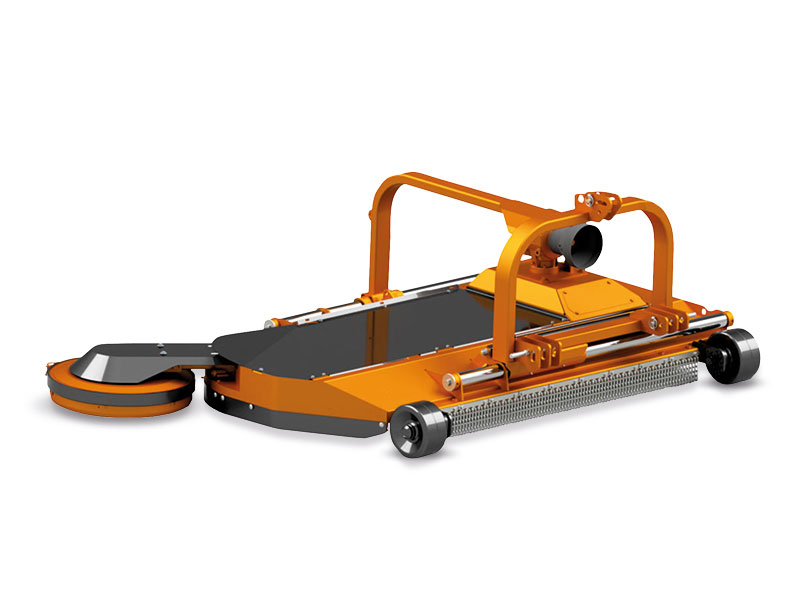

Displaceable grass mower with between-row rotating disc, suited to work on vineyards and orchards, for tractors from 40 to 100 HP.

Key Benefits:

  • 3-point linkage, Cat. I-II
  • Rear roller, height adjustable
  • Hydraulic side shift
  • Front fixed wheels, height adjustable
  • Free wheel in the gearbox
  • Articulated blades
  • Between-row rotating disc with hydraulic ram for disc positioning
    (single effect) and retraction by means of spring
  • PTO 540 rpm
    (1000 rpm by special request)

Explore the AV

Features & Options
AV features
OPTION : Automatic electro-hydraulic swing
OPTION : Automatic electro-hydraulic swing
OPTION : Automatic electro-hydraulic swing

Automatic electro-hydraulic swing device of the disc, with touch probe and independent hydraulics

OPTION : Double 3-point linkage
OPTION : Double 3-point linkage
OPTION : Double 3-point linkage

Double 3-point linkage and gearbox with through shaft (Front and Rear)

OPTION : Herbicide Kit
OPTION : Herbicide Kit
OPTION : Herbicide Kit

120/200 litres with 2 Nozzles and electrovalves

OPTION : Pivoting Rubber wheels
OPTION : Pivoting Rubber wheels
OPTION : Pivoting Rubber wheels

Rubber pivoting front wheels (only for front mount versions)

OPTION : Rotation Transformation Device
OPTION : Rotation Transformation Device
OPTION : Rotation Transformation Device

For front/rear PTO

OPTION : Rubber Fixed wheels
OPTION : Rubber Fixed wheels
OPTION : Rubber Fixed wheels

Front mounted, with height adjustment and telescopic fixing

Watch the FLAIL mowers in action

Dual Flail Mower

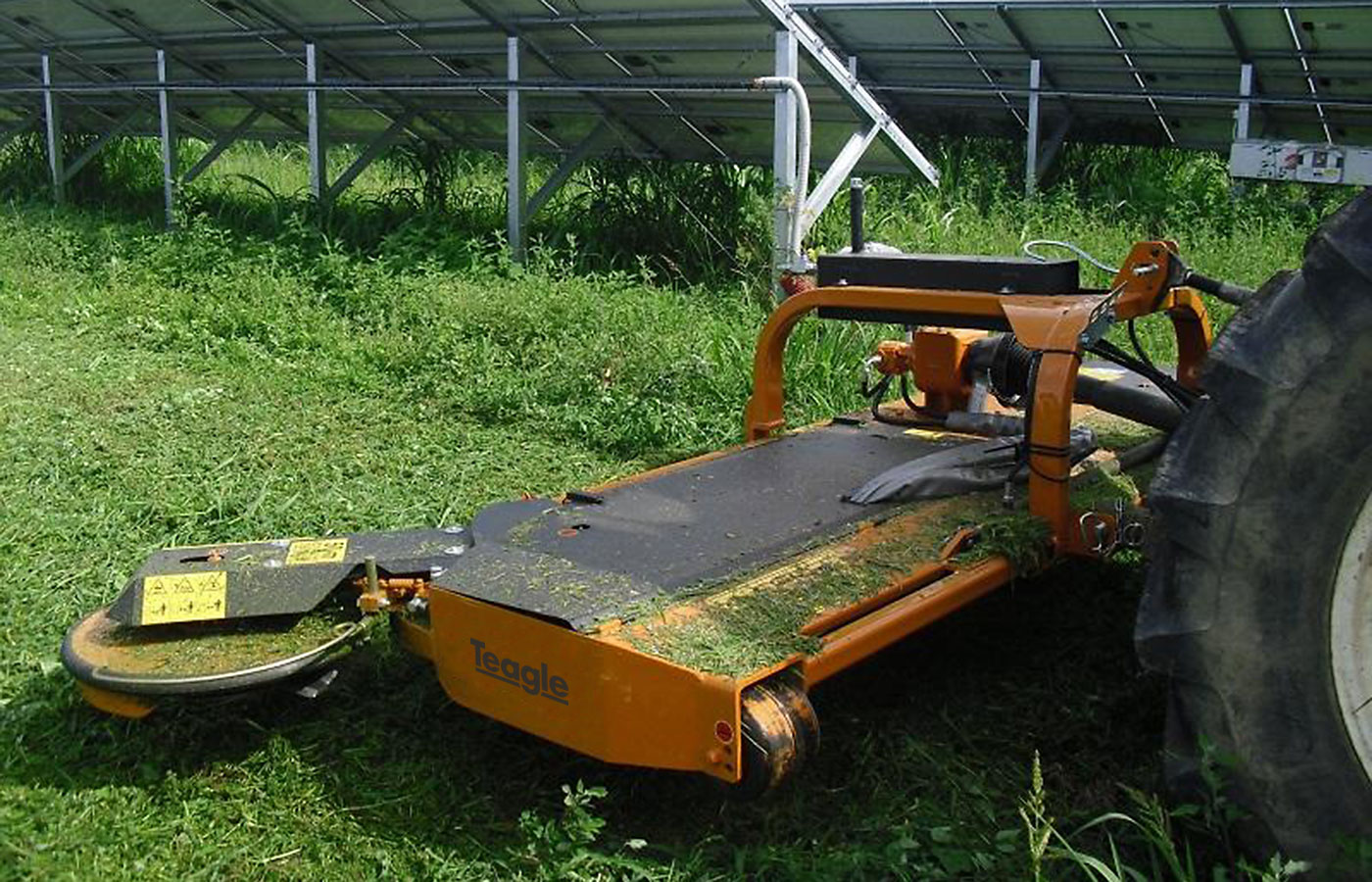

The innovative design of AV is enriched by a disc that allows delicate and targeted operations not only in vineyards and orchards, but also in photovoltaic installations.

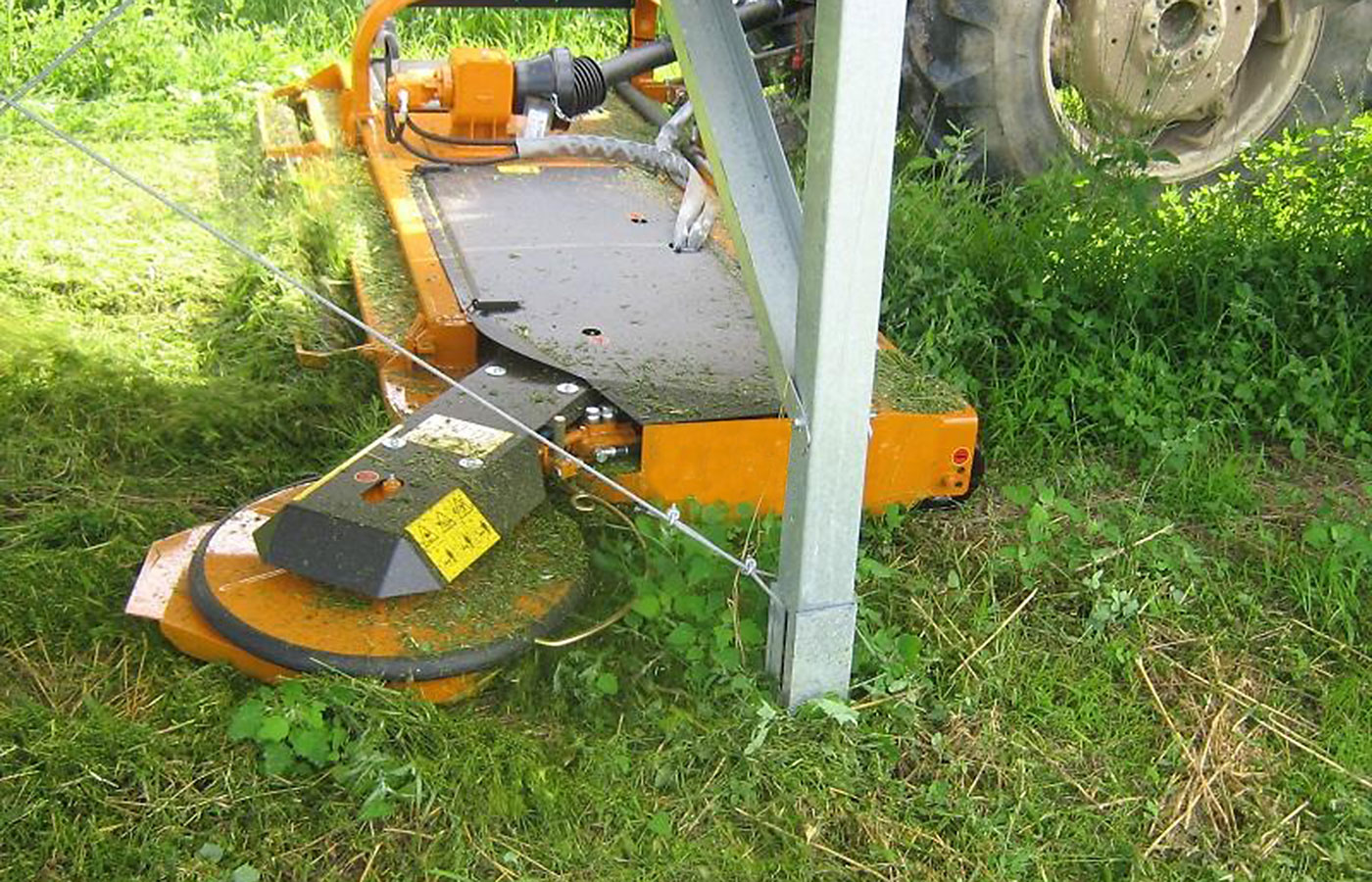

The retractable disc allows inter-row work. AV stands out for its ability to combine precision, comfort and flexibility, making it an indispensable tool for those looking for professional solutions for the maintenance of large green surfaces.

Electro-hydraulic feeler
The AV electro-hydraulic feeler allows inter-row chopping on the row. This function allows complete processing with a single pass, optimizing times and reducing costs.

Protection with 'Easyfix' chains
This type of front guard allows the replacement of a single faulty chain without having to dismantle all the others.

Specifications - AV (65)

More
Description
AV 180-230AV 200-250AV 235-290AV 260-320AV 310-360
Working width
1.8m - 2.3m2.0m - 2.5m2.35m - 2.9m2.6m - 3.2m3.1m - 3.6m
Power - min/max
40/80HP40/100HP40/100HP
50/100HP
50/100HP
No. of rotor discs44455
No. of blades
8881010
Lateral displacement (mm)893/1407893/1627878/19921325/18451561/2094
PTO (rpm)
540 (1000)* 540 (1000)*
540 (1000)*
540 (1000)*
540 (1000)*
Overall height0.57m0.57m
0.57m
0.57m
0.57m
Overall length2.40m2.61m2.96m3.24m3.72m
Overall width1.90m1.99m
2.13m1.99m2.13m
Weight - min
595kg620kg
680kg700kg760kg
* By special order only


More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
