1010-blow
Blow Distance 25m
Tractor
Power (min.) 80HP / 60kW
1010-height
Overall Height 2.93m
Bale rectangular
2 x Rectangular Bales 4'x2',6"/4'x4'
Round bale size
Round Bales 3 x 5'

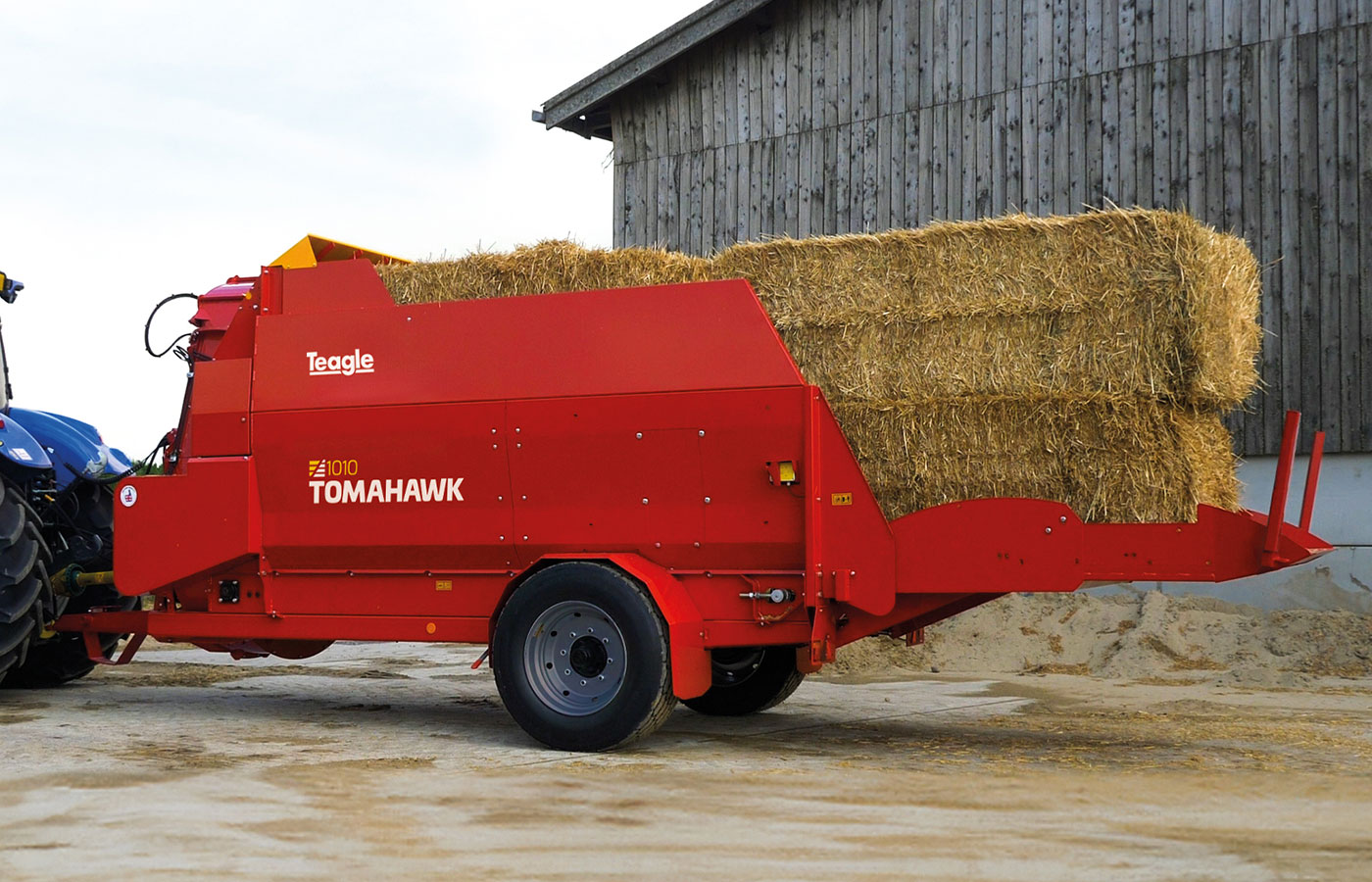

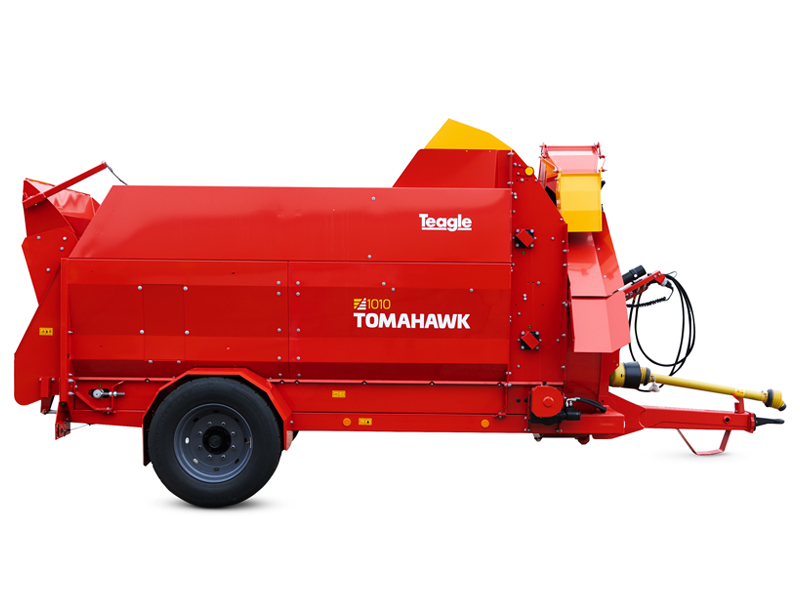

Why choose the 1010?

Our biggest Feeder Bedder; a combination of massive capacity and high output

The 1010 model is ideal for feeding clamp silage, 10m3 capacity, or spreading straw.

Key Benefits:

  • High Output: Twin crossbeaters deliver an even output of clamp and chopped bale silage, as well as round or rectangular baled straw.

  • High specification: The wide body format, also found in the 8500 and 9600 models, comes as standard with a larger diameter fan for extra blow distance, hardox in the fan housing, and massive 14mm bed chain and 40mm x 80mm slats for durability.

Explore the 1010

Highlights
Features
Options
Overview
Tomahawk 1010 highlights
Deliver further and faster
Deliver further and faster
Deliver further and faster

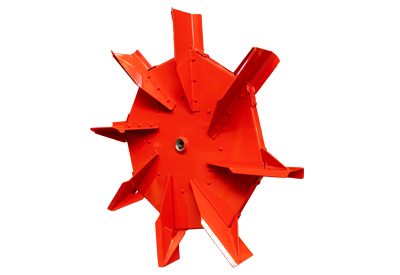

The 2 speed fan has 8 replaceable paddles for straightforward servicing. The wide body format incorporates a large diameter fan to ensure a consistent delivery and maximum blow distance.

Durability as standard
Durability as standard
Durability as standard

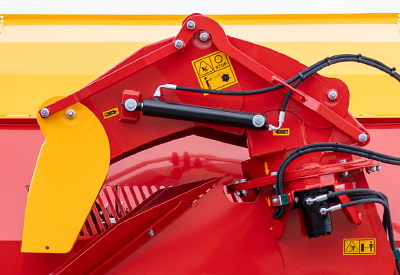

Service life is increased by up to 3 times with Hardox used in the the wearing parts in the chute and fan housing.

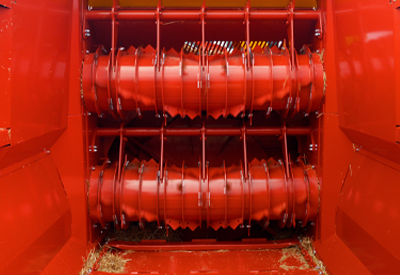

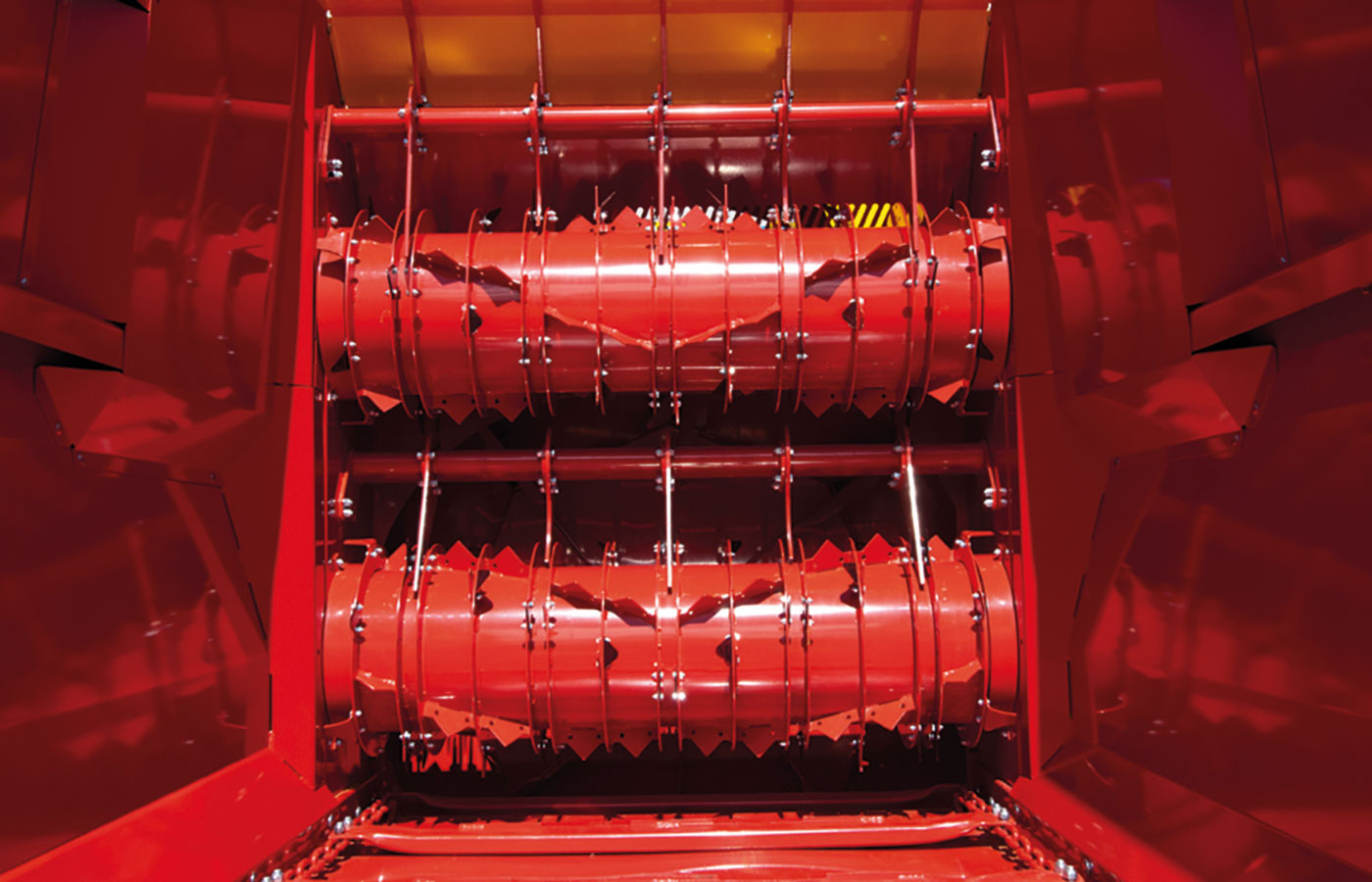

High Output
High Output
High Output

Twin crossbeaters allow taller sides for higher capacity, and significantly higher output than a single crossbeater.

Large Capacity
Large Capacity
Large Capacity

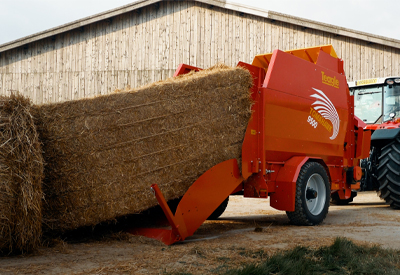

The wide body format with tall sides offers 6m3 capacity for clamp silage and either one 1.2m x 1.2m, or two 1.2m x 0.9m rectangular bales.

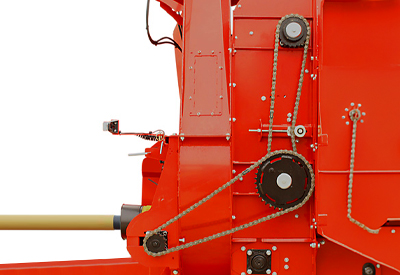

Reliable transmission
Reliable transmission
Reliable transmission

Chain drive to both crossbeaters ensures reliable power transmission. A shearbolt in the chain sprocket hub provides driveline protection.

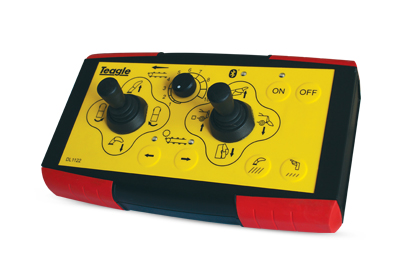

Wireless Control
Wireless Control
Wireless Control

The robust WiFi control desk means that the 9500 only requires a 12v electrical connection with the control desk remaining in the cab.

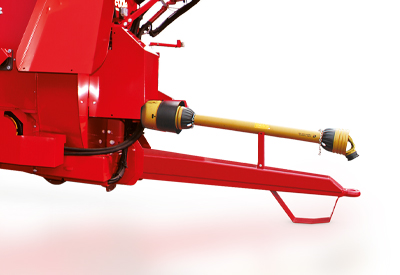

Driveline Protection
Driveline Protection
Driveline Protection

For driveline protection a slip clutch is fitted as standard on the Walterscheid PTO shaft.

Extending Tailgate
Extending Tailgate
Extending Tailgate

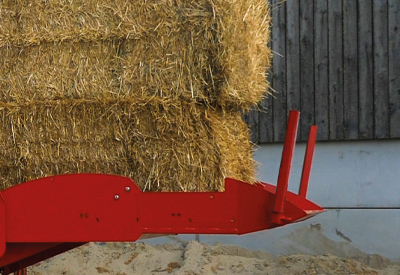

As standard, the 1010 is fitted with an extending tailgate that slides out to increase bale capacity.

Gear Change
Gear Change
Gear Change

All Tomahawk models feature a high specification gearbox, with high/low fan speeds with pre-selector.

High Specification Bed
High Specification Bed
High Specification Bed

Massive 14mm bed chain and 40mm x 80mm slats are fitted as standard for durability. Servicing is straigthforward with slats attached to the chains with 'U' Bolts,

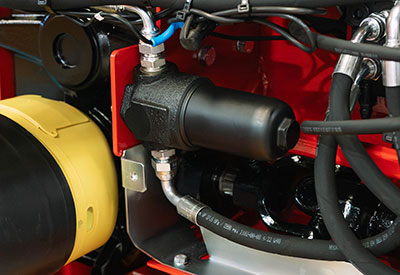

Oil Filter
Oil Filter
Oil Filter

In-line high pressure filter prevents contamination from damaging the valve equipment.

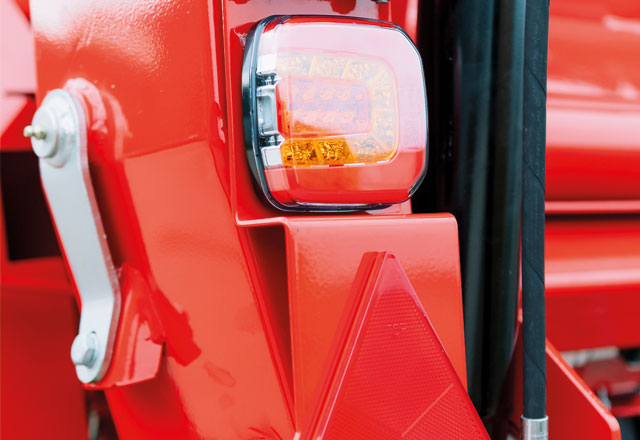

Road Lights & Mudguards
Road Lights & Mudguards
Road Lights & Mudguards

Essential for highway use, the front and rear markers ensure that you operate safely when travelling on the road.

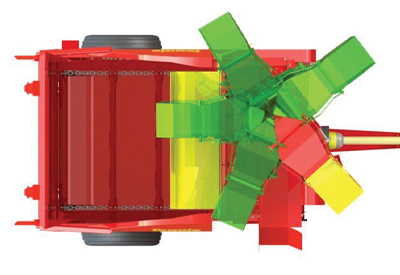

Swivel Chute
Swivel Chute
Swivel Chute

For flexibility of delivery, the chute rotates 280° allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.

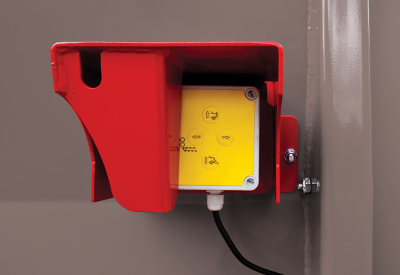

Tailgate Switch
Tailgate Switch
Tailgate Switch

Load bales without having to return to the tractor cab, useful when removing netting or wrap.

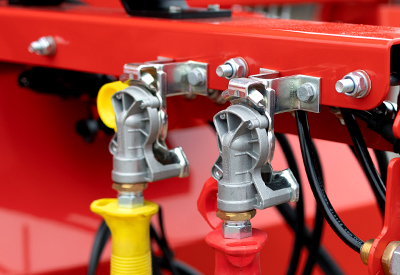

OPTION : Air Brakes
OPTION : Air Brakes
OPTION : Air Brakes

For safe operation on highways the 1010 is available with an Air Brake option.

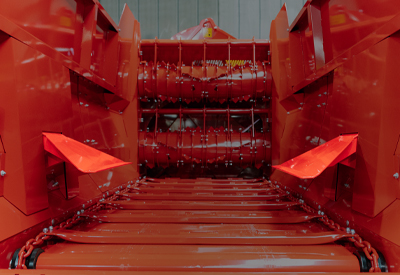

OPTION : Bale Lift Plates
OPTION : Bale Lift Plates
OPTION : Bale Lift Plates

Raise material in the rear of the chamber above the bed chain (via WiFi control) to allow bales to be processed more efficiently.

OPTION : Central Lubrication
OPTION : Central Lubrication
OPTION : Central Lubrication

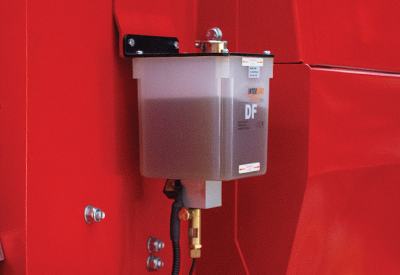

Auto chain order (crossbeater drive) is recommended for high-use operations.

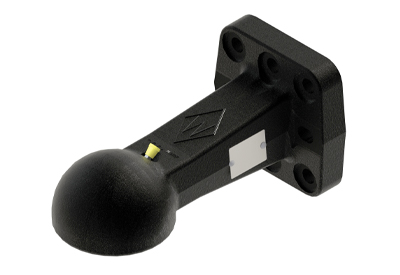

OPTION : Hitch Specification
OPTION : Hitch Specification
OPTION : Hitch Specification

Ring or K80 hitches can be specified.

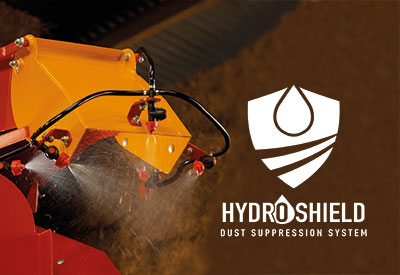

OPTION : Hydroshield - Dust Suppression
OPTION : Hydroshield - Dust Suppression
OPTION : Hydroshield - Dust Suppression

Reduce respirable dust by up to 40% with our Hydroshield water spray system. An onboard tank and 5 high pressure spray nozzles.

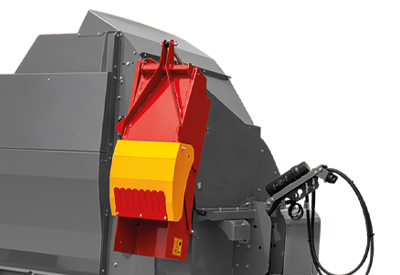

OPTION : Side Chute
OPTION : Side Chute
OPTION : Side Chute

Deliver only to the right hand side, with slightly greater blow distance than the swivel chute. Discharge height is lower for easier access to buildings. Chute can be raised or lowered as required.

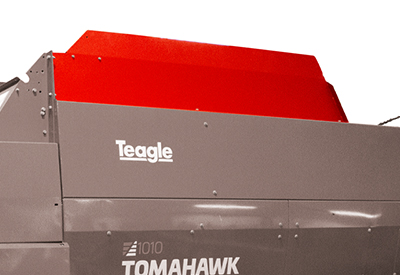

OPTION : Side Extensions
OPTION : Side Extensions
OPTION : Side Extensions

For extra capacity or improved containment of material.

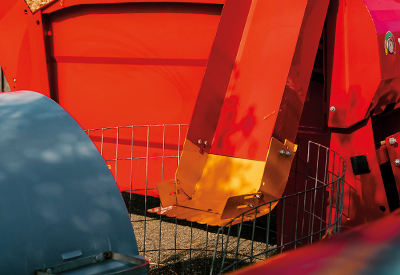

OPTION : Ski Jump Chute
OPTION : Ski Jump Chute
OPTION : Ski Jump Chute

The optional ‘Ski Jump Chute’ complete with adjustable comb and extended beak is perfect for bedding pig arcs and mulching fruit trees.

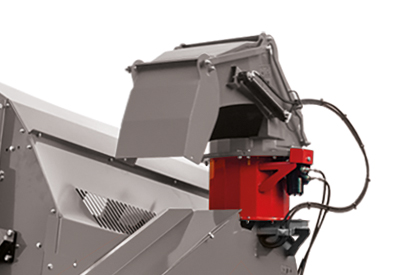

OPTION : Swivel chute extension
OPTION : Swivel chute extension
OPTION : Swivel chute extension

To deliver material behind the Tomahawk 9500 and 1010 the optional 300mm swivel chute extension is required.

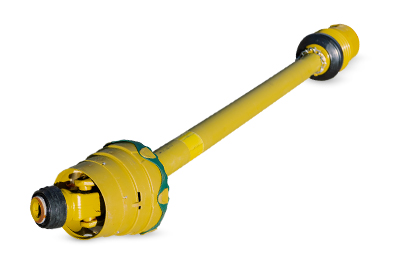

OPTION : Wide Angle PTO
OPTION : Wide Angle PTO
OPTION : Wide Angle PTO

For continuous operation when turning corners a wide angle PTO shaft is recommended.

British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

A superior finish
A superior finish
A superior finish

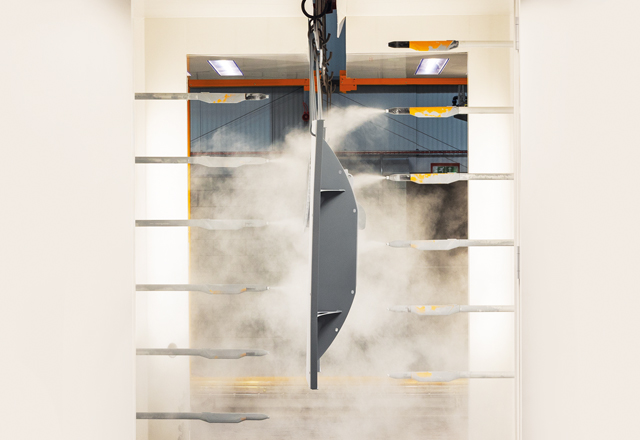

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

Highway Safety
Highway Safety
Highway Safety

All of our trailed implements are manufactured in accordance with In Homologation certification according Article 35 of Regulation (EU) No. 167/2013.

Maximise Profitability
Maximise Profitability
Maximise Profitability

Reduces time and effort compared to bedding by hand. Evenly spread a bales in bedding areas to reduce straw usage and provide a comfortable and absorbent bed for cleaner healthier livestock.

Highlights
Features
Options
Overview
Tomahawk 1010 features
Driveline Protection
Driveline Protection
Driveline Protection

For driveline protection a slip clutch is fitted as standard on the Walterscheid PTO shaft.

Extending Tailgate
Extending Tailgate
Extending Tailgate

As standard, the 1010 is fitted with an extending tailgate that slides out to increase bale capacity.

Gear Change
Gear Change
Gear Change

All Tomahawk models feature a high specification gearbox, with high/low fan speeds with pre-selector.

High Specification Bed
High Specification Bed
High Specification Bed

Massive 14mm bed chain and 40mm x 80mm slats are fitted as standard for durability. Servicing is straigthforward with slats attached to the chains with 'U' Bolts,

Oil Filter
Oil Filter
Oil Filter

In-line high pressure filter prevents contamination from damaging the valve equipment.

Road Lights & Mudguards
Road Lights & Mudguards
Road Lights & Mudguards

Essential for highway use, the front and rear markers ensure that you operate safely when travelling on the road.

Swivel Chute
Swivel Chute
Swivel Chute

For flexibility of delivery, the chute rotates 280° allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.

Tailgate Switch
Tailgate Switch
Tailgate Switch

Load bales without having to return to the tractor cab, useful when removing netting or wrap.

Highlights
Features
Options
Overview
Tomahawk 1010 options
OPTION : Air Brakes
OPTION : Air Brakes
OPTION : Air Brakes

For safe operation on highways the 1010 is available with an Air Brake option.

OPTION : Bale Lift Plates
OPTION : Bale Lift Plates
OPTION : Bale Lift Plates

Raise material in the rear of the chamber above the bed chain (via WiFi control) to allow bales to be processed more efficiently.

OPTION : Central Lubrication
OPTION : Central Lubrication
OPTION : Central Lubrication

Auto chain order (crossbeater drive) is recommended for high-use operations.

OPTION : Hitch Specification
OPTION : Hitch Specification
OPTION : Hitch Specification

Ring or K80 hitches can be specified.

OPTION : Hydroshield - Dust Suppression
OPTION : Hydroshield - Dust Suppression
OPTION : Hydroshield - Dust Suppression

Reduce respirable dust by up to 40% with our Hydroshield water spray system. An onboard tank and 5 high pressure spray nozzles.

OPTION : Side Chute
OPTION : Side Chute
OPTION : Side Chute

Deliver only to the right hand side, with slightly greater blow distance than the swivel chute. Discharge height is lower for easier access to buildings. Chute can be raised or lowered as required.

OPTION : Side Extensions
OPTION : Side Extensions
OPTION : Side Extensions

For extra capacity or improved containment of material.

OPTION : Ski Jump Chute
OPTION : Ski Jump Chute
OPTION : Ski Jump Chute

The optional ‘Ski Jump Chute’ complete with adjustable comb and extended beak is perfect for bedding pig arcs and mulching fruit trees.

OPTION : Swivel chute extension
OPTION : Swivel chute extension
OPTION : Swivel chute extension

To deliver material behind the Tomahawk 9500 and 1010 the optional 300mm swivel chute extension is required.

OPTION : Wide Angle PTO
OPTION : Wide Angle PTO
OPTION : Wide Angle PTO

For continuous operation when turning corners a wide angle PTO shaft is recommended.

Highlights
Features
Options
Overview
Tomahawk 1010 overview
British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

Highway Safety
Highway Safety
Highway Safety

All of our trailed implements are manufactured in accordance with In Homologation certification according Article 35 of Regulation (EU) No. 167/2013.

Maximise Profitability
Maximise Profitability
Maximise Profitability

Reduces time and effort compared to bedding by hand. Evenly spread a bales in bedding areas to reduce straw usage and provide a comfortable and absorbent bed for cleaner healthier livestock.

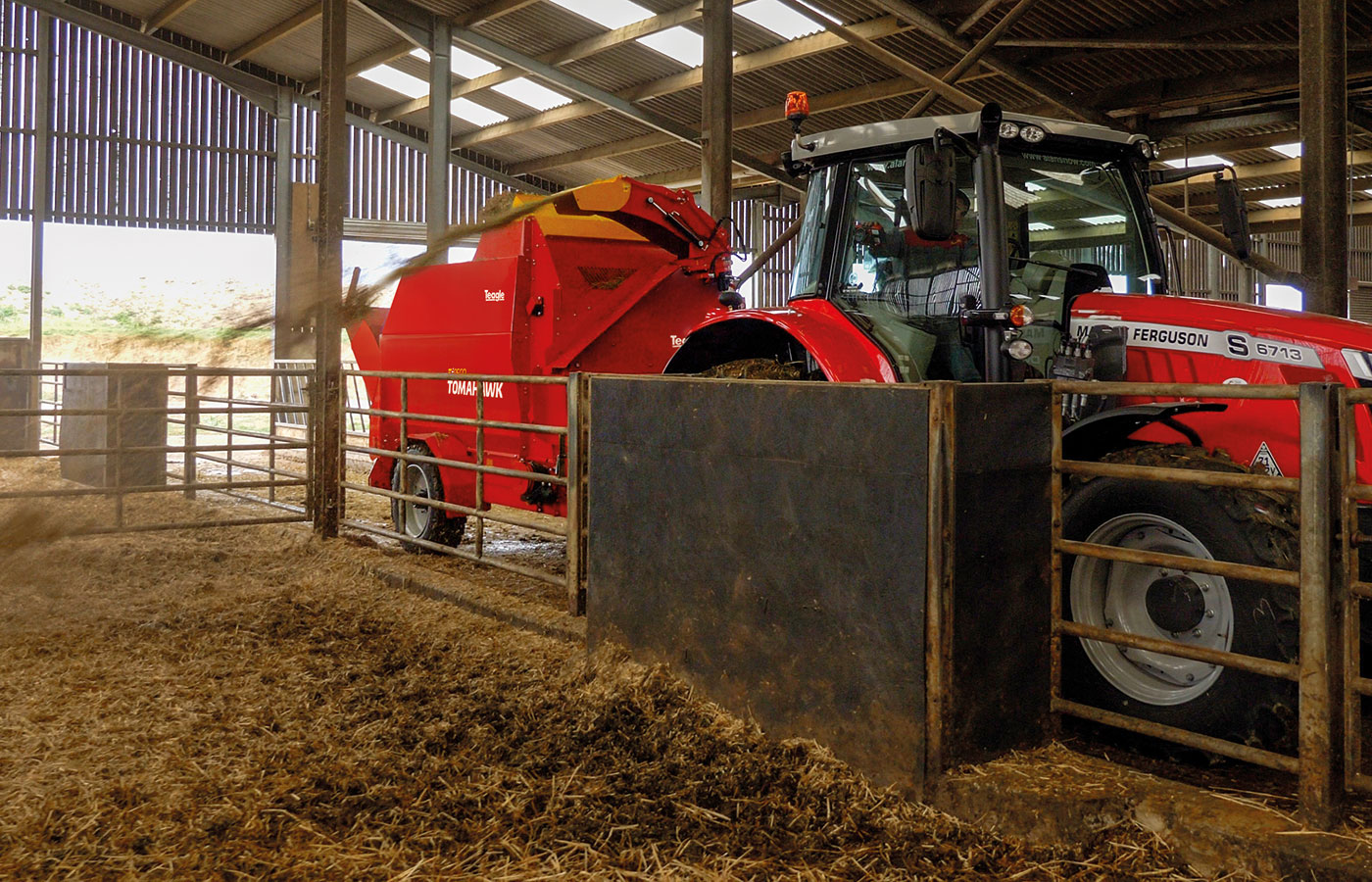

Watch the Tomahawk 1010 in action

Tomahawk Box Range

Keys to profitability

Why do farmers buy straw blowers?

How often an operator beds down, and how much straw they use, will determine the amount of time and straw saved. In every case there will be an improvement in livestock heath and cleanliness if the correct machine is used, particularly with a little and often bedding strategy.

Also consider convenience, reduced risk by not entering the pen, and improved manure quality.

How does a straw blower save straw?

Bales are efficiently broken apart and spread evenly over the bedding area. Straw is lightly bruised to make it absorbent, but not chopped short. Long straw provides structure in the bed. If you only need a part bale for a pen, no problem, save the rest of the bale for another area.

Specifications

Description
1010
1010SC
Chute
Side
Swivel
Dual Chop
No
No
Silage
Yes***Yes***
StrawYesYes
Crossbeaters
2
2
Capacity (m³)
10.0
10.0
No. of 5' round bales
3***
3***
No. of 8’ rect' bales (4’x 2’6”/ 4’x4’)
4/2
4/2
Bale chamber (tailgate down) W x H x L
1.70 x 1.58m x 5.70m
1.70 x 1.58m x 5.70m
Blow distance (max.)
25m
22m
Tractor power (min.)
80HP / 60kW
80HP / 60kW
PTO speed1,000 rpm
1,000 rpm
Overall width (chute closed)
2.42m
2.42m
Overall length (tailgate up)
6.17m
6.17m
Overall length (tailgate/bale clamp down)
7.96m
7.96m
Overall height (chute closed)
2.93m
2.93m
Unladen Weight
3,580kg
3,590kg
Tyre size
385/55 R22.5
305/55 R22.5
Oil flow rate (min-max) (l/min)
35 - 60
35 - 60
More

Designed and built for you

Operators benefit daily from our experience in designing and manufacturing Bale Processors that deliver on performance and reliability.
