Working Width
Working Width 2.0m - 2.5m
Tractor
Power 120 - 250HP
PTO
PTO 1000 rpm
Hammer
Hammer 'XF' Type
Weight
Weight 2,000 - 2,760kg

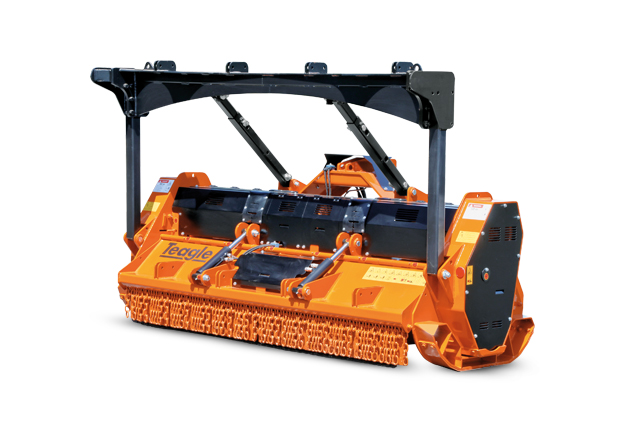

The EFX/DT Mulcher

For mulching uncultivated vegetation, scrub, bushes, gorse trees, branches, trunks and plants up to Ø 35 cm.

Key Benefits:

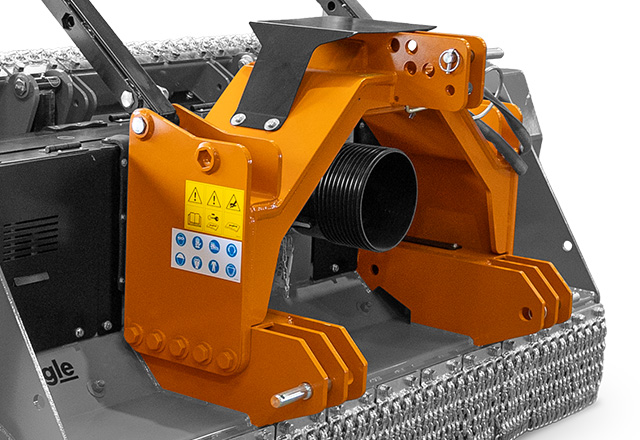

  • Fixed 3-point linkage, Cat. II-III
  • Hydraulic adjusting of rear hood
  • Gearbox with single free wheel and 1"- 3/4 Z6 input shaft
  • Full automatic belts adjuster
  • Height adjustable skids of anti-wearing Hardox steel
  • Double belts transmission
  • Counter blades (plus bolted)
  • 1000 rpm only
  • Ø 520 Forestry fixed tooth rotor
  • Guard/Push Frame (manually operated standard)

Explore the EFX/DT

Features
Options
EFX/DT features

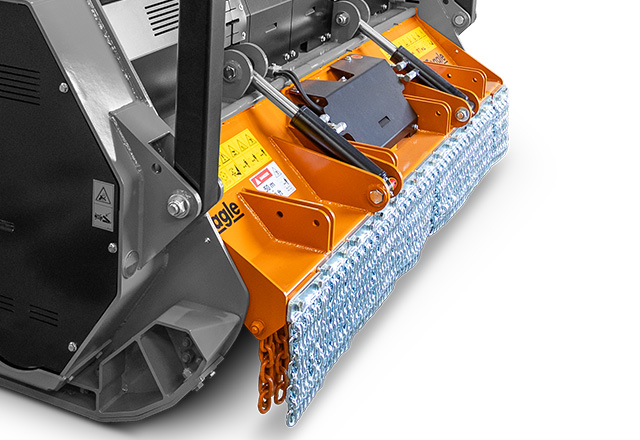

Adjustable hydraulic Hood
Adjustable hydraulic Hood
Adjustable hydraulic Hood

For improved mulching performance the adjustable hood can be set to release or contain material as required.

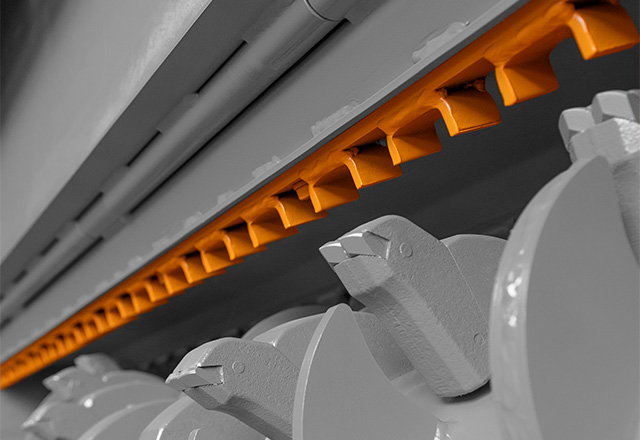

Counter Blades
Counter Blades
Counter Blades

For improved mulching performance, a number of counter blades are fitted for a finer mulch.

Debris Protection
Debris Protection
Debris Protection

Swinging steel flaps and chains are fitted to the front and back of the machine to prevent debris exiting.

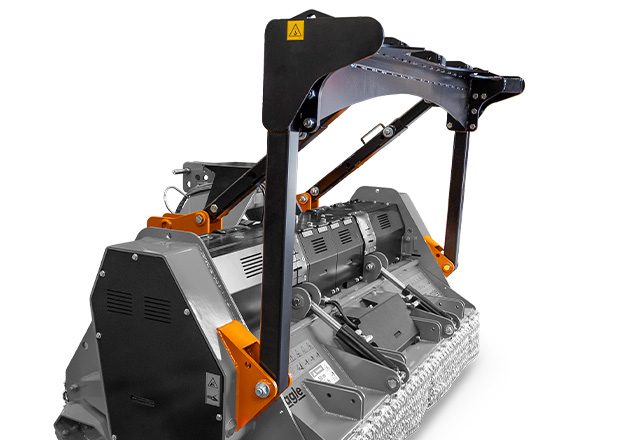

Guard / Push Frame
Guard / Push Frame
Guard / Push Frame

Manual push frames make easy work of preparing material to enter the rotor.

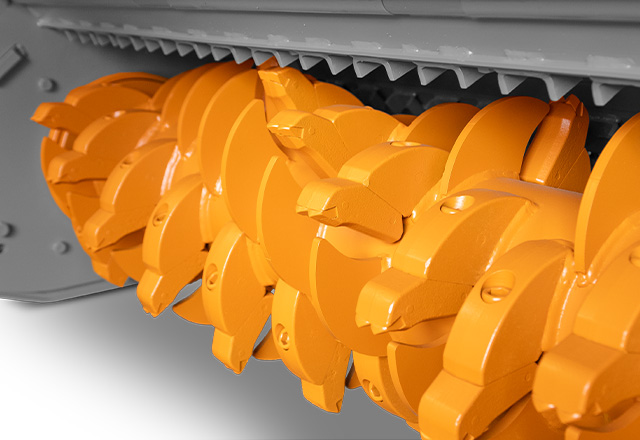

High Performance Rotors
High Performance Rotors
High Performance Rotors

The large diameter ø440 and ø520 dynamically balanced rotor delivers a market leading tip speed, as well as strength in operation.

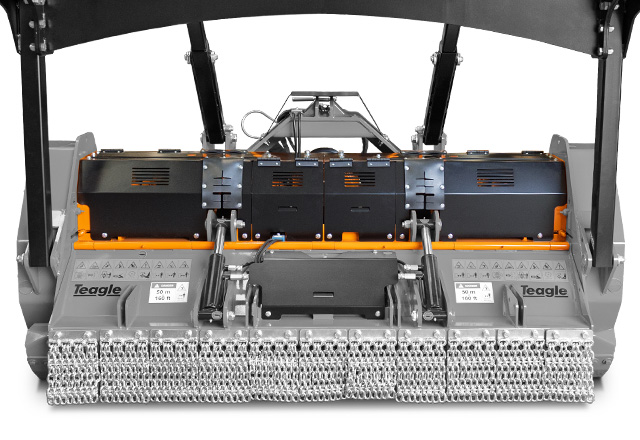

Lateral transmission
Lateral transmission
Lateral transmission

Power transfer achieved through large gearbox with single free wheel and lateral universal driveline takes the power to double transmission belts.

OPTION : Hydraulic Push Frame
OPTION : Hydraulic Push Frame
OPTION : Hydraulic Push Frame

Hydraulic push frames make easy work of preparing material to enter the rotor.

Features
Options
EFX/DT options
OPTION : Hydraulic Push Frame
OPTION : Hydraulic Push Frame
OPTION : Hydraulic Push Frame

Hydraulic push frames make easy work of preparing material to enter the rotor.

Watch the FLAIL mowers in action

Dual Flail Mower

1. Robust Body
The double skinned body incorporates Strenx high performance steel  in the second skin and Hardox is used in the skids for greater durability.  The body is shot blasted and protected with a high quality paint finish.

2. High Quality Driveline
Strong Waltersheid PTO shafts provide effective power transfer to the high quality large gearbox for trouble free operation.

3. Automatic Belt Tension
The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

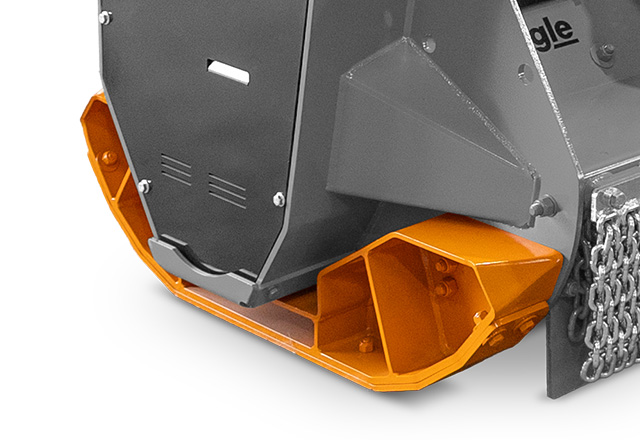

4. Side skids
Side skids fitted for height adjustment with anti-wearing Hardox wear plates.

Specifications

More
Description
EFX/DT 200EFX/DT 220
EFX/DT 250
Working width
2.0m2.2m2.5m
Power - min/max
120/250HP130/250HP130/250HP
No. of 'XF' hammers
444854
No. of belts
5 + 55 + 5
5 + 5
Lateral displacement (mm)1000/10001100/11001250/1250
PTO
1000 rpm1000 rpm
1000 rpm
Overall height1.23m1.23m
1.23m
Overall length2.50m2.70m
2.90m
Overall width1.30m1.30m
1.30m
Weight - min/max
2,000/2,350kg2,140/2,510kg
2,380/2,760kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
